Add User Call Tips to Scite for extra UDFs


  • Please log in to reply
10 replies to this topic

#1 martin

martin

    ~~\o/~~~/0\=¬''~~~

  • MVPs
  • 7,321 posts

Posted 05 May 2008 - 12:11 PM

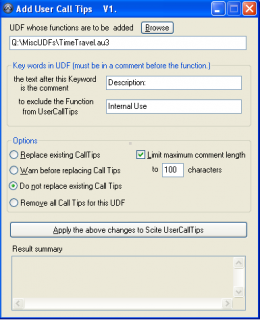

Thanks to a post by JamesB I discovered adding User Call Tips was possible. This script does it for you so you can add ToolTips for functions that are not included with AutoIt, and could even be for your own functions in the script you are working on. The toolTips can be updated or removed at any time.

Updates are shown as comments at start of script.

Plain Text
; AddCallTips.au3   ;automates adding User Call Tips to SciTE. See SciTE help for User Call Tips.   Const $version = "V1.5" ;version changes ;1.5 Allowed for having functions in UDF which must not be given Call Tips. Useful for internal functions. ;1.4 rewote functions UpdateCallTips and replaceUCT ;1.31 Removed \V at start of search patter for StringREgExpr/Replace ;1.3 Improved matching function names so if parameters have been changed update still works etc. ;1.2 Added warnings for invalid files, too few comment chars and no Key Word for comments. ;   Rearranged things a bit to improve readabilty. Simplified some things. ;1.1 change default folder to last folder used for fileopendialog {Bowmore} ;   made folder for backups and added numbered backups   ;next line only used when developing the script ;#AutoIt3Wrapper_Au3Check_Parameters=-d -w 1 -w 2 -w 3 -w 4 -w 5 -w 6     #include <EditConstants.au3>   #include <GUIConstantsEx.au3>   #include <WindowsConstants.au3>     #Region ### START Koda GUI section ###   $Form2 = GUICreate("Add User Call Tips", 380, 443, 303, 219)   $Label1 = GUICtrlCreateLabel("UDF whose functions are to be  added", 12, 8, 187, 17)   $IpUDFpath = GUICtrlCreateInput("", 12, 27, 351, 21)   $BtnBrowse = GUICtrlCreateButton("&Browse", 206, 5, 50, 20, 0)   $BtnApply = GUICtrlCreateButton("&Apply the above changes to Scite UserCallTips", 12, 301, 353, 25, 0)   $Group1 = GUICtrlCreateGroup("Options", 8, 175, 362, 113)   $ChkCommentLimit = GUICtrlCreateCheckbox("&Limit maximum comment length", 200, 194, 163, 17)   GUICtrlSetState(-1, $GUI_CHECKED)   $RadioReplaceAll = GUICtrlCreateRadio("&Replace existing CallTips", 12, 194, 137, 17)   $RadioReplaceWarn = GUICtrlCreateRadio("&Warn before replacing Call Tips", 12, 217, 169, 17)   $RadioReplaceNone = GUICtrlCreateRadio("Do &not replace existing Call Tips", 11, 240, 170, 17)   GUICtrlSetState(-1, $GUI_CHECKED)   $InputMaxChar = GUICtrlCreateInput("80", 238, 215, 32, 21)   $Label4 = GUICtrlCreateLabel("characters", 276, 218, 54, 17)   $ChkShowSummary = GUICtrlCreateCheckbox("&Show result summary", 200, 265, 145, 17)   GUICtrlSetState(-1, $GUI_CHECKED)   GUICtrlSetState(-1, $GUI_HIDE)   $Label5 = GUICtrlCreateLabel("", 189, 184, 1, 99)   GUICtrlSetBkColor(-1, 0xD4D0C8)   $Label7 = GUICtrlCreateLabel("to", 223, 217, 13, 17)   $RadioRemoveAll = GUICtrlCreateRadio("Remo&ve all Call Tips for this UDF", 12, 265, 174, 17)   GUICtrlCreateGroup("", -99, -99, 1, 1)   $EdResults = GUICtrlCreateEdit("", 15, 352, 347, 81, BitOR($ES_AUTOVSCROLL, $ES_AUTOHSCROLL, $ES_READONLY, $ES_WANTRETURN, $WS_HSCROLL, $WS_VSCROLL))   $LabResSummary = GUICtrlCreateLabel("Result summary", 16, 335, 78, 17)   $Group2 = GUICtrlCreateGroup("Key words in UDF (must be in a comment before the function.)", 8, 64, 362, 97)   $Key = GUICtrlCreateLabel("the text after this Keyword", 18, 84, 126, 17)   $Label6 = GUICtrlCreateLabel("to exclude the Function", 25, 117, 115, 17)   $Label8 = GUICtrlCreateLabel(" from UserCallTips", 28, 132, 89, 17)   $IpKeyDescription = GUICtrlCreateInput("Description:", 155, 86, 201, 21)   $IpKeyExclude = GUICtrlCreateInput("Internal Use", 155, 121, 201, 21)   $Label2 = GUICtrlCreateLabel("is the comment", 28, 97, 75, 17)   GUICtrlCreateGroup("", -99, -99, 1, 1)   GUISetState(@SW_SHOW)   #EndRegion ### END Koda GUI section ###     WinSetTitle($Form2, "", "Add User Call Tips   " & $version)   Const $ReplaceNone = 0   Const $ReplaceAll = 1   Const $ReplaceWarn = 2   Const $RemoveAll = -1     Global $iniFile = @ScriptDir & "\UserCallTips.ini"   Global $SavedKWDesc = IniRead($iniFile, "Keywords", "UserCallTip", "Description:"), $KWDesc   Global $SavedKWExclude = IniRead($iniFile, "Keywords", "Exclude", "Internal Use"), $KWExclude   Global $lastfile = IniRead($iniFile, "Keywords", "LastFile", "")   Global $lastCTCommentLimit = IniRead($iniFile, "Keywords", "MaxComment", 100)   Global $lastFolder = StringLeft($lastfile, StringInStr($lastfile, '\', 0, -1))     GUICtrlSetData($IpUDFpath, $lastfile)   GUICtrlSetData($IpKeyDescription, $SavedKWDesc)   GUICtrlSetData($InputMaxChar, $lastCTCommentLimit)   If StringInStr($lastfile, '\') Then       $lastFolder = StringLeft($lastfile, StringInStr($lastfile, '\', 0, -1))   EndIf     Global $nMsg, $file   While 1       $nMsg = GUIGetMsg()       Switch $nMsg           Case $GUI_EVENT_CLOSE               Exit           Case $ChkCommentLimit               HideOrShowCommentLimit(GUICtrlRead($ChkCommentLimit) = $GUI_UNCHECKED)           Case $BtnBrowse               $file = FileOpenDialog("Select the UDF", $lastFolder, "AutoIt File (*.au3)", 3)               GUICtrlSetData($IpUDFpath, $file)           Case $BtnApply               If Not ApplyChanges() Then GUICtrlSetData($EdResults, "No action taken")                     EndSwitch   WEnd   ;ApplyChanges ;returns true if changes made otherwise it returns false   Func ApplyChanges()       Local $CTresult, $UDFfile, $CallTipCommentLimit, $opt         If GUICtrlRead($IpKeyDescription) = '' Then           If WarningA(262144 + 4, "WARNING", "You have no Key Word for comments." & @CRLF & " No Comments will be added." & @CRLF _                    & "Do you wish to proceed?", $IpKeyDescription) <> 6 Then Return False       EndIf                       $UDFfile = GUICtrlRead($IpUDFpath)       If $UDFfile = '' Or Not FileExists($UDFfile) Then           If WarningA(262144, "ERROR", "You must enter a valid AU3 script!", $IpUDFpath) <> 6 Then Return False       EndIf         GUICtrlSetData($EdResults, "")       $KWDesc = GUICtrlRead($IpKeyDescription)       $KWExclude = GUICtrlRead($IpKeyExclude)         If GUICtrlRead($RadioReplaceAll) = $GUI_CHECKED Then           $opt = $ReplaceAll       ElseIf GUICtrlRead($RadioReplaceWarn) = $GUI_CHECKED Then           $opt = $ReplaceWarn       ElseIf GUICtrlRead($RadioRemoveAll) = $GUI_CHECKED Then           $opt = $RemoveAll       Else           $opt = $ReplaceNone;do not replace any       EndIf             If $opt <> $RemoveAll Then;a new Call Tip could be written           If GUICtrlRead($ChkCommentLimit) = $GUI_CHECKED Then               $CallTipCommentLimit = GUICtrlRead($InputMaxChar)               If $CallTipCommentLimit < 40 Then                   If WarningA(262144 + 4, "WARNING", "You have set fewer than 40 characters for comments." & @CRLF _                            & "Do you wish to proceed?", $InputMaxChar) <> 6 Then Return False               EndIf           Else               $CallTipCommentLimit = 0;0 means no maximum           EndIf       EndIf         If $opt = $RemoveAll Then           If MsgBox(262144 + 4, "Confirm", "Do you want to remove all the Call Tips for " & _                   @CRLF & $UDFfile & "?") <> 6 Then Return False       EndIf         $CTresult = UpDateCallTips($UDFfile, $KWDesc, $opt, $CallTipCommentLimit)       GUICtrlSetData($EdResults, $CTresult) ;MsgBox(262144, "Reult", $CTresult)       If $SavedKWDesc <> $KWDesc Then           If MsgBox(262144 + 4, "Key word for Description changed to '" & $KWDesc & "'", "Do yu want to save the new keyword for next time?") = 6 Then               IniWrite($iniFile, "Keywords", "UserCallTip", $KWDesc)           EndIf       EndIf             If $SavedKWExclude <> $KWExclude Then           If MsgBox(262144 + 4, "Key word for Exclusion has changed to '" & $KWExclude & "'", "Do yu want to save the new keyword for next time?") = 6 Then               IniWrite($iniFile, "Keywords", "Exclude", $KWExclude)           EndIf       EndIf             IniWrite($iniFile, "Keywords", "LastFile", GUICtrlRead($IpUDFpath))       If $CallTipCommentLimit <> $lastCTCommentLimit Then           IniWrite($iniFile, "Keywords", "MaxComment", $CallTipCommentLimit)           $lastCTCommentLimit = $CallTipCommentLimit       EndIf             Return True   EndFunc;==>ApplyChanges       Func HideOrShowCommentLimit($dohide)       Local $hidestate = $GUI_SHOW       If $dohide Then $hidestate = $GUI_HIDE             GUICtrlSetState($Label4, $hidestate)       GUICtrlSetState($Label7, $hidestate)       GUICtrlSetState($InputMaxChar, $hidestate)   EndFunc;==>HideOrShowCommentLimit       Func UpDateCallTips($udf, $CallTipKeyword, $mode, $maxComment)       Local $sCT, $fudf, $CallTipComment = '', $Func = '', $s2       Local $sect, $line, $fw, $CTadded = 0, $CTdoneBefore = 0, $CTreplaced = 0, $CTremoved = 0       Local $AutoItProdexePath = RegRead("HKEY_LOCAL_MACHINE\SOFTWARE\AutoIt v3\AutoIt", "InstallDir")       Local $UCTFile = $AutoItProdexePath & "\Scite\api\au3.user.calltips.api"       Local $result, $backupNum, $backPath, $fnName, $ArraysCT       Local $Usemode               $sCT = FileRead($UCTFile)       $ArraysCT = StringSplit(StringReplace($sCT, @CR, ''), @LF)       $fudf = FileOpen($udf, 0)             While 1           $line = FileReadLine($fudf)           If @error <> 0 Then ExitLoop                               $line = StringStripWS($line, 3)           If StringLeft($line, 1) = ';' Then;it's a comment line so see if it's got the Call Tip in it               $sect = StringLeft(StringStripWS(StringRight($line, StringLen($line) - 1), 1), StringLen($CallTipKeyword))               If $sect = $CallTipKeyword Then;yes found Call Tip key word so strip out the Call Tip                   $CallTipComment = StringRight($line, StringLen($line) - StringInStr($line, $CallTipKeyword) - StringLen($CallTipKeyword))                   $CallTipComment = StringStripWS($CallTipComment, 3)                   If $maxComment > 0 Then $CallTipComment = StringLeft($CallTipComment, $maxComment)               EndIf               If StringInStr($line, $KWExclude)  And $mode <> $ReplaceNone Then                   $Usemode = $RemoveAll               Else                   $Usemode = $mode               EndIf                         EndIf           ;look for functions           If StringLeft($line, 5) = 'Func ' Then               $Func = getfunc($line);get the function name with parameter details ;$sline includes the parameters, but these could change so we must only look for ;     the fn name preceded by any number of spaces and followed by any number of spaces then '('               $fnName = StringStripWS(StringLeft($Func, StringInStr($Func, '(') - 1), 3)                 replaceUCT($fnName, $ArraysCT, $Func & $CallTipComment, $Usemode, $CTadded, $CTdoneBefore, $CTreplaced, $CTremoved)                         EndIf                     If StringLeft($line, 7) = 'EndFunc' Then $CallTipComment = ''                           WEnd       FileClose($fudf)             If $CTreplaced + $CTremoved + $CTadded > 0 Then;if a change made ;backup calltips file before changing it           $backupNum = 1           $backPath = $AutoItProdexePath & "\Scite\api\BAKs\"           If Not FileExists($backPath) Then               DirCreate($backPath)           EndIf                     While FileExists($backPath & "BAK" & $backupNum & "au3.user.calltips.api")               $backupNum += 1           WEnd           FileCopy($AutoItProdexePath & "\Scite\api\au3.user.calltips.api", $backPath & "BAK" & $backupNum & "au3.user.calltips.api")           $fw = FileOpen($UCTFile, 2)           For $n = 1 To UBound($ArraysCT) - 1               If StringStripWS($ArraysCT[$n], 3) <> '' Then FileWriteLine($fw, $ArraysCT[$n])           Next                     FileClose($fw)       EndIf       $result &= "Call Tip changes" & @CRLF       If $CTadded > 0 Then                     $result &= $CTadded & ' added.' & @CRLF       Else           $result = "No User Call Tips were added!" & @CRLF       EndIf       If $CTdoneBefore > 0 Then           $s2 = ' function was'           If $CTdoneBefore > 1 Then $s2 = ' functions were'           $result &= $CTdoneBefore & $s2 & ' already included.' & @CRLF       EndIf       If $CTreplaced > 0 Then           $s2 = ' function was'           If $CTreplaced > 1 Then $s2 = ' functions were'           $result &= $CTreplaced & $s2 & ' replaced.' & @CRLF       EndIf       $result &= @CRLF       If $CTremoved > 0 Then           $result &= $CTremoved & " removed" & @CRLF       Else           $result &= "No call tips removed"       EndIf       Return $result         EndFunc;==>UpDateCallTips   ;Returns the function name and parameters from the line without the preceding "Func" text   Func getfunc($sf)       Local $sm, $spos, $lBracket = 0, $rBracket = 0, $endfunc = 0       $sf = StringReplace($sf, "Func ", '')       For $spos = 1 To StringLen($sf)           $sm = StringMid($sf, $spos, 1)           Switch $sm               Case '('                   $lBracket += 1               Case ')'                   $rBracket += 1           EndSwitch                     If $lBracket > 0 And $lBracket = $rBracket Then               $endfunc = $spos               ExitLoop           EndIf       Next       If $endfunc > 0 Then Return StringLeft($sf, $endfunc)       SetError(-1)       Return ''         EndFunc;==>getfunc   ;Replace the line beginning with $sline in $sText with $NewUCT   Func replaceUCT($sline, ByRef $sText, $NewUCT, $repMode, ByRef $PCTadded, ByRef $PCTdoneBefore, ByRef $PCTreplaced, ByRef $PCTremoved)       Local $n       For $n = 1 To UBound($sText) - 1           If StringRegExp($sText[$n], "(?i)\h*\Q" & $sline & "\E\h*\(") Then               $PCTdoneBefore += 1               Switch $repMode                   Case $RemoveAll                       $sText[$n] = '';$NewUCT                       $PCTremoved += 1                   Case $ReplaceNone ;already included so do nthing                   Case $ReplaceAll                       $sText[$n] = $NewUCT                       $PCTreplaced += 1                   Case $ReplaceWarn                       If MsgBox(262144 + 4, "Confirmation", "Replace the call tip for function" & @CRLF & $sline & ' ?') <> 6 Then Return                       $sText[$n] = $NewUCT                       $PCTreplaced += 1               EndSwitch               Return;found and actioned so job done             EndIf                 Next ;haven't found the function so what do we do?       Switch $repMode           Case $RemoveAll               Return           Case $ReplaceAll, $ReplaceNone               $PCTadded += 1               $n = UBound($sText)               ReDim $sText[$n + 1]               $sText[$n] = $NewUCT       EndSwitch         EndFunc;==>replaceUCT     Func WarningA($Wtype, $WTitle, $WMessage, $WID, $thenFocus = True)       Local $result       GUICtrlSetBkColor($WID, 0xff3300)       $result = MsgBox($Wtype, $WTitle, $WMessage)       Sleep(500)       GUICtrlSetBkColor($WID, 0xffffff)       If $thenFocus Then GUICtrlSetState($WID, $GUI_FOCUS)       Return $result   EndFunc;==>WarningA

mgrefCallTips

Edited by martin, 15 May 2009 - 10:05 PM.

  • mLipok and hiepxuan2008 like this
Serial port communications UDF Includes functions for binary transmission and reception.printing UDF Useful for graphs, forms, labels, reports etc.Add User Call Tips to SciTE for functions in UDFs not included with AutoIt and for your own scripts.Functions with parameters in OnEvent mode and for Hot Keys One function replaces GuiSetOnEvent, GuiCtrlSetOnEvent and HotKeySet.UDF IsConnected2 for notification of status of connected state of many urls or IPs, without slowing the script.







#2 Bowmore

Bowmore

    Feinschmecker

  • Active Members
  • PipPipPipPipPipPip
  • 833 posts

Posted 05 May 2008 - 01:58 PM

Thanks to a post by JamesB I discovered adding User Call Tips was possible. This script does it for you.


Thanks Martin for another very useful and well written utility that makes coding AutoIt even more enjoyable. I had been using user call tips previously but it was a bit of a chore remembering to add the relevent infromation to the file for my personal UDF libraries This makes it so simle.

One very minor suggestion, seeing as you are already using an ini file, it would enhance the user experience if the folder of the previously processed was saved after each file is processed and used as the initial folder for FileOpenDialog(). I think most users would keep the custom UDF in a the same folder.
"Programming today is a race between software engineers striving to build bigger and better idiot-proof programs, and the universe trying to build bigger and better idiots. So far, the universe is winning."- Rick Cook

#3 martin

martin

    ~~\o/~~~/0\=¬''~~~

  • MVPs
  • 7,321 posts

Posted 05 May 2008 - 02:20 PM

Thanks Martin for another very useful and well written utility that makes coding AutoIt even more enjoyable. I had been using user call tips previously but it was a bit of a chore remembering to add the relevent infromation to the file for my personal UDF libraries This makes it so simle.

One very minor suggestion, seeing as you are already using an ini file, it would enhance the user experience if the folder of the previously processed was saved after each file is processed and used as the initial folder for FileOpenDialog(). I think most users would keep the custom UDF in a the same folder.


Thanks for your comments Bowmore.

I have applied your suggestion, I had made it open in the script folder but your idea is more sensible.
I also improved the backing up bit and added a version ref in the title bar.
Serial port communications UDF Includes functions for binary transmission and reception.printing UDF Useful for graphs, forms, labels, reports etc.Add User Call Tips to SciTE for functions in UDFs not included with AutoIt and for your own scripts.Functions with parameters in OnEvent mode and for Hot Keys One function replaces GuiSetOnEvent, GuiCtrlSetOnEvent and HotKeySet.UDF IsConnected2 for notification of status of connected state of many urls or IPs, without slowing the script.

#4 James

James

    Universalist

  • MVPs
  • 10,264 posts

Posted 05 May 2008 - 02:27 PM

No problem Martin :)

I like this, very useful indeed!

#5 martin

martin

    ~~\o/~~~/0\=¬''~~~

  • MVPs
  • 7,321 posts

Posted 24 May 2008 - 10:45 AM

Updated first post so that you can have a keyword in the UDF comments which excludes the function from the list of call tips. This might be useful if you have internal functions for example for which you do not want call tips.
Serial port communications UDF Includes functions for binary transmission and reception.printing UDF Useful for graphs, forms, labels, reports etc.Add User Call Tips to SciTE for functions in UDFs not included with AutoIt and for your own scripts.Functions with parameters in OnEvent mode and for Hot Keys One function replaces GuiSetOnEvent, GuiCtrlSetOnEvent and HotKeySet.UDF IsConnected2 for notification of status of connected state of many urls or IPs, without slowing the script.

#6 BrettF

BrettF

    My Drunk Monkey Guerilla is gonna getcha!

  • MVPs
  • 7,662 posts

Posted 24 May 2008 - 01:11 PM

How did I not see this. Very nice! :)

#7 ludocus

ludocus

    Possibly inventive crap going on right here

  • Active Members
  • PipPipPipPipPipPip
  • 668 posts

Posted 24 May 2008 - 02:38 PM

Very nice, Love it!

#8 seesoe

seesoe

    Prodigy

  • Active Members
  • PipPipPip
  • 152 posts

Posted 02 April 2009 - 04:17 PM

is this still working?

#9 martin

martin

    ~~\o/~~~/0\=¬''~~~

  • MVPs
  • 7,321 posts

Posted 09 April 2009 - 04:04 PM

is this still working?


AFAIK.
What problem do you have?
Serial port communications UDF Includes functions for binary transmission and reception.printing UDF Useful for graphs, forms, labels, reports etc.Add User Call Tips to SciTE for functions in UDFs not included with AutoIt and for your own scripts.Functions with parameters in OnEvent mode and for Hot Keys One function replaces GuiSetOnEvent, GuiCtrlSetOnEvent and HotKeySet.UDF IsConnected2 for notification of status of connected state of many urls or IPs, without slowing the script.

#10 Andrew Peacock

Andrew Peacock

    Wayfarer

  • Active Members
  • Pip
  • 85 posts

Posted 15 December 2009 - 11:37 PM

Hi,
Any chance you could explain a bit about how to use this please?

Here's what I'm trying:

1. Compile your script to an exe, and run it
2. Press "Browse" and navigate to the script I'm working on, which includes the following:

#cs Description: Run Bookmarks Post a URL details to the various bookmarking sites #ce func runBookmark($bookmarkDetails)     ; Do stuff endfunc


3. Press "Apply the above changes.... " button

I get the response:

"No User Call Tips were added!
No call tips removed"

Any ideas?

Regards,
Andy

#11 Syed23

Syed23

    Mass Spammer! - It's Me

  • Active Members
  • PipPipPipPipPipPip
  • 544 posts

Posted 08 September 2011 - 02:51 PM

Hi Martin,
Thanks for this great script. But i am having some dificulty on using could you please help me?

1. I have my own UDF with 2 functions in Include folder.
2. i ran the script and browsed my UDF.
3. clicked on "Apply the above changes " button and i got the result:
2 call tips added
4. i restarted the Scite.
5. Typed the function name on scite page to get the function call tip but i didnot. could you tell me what i am doing wrong.
Thank you,Regards,K.Syed Ibrahim.
