"IsChecked" not working

[thanhlam]

Hi, I try to use AutoIt to control a soft I have written in C# 4.0.
I can start, stop the software, change the state of the checkbox.

• Something strange to uncheck the check box:


  ; check the checkbox (working fine)
  ControlCommand($win, "", $checkbox, "Check", "")

  ; uncheck the checkbox (NOT WORKING)
  ControlCommand($win, "", $checkbox, "UnCheck", ""

  ; uncheck the checkbox (working)
  ControlCommand($win, "", $checkbox, "Check", "")

• Unfortunately I did not managed to get the check box status using :


  $res = ControlCommand($win, "", $checkbox, "IsChecked", "")​

[thanhlam]

How can I add a 7z with the content of the script and a test program in C#4.0 to illustrate my post ?

[michaelslamet]

This might doesn't help, but do you notice that you lack a ")" at the end of non-working checkbox line?

[thanhlam]

Hi,

thanks for replying but this is only a copy/paste error, that's why I wanted to attach an archive with my sample but I did not find how to upload the archive.

[saudumm]

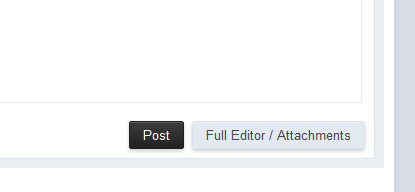

You can attach a file using the full editor.

[thanhlam]

Hi Saudumm,

Could you be more specific in how to attach the file ? I trye to use "My media" but it propose only to select content that have been uploaded. I found no way to upload a file

[saudumm]

Hi Saudumm,

Could you be more specific in how to attach the file ? I trye to use "My media" but it propose only to select content that have been uploaded. I found no way to upload a file

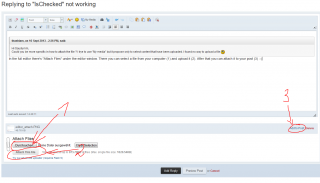

In the full editor there's "Attach Files" under the editor window. There you can select a file from your computer (1) and upload it (2). After that you can attach it to your post (3) :-)

[thanhlam]

Thanks for your help Saudumm,

but even in the full editor, just under the textbox I immediately have the "Add Reply, Preview Post or Cancel" line.

There is nothing in between that would allow me to attach a file (sorry I cannot attach a screenshot to show you  )

There must be a setting somewhere that prevent me from adding files (I just created my account today).

Regards

[somdcomputerguy]

There's probably a new user post count that must be met to allow files to be uploaded. You should post all of your au3 code to get better help.

[saudumm]

Maybe this option isn't available for new members. This is my 8. post but I'm registered since 2011  and I'm a normal member.

Could you upload your file to Dropbox or something else and share the link?

[thanhlam]

Here is the link to the visual studio project in C# and the test.au3

https://www.dropbox.com/s/fqy75h0qdbou3et/test.7z

Here is the code of test.au3.

$path = "WindowsFormsApplication1WindowsFormsApplication1binDebug"

$bin = "WindowsFormsApplication1.exe"

$soft = "[CLASS:WindowsForms10.Window.8.app.0.2bf8098_r20_ad1]"

$checkbox = "[NAME:cbTest]"

$checkbox2 = "[CLASS:WindowsForms10.BUTTON.app.0.2bf8098_r20_ad1; INSTANCE:1]"



Run($path & $bin, $path)

$win = WinWaitActive($soft)



; "Uncheck" is not working, have to "Check" a 2nd time to uncheck...

ControlCommand($win, "", $checkbox, "Check", "")

Sleep(500)

ControlCommand($win, "", $checkbox, "Check", "")

Sleep(500)

ControlCommand($win, "", $checkbox, "Check", "")

Sleep(500)

$res = ControlCommand($win, "", $checkbox, "IsChecked", "")

if 1 = @error Then

   MsgBox(4, "ERROR", "ERROR")

Else

   MsgBox(4, "IsChecked", $res)

EndIf



; Using class

ControlCommand($win, "", $checkbox2, "Check", "") ; uncheck

Sleep(500)

ControlCommand($win, "", $checkbox2, "Check", "") ; recheck

Sleep(500)

$res = ControlCommand($win, "", $checkbox2, "IsChecked", "")

if 1 = @error Then

   MsgBox(4, "ERROR", "ERROR")

Else

   MsgBox(4, "IsChecked", $res)

EndIf



WinClose($soft)



[saudumm]

So, no luck on my end with your script.

I found those threads:

'?do=embed' frameborder='0' data-embedContent>>

'?do=embed' frameborder='0' data-embedContent>>

'?do=embed' frameborder='0' data-embedContent>>

It seems like your .Net-Checkbox is a non-standard checkbox and is not supported by AutoIt.

Maybe somenone with more knowledge can help you.

[dragan]

It is good thing that you have control over your own .NET application. My advice is this:

- Open your C# project, in the Form select your checkbox, click on the thunder icon (events icon), and double click on the event for "KeyDown"
- Then in your C# code make sure you add this code:


private void cbTest_KeyDown(object sender, KeyEventArgs e)
{
    if (e.KeyCode == Keys.F8)
    {
        cbTest.Checked = true;
    }
    else if (e.KeyCode == Keys.F12)
    {
        cbTest.Checked = false;
    }
}

- Then make sure you use this in your autoit script:


$path = "WindowsFormsApplication1\WindowsFormsApplication1\bin\Debug\"
$bin = "WindowsFormsApplication1.exe"
$soft = "Form1"
$checkbox = "[NAME:cbTest]"

Run($path & $bin, $path)
$win = WinWaitActive($soft)

ControlSend($win, '', $checkbox, "{F8}")
MsgBox(0, '', 'it is checked!')
ControlSend($win, '', $checkbox, "{F12}")
MsgBox(0, '', 'it is unchecked!')

WinClose($soft)

Edit: Another idea:
You could create a local TCP connection between autoit and your C# application, and then exchange informations (i.e. checked state), and make requests for checking/unchecking checkboxes or controlling other controls.


Edited September 10, 2013 by dragan

[thanhlam]

Thanks everyone for the replies
