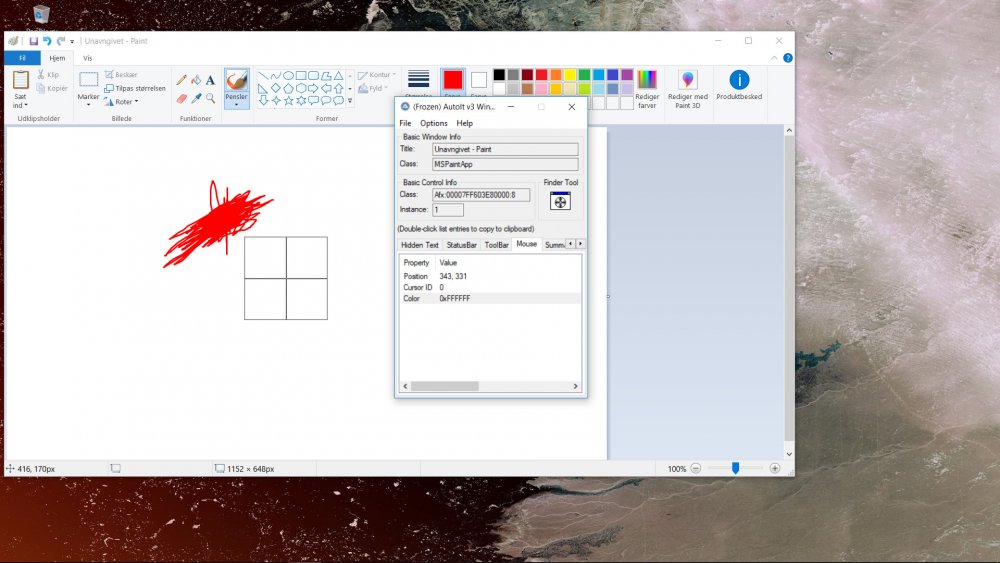

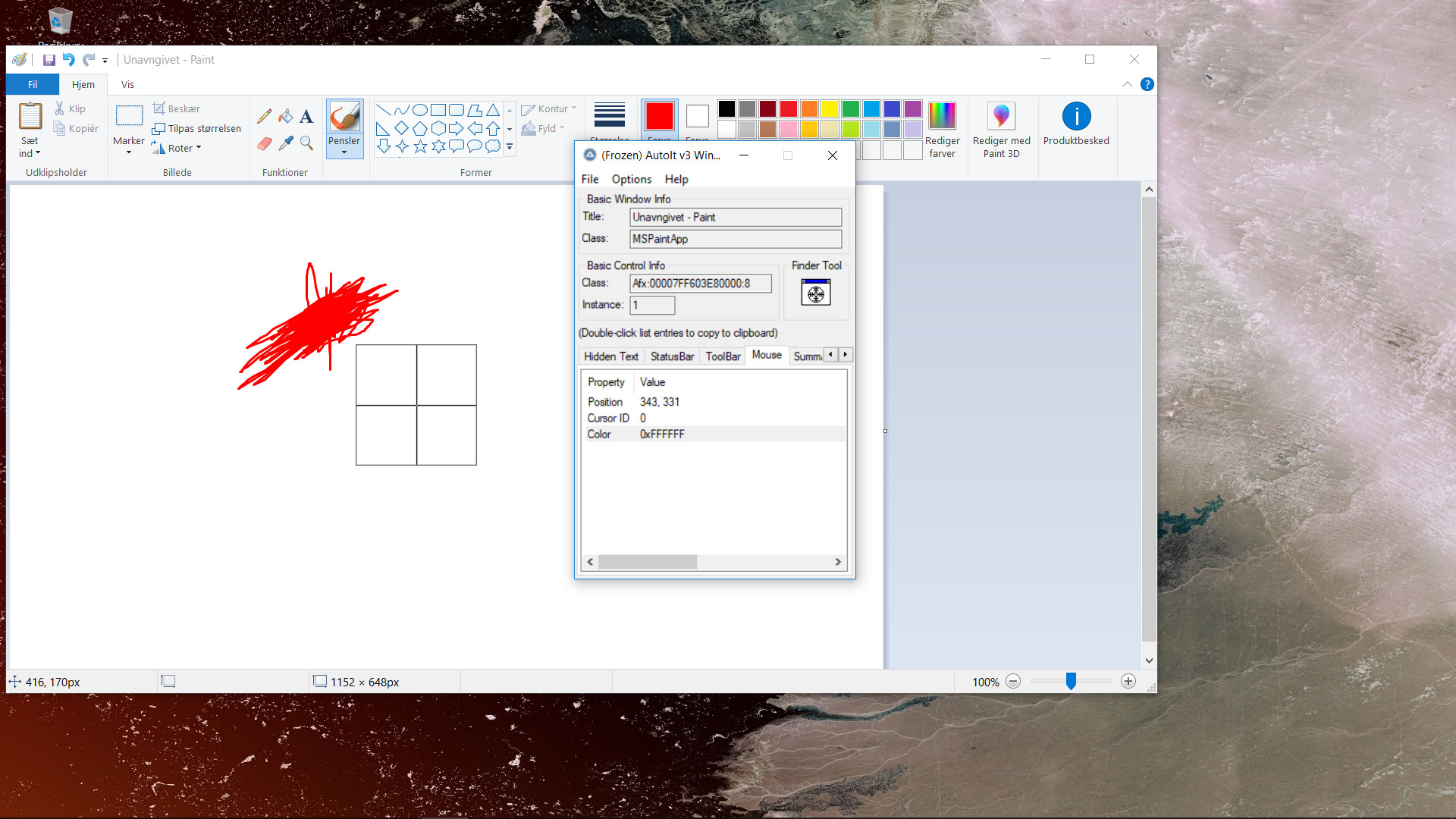

hook Posted October 11, 2018 Posted October 11, 2018 Hello, I have used the extra info program in the past, but lately I need to grab a color on the screen too, but have some trouble doing this... I think there might be a bug? When I put the mouse onto a red color (255,0,0) in Paint, it gives me a 100% white color (ff,ff,ff).. I use the magnifyer too which also shows the white.. BUT I place the mouse exactly on the red color... This can be a bug? .... See a screendump here too (I placed the mouse on red color, even though mouse pointer is not in screendump)
Earthshine Posted October 11, 2018 Posted October 11, 2018 (edited) it's to grab windows objects it can recognize, not grab colors. user error Edited October 11, 2018 by Earthshine My resources are limited. You must ask the right questions
hook Posted October 11, 2018 Author Posted October 11, 2018 1 minute ago, Earthshine said: it's to grab windows objects it can recognize, not grab colors. user error Then why does it say color 0xFFFFFF in the mouse tab ??
Bert Posted October 11, 2018 Posted October 11, 2018 Look in the options and set the type of area to examine. I'm going off memory here so you need to see your choices The Vollatran project My blog: http://www.vollysinterestingshit.com/
hook Posted October 11, 2018 Author Posted October 11, 2018 I say it's an error.. The magnifyer is off too - not showing what the mouse point is at... If time is too limited then please don't answer with too fast responds
Earthshine Posted October 11, 2018 Posted October 11, 2018 (edited) it's looking at the mspaint app. not the color. you can say it's an error all you like. i'm done. Edited October 11, 2018 by Earthshine My resources are limited. You must ask the right questions
Bert Posted October 11, 2018 Posted October 11, 2018 6 minutes ago, hook said: I say it's an error.. The magnifyer is off too - not showing what the mouse point is at... If time is too limited then please don't answer with too fast responds it is NOT an error. You are using to tool incorrectly. Do what I told you to do. The Vollatran project My blog: http://www.vollysinterestingshit.com/

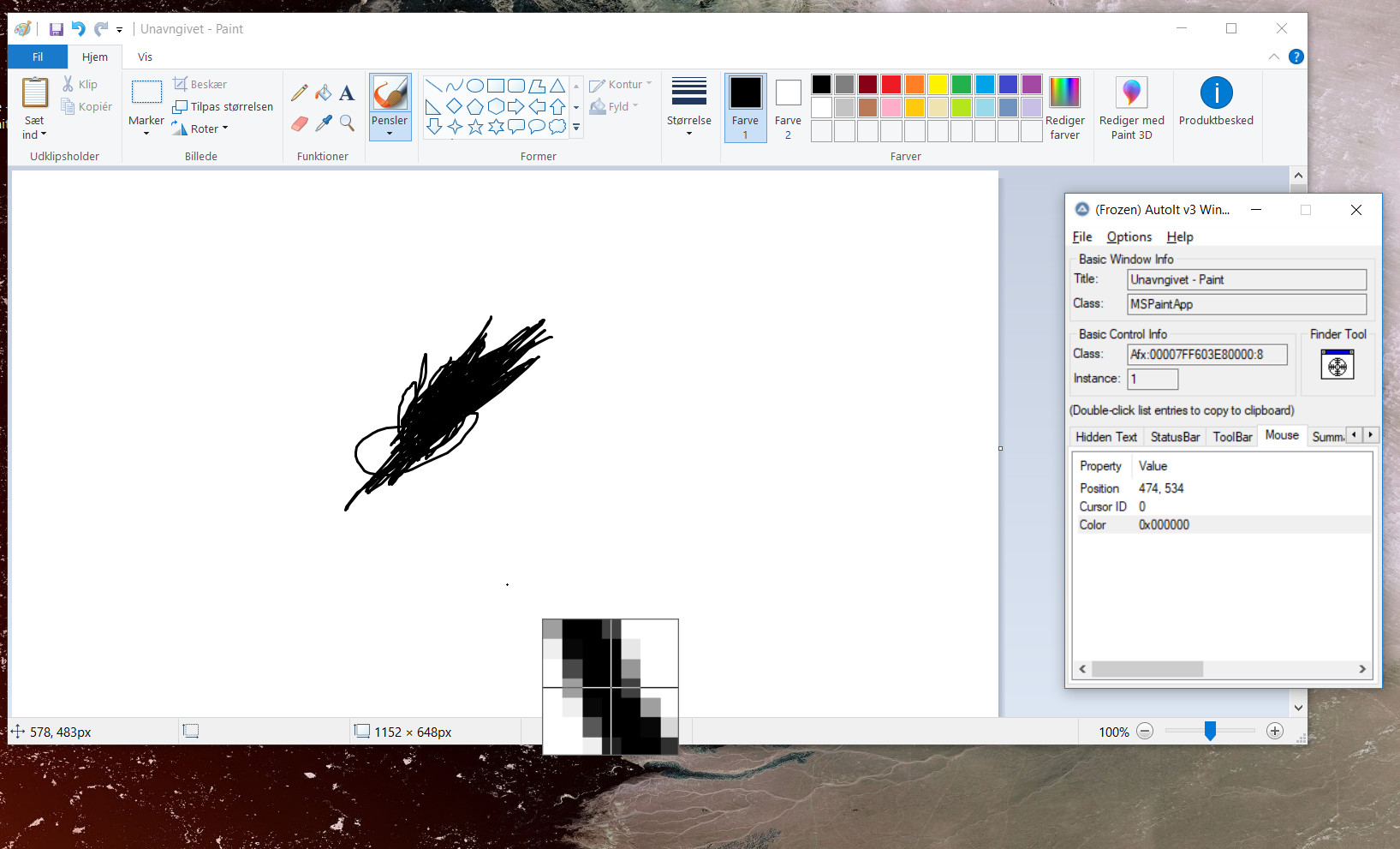

hook Posted October 11, 2018 Author Posted October 11, 2018 I'm not a newbie... There's an error... SO if somebody cares... Here it is documented Again... Just to show... Here very much off to where it should have shown... Here's prove it shows the color from a part of the line from the black I painted
hook Posted October 11, 2018 Author Posted October 11, 2018 So my point is... Location of where it finds the color (the magnifyer) is off to where the mouse is located
hook Posted October 11, 2018 Author Posted October 11, 2018 And..... I just did go into options and selected screen , window , client - very fast to test..... didn't help
BrewManNH Posted October 11, 2018 Posted October 11, 2018 If your DPI setting is higher than 100% then you will get the wrong readings, try it at 100% DPI and see if it reads correctly. If I posted any code, assume that code was written using the latest release version unless stated otherwise. Also, if it doesn't work on XP I can't help with that because I don't have access to XP, and I'm not going to.Give a programmer the correct code and he can do his work for a day. Teach a programmer to debug and he can do his work for a lifetime - by Chirag GudeHow to ask questions the smart way! I hereby grant any person the right to use any code I post, that I am the original author of, on the autoitscript.com forums, unless I've specifically stated otherwise in the code or the thread post. If you do use my code all I ask, as a courtesy, is to make note of where you got it from. Back up and restore Windows user files _Array.au3 - Modified array functions that include support for 2D arrays. - ColorChooser - An add-on for SciTE that pops up a color dialog so you can select and paste a color code into a script. - Customizable Splashscreen GUI w/Progress Bar - Create a custom "splash screen" GUI with a progress bar and custom label. - _FileGetProperty - Retrieve the properties of a file - SciTE Toolbar - A toolbar demo for use with the SciTE editor - GUIRegisterMsg demo - Demo script to show how to use the Windows messages to interact with controls and your GUI. - Latin Square password generator

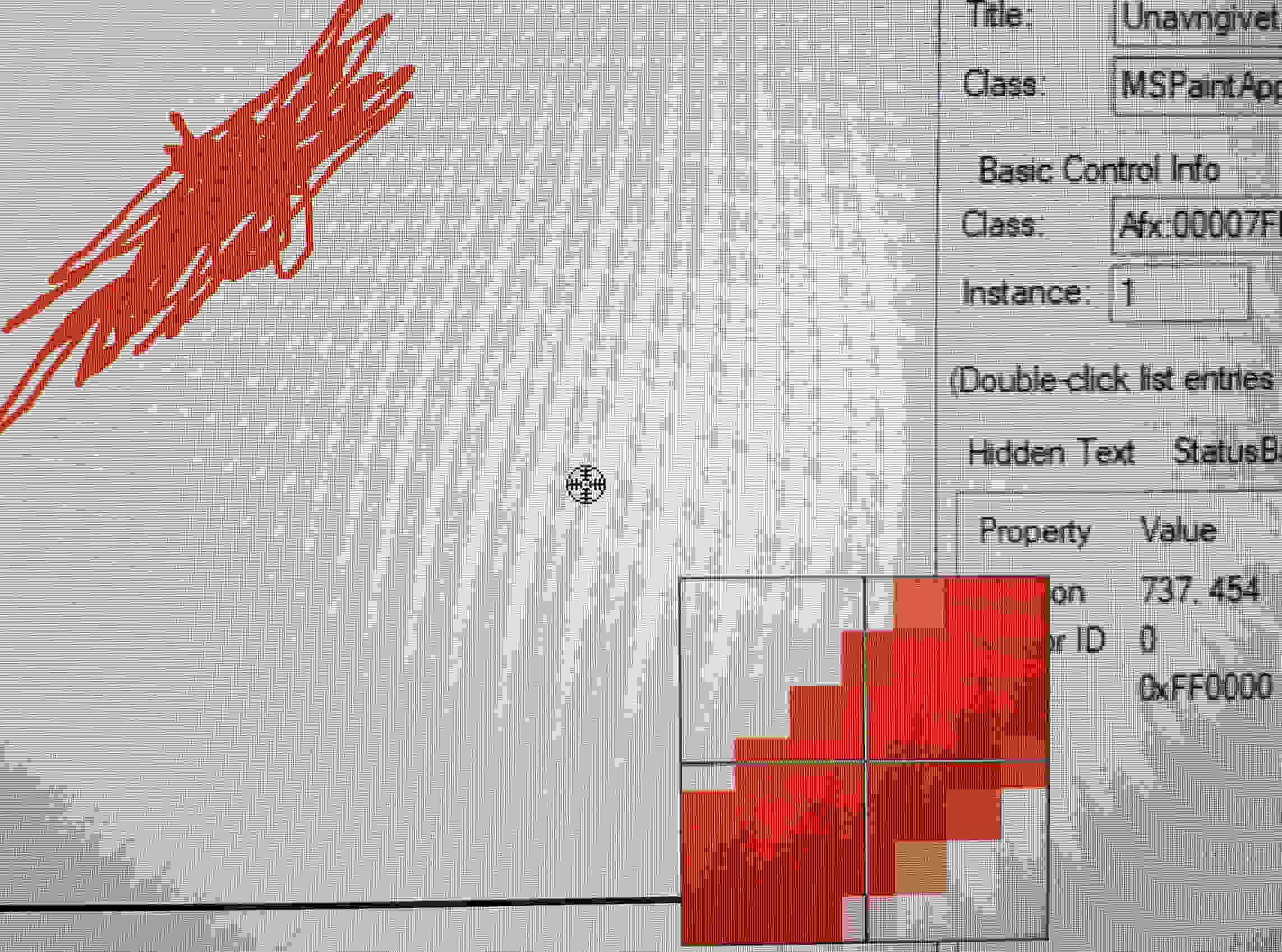

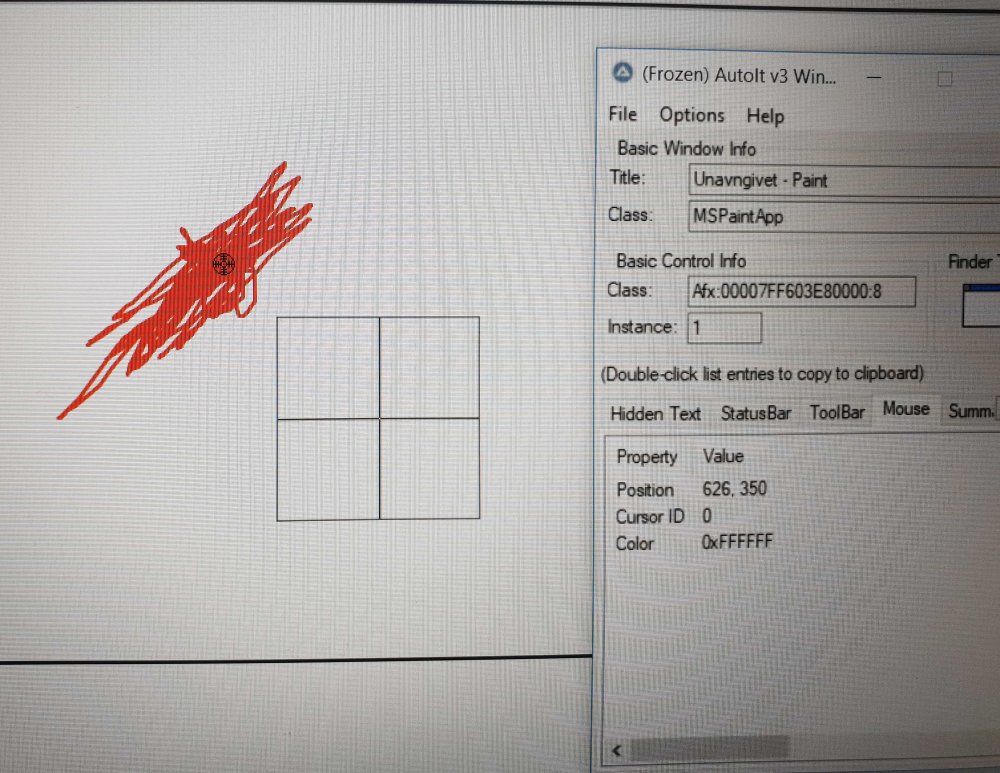

hook Posted October 11, 2018 Author Posted October 11, 2018 Ok Im sorry I started out bad here, but I also met some answers which seemed not correct... Ofc The Au3Info can pick color as value which is what I intended for using some pixel search, but that is a totally other discussion... Here I just want to make clear what I say, an error or not, I need to get it correct... I can't make it correct with choosing screen/window/client in options... What I say is the mouse point dosen't show the color of where it is placed... See here the first image mouse is located on the red, but the Info program says (ffffff) which is white The second image it shows the red (ff0000) which is the red BUT the mouse location is not on the red paintings... (I by luck located the red off to the point where it should have been)... SO if not a bug, then what? (please note I tested the screen/window/client option too)
BrewManNH Posted October 11, 2018 Posted October 11, 2018 Did you check the DPI setting? If I posted any code, assume that code was written using the latest release version unless stated otherwise. Also, if it doesn't work on XP I can't help with that because I don't have access to XP, and I'm not going to.Give a programmer the correct code and he can do his work for a day. Teach a programmer to debug and he can do his work for a lifetime - by Chirag GudeHow to ask questions the smart way! I hereby grant any person the right to use any code I post, that I am the original author of, on the autoitscript.com forums, unless I've specifically stated otherwise in the code or the thread post. If you do use my code all I ask, as a courtesy, is to make note of where you got it from. Back up and restore Windows user files _Array.au3 - Modified array functions that include support for 2D arrays. - ColorChooser - An add-on for SciTE that pops up a color dialog so you can select and paste a color code into a script. - Customizable Splashscreen GUI w/Progress Bar - Create a custom "splash screen" GUI with a progress bar and custom label. - _FileGetProperty - Retrieve the properties of a file - SciTE Toolbar - A toolbar demo for use with the SciTE editor - GUIRegisterMsg demo - Demo script to show how to use the Windows messages to interact with controls and your GUI. - Latin Square password generator
hook Posted October 11, 2018 Author Posted October 11, 2018 here to where it is off... but finds the correct color and shows it in magnifyer too... but mouse pointer is off...
hook Posted October 11, 2018 Author Posted October 11, 2018 Not sure what u mean man, in windows? or in Au3Info - I can't find it? The term DPI (Dots Per Inch) is usually used for printed photos/graphics and used in regards to printing, not on screen
hook Posted October 11, 2018 Author Posted October 11, 2018 15 minutes ago, BrewManNH said: Did you check the DPI setting? Resolution is not zoomed or anything if that is what u say
Moderators JLogan3o13 Posted October 11, 2018 Moderators Posted October 11, 2018 This is what they are referencing: http://www.lawfirmsoftware.com/support/change_dpi_settings_windows_7.htm Is your setting at 100%? "Profanity is the last vestige of the feeble mind. For the man who cannot express himself forcibly through intellect must do so through shock and awe" - Spencer W. Kimball How to get your question answered on this forum!
Developers Jos Posted December 17, 2018 Developers Posted December 17, 2018 (edited) It looks like au3info indeed isn't dpi aware, which can be changed by modifying the manifest. I have made a test version available, as stated in the bug report, which has an updated manifest to make it DPI aware. Let us know whether this indeed fixes it for you as I know there are some changes with the DPI settings with the upcoming new version of Win10? Jos Edited December 17, 2018 by Jos SciTE4AutoIt3 Full installer Download page - Beta files Read before posting How to post scriptsource Forum etiquette Forum Rules Live for the present, Dream of the future, Learn from the past.
