Nvidia Control Panel Automation for licensing

[rahulg]

I am trying to automate adding license information in Nvidia Control Panel.

I am able to reach the Manage License window, but after that I am unable to select the text field to fill the information.

Here is the code which I used :

Run("C:\Program Files\NVIDIA Corporation\Control Panel Client\nvcplui.exe")
sleep(1000)

ControlClick("NVIDIA Control Panel","", 105)
Sleep(1000)

Send("abcd.com")
Send("{ENTER}")

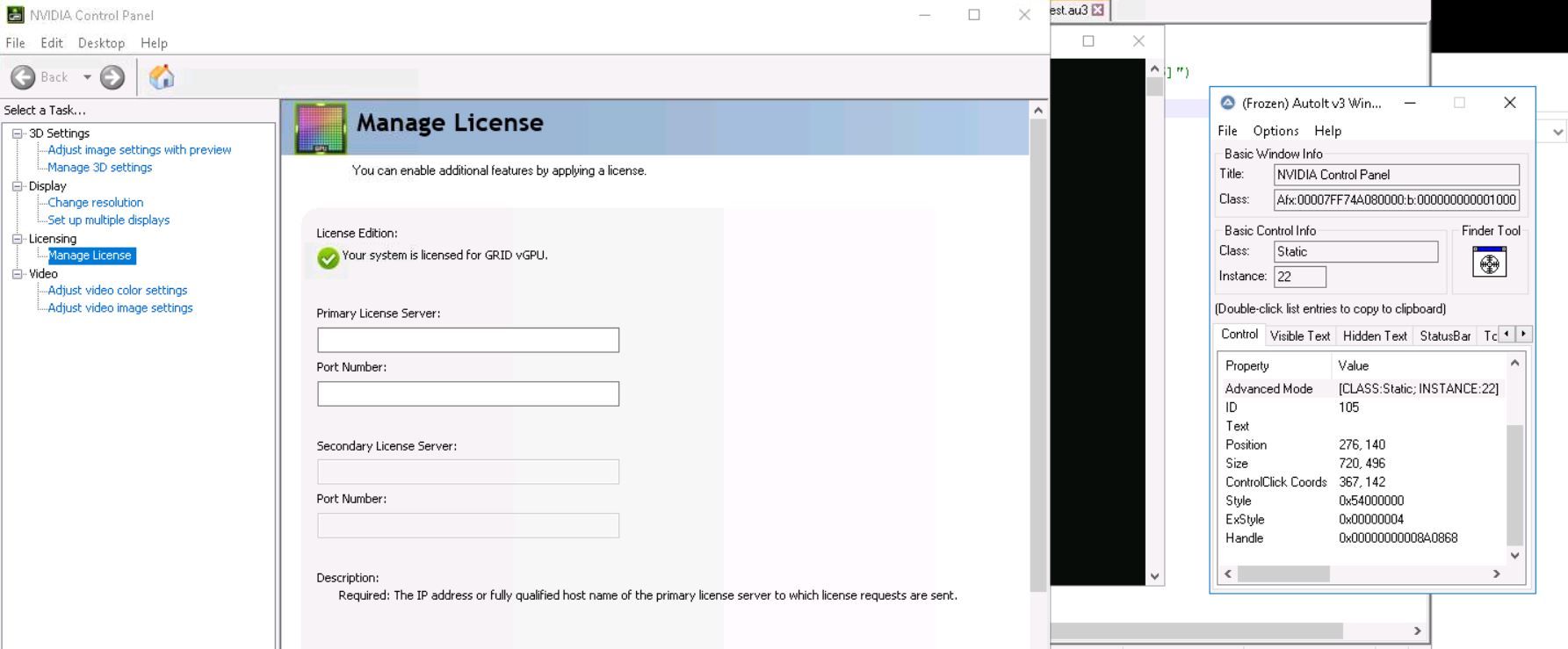

But its not working. Here I am attaching the snapshot of window.

And summary for the window info is as below:

Quote



>>>> Window <<<<
Title:    NVIDIA Control Panel
Class:    Afx:00007FF74A080000:b:0000000000010003:0000000000000006:000000001660034D
Position:    19, 80
Size:    974, 718
Style:    0x14CF0000
ExStyle:    0x00010100
Handle:    0x00000000001507D0

>>>> Control <<<<
Class:    Static
Instance:    22
ClassnameNN:    Static22
Name:
Advanced (Class):    [CLASS:Static; INSTANCE:22]
ID:    105
Text:
Position:    276, 140
Size:    720, 496
ControlClick Coords:    573, 115
Style:    0x54000000
ExStyle:    0x00000004
Handle:    0x00000000008D0390

>>>> Mouse <<<<
Position:    857, 306
Cursor ID:    0
Color:    0xFBFBFB

>>>> StatusBar <<<<

>>>> ToolsBar <<<<

>>>> Visible Text <<<<
Select a Task...
Select a Task...
Left View
Adjust image settings with preview
Manage 3D settings
Change resolution
Set up multiple displays
Manage License
Adjust video color settings
Adjust video image settings
System Information
<a id="LINK_TARGET">System Information</a>
{47AADF36-BA70-4E24-BBDE-20EC9FC139FD}:{DFA226E7-D28D-407D-95ED-5A79D9745BB5}
License Edition:
Your system is licensed for GRID vGPU.
Primary License Server:
Port Number:
Secondary License Server:
Port Number:
Description:

Typical usage scenarios:


>>>> Hidden Text <<<<
     Simple View Pages
Apply Bar
&Apply
Cancel





[faustf]

try to use  2  script  , one  open and arrive at window message center  , and second script  when is open a messge center  send a  text  with controlsend

[rahulg]

2 hours ago, faustf said:

try to use  2  script  , one  open and arrive at window message center  , and second script  when is open a messge center  send a  text  with controlsend

what will be the difference in that case ?

And any pointer what should be the ControlSend syntax for it ?

I tried :

ControlSend("NVIDIA Control Panel","", "","abcd.com{TAB}1234{TAB}{TAB}{ENTER}")

[faustf]

for controlsend  syntax i suggest use  help  F1  or  google  find autoit  controlsend syntax maybe  you find  some , good luck

Edited December 20, 2018 by faustf

[Bert]

Does it have command line support? If yes, then do that.
