MJOAP

SAP Logon script falling over on ControlSend()

Recommended Posts

MJOAP

Hi All AutoIT3 experts,

Please help this new user (NON TECHIE) find a resolution to his problem.

I have written an AUTOIT3 SAP logon script which runs perfectly once my workstation is not locked.

Essentially my script logs on on to our SAP finance server & opens an Excel workbook and hence runs a MACRO which interfaces with SAP.

Through reading the AUTOIT3 website I now realise that my script was incorrect for a locked computer.

I have have re-written same trying to use the correct functions and I am still having no luck.

The New script works fine once the computer is not locked but falls over when I lock the computer and run though a scheduled task.

All help gratefully received.

Thanks.

Michael.

OriginalSAPLogonAUTOIT3.au3

NewSAPLogonAUTOIT3forLockedScreen.au3


Share this post


Link to post
Share on other sites
99ojo

Hi All AutoIT3 experts,

Please help this new user (NON TECHIE) find a resolution to his problem.

I have written an AUTOIT3 SAP logon script which runs perfectly once my workstation is not locked.

Essentially my script logs on on to our SAP finance server & opens an Excel workbook and hence runs a MACRO which interfaces with SAP.

Through reading the AUTOIT3 website I now realise that my script was incorrect for a locked computer.

I have have re-written same trying to use the correct functions and I am still having no luck.

The New script works fine once the computer is not locked but falls over when I lock the computer and run though a scheduled task.

All help gratefully received.

Thanks.

Michael.

Hi,

as i remember does controlsend only works with logged on user. Theres is no gui interaction while computer is locked.

You can open web sites in background, reading out values and save these in excelsheet while the computer is locked. But you only can do it with built in functions and not with Send and Controlsend commands.

If this is not right someone should show the way.

Sry.

;-((

Stefan

Share this post


Link to post
Share on other sites
Zedna

Use "SysListView321" as "ClassNameNN"

Also try to use ControlClick on button "Log On" instead of sending {Enter} to ListView

There may be also some timing issues.

Try to insert small Sleep() between send 04 and Enter

EDIT: Instead of Send("04") you may use _GUICtrlListView_FindItem + _GUICtrlListView_SetItemSelected

Edited by Zedna

Share this post


Link to post
Share on other sites
Zedna

There may be also some timing issues.

Try to insert small Sleep() between send 04 and Enter

WinWait ("SAP Logon 710")

Sleep(...some time ...) ; --> add some sleep, may be in loop based on state of controls inside logon window

; Choose '04'
;ControlSend("SAP Logon 710", "P08 Finance (Secure)", "", "04{ENTER}")
ControlSend("SAP Logon 710", "", "", "04{ENTER}")

Share this post


Link to post
Share on other sites
MJOAP

Hi Zedna, (and all others)

Thanks for help to date.....

I think I am nearly there, I have one button to conquer and I am done....

Can some please help me with this last piece of code as I am struggling.....

; Start SAP

Run("C:\Program Files\sap\FrontEnd\SAPgui\saplogon.exe")

; Wait until SAP is open

WinWait ("SAP Logon 710")

;Wait half a second

SLEEP(500)

;Give focus to the SAP Logon 710 screnn

ControlFocus("SAP Logon 710", "","[CLASSNN:SysList32]" )

;Choose Option 4

ControlSend("SAP Logon 710", "", "", "04{ENTER}")

;Wait half a second

SLEEP(500)

FROM HERE ON IS WHERE THE SCRIPT IS FALLING OVER

;Give focus to the Copyright screen

ControlFocus("Copyright", "","[CLASSNN:#32770]" )

ControlClick("Copyright", "", "Continue")

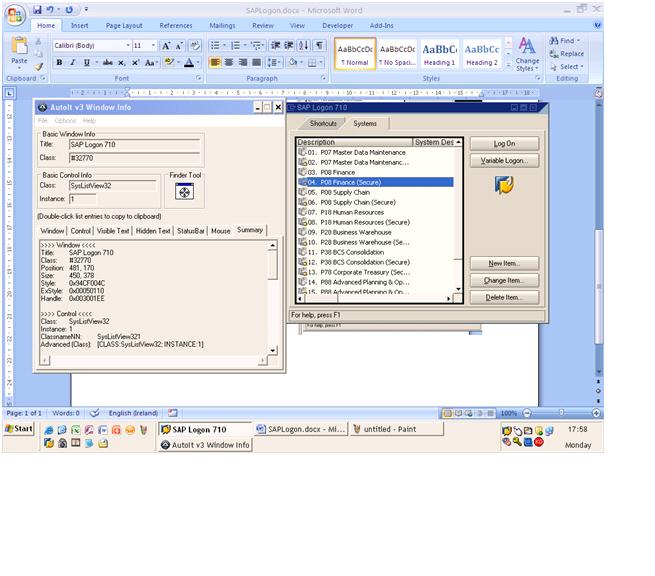

BELOW IS THE DATA FROM THE INFO WINDOW, sorry I cannot upload a further jpeg.

>>>> Window <<<<

Title: Copyright

Class: #32770

Position: 468, 114

Size: 408, 520

Style: 0x96C80044

ExStyle: 0x00010110

Handle: 0x003305E8

>>>> Control <<<<

Class: Afx:00940000:b

Instance: 1

ClassnameNN: Afx:00940000:b1

Advanced (Class): [CLASS:Afx:00940000:b; INSTANCE:1]

ID: 101

Text:

Position: 0, 0

Size: 404, 497

ControlClick Coords: 31, 35

Style: 0x56000000

ExStyle: 0x00000010

Handle: 0x00600604

>>>> Mouse <<<<

Position: 501, 170

Cursor ID: 2

Color: 0xF7F3F7

>>>> StatusBar <<<<

>>>> Visible Text <<<<

>>>> Hidden Text <<<<

Share this post


Link to post
Share on other sites
MJOAP

Thanks Zedna,

Unfortunately this did not work..... any more suggestions please....

Thanks again.

Share this post


Link to post
Share on other sites
MJOAP

Thanks Zedna,

Sorted now.

;Wait for Copyfright screen to appear

WinWait ("Copyright")

;Give Focuse to the Copyright Screen

ControlFocus("Copyright", "","")

;Click on the Copyright Screen

ControlClick("Copyright", "","")

;Send Enter to go into SAP

ControlSend("Copyright", "", "", "{ENTER}")

Share this post


Link to post
Share on other sites
rmazo

MJOAP,

Can you post the final code that allowed you to complete the SAP logon.

Thanks,

RM

Share this post


Link to post
Share on other sites
BrewManNH

MJOAP,

Can you post the final code that allowed you to complete the SAP logon.

Thanks,

RM

You are going to be waiting a LONG time, MJOAP hasn't been here in 5 years. This thread is from 2009.
