How to Create a 'Custom' Listbox ?

[sheeva 2]

Hi everybody,

I try to find how can i put a bitmap as backround in a listbox.

Of course just a gradient can be great also. i have find some really good gradient functions on this forum but

i cant apply this function to a ListBox without garbage

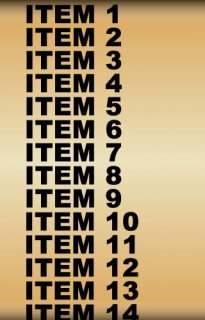

It's difficult to explain so i have included a example of what i want to do.

Thank's

Happy New year 2010.

[picea892 6]

I'm of the opinion this could only be done with a listview. You can make a 1 column listview with no header, turn the background transparent and place a shownoactivate guictrlpic behind it that would give you the results you are looking for. If I have a minute I will throw one together.

[sheeva 2]

I'm of the opinion this could only be done with a listview. You can make a 1 column listview with no header, turn the background transparent and place a shownoactivate guictrlpic behind it that would give you the results you are looking for. If I have a minute I will throw one together.

Thanks Picea,

Ok listBox can be a Listview is not very important for my project.

I'm very interested of an example.

thank's.

[picea892 6]

Hi Sheeva

Don't have much time, so used the udf I created to render the gradient. You will need to put the udf in the same directory.

It was a bit harder than I expected. I had to use two gui's in order to do it. I personally think it adds too much unnecessary complexity but you be the judge. I hope this helps.

Picea

expandcollapse popup

#include <GuiConstants.au3>
#include <StaticConstants.au3>
#include <GUIConstantsEx.au3>
#include <DateTimeConstants.au3>
#include <GDIPlus.au3>
#include <WindowsConstants.au3>
#include <Constants.au3>
#include <WinAPI.au3>
#Include <Misc.au3>
#include <shapedcontrols_udf.au3>
HotKeySet("{esc}","exited")
Opt("TrayAutoPause", 0)
opt("GUIOnEventMode",1)
TraySetClick(8)

Global $nth=5 ; how many inputboxes
Global $stopit

global $dll = DllOpen("user32.dll")

Global $gwidth=500, $gheight=355,$initialpsx=200,$initialpsy=200, $rndclo

; change GUI name to change widget name
Global $Gui = GUICreate("Outlook Calendar Updater", $gwidth, $gheight,$initialpsx,$initialpsy)
$bckpic= GUICtrlCreatePic("", 0, 5, 210, 300)
    GuiCtrlSetState(-1,$GUI_DISABLE)
    background(-1,"0xCCCCCC","0x222222","0x111111")
$bckpic= GUICtrlCreatePic("", 205, 5, 190, 290)
    GuiCtrlSetState(-1,$GUI_DISABLE)
    background(-1,"0xCCCCCC","0x222222","0x111111")
;;;;;;;;;;;;;;;;;register messages for background gui;;;;;;;;;;;;;;;;;;;;;;;;
    GUISetOnEvent ($GUI_EVENT_PRIMARYDOWN, "Drag" ) ;sets up drag move on background and x button close
GUISetOnEvent($GUI_EVENT_CLOSE,"exiting")

Global $guicontrols=GUICreate("Outlook",$gwidth, $gheight,$initialpsx,$initialpsy,$WS_POPUP,$WS_EX_LAYERED,$Gui) ;gui holding the controls
;;;;;;;;;;;below is a DLLcall register for the foreground child window;;;;;;;;;;;;;;;;
GUISetBkColor(0xABCDEF)
GUISetOnEvent ($GUI_EVENT_PRIMARYDOWN, "clickbuttons")

; LIST
GuiCtrlCreateList("", 8, 45, 200, 290)
GUICtrlSetBkColor(-1,0xABCDEF);$GUI_BKCOLOR_TRANSPARENT
GuiCtrlSetData(-1, "a.Sample|b.List|c.Control|d.Here", "b.List")

; LIST VIEW
$listView = GuiCtrlCreateListView("Sample|ListView|", 213, 45, 180, 280)
GUICtrlSetBkColor(-1,0xABCDEF);$GUI_BKCOLOR_TRANSPARENT

GuiCtrlCreateListViewItem("A|One", $listView)
GuiCtrlCreateListViewItem("B|Two", $listView)
GuiCtrlCreateListViewItem("C|Three", $listView)


GUISetBkColor(0x000000,$Gui)

_API_SetLayeredWindowAttributes($guicontrols, 0xABCDEF, 255)
GUISetState(@SW_SHOW, $Gui)
GUISetState(@SW_SHOW, $guicontrols)

GUISwitch($guicontrols)

While 1
    Sleep(40)
    $msg = TrayGetMsg()
    if $msg=$TRAY_EVENT_PRIMARYDOWN and WinActive($guicontrols)=0 then WinActivate($guicontrols)

WEnd
func exiting()
    exit 0
EndFunc
Func Drag() ;allows dragging of widget and click to exit

Local $PosDiff[2]
    While 1
        $MousePos = MouseGetPos ()
        $WinPos = WinGetPos ($Gui,"")
        $PosDiff[0] = $WinPos[0] - $MousePos[0]
        $PosDiff[1] = $WinPos[1] - $MousePos[1]
        While _IsPressed ("01", $dll)
            $MousePos = MouseGetPos ()
            WinMove ($Gui, "", $MousePos[0] + $PosDiff[0], $MousePos[1] + $PosDiff[1])
            WinMove ($guicontrols, "", $MousePos[0] + $PosDiff[0], $MousePos[1] + $PosDiff[1])
            $WinPos = WinGetPos ("","")
            Sleep (10)
        WEnd
        ExitLoop
        Sleep (10)
    WEnd
    ;_WinAPI_RedrawWindow($Gui,"","",BitOR($RDW_ERASE,$RDW_INVALIDATE,$RDW_UPDATENOW,$RDW_FRAME,$RDW_ALLCHILDREN))
    _WinAPI_RedrawWindow($guicontrols,"","",BitOR($RDW_ERASE,$RDW_INVALIDATE,$RDW_UPDATENOW))
EndFunc


;===============================================================================
;
; Function Name:   _API_SetLayeredWindowAttributes
; Description::    Sets Layered Window Attributes:) See MSDN for more informaion
; Parameter(s):
;                  $hwnd - Handle of GUI to work on
;                  $i_transcolor - Transparent color
;                  $Transparency - Set Transparancy of GUI
;                  $isColorRef - If True, $i_transcolor is a COLORREF-Strucure, else an RGB-Color
; Requirement(s):  Layered Windows
; Return Value(s): Success: 1
;                  Error: 0
;                   @error: 1 to 3 - Error from DllCall
;                   @error: 4 - Function did not succeed - use
;                               _WinAPI_GetLastErrorMessage or _WinAPI_GetLastError to get more information
; Author(s):       Prog@ndy
;
;===============================================================================
;
Func _API_SetLayeredWindowAttributes($hwnd, $i_transcolor, $Transparency, $isColorRef = False)

Local Const $AC_SRC_ALPHA = 1
Local Const $ULW_ALPHA = 2
Local Const $LWA_ALPHA = 0x2
Local Const $LWA_COLORKEY = 0x1
    If Not $isColorRef Then
        $i_transcolor = Hex(String($i_transcolor), 6)
        $i_transcolor = Execute('0x00' & StringMid($i_transcolor, 5, 2) & StringMid($i_transcolor, 3, 2) & StringMid($i_transcolor, 1, 2))
    EndIf
    Local $Ret = DllCall("user32.dll", "int", "SetLayeredWindowAttributes", "hwnd", $hwnd, "long", $i_transcolor, "byte", $Transparency, "long", $LWA_COLORKEY + $LWA_ALPHA)
    Select
        Case @error
            Return SetError(@error,0,0)
        Case $ret[0] = 0
            Return SetError(4,0,0)
        Case Else
            Return 1
    EndSelect
EndFunc;==>_API_SetLayeredWindowAttributes

Edited January 3, 2010 by picea892

[sheeva 2]

Hi Picea,

I Will try that soon and i let you know.

Thank You.
