CE101

Creating a Control that Looks Like a Table

4 posts in this topic

I've just begun using this program, so my apologies if I am asking a very foolish question...

I am writing a script that automates the creation of a fax log from Winfax.

I've created a GUI that contains a number of GUIControls (radios and buttons) as follows...

GUICreate("Export Type Selection", 500)

GuiCtrlCreateLabel("This script accomodates two types of exports, each with its own set of fields", 10, 10)

GuiCtrlCreateLabel("< Here's where I want the table to go> ", 10, 40 )

GuiCtrlCreateLabel("Which one do you want? ", 10, 160)

GuiCtrlCreateGroup("Export Types", 10, 220, 140, 70)

$Radio_Export1 = GUICtrlCreateRadio(" Failed Fax Log", 20, 240, 120, 20)

$Radio_Export2 = GUICtrlCreateRadio(" Full Fax Log", 20, 260, 120, 20)

GUICtrlCreateGroup ("",-99,-99,1,1) ;close group

$Button1_Continue = GuiCtrlCreateButton("Continue", 100, 300, 120, 20)

$Button2_Quit = GuiCtrlCreateButton("Quit", 100, 320, 120, 20)

GUISetState()

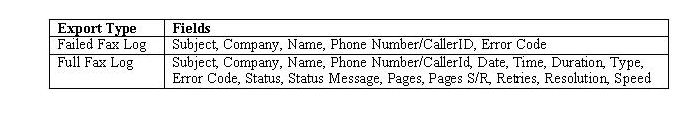

At line 3 I want to include the attached table (see below)...

What's the best way to do this?

A series of labels or groups or both?

Any suggestions would be greatly appreciated.

Gary


LogTypes.zip

Share this post


Link to post
Share on other sites



Listviews are what you want:

$hList = GUICtrlCreateListView("Export Type|Fields", 4, 4, 400, 200)
GUICtrlCreateListViewItem("Failed Fax log|Subject, Company, Name, Phone Number/CallerID, Error Code", $hList)
GUICtrlCreateListViewItem("Failed Fax log|Subject, Company, Name, Phone Number/CallerID, " & _
    "Date, Time, Duration, Type, Error Code, Status, Status Message, PAges, S/R, Retries, Resolution, Speed", $hList)

That shows the closest you'll get to the screenshot.

Mat

Share this post


Link to post
Share on other sites

#3 ·  Posted (edited)

Listviews are what you want:

$hList = GUICtrlCreateListView("Export Type|Fields", 4, 4, 400, 200)
GUICtrlCreateListViewItem("Failed Fax log|Subject, Company, Name, Phone Number/CallerID, Error Code", $hList)
GUICtrlCreateListViewItem("Failed Fax log|Subject, Company, Name, Phone Number/CallerID, " & _
    "Date, Time, Duration, Type, Error Code, Status, Status Message, PAges, S/R, Retries, Resolution, Speed", $hList)

That shows the closest you'll get to the screenshot.

Mat

You can get closer than that.

#include <staticconstants.au3>
$g = GUICreate("", 600, 400)
GUISetBkColor(0xFFFFFF)
Dim $al[6]
Dim $ht[3] = [30, 50, 50]
$top = 0
For $n = 0 To 2

    GUICtrlCreateLabel("", 20, 20 + $top, 101, $ht[$n] + 1, $SS_BLACKFRAME);BitOr($SS_CENTER,$SS_CENTERIMAGE,$SS_BLACKFRAME))
    GUICtrlCreateLabel("", 120, 20 + $top, 430, $ht[$n] + 1, $SS_BLACKFRAME)
    $top += $ht[$n]
    ConsoleWrite($top & @CRLF)
Next
$il = 0
$top = 5
For $n = 0 To 2

    $al[$il] = GUICtrlCreateLabel("", 25, 20 + $top, 91, $ht[$n] - 10);BitOr($SS_CENTER,$SS_CENTERIMAGE,$SS_BLACKFRAME))

    $al[$il + 1] = GUICtrlCreateLabel("", 125, 20 + $top, 420, $ht[$n] - 10)
    $top += $ht[$n]
    $il += 2
Next
For $n = 0 To 1
    GUICtrlSetFont($al[$n], 12, 800, -1, "Times New Roman")
Next
For $n = 2 To 5
    GUICtrlSetFont($al[$n], 10, 400, -1, "Times New Roman")
Next

GUICtrlSetData($al[0], "Export Type")
GUICtrlSetData($al[1], "Fields")
GUICtrlSetData($al[2], "Failed Fax Log")
GUICtrlSetData($al[3], "Subject, Company, Name, Phone Number/CallerID, Date, Time, Duration, Type, Error Code, Status, Status Message, PAges, S/R, Retries, Resolution, Speed")
GUISetState()

while GUIGetMsg() <> -3
    WEnd

Andybiochem wrote a udf for this.

I even wrote a string grid script myself but it needs work to use it, though it shows some possibilities.

Edited by martin

Serial port communications UDF Includes functions for binary transmission and reception.printing UDF Useful for graphs, forms, labels, reports etc.Add User Call Tips to SciTE for functions in UDFs not included with AutoIt and for your own scripts.Functions with parameters in OnEvent mode and for Hot Keys One function replaces GuiSetOnEvent, GuiCtrlSetOnEvent and HotKeySet.UDF IsConnected2 for notification of status of connected state of many urls or IPs, without slowing the script.

Share this post


Link to post
Share on other sites

Hi Mat & Martin:

Thank you so much for your suggestions and sample code.
