Reboot DD-WRT Router

gsx · September 7, 2010

Hello,

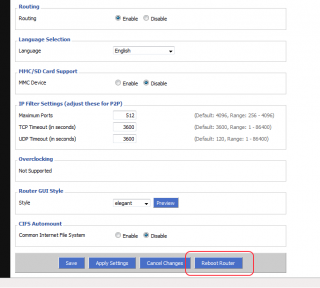

I'm trying to make a script so that it reboots my DD-DRT routher. I could login and navigate to the reboot page but cannot click the reboot button.

#include <IE.au3>
$oIE = _IECreate($myRouterIP, 0, 1, 0)
$rebootbutton = "reboot_button"
.
.
.

_IENavigate ($oIE, "http://" & $myRouterIP & "/Management.asp")
$oForm = _IEFormGetObjByName ($oIE, $rebootbutton)
;_IEAction ($oForm, "Click" )       ;this does not work
;_IEFormSubmit ($oForm)         ;this does not work
$hwnd = _IEPropertyGet($oIE, "hwnd")
_IEAction ($oForm, "focus")
ControlSend($hwnd, "", "[CLASS:Internet Explorer_Server; INSTANCE:1]", "{Enter}")

The part of the web page source code looks like this,

<div class="submitFooter">
<script type="text/javascript">
//<![CDATA[
submitFooterButton(1,1,1);
//]]>

</script><input title="Only save settings without commit" class="button" name="save_button" value="Save" onclick="to_submit(this.form);" type="button"><input title="Apply settings immediately" class="button" name="apply_button" value="Apply Settings" onclick="to_apply(this.form);" type="button"><input title="Cancel changes in this form only" class="button" name="reset_button" value="Cancel Changes" onclick="window.location.reload();" type="button"><input class="button" name="reboot_button" value="Reboot Router" onclick="to_reboot(this.form);" type="button">
</div>
</form>

I hope somebody can help.

Kiesp · September 7, 2010

I think a

_IENavigate ($oIE, "javascript:to_reboot(this.form)")

should do the trick

gsx · September 7, 2010

Thanks Kiesp for the reply.

#include <IE.au3>
$oIE = _IECreate($myRouterIP, 0, 1, 0)
$rebootbutton = "reboot_button"
.
.
.

_IENavigate ($oIE, "http://" & $myRouterIP & "/Management.asp")
_IENavigate ($oIE, "javascript:to_reboot(this.form)")

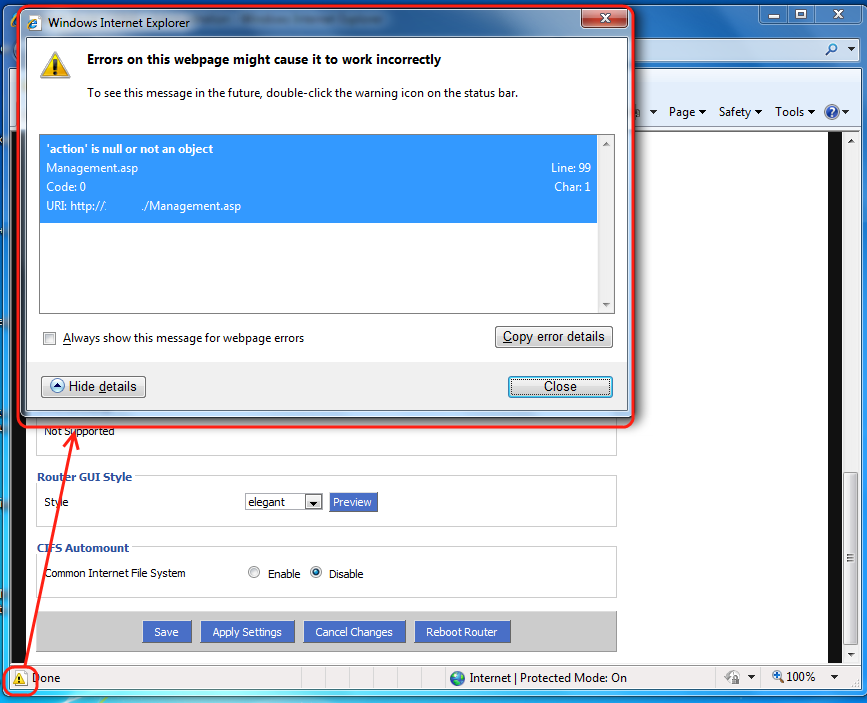

Unfortunately it did not work. I indeed hear the clicking sound but IE shows the warning message and does not reboot the router. Should I paste the whole web page source code?

Webpage error details

Message: 'action' is null or not an object
Line: 99
Char: 1
Code: 0
URI: http://[the router IP]/Management.asp

Edited September 7, 2010 by gsx

Kiesp · September 8, 2010

Hm i was fairly certain that it would work.

But ya.. try posting the source code of the whole page

gsx · September 8, 2010

Thank you Kiesp for the follow-up.

This is the source code of the web page.

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">
<html>
    <head>
        <meta http-equiv="Content-Type" content="application/xhtml+xml; charset=iso-8859-1" />
        <link rel="icon" href="images/favicon.ico" type="image/x-icon" />
        <link rel="shortcut icon" href="images/favicon.ico" type="image/x-icon" />
        <script type="text/javascript" src="common.js"></script>
        <script type="text/javascript" src="lang_pack/english.js"></script>
        <script type="text/javascript" src="lang_pack/language.js"></script>

        <link type="text/css" rel="stylesheet" href="style/elegant/style.css" />
        <!--[if IE]><link type="text/css" rel="stylesheet" href="style/elegant/style_ie.css" /><![endif]-->
        <script type="text/javascript" src="js/prototype.js"></script>
        <script type="text/javascript" src="js/effects.js"></script>
        <script type="text/javascript" src="js/window.js"></script>
        <script type="text/javascript" src="js/window_effects.js"></script>
        <link type="text/css" rel="stylesheet" href="style/pwc/default.css" />

        <link type="text/css" rel="stylesheet" href="style/pwc/ddwrt.css" />
        <title>[My Router Name] (build 13064) - Administration</title>

<script type="text/javascript">
//<![CDATA[
function SelPort(num,F) {
if(num == 1 && F.PasswdModify.value == 1){
if(ChangePasswd(F) == true)
port_enable_disable(F,num);
} else
port_enable_disable(F,num);
}
function port_enable_disable(F,I) {
if ( I == "0" ){
if (F.http_wanport) choose_disable(F.http_wanport);
if (F._remote_mgt_https) choose_disable(F._remote_mgt_https);
} else {
if (F.http_wanport) choose_enable(F.http_wanport);
if (F._remote_mgt_https) choose_enable(F._remote_mgt_https);
}
if(F._http_enable.checked == false)
if(F._https_enable)
if(F._https_enable.checked == true) {
if (F._remote_mgt_https)
{
choose_disable(F._remote_mgt_https);
F._remote_mgt_https.checked = true;
}
}
if(F._https_enable)
if(F._http_enable.checked == true && F._https_enable.checked == false)
choose_disable(F._remote_mgt_https);
}
function ChangePasswd(F) {
if((F.PasswdModify.value==1 && F.http_passwd.value == "d6nw5v1x2pc7st9m") || F.http_passwd.value == "admin") {
if(confirm(errmsg.err51)) {
F.remote_management[1].checked = true;
return false;
} else {
F.remote_management[1].checked = true;
return false;
}
}
return true;
}
function valid_password(F) {
if (F.http_passwd.value != F.http_passwdConfirm.value) {
alert(errmsg.err10);
F.http_passwdConfirm.focus();
F.http_passwdConfirm.select();
return false;
}
return true;
}
function handle_https(F)
{if(F._https_enable.checked == true && F.remote_management[0].checked == true) {
choose_enable(F._remote_mgt_https);
}
else {
F._remote_mgt_https.checked = false;
choose_disable(F._remote_mgt_https);
}
}
function selSSH(val, load) {
if (load == 1) {
sshd = document.getElementsByName('remote_mgt_ssh');
setElementActive("remote_mgt_ssh", val == "1");
setElementActive("sshd_wanport", val == "1" && sshd[0].checked);
} else {
setElementActive("sshd_wanport", val == "1");
}
}
function selTelnet(val, load) {
if (load == 1) {
telnet = document.getElementsByName('remote_mgt_telnet');
setElementActive("remote_mgt_telnet", val == "1");
setElementActive("telnet_wanport", val == "1" && telnet[0].checked);
} else {
setElementActive("telnet_wanport", val == "1");
}
}
function to_reboot(F) {
F.action.value="Reboot";
apply(F);
}
function submitcheck(F) {
if( F.http_passwd.value != F.http_passwdConfirm.value ) {
alert(errmsg.err52);
F.http_passwd.focus();
return false;
}
valid_password(F);
if(F.remote_management)
if(F.remote_management[0].checked == true) {
if(!ChangePasswd(F))
return false;
}

if(F._remote_mgt_https) {
if(F.http_enable.checked == true && F.https_enable.checked == false)
F._remote_mgt_https.checked == false;
if(F.http_enable.checked == false && F.https_enable.checked == true)
F._remote_mgt_https.checked == true;
if(F._remote_mgt_https.checked == true)
F.remote_mgt_https.value = 1;
else
F.remote_mgt_https.value = 0;
}

if(F._https_enable) {
if(F._https_enable.checked == true)
F.https_enable.value = 1;
else
F.https_enable.value = 0;
}
if(F._http_enable) {
if(F._http_enable.checked == true)
F.http_enable.value = 1;
else
F.http_enable.value = 0;
}

if(F._info_passwd) {
if(F._info_passwd.checked == true)
F.info_passwd.value = 1;
else
F.info_passwd.value = 0;
}
if (F.remote_ip_any)
if (F.remote_ip_any[1].checked == true){
if(F.remote_ip_0.value == "0" && F.remote_ip_1.value == "0" && F.remote_ip_2.value == "0" && F.remote_ip_3.value == "0" ) {
alert(errmsg.err111);
return false;
}
if(parseInt(F.remote_ip_3.value) > parseInt(F.remote_ip_4.value)) {
alert(errmsg.err110);
F.remote_ip_4.focus();
return false;
}
}
F.save_button.value = sbutton.saving;
return true;
}
function to_submit(F) {
if (submitcheck(F))
apply(F);
}
function to_apply(F) {
if (submitcheck(F))
applytake(F);
}
var update;
addEvent(window, "load", function() {
port_enable_disable(document.setup, "0");
if (document.setup.remote_mgt_ssh)
selSSH("1", 1);
if (document.setup.remote_mgt_telnet)
selTelnet("0", 1);
show_layer_ext(document.setup.ipv6_enable0,'idipv6', 0 == 1);
show_layer_ext(document.setup.remote_mgt_ssh, 'idssh', 0 == 1);
show_layer_ext(document.setup.remote_mgt_telnet, 'idtelnet', 0 == 1);
show_layer_ext(document.setup.remote_ip_any, 'idremip', 0 == 1);
show_layer_ext(document.setup.remote_management, 'idhttpd', 0 == 1);
show_layer_ext(document.setup.status_auth, 'idsysinfo', 0 == 1);
show_layer_ext(document.setup.cron_enable, 'idcron', 1 == 1);
show_layer_ext(document.setup.samba_mount, 'idsamba', 0 == 1);
show_layer_ext(document.setup.enable_jffs2, 'idjffs2', 0 == 1);
show_layer_ext(document.setup.mmc_enable0, 'idmmc', 0 == 1);
show_layer_ext(document.setup.mmc_gpio, 'idmmcgpio', 0 == 1);

update = new StatusbarUpdate();
update.start();

});
addEvent(window, "unload", function() {
update.stop();
});

//]]>
</script>
</head>
<body class="gui">

<div id="wrapper">
<div id="content">
<div id="header">
<div id="logo"><h1>DD-WRT Control Panel</h1></div>
<div id="menu">

 <div id="menuMain">
  <ul id="menuMainList">
   <li><a href="index.asp"><script type="text/javascript">Capture(bmenu.setup)</script></a></li>
   <li><a href="Wireless_Basic.asp"><script type="text/javascript">Capture(bmenu.wireless)</script></a></li>
   <li><a href="Services.asp"><script type="text/javascript">Capture(bmenu.services)</script></a></li>
   <li><a href="Firewall.asp"><script type="text/javascript">Capture(bmenu.security)</script></a></li>
   <li><a href="Filters.asp"><script type="text/javascript">Capture(bmenu.accrestriction)</script></a></li>

   <li><a href="ForwardSpec.asp"><script type="text/javascript">Capture(bmenu.applications)</script></a></li>
   <li class="current"><span><script type="text/javascript">Capture(bmenu.admin)</script></span>
    <div id="menuSub">
     <ul id="menuSubList">
      <li><span><script type="text/javascript">Capture(bmenu.adminManagement)</script></span></li>
      <li><a href="Alive.asp"><script type="text/javascript">Capture(bmenu.adminAlive)</script></a></li>
      <li><a href="Diagnostics.asp"><script type="text/javascript">Capture(bmenu.adminDiag)</script></a></li>

      <li><a href="Wol.asp"><script type="text/javascript">Capture(bmenu.adminWol)</script></a></li>
      <li><a href="Factory_Defaults.asp"><script type="text/javascript">Capture(bmenu.adminFactory)</script></a></li>
      <li><a href="Upgrade.asp"><script type="text/javascript">Capture(bmenu.adminUpgrade)</script></a></li>
      <li><a href="config.asp"><script type="text/javascript">Capture(bmenu.adminBackup)</script></a></li>
     </ul>
    </div>
    </li>

   <li><a href="Status_Router.asp"><script type="text/javascript">Capture(bmenu.statu)</script></a></li>
  </ul>
 </div>
</div>

</div>
<div id="main">
<div id="contents">
<form name="setup" action="apply.cgi" method="post">
<input type="hidden" name="submit_button" value="Management" />
<input type="hidden" name="action" value="Apply" />
<input type="hidden" name="change_action" />
<input type="hidden" name="submit_type" />

<input type="hidden" name="commit" value="1" />
<input type="hidden" name="PasswdModify" value="0" />
<input type="hidden" name="remote_mgt_https" />
<input type="hidden" name="http_enable" />
<input type="hidden" name="info_passwd" />
<input type="hidden" name="https_enable" />
<h2><script type="text/javascript">Capture(management.h2)</script></h2>
<div>
    <fieldset>
        <legend><script type="text/javascript">Capture(management.psswd_legend)</script></legend>
        <div class="setting">
            <div class="label"><script type="text/javascript">Capture(management.psswd_user)</script></div>

            <input type="password" maxlength="63" size="20" value="d6nw5v1x2pc7st9m" name="http_username" onblur="valid_name(this,management.psswd_user,SPACE_NO)" />
        </div>
        <div class="setting">
            <div class="label"><script type="text/javascript">Capture(management.psswd_pass)</script></div>
            <input type="password" maxlength="63" size="20" value="d6nw5v1x2pc7st9m" name="http_passwd" onblur="valid_name(this,management.psswd_pass,SPACE_NO)" />
        </div>
        <div class="setting">
            <div class="label"><script type="text/javascript">Capture(management.pass_conf)</script></div>

            <input type="password" maxlength="63" size="20" value="d6nw5v1x2pc7st9m" name="http_passwdConfirm" onblur="valid_name(this,management.pass_conf,SPACE_NO)" />
        </div>
    </fieldset><br />

    <fieldset>
        <legend><script type="text/javascript">Capture(management.web_legend)</script></legend>
        <div class="setting">
            <div class="label"><script type="text/javascript">Capture(share.proto)</script></div>
            <input class="spaceradio" type="checkbox" value="1" name="_http_enable" checked="checked" />HTTP&nbsp;

            <input class="spaceradio" type="checkbox" value="1" onclick="handle_https(this.form)" name="_https_enable"  />HTTPS
        </div>
        <div class="setting">
            <div class="label"><script type="text/javascript">Capture(management.web_refresh)</script></div>
            <input class="num" name="refresh_time" size="2" maxlength="2" value="3" />
        </div>
        <div class="setting">
            <div class="label"><script type="text/javascript">Capture(management.web_sysinfo)</script></div>

            <input class="spaceradio" type="radio" value="1" name="status_auth"  onclick="show_layer_ext(this, 'idsysinfo', true)" /><script type="text/javascript">Capture(share.enable)</script>&nbsp;
            <input class="spaceradio" type="radio" value="0" name="status_auth" checked="checked" onclick="show_layer_ext(this, 'idsysinfo', false)" /><script type="text/javascript">Capture(share.disable)</script>
        </div>
        <div id="idsysinfo">
            <div class="setting">
                <div class="label"><script type="text/javascript">Capture(management.web_sysinfopass)</script></div>
                <input class="spaceradio" type="checkbox" value="1" name="_info_passwd"  /><script type="text/javascript">Capture(share.enabled)</script>

            </div>
            <div class="setting">
                <div class="label"><script type="text/javascript">Capture(management.web_sysinfomasq)</script></div>
                <input class="spaceradio" type="radio" value="1" name="maskmac" checked="checked" /><script type="text/javascript">Capture(share.enable)</script>&nbsp;
                <input class="spaceradio" type="radio" value="0" name="maskmac"  /><script type="text/javascript">Capture(share.disable)</script>
            </div>
        </div>

    </fieldset><br />

    <fieldset>
        <legend><script type="text/javascript">Capture(management.remote_legend)</script></legend>
        <div class="setting">
            <div class="label"><script type="text/javascript">Capture(management.remote_gui)</script></div>
            <input class="spaceradio" type="radio" value="1" name="remote_management" onclick="show_layer_ext(this, 'idhttpd', true);SelPort(1,this.form)"  /><script type="text/javascript">Capture(share.enable)</script>&nbsp;
            <input class="spaceradio" type="radio" value="0" name="remote_management" onclick="show_layer_ext(this, 'idhttpd', false);SelPort(0,this.form)" checked="checked" /><script type="text/javascript">Capture(share.disable)</script>

        </div>
        <div id="idhttpd">
            <div class="setting">
                <div class="label"><script type="text/javascript">Capture(management.remote_https)</script></div>
                <input type="checkbox" value="1" name="_remote_mgt_https"  />
            </div>
            <div class="setting">
                <div class="label"><script type="text/javascript">Capture(management.remote_guiport)</script></div>

                <input class="num" maxlength="5" size="5" name="http_wanport" onblur="valid_range(this,1,65535,management.remote_guiport)" value="8080" />
                <span class="default"><script type="text/javascript">
                //<![CDATA[
                document.write("(" + share.deflt + ": 8080, " + share.range + ": 1 - 65535)");
                //]]>
                </script></span>
            </div>
        </div>

        <div class="setting">
            <div class="label"><script type="text/javascript">Capture(management.remote_ssh)</script></div>
            <input class="spaceradio" type="radio" value="1" name="remote_mgt_ssh" onclick="show_layer_ext(this, 'idssh', true);selSSH(this.value, 0)"  /><script type="text/javascript">Capture(share.enable)</script>&nbsp;

            <input class="spaceradio" type="radio" value="0" name="remote_mgt_ssh" onclick="show_layer_ext(this, 'idssh', false);selSSH(this.value, 0)" checked="checked" /><script type="text/javascript">Capture(share.disable)</script>
        </div>
        <div class="setting" id="idssh">
            <div class="label"><script type="text/javascript">Capture(management.remote_sshport)</script></div>
            <input class="num" maxlength="5" size="5" name="sshd_wanport" onblur="valid_range(this,1,65535,management.remote_sshport)" value="22" />
            <span class="default"><script type="text/javascript">
            //<![CDATA[
            document.write("(" + share.deflt + ": 22, " + share.range + ": 1 - 65535)");
            //]]>
            </script></span>
        </div>


        <div class="setting">
            <div class="label"><script type="text/javascript">Capture(management.remote_telnet)</script></div>
            <input class="spaceradio" type="radio" value="1" name="remote_mgt_telnet" onclick="show_layer_ext(this, 'idtelnet', true);selTelnet(this.value, 0)"  /><script type="text/javascript">Capture(share.enable)</script>&nbsp;
            <input class="spaceradio" type="radio" value="0" name="remote_mgt_telnet" onclick="show_layer_ext(this, 'idtelnet', false);selTelnet(this.value, 0)" checked="checked" /><script type="text/javascript">Capture(share.disable)</script>
        </div>
        <div class="setting" id="idtelnet">
            <div class="label"><script type="text/javascript">Capture(management.remote_telnetport)</script></div>

            <input class="num" maxlength="5" size="5" name="telnet_wanport" onblur="valid_range(this,1,65535,management.remote_telnetport)" value="23" />
            <span class="default"><script type="text/javascript">
            //<![CDATA[
            document.write("(" + share.deflt + ": 23, " + share.range + ": 1 - 65535)");
            //]]>
            </script></span>
        </div>
        <div class="setting">
            <div class="label"><script type="text/javascript">Capture(management.remote_allowanyip)</script></div>
            <input class="spaceradio" type="radio" value="1" name="remote_ip_any" onclick="show_layer_ext(this, 'idremip', false)" checked="checked" /><script type="text/javascript">Capture(share.enable)</script>&nbsp;
            <input class="spaceradio" type="radio" value="0" name="remote_ip_any" onclick="show_layer_ext(this, 'idremip', true)"  /><script type="text/javascript">Capture(share.disable)</script>

        </div>
        <div class="setting" id="idremip">
            <div class="label"><script type="text/javascript">Capture(management.remote_ip)</script></div>
            <input type="hidden" name="remote_ip" value="4" />
            <input class="num" maxLength="3" size="3" onblur="valid_range(this,1,223,'IP')" value="0" name="remote_ip_0" /> .
            <input class="num" maxLength="3" size="3" onblur="valid_range(this,0,255,'IP')" value="0" name="remote_ip_1" /> .
            <input class="num" maxLength="3" size="3" onblur="valid_range(this,0,255,'IP')" value="0" name="remote_ip_2" /> .
            <input class="num" maxLength="3" size="3" onblur="valid_range(this,1,254,'IP')" value="0" name="remote_ip_3" /> <script type="text/javascript">Capture(share.to)</script>

            <input class="num" maxLength="3" size="3" onblur="valid_range(this,1,254,'IP')" value="0" name="remote_ip_4" />
        </div>
    </fieldset><br />


    <fieldset>
        <legend><script type="text/javascript">Capture(management.boot_legend)</script></legend>
        <div class="setting">
            <div class="label"><script type="text/javascript">Capture(management.boot_srv)</script></div>
            <input class="spaceradio" type="radio" value="on" name="boot_wait" checked="checked" /><script type="text/javascript">Capture(share.enable)</script>&nbsp;

            <input class="spaceradio" type="radio" value="off" name="boot_wait"  /><script type="text/javascript">Capture(share.disable)</script>
        </div>
    </fieldset><br />


    <fieldset>
        <legend><script type="text/javascript">Capture(management.cron_legend)</script></legend>
        <div class="setting">
            <div class="label"><script type="text/javascript">Capture(management.cron_srvd)</script></div>

            <input class="spaceradio" type="radio" value="1" name="cron_enable" checked="checked" onclick="show_layer_ext(this, 'idcron', true)" /><script type="text/javascript">Capture(share.enable)</script>&nbsp;
            <input class="spaceradio" type="radio" value="0" name="cron_enable"  onclick="show_layer_ext(this, 'idcron', false)" /><script type="text/javascript">Capture(share.disable)</script>
        </div>
        <div class="setting" id="idcron">
                <div class="label"><script type="text/javascript">Capture(management.cron_jobs)</script></div>
                    <textarea cols="60" rows="4" id="cron_jobs" name="cron_jobs"></textarea>
                    <script type="text/javascript">
                    //<![CDATA[
                        var cron_jobs = fix_cr( '' );
                        document.getElementById("cron_jobs").value = cron_jobs;
                    //]]>
                    </script>

        </div>
    </fieldset><br />
    <fieldset>
        <legend><script type="text/javascript">Capture(management.wifi_legend)</script></legend>
        <div class="setting">
            <div class="label"><script type="text/javascript">Capture(management.wifi_srv)</script></div>
            <input class="spaceradio" type="radio" name="nas_enable" value="1" checked="checked" /><script type="text/javascript">Capture(share.enable)</script>&nbsp;

            <input class="spaceradio" type="radio" name="nas_enable" value="0"  /><script type="text/javascript">Capture(share.disable)</script>
        </div>
    </fieldset><br />

    <fieldset>
        <legend><script type="text/javascript">Capture(management.rst_legend)</script></legend>
        <div class="setting">
            <div class="label"><script type="text/javascript">Capture(management.rst_srv)</script></div>

            <input class="spaceradio" type="radio" name="resetbutton_enable" value="1" checked="checked" /><script type="text/javascript">Capture(share.enable)</script>&nbsp;
            <input class="spaceradio" type="radio" name="resetbutton_enable" value="0"  /><script type="text/javascript">Capture(share.disable)</script>
        </div>
    </fieldset><br />

    <fieldset>
        <legend><script type="text/javascript">Capture(management.routing_legend)</script></legend>
        <div class="setting">

            <div class="label"><script type="text/javascript">Capture(management.routing_srv)</script></div>
            <input class="spaceradio" type="radio" name="zebra_enable" value="1" checked="checked" /><script type="text/javascript">Capture(share.enable)</script>&nbsp;
            <input class="spaceradio" type="radio" name="zebra_enable" value="0"  /><script type="text/javascript">Capture(share.disable)</script>
        </div>
    </fieldset><br />
</div>
<fieldset>
  <legend><script type="text/javascript">Capture(management.lang_legend)</script></legend>

  <div class="setting">
      <div class="label"><script type="text/javascript">Capture(management.lang_srv)</script></div>
      <select name="language">
      <script type="text/javascript">
//<![CDATA[
document.write("<option value=\"chinese_simplified\"  >" + management.lang_chinese_simplified + "</option>");
document.write("<option value=\"chinese_traditional\"  >" + management.lang_chinese_traditional + "</option>");
document.write("<option value=\"dutch\"  >" + management.lang_dutch + "</option>");
document.write("<option value=\"english\" selected=\"selected\" >" + management.lang_english + "</option>");
document.write("<option value=\"french\"  >" + management.lang_french + "</option>");
document.write("<option value=\"german\"  >" + management.lang_german + "</option>");
document.write("<option value=\"hungarian\"  >" + management.lang_hungarian + "</option>");
document.write("<option value=\"italian\"  >" + management.lang_italian + "</option>");
document.write("<option value=\"japanese\"  >" + management.lang_japanese + "</option>");
document.write("<option value=\"polish\"  >" + management.lang_polish + "</option>");
document.write("<option value=\"portuguese_braz\"  >" + management.lang_portuguese_braz + "</option>");
document.write("<option value=\"russian\"  >" + management.lang_russian + "</option>");
document.write("<option value=\"slovenian\"  >" + management.lang_slovenian + "</option>");
document.write("<option value=\"spanish\"  >" + management.lang_spanish + "</option>");
document.write("<option value=\"swedish\"  >" + management.lang_swedish + "</option>");
//]]>
</script>

      </select>
  </div>
</fieldset><br/>

<fieldset>
    <legend><script type="text/javascript">Capture(management.mmc_legend)</script></legend>
    <div class="setting">
        <div class="label"><script type="text/javascript">Capture(management.mmc_srv)</script></div>
        <input class="spaceradio" type="radio" value="1" name="mmc_enable0"  onclick="show_layer_ext(this, 'idmmc', true)" /><script type="text/javascript">Capture(share.enable)</script>&nbsp;
        <input class="spaceradio" type="radio" value="0" name="mmc_enable0" checked="checked" onclick="show_layer_ext(this, 'idmmc', false)" /><script type="text/javascript">Capture(share.disable)</script>
    </div>

    <div id="idmmc">
        <div class="setting">
            <div class="label"><script type="text/javascript">Capture(management.mmc_gpiosel)</script></div>
            <input class="spaceradio" type="radio" value="0" name="mmc_gpio" checked="checked" onclick="show_layer_ext(this, 'idmmcgpio', false)" /><script type="text/javascript">Capture(share.auto)</script>&nbsp;
            <input class="spaceradio" type="radio" value="1" name="mmc_gpio"  onclick="show_layer_ext(this, 'idmmcgpio', true)"/><script type="text/javascript">Capture(share.manual)</script>
        </div>
        <div id="idmmcgpio">
            <div class="setting">

                <div class="label"><script type="text/javascript">Capture(management.mmc_gpiopins)</script></div>
                DI:
               <input class="num" name="mmc_di" size="2" maxlength="2" onblur="valid_range(this,0,15,management.mmc_gpiopins)" value='0' />
                &nbsp;&nbsp;&nbsp;D0:
               <input class="num" name="mmc_do" size="2" maxlength="2" onblur="valid_range(this,0,15,management.mmc_gpiopins)" value='0' />
                &nbsp;&nbsp;&nbsp;CLK:
               <input class="num" name="mmc_clk" size="2" maxlength="2" onblur="valid_range(this,0,15,management.mmc_gpiopins)" value='0' />
                &nbsp;&nbsp;&nbsp;CS:
               <input class="num" name="mmc_cs" size="2" maxlength="2" onblur="valid_range(this,0,15,management.mmc_gpiopins)" value='0' />
            </div>

        </div>
        <div class="setting">
            <div class="label"><script type="text/javascript">Capture(share.fssize)</script></div>
            <script type="text/javascript">
            //<![CDATA[
            var mmc = {
    size: 2883584,
    free: 0
    };

            document.write( ((0) && (mmc.size)) ? (scaleSize(mmc.size) + ' / ' + scaleSize(mmc.free)) : '<span style="color:#999999;"><em>(' + share.nmounted + ')</em></span>' );
            //]]>
            </script>
        </div>
    </div>
</fieldset><br/>

<fieldset>
    <legend><script type="text/javascript">Capture(management.net_legend)</script></legend>

    <div class="setting">
        <div class="label"><script type="text/javascript">Capture(management.net_port)</script></div>
        <input class="num" size="5" maxlength="5" name="ip_conntrack_max" onblur="valid_range(this,256,4096,management.net_port)" value="512" />&nbsp;
        <span class="default"><script type="text/javascript">
        //<![CDATA[
        document.write("(" + share.deflt + ": 4096, " + share.range + ": 256 - 4096)");
        //]]>
        </script></span>
    </div>
    <div class="setting">
        <div class="label"><script type="text/javascript">Capture(management.net_tcptimeout)</script></div>

        <input class="num" size="5" maxlength="5" name="ip_conntrack_tcp_timeouts" onblur="valid_range(this,1,86400,management.net_tcptimeout)" value="3600" />&nbsp;
        <span class="default"><script type="text/javascript">
        //<![CDATA[
        document.write("(" + share.deflt + ": 3600, " + share.range + ": 1 - 86400)");
        //]]>
        </script></span>
    </div>
    <div class="setting">
        <div class="label"><script type="text/javascript">Capture(management.net_udptimeout)</script></div>
        <input class="num" size="5" maxlength="5" name="ip_conntrack_udp_timeouts" onblur="valid_range(this,1,86400,management.net_udptimeout)" value="3600" />&nbsp;
        <span class="default"><script type="text/javascript">
        //<![CDATA[
        document.write("(" + share.deflt + ": 120, " + share.range + ": 1 - 86400)");
        //]]>
        </script></span>

    </div>
</fieldset><br/>

<fieldset>
  <legend><script type="text/javascript">Capture(management.clock_legend)</script></legend>
  <div class="setting">
    <script type="text/javascript">Capture(management.clock_support)</script>
</div>

</fieldset><br/>
<script type="text/javascript">
//<![CDATA[
function previewStyle(val) {
    var linkTags = document.getElementsByTagName("link");
    for(var i = 0; i < linkTags.length; i++) {
        var t = linkTags[i];
        if(t.getAttribute("rel") != "stylesheet") continue;
        if(t.getAttribute("href").indexOf("style/pwc/") != -1) continue;
        if(t.getAttribute("href").indexOf("default") != -1) continue;
        if(t.getAttribute("href").indexOf("/" + val + "/") != -1) return false;
        var newStyle = t.getAttribute("href").replace(/\?[a-z]*/,"");
        newStyle = newStyle.replace(/style\/\w+\//, "style/" + val + "/") + "?" + val;
        t.removeAttribute("href");
        t.setAttribute("href", newStyle);
    }
    return true;
}
document.forms[0].onreset = function() {
    previewStyle("elegant");
}
//]]>

</script>
<fieldset>
    <legend><script type="text/javascript">Capture(management.gui_style)</script></legend>
    <div class="setting">
        <div class="label"><script type="text/javascript">Capture(share.styl)</script></div>
        <select name="router_style">
            <option value="blue" >blue</option>
<option value="brainslayer" >brainslayer</option>

<option value="cyan" >cyan</option>
<option value="elegant" selected="selected">elegant</option>
<option value="green" >green</option>
<option value="kromo" >kromo</option>
<option value="orange" >orange</option>
<option value="red" >red</option>
<option value="wikar" >wikar</option>
<option value="xirian" >xirian</option>
<option value="yellow" >yellow</option>

        </select>&nbsp;
        <script type="text/javascript">
        //<![CDATA[
        document.write("<input class=\"button\" type=\"button\" name=\"preview_button\" value=\"" + sbutton.preview + "\" onclick=\"previewStyle(this.form.router_style.value)\" />");
        //]]>
        </script>
    </div>
</fieldset><br />
<fieldset>
    <legend><script type="text/javascript">Capture(management.samba_legend)</script></legend>
    <div class="setting">
        <div class="label"><script type="text/javascript">Capture(management.samba_srv)</script></div>

        <input class="spaceradio" type="radio" value="1" name="samba_mount"  onclick="show_layer_ext(this, 'idsamba', true)" /><script type="text/javascript">Capture(share.enable)</script>&nbsp;
        <input class="spaceradio" type="radio" value="0" name="samba_mount" checked="checked" onclick="show_layer_ext(this, 'idsamba', false)" /><script type="text/javascript">Capture(share.disable)</script>
    </div>
    <div id="idsamba">
        <div class="setting">
            <div class="label"><script type="text/javascript">Capture(management.samba_share)</script></div>
            <input maxlength="100" size="25" name="samba_share" value="//yourserverip/yourshare" onblur="valid_name(this,management.samba_share,SPACE_NO)" />

        </div>
        <div class="setting">
            <div class="label"><script type="text/javascript">Capture(share.usrname)</script></div>
            <input maxlength="100" size="25" name="samba_user" value="username/computer" />
        </div>
        <div class="setting">
            <div class="label"><script type="text/javascript">Capture(share.passwd)</script></div>
            <input type="password" id="samba_password" maxlength="100" size="25" name="samba_password" value="iwer573495u7340" />&nbsp;&nbsp;&nbsp;

            <input type="checkbox" name="_samba_password_unmask" value="0" onclick="setElementMask('samba_password', this.checked)" />&nbsp;<script type="text/javascript">Capture(share.unmask)</script>
        </div>
        <div class="setting">
            <div class="label"><script type="text/javascript">Capture(management.samba_stscript)</script></div>
            <input maxlength="100" size="25" name="samba_script" value="yourscript" />
        </div>
        <div class="setting">
            <div class="label"><script type="text/javascript">Capture(share.fssize)</script></div>

            <script type="text/javascript">
            //<![CDATA[
            var samba = {
    size: 0,
    free: 0
    };

            document.write( ((0) && (samba.size)) ? (scaleSize(samba.size) + ' / ' + scaleSize(samba.free)) : '<span style="color:#999999;"><em>(' + share.nmounted + ')</em></span>' );
            //]]>
            </script>
        </div>
    </div>
</fieldset><br/>


<div class="submitFooter">
<script type="text/javascript">
//<![CDATA[
submitFooterButton(1,1,1);
//]]>
</script>
</div>
</form>
</div>
</div>

<div id="helpContainer">
<div id="help">
<div><h2><script type="text/javascript">Capture(share.help)</script></h2></div>
<dl>
<dt class="term"><script type="text/javascript">Capture(hmanagement.right1)</script></dt>
<dd class="definition"><script type="text/javascript">Capture(hmanagement.right2)</script></dd>
</dl><br />
<a href="javascript:openHelpWindow('HManagement.asp');"><script type="text/javascript">Capture(share.more)</script></a>
</div>
</div>
<div id="floatKiller"></div>
<div id="statusInfo">
<div class="info"><script type="text/javascript">Capture(share.firmware)</script>:

<script type="text/javascript">
//<![CDATA[
document.write("<a title=\"" + share.about + "\" href=\"javascript:openAboutWindow()\">DD-WRT v24-sp2 (10/10/09) std</a>");
//]]>
</script>
</div>
<div class="info"><script type="text/javascript">Capture(share.time)</script>:  <span id="uptime"> 15:53:19 up 1 day, 59 min, load average: 0.00, 0.00, 0.00</span></div>
<div class="info">WAN<span id="ipinfo">&nbsp;IP: [my router IP :)]</span></div>
</div>
</div>
</div>
</body>
</html>

Kiesp · September 8, 2010

Try this

_IENavigate ($oIE, "javascript:this.form.action.value="Reboot";)

Edited September 8, 2010 by Kiesp

gsx · September 8, 2010

I get the error from IE. This time it says 'this.form.action.' The last time was 'action.'

Message: 'this.form.action' is null or not an object
Line: 1
Char: 1
Code: 0
URI: http://[My Router IP]/Management.asp

I had to edit the quotation marks though.

_IENavigate ($oIE, "javascript:this.form.action.value='Reboot';")

Kiesp · September 8, 2010

I'm sorry, but then i have no idea how to do it.

Let's hope someone else knows

Sign In

Reboot DD-WRT Router

Recommended Posts

gsx

Link to comment

Share on other sites

Kiesp

Link to comment

Share on other sites

gsx

Link to comment

Share on other sites

Kiesp

Link to comment

Share on other sites

gsx

Link to comment

Share on other sites

Kiesp

Link to comment

Share on other sites

gsx

Link to comment

Share on other sites

Kiesp

Link to comment

Share on other sites

Create an account or sign in to comment

Create an account

Sign in

Recently Browsing 0 members

Browse

AutoIt Resources

Release

Beta
