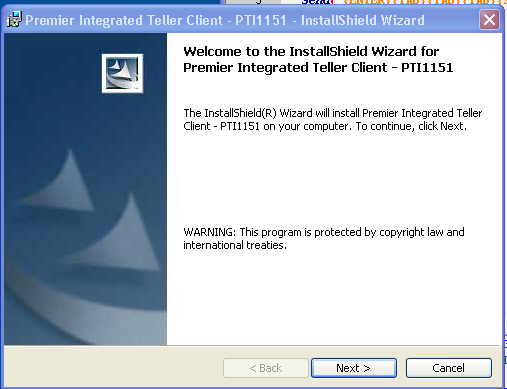

mitchell2345 Posted January 27, 2011 Posted January 27, 2011 Hi,I am trying to write a script to install some software. Its giving me issues.To explain the Wizard:Opens up and decompresses the image, the title of the window is "Premier Integrated Teller Client - PTI1151 - InstallShield Wizard"It the closes that window and runs a windows installer load screen.Next it reopens the "Premier Integrated Teller Client - PTI1151 - InstallShield Wizard" window and does some more checking before the "next" button turns from grey to active. I cant get a way for AutoIT to wait for that Next button to become active.Here is my script so far:Run('C:\Documents and Settings\e042921\Desktop\PTI1151S.EXE') WinWaitActive("[TITLE:Premier Integrated Teller Client - PTI1151 - InstallShield Wizard; INSTANCE:2]", "") Send("{ENTER}{TAB}{TAB}{TAB}{SPACE}{TAB}{SPACE}{TAB}{SPACE}{TAB}{SPACE}{TAB}{SPACE}{TAB}{SPACE}{TAB}{SPACE}{TAB}{TAB}{ENTER}{TAB}{ENTER}{SHIFTDOWN}dsmintell{SHIFTUP}02{TAB}{DOWN}{DOWN}{DOWN}{DOWN}{DOWN}{DOWN}{DOWN}{DOWN}{TAB}{ENTER}{TAB}{TAB}{TAB}{SPACE}{TAB}{ENTER}{TAB}{TAB}{ENTER}{ENTER}{ENTER}") Screen shot of the final install with next active is in attachment.Some window info:Entire window:>>> Window <<<<Title: Premier Integrated Teller Client - PTI1151 - InstallShield WizardClass: MsiDialogCloseClassPosition: 178, 250Size: 504, 386Style: 0x14C80000ExStyle: 0x00040100Handle: 0x000E03EA>>>> Control <<<<Class: Instance: ClassnameNN: Name: Advanced (Class): ID: Text: Position: Size: ControlClick Coords: Style: ExStyle: Handle: >>>> Mouse <<<<Position: 609, 268Cursor ID: 0Color: 0x7E9DE5>>>> StatusBar <<<<>>>> ToolsBar <<<<>>>> Visible Text <<<<&Next >Cancel< &BackWARNING: This program is protected by copyright law and international treaties.The InstallShield® Wizard will install Premier Integrated Teller Client - PTI1151 on your computer. To continue, click Next.NewBinary5Welcome to the InstallShield Wizard for Premier Integrated Teller Client - PTI1151>>>> Hidden Text <<<<Next button:>>>> Window <<<<Title: Premier Integrated Teller Client - PTI1151 - InstallShield WizardClass: MsiDialogCloseClassPosition: 178, 250Size: 504, 386Style: 0x14C80000ExStyle: 0x00040100Handle: 0x000E03EA>>>> Control <<<<Class: ButtonInstance: 1ClassnameNN: Button1Name: Advanced (Class): [CLASS:Button; INSTANCE:1]ID: 19383Text: &Next >Position: 306, 324Size: 88, 22ControlClick Coords: 40, 9Style: 0x50032001ExStyle: 0x00000000Handle: 0x001D0344>>>> Mouse <<<<Position: 527, 612Cursor ID: 0Color: 0x000000>>>> StatusBar <<<<>>>> ToolsBar <<<<>>>> Visible Text <<<<&Next >Cancel< &BackWARNING: This program is protected by copyright law and international treaties.The InstallShield® Wizard will install Premier Integrated Teller Client - PTI1151 on your computer. To continue, click Next.NewBinary5Welcome to the InstallShield Wizard for Premier Integrated Teller Client - PTI1151>>>> Hidden Text <<<<
LurchMan Posted January 27, 2011 Posted January 27, 2011 Get the information of the Next button and use something like this: Do $state = ControlCommand ($title, "", $ButtonInfo, "IsEnabled", "") Sleep (100) Until $state = 1 Obviously you will have to fill in title and button info but this will make your script stop until that button is enabled. Look up ControlCommand in the help file for more information on it as well. Dating a girl is just like writing software. Everything's going to work just fine in the testing lab (dating), but as soon as you have contract with a customer (marriage), then your program (life) is going to be facing new situations you never expected. You'll be forced to patch the code (admit you're wrong) and then the code (wife) will just end up all bloated and unmaintainable in the end.

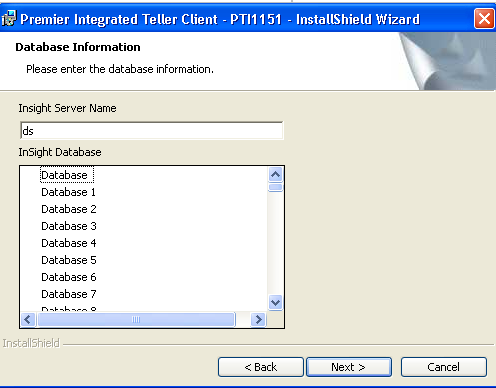

mitchell2345 Posted January 27, 2011 Author Posted January 27, 2011 Thank you. That works great next issue. How do I make selection in a listbox see screenshot. Window details: >>>> Window <<<< Title: Premier Integrated Teller Client - PTI1151 - InstallShield Wizard Class: MsiDialogCloseClass Position: 363, 203 Size: 504, 386 Style: 0x14C80000 ExStyle: 0x00040100 Handle: 0x000E032C >>>> Control <<<< Class: SysListView32 Instance: 1 ClassnameNN: SysListView321 Name: Advanced (Class): [CLASS:SysListView32; INSTANCE:1] ID: 28487 Text: Position: 20, 133 Size: 266, 164 ControlClick Coords: 156, 103 Style: 0x50B3404D ExStyle: 0x00000000 Handle: 0x000E037C >>>> Mouse <<<< Position: 542, 468 Cursor ID: 0 Color: 0xFFFFFF >>>> StatusBar <<<< >>>> ToolsBar <<<< >>>> Visible Text <<<< InSight Database ds &Next > < &Back Cancel Insight Server Name Please enter the database information. Database Information InteriorBin1 InstallShield InstallShield >>>> Hidden Text <<<< I need to select Database 8 in the list. Thanks, Mitchell
LurchMan Posted January 27, 2011 Posted January 27, 2011 Look in the help file for _GuiCtrlListView_* and create some code yourself. The help file will show you examples and explain how to use everything that AutoIt can do. Dating a girl is just like writing software. Everything's going to work just fine in the testing lab (dating), but as soon as you have contract with a customer (marriage), then your program (life) is going to be facing new situations you never expected. You'll be forced to patch the code (admit you're wrong) and then the code (wife) will just end up all bloated and unmaintainable in the end.
mitchell2345 Posted January 27, 2011 Author Posted January 27, 2011 Im not really sure how I would use this. I am not making the gui but just trying to automate the install. _GUICtrlListBox_ClickItem seems interesting but what would i use for the Handle to control.
GeekOrGuru Posted January 27, 2011 Posted January 27, 2011 I'm a noob as well, but if you are utilizing the Recorder...does it not capture your down arrow key clicks. In other words...do not utilize your mouse while you are recording (keyboard only) and I think it should grab everything you need.
mitchell2345 Posted January 27, 2011 Author Posted January 27, 2011 I'm a noob as well, but if you are utilizing the Recorder...does it not capture your down arrow key clicks. In other words...do not utilize your mouse while you are recording (keyboard only) and I think it should grab everything you need.yea i tried that as well but it doesnt seem to work at all.
LurchMan Posted January 27, 2011 Posted January 27, 2011 You're on the right track. You can use: $handle = ControlGetHandle ($title, "", $controlinfo) To get the handle of the control and then pass that variable into the _GuiCtrl* command to do what you want. Those commands can be used even if you didn't create the GUI yourself. Dating a girl is just like writing software. Everything's going to work just fine in the testing lab (dating), but as soon as you have contract with a customer (marriage), then your program (life) is going to be facing new situations you never expected. You'll be forced to patch the code (admit you're wrong) and then the code (wife) will just end up all bloated and unmaintainable in the end.
mitchell2345 Posted January 28, 2011 Author Posted January 28, 2011 still not getting anywhere. this is the code I have so far. doest seem to effect the box: $handle = ControlGetHandle ($title, "", 28487) _GUICtrlListBox_ClickItem($handle, 8, "left", True) Does this look like it would work? let me know if you need more control data from the window.
