KenNichols

Read text from Static?

6 posts in this topic

I am trying to read the text of a static control and it only shows the text as "Static"

What am I doing wrong? See sample code below. Thanks in advance!

$StaticTxt = ControlGetText("VZAccess Manager","",1007)
 MsgBox(1,"Static Text", $StaticTxt)

[topic="21048"]New to AutoIt? Check out AutoIt 1-2-3![/topic] Need to make a GUI? You NEED KODA FormDesigner!

Share this post


Link to post
Share on other sites



Post the information on the Summary tab of AU3Info while pointed at that control, so we can see the class and context.

:)


Valuater's AutoIt 1-2-3, Class... Is now in Session!For those who want somebody to write the script for them: RentACoder"Any technology distinguishable from magic is insufficiently advanced." -- Geek's corollary to Clarke's law

Share this post


Link to post
Share on other sites

>>>> Window <<<<

Title: VZAccess Manager

Class: #32770

Position: 390, 86

Size: 640, 520

Style: 0x160B004C

ExStyle: 0x00010000

Handle: 0x0000000000020286

>>>> Control <<<<

Class: Static

Instance: 3

ClassnameNN: Static3

Name:

Advanced (Class): [CLASS:Static; INSTANCE:3]

ID: 1007

Text: Static

Position: 345, 447

Size: 167, 62

ControlClick Coords: 122, 35

Style: 0x5002210D

ExStyle: 0x00000004

Handle: 0x000000000002028C

>>>> Mouse <<<<

Position: 857, 568

Cursor ID: 0

Color: 0xFFFFFF

>>>> StatusBar <<<<

>>>> ToolsBar <<<<

>>>> Visible Text <<<<

Sys

__

[ ]

X

&Start VPN

&Disconnect

Static

Static

Static

&Usage

&My Verizon

&Get Access

D&etect Device

>>>> Hidden Text <<<<

&Network Selection

GPS Se&ttings

&Search:

C&ategory:

C&ountry:

St&ate/Province:

C&ity:

&Compose

&Get New

&Reply

For&ward

&Delete

Delete &All

View All

0.00

31.2 KB

28.29

0.00

74.4 KB

123.05

75.202.112.78

00:00:52

IP Address:

Duration:

RX Rate (kbps):

Max RX Rate (kbps):

RX bytes:

Max TX Rate (kbps):

TX Rate (kbps):

TX bytes:

Static

R&eset

&Apply

Help


[topic="21048"]New to AutoIt? Check out AutoIt 1-2-3![/topic] Need to make a GUI? You NEED KODA FormDesigner!

Share this post


Link to post
Share on other sites

The AU3Info tool says the text is "Static" too. I assume you see something else, but it might be an owner-drawn graphic rather than actual text.

:)


Valuater's AutoIt 1-2-3, Class... Is now in Session!For those who want somebody to write the script for them: RentACoder"Any technology distinguishable from magic is insufficiently advanced." -- Geek's corollary to Clarke's law

Share this post


Link to post
Share on other sites

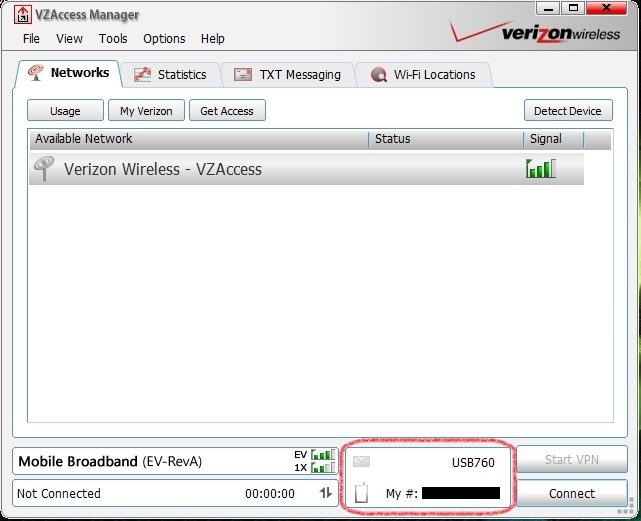

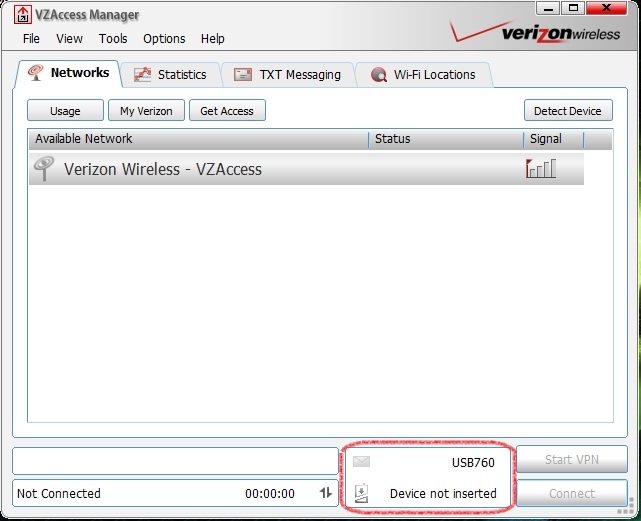

Take a look at the attached pics, Static3 is circled in Red. If this control can trully not be read, can I detect if the Connect button on the bottom right corner is enabled?

post-44460-0-18426500-1297344354_thumb.j

post-44460-0-08745700-1297344376_thumb.j


[topic="21048"]New to AutoIt? Check out AutoIt 1-2-3![/topic] Need to make a GUI? You NEED KODA FormDesigner!

Share this post


Link to post
Share on other sites

I figured it out. Rather than reading the text of the Static, I am waiting until the button is enabled before clicking on it.

ControlCommand ("VZAccess Manager","", 1003,"IsEnabled","")

Thanks again for the help!
