meytal

controlClick problem

15 posts in this topic

I have this code:

#Include <File.au3>

#Include <WinAPI.au3>

$msiName = "TortoiseSVN-1.6.15.msi"

$logName = @ScriptDir & "\downloads.log"

ShellExecuteWait(@scriptdir & "\" & $msiName)

Sleep(500)

;ControlSend("TortoiseSVN 1.6.12.20536 (32 bit) Setup", "", "[CLASS:Button; INSTANCE:2]", "This is some text")

ControlClick("TortoiseSVN 1.6.12.20536 (32 bit) Setup", "", "[CLASS:Button; INSTANCE:2]" )

Send("+n")

I've tried with ControlSend and with ControlClick, I can not select 'Next'

Any ideas???

Thanks, Meytal


Share this post


Link to post
Share on other sites



Instead of

ShellExecuteWait(@scriptdir & "\" & $msiName)
Sleep(500)
ControlClick("TortoiseSVN 1.6.12.20536 (32 bit) Setup", "", "[CLASS:Button; INSTANCE:2]" )

try something this

ShellExecute(@scriptdir & "\" & $msiName)
WinWait("TortoiseSVN 1.6.12.20536 (32 bit) Setup", "")
ControlClick("TortoiseSVN 1.6.12.20536 (32 bit) Setup", "", "[CLASS:Button; INSTANCE:2]" )

Share this post


Link to post
Share on other sites

Thank you but it is still not working.

Any other idea?

Share this post


Link to post
Share on other sites

#Include <File.au3>
#Include <WinAPI.au3>

$msiName = "TortoiseSVN-1.6.15.21042-win32-svn-1.6.16.msi"
$logName = @ScriptDir & "\downloads.log"


ShellExecuteWait(@scriptdir & "\" & $msiName)
Sleep(500)
;ControlSend("TortoiseSVN 1.6.12.20536 (32 bit) Setup", "", "[CLASS:Button; INSTANCE:2]", "This is some text")
;ControlClick("TortoiseSVN 1.6.15.21042 (32 bit) Setup", "", "[[CLASS:Button; INSTANCE:2")

WinWaitActive("TortoiseSVN 1.6.15.21042 (32 bit) Setup")
;ControlClick("TortoiseSVN 1.6.15.21042 (32 bit) Setup","&Next >",662)
Send("+n")

WinWaitActive("TortoiseSVN 1.6.15.21042 (32 bit) License Agreement","I &accept the terms in the License Agreement")
ControlClick("TortoiseSVN 1.6.15.21042 (32 bit) License Agreement","I &accept the terms in the License Agreement",662)
Send("+n")

WinWaitActive("TortoiseSVN 1.6.15.21042 (32 bit) Setup","Ready to Install")
ControlClick("TortoiseSVN 1.6.15.21042 (32 bit) Setup","&Install",802)
WinWaitActive("TortoiseSVN 1.6.15.21042 (32 bit) Setup","dlgbmp")
Send("{ENTER}")

vietnamese.au3

Share this post


Link to post
Share on other sites

If you are getting a UAC prompt from the installer, then the installer can be running with the admin token and your script will still be running on the limited user token. You may find out that your script will fail to automate the installer windows as it will not have permissions to interact. I would put #RequireAdmin at the top of the script to test the info that I have given. :huh2:

Share this post


Link to post
Share on other sites

Thank you very much for your help,

I tried everything... but nothing is working.

I put #RequireAdmin

I used the script:

WinWaitActive("TortoiseSVN 1.6.15.21042 (32 bit) Setup")

Send("+n")

I tries this on 2 computers, one XP and one WIN7

weird scenario happen:

I run the following script once and cancel the installation process manually, so the script was still active.

I ran the same script again, and this time I had the focus and it worked.

I think that the probelm is with the focus but I'm not sure what it is exactly.

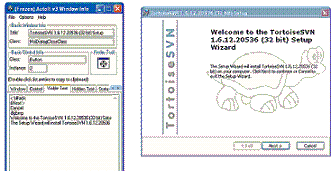

Window information:

>>>> Window <<<<

Title: TortoiseSVN 1.6.12.20536 (32 bit) Setup

Class: MsiDialogCloseClass

Position: 390, 186

Size: 499, 388

Style: 0x14C80000

ExStyle: 0x00040100

Handle: 0x001D04BA

>>>> Control <<<<

Class: Button

Instance: 2

ClassnameNN: Button2

Name:

Advanced (Class): [CLASS:Button; INSTANCE:2]

ID: 662

Text: &Next >

Position: 314, 324

Size: 74, 22

ControlClick Coords: 33, 12

Style: 0x50032001

ExStyle: 0x00000000

Handle: 0x0084024E

>>>> Mouse <<<<

Position: 740, 547

Cursor ID: 0

Color: 0xC4E7FB

>>>> StatusBar <<<<

>>>> ToolsBar <<<<

>>>> Visible Text <<<<

< &Back

&Next >

Cancel

dlgbmp

Welcome to the TortoiseSVN 1.6.12.20536 (32 bit) Setup Wizard

The Setup Wizard will install TortoiseSVN 1.6.12.20536 (32 bit) on your computer. Click Next to continue or Cancel to exit the Setup Wizard.

>>>> Hidden Text <<<<

NOTE: The package you are currently installing is older than the one you already have installed. If you continue, you will downgrade your installation.

Share this post


Link to post
Share on other sites

I ran it with the script mentioned above:

ShellExecuteWait(@scriptdir & "\" & $msiName)

WinWaitActive("TortoiseSVN 1.6.12.20536 (32 bit) Setup", "")

ControlClick("TortoiseSVN 1.6.12.20536 (32 bit) Setup", "", "[CLASS:Button; INSTANCE:2]" )

Share this post


Link to post
Share on other sites

the idea of a star?. you have to install a program that is completely automated with a click. or just click on "Next" to continue.

Share this post


Link to post
Share on other sites

#10 ·  Posted (edited)

ShellExecuteWait(@scriptdir & "\" & $msiName)

WinWaitActive("TortoiseSVN 1.6.12.20536 (32 bit) Setup", "")

ControlClick("TortoiseSVN 1.6.12.20536 (32 bit) Setup", "&Next >",662)

==> OK

Edited by vietnamit

Share this post


Link to post
Share on other sites

#11 ·  Posted (edited)

I ran it with the script mentioned above:

ShellExecuteWait(@scriptdir & "\" & $msiName)

WinWaitActive("TortoiseSVN 1.6.12.20536 (32 bit) Setup", "")

ControlClick("TortoiseSVN 1.6.12.20536 (32 bit) Setup", "", "[CLASS:Button; INSTANCE:2]" )

As I said in my previous post.

You must use ShellExecute instead of ShellExecuteWait

Your script breaks at ShellExecuteWait and waits for your setup to be finished!

ShellExecuteWait:

Runs an external program using the ShellExecute API and pauses script execution until it finishes.

Edited by Zedna

Share this post


Link to post
Share on other sites

Are you testing with 2 versions? 1.6.12 & 1.6.15 See mixed info in the postes.

It could always be that he Windows with the title is displayed but the Control install active/enabled yet.

Jos


Visit the SciTE4AutoIt3 Download page for the latest versions        Beta files                                                          Forum Rules

Live for the present,
Dream of the future,
Learn from the past.
  :)

Share this post


Link to post
Share on other sites

As I said in my previous post.

You must use ShellExecute instead of ShellExecuteWait

Your script breaks at ShellExecuteWait and waits for your setup to be finished!

Sorry... I missed the small but significant change.

Thank you, it's working now!!!

Thank you all :huh2:

Share this post


Link to post
Share on other sites

Dear All,

I'm writing my first AtuoIt script, and i got a problem with using ControlClick function,

That is my script :

Run("C:\Program Files (x86)\Vodafone\Vodafone Mobile Connect\Bin\MobileConnect.exe")

WinWaitActive("Vodafone Mobile Connect Lite", "VirtualBox Host-Only Network")

ControlClick("Vodafone Mobile Connect Lite","VirtualBox Host-Only Network","[Class:WindowsForms10.BUTTON.app.0.232467a; Text:SMS; Instance:12;]")

WinWaitActive("SMS", " Inbox")

And that is AutoIt v3 Windows Info tool :

>>>> Window <<<<

Title: Vodafone Mobile Connect Lite

Class: WindowsForms10.window.8.app.0.232467a

Position: 537, 179

Size: 549, 562

Style: 0x16CB0000

ExStyle: 0x00050100

Handle: 0x00000000002409FC

>>>> Control <<<<

Class: WindowsForms10.BUTTON.app.0.232467a

Instance: 12

ClassnameNN: WindowsForms10.BUTTON.app.0.232467a12

Name: SMS

Advanced (Class): [NAME:SMS]

ID: 5309504

Text: SMS

Position: 5, 370

Size: 133, 33

ControlClick Coords: 66, 22

Style: 0x5601000B

ExStyle: 0x00000000

Handle: 0x0000000000510440

>>>> Mouse <<<<

Position: 611, 596

Cursor ID: 0

Color: 0xEAE7E7

>>>> StatusBar <<<<

>>>> ToolsBar <<<<

>>>> Visible Text <<<<

Best Connected

Off

Prompt

Automatic

Settings

Mobile Connect

Main View

Manage

Connections

View Usage

Manage Devices

Other Programs

SMS

VPN

WLAN Connections

Searching for device...

Mobile Connections

No device

LAN Connections

VirtualBox Host-Only Network

Connected

menuStrip1

>>>> Hidden Text <<<<

Actually i wish to click this SMS buttom, but the command i used do no action at all, could any one help out to find out what is my problem.

Also, if i wish to use MouseClick function, how can i make it use relative coordinates from the opend window whereever it appeares ?

Thanks in advance

Share this post


Link to post
Share on other sites

@khalifa: I think that it's frowned up here to hijack another's thread. Rather, I think that the admin prefer that you ask your new and distinct question in its own thread.

Share this post
