qwert

What's a good way to print an image file?

Recommended Posts

qwert

From my script, I have the file path and name of an image file (JGP or PNG). Is there a direct way for the script to request that the file be printed? IOW, the equivalent to _FilePrint, but for images.

I can, of course, hand the file to the Windows Picture Viewer, but that just thows extra steps in for the user.

Thanks in advance for any suggestions.

Share this post


Link to post
Share on other sites
martin

One way is to use my print udf which has a link in my signature.

You might also be able to create a small html file which contains the image and print that using


Serial port communications UDF Includes functions for binary transmission and reception.printing UDF Useful for graphs, forms, labels, reports etc.Add User Call Tips to SciTE for functions in UDFs not included with AutoIt and for your own scripts.Functions with parameters in OnEvent mode and for Hot Keys One function replaces GuiSetOnEvent, GuiCtrlSetOnEvent and HotKeySet.UDF IsConnected2 for notification of status of connected state of many urls or IPs, without slowing the script.

Share this post


Link to post
Share on other sites
qwert

martin, that's an excellent UDF solution. It will certainly do everthing I need and MUCH more. I will very likely use if for several scripts. But I do have to ask about these since you referenced them in your original post of your UDF:

See also these udf's for printing from AutoIt using the Windows API and not using a dll.

by GRS - http://www.autoitscript.com/forum/topic/...m-autoit/page__view__findpost_

by Prog@ndy -http://www.autoitscript.com/forum/topic/...gdi-udfs/page__view__findpost_

Is there a viable way to print a bitmap image directly, without using a dll? Neither link worked for me, but "no dll" would be the ideal solution for one particular script I'm working on.

Thanks for your UDF ... and thanks for any additional help you might be able to provide.

Share this post


Link to post
Share on other sites
qwert

Update: I was able to find the thread by GRS:

I'll work through the posts, but, martin, your UDF is looking pretty good at this point. It covers so many bases.

Share this post


Link to post
Share on other sites
rodent1

to print to the default printer, you can use the command

msPaint /p c:myfoldermybmp.bmp

and use the -pt switch to specify the printer if you need to

Edited by rodent1

Share this post


Link to post
Share on other sites
qwert

msPaint would be a good solution ... if it weren't for their idiotic default settings that cause a normal-sized image to be split across two pages ... on XP anyway. I've looked for years for a way to edit and save those settings. Do you know how?

Thanks for mentioning it, though.

Share this post


Link to post
Share on other sites
rodent1

If your printer supports larger paper sizes, there are ways to change the printer's default paper size to for example tabloid (twice the letter size) from a command line using previously saved binary files that contain print default settings. If you need more info on how to do that, let me know. Otherwise, if you need to shrink the image size to force it to fit the letter paper size, you're stuck with other scripting solutions like gimp, or extra software like irfanview (http://www.irfanview.com/) or imagemagick

irfanview command line samples can be found here:

http://www.robvanderwoude.com/commandlineswitches.php#IrfanView

Share this post


Link to post
Share on other sites
qwert

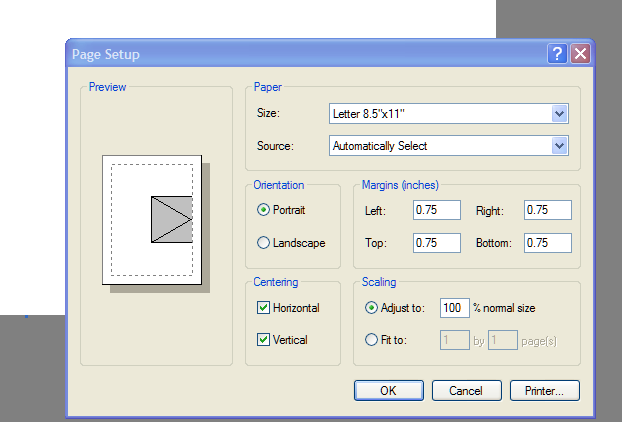

This is what I'm talking about. The default settings cause even nominal images to be split. Any reasonable software would do its best to put a requested image one page ... or at least ask about splitting.

Thanks for your suggestions.

post-29172-0-19964200-1331676545_thumb.p
