Identifying Controls and Scripting Against...

2 posts in this topic

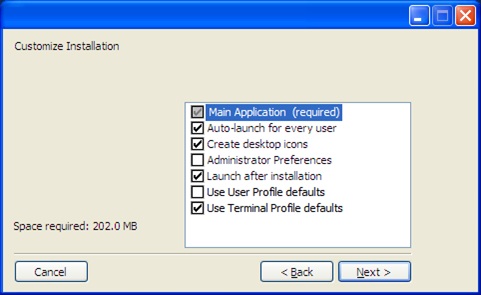

I'm attempting to write a script against the attached window. Unfortunately, I'm unable to check/select or uncheck/unselect any of the options (I'm assuming because I'm unable to identify the controls properly). Here's how Au3Info.exe identifies the window...


Basic Control Info

Class: SysTreeView32

Instance: 1



Class: #32770

Position: 220, 193

Size: 482,295

Style: 0x94CA084C

ExStyle: 0x00010100

Handle: 0x0015022A


Class: SysTreeView32

Instance: 1

ClassnameNN: SysTreeView321


Advanced Mode: [CLASS:SysTreeView32; INSTANCE:1]

ID: 1032


Position: 182, 73

Size: 227, 146

ControlClick Coords: 163, 81

Style: 0x50010013

ExStyle: 0x00000204

Handle: 0x000F0244

Visible Text

< &Back

&Next >


Space required: 202.0 MB

Customize Installation

Hidden Text





Position: 568, 376

Cursor ID: 0

Color: 0xFFFFFF


I've tried ControlTreeView and ControlListView, but to no avail. Any ideas? Thanx.


Share this post

Link to post
Share on other sites

Look into the _GUICtrlTreeView_* functions...probably _GUICtrlTreeView_SetChecked

IEbyXPATH-Grab IE DOM objects by XPATH IEscriptRecord-Makings of an IE script recorder ExcelFromXML-Create Excel docs without excel installed GetAllWindowControls-Output all control data on a given window.
