wisem2540

Trying to launch a proprietary application from fuji

9 posts in this topic

This one is going to be a tough one to explain. The application is Fuji synapse. Its used for medical image viewing. All I would like to do is launch it.

When The application installs, it creates an "icon" on all users desktop. But its not really an icon in a traditional sense. Meaning, it does not exist if I do a dir command. It almost looks like a control panel object, or something like that. It exists if I drop down the address bar in explorer.

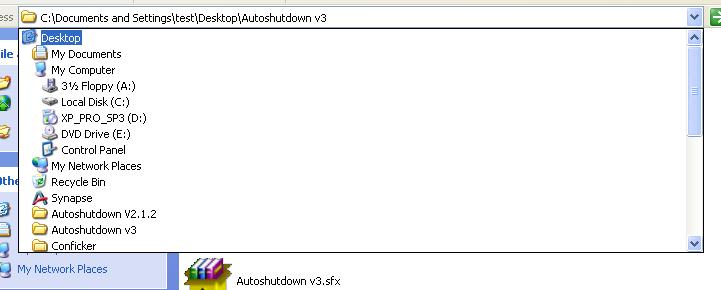

Ive attached a pic to show this. How can I figure out what kind of icon this is?

post-70391-0-24996700-1366660424_thumb.j

Share this post


Link to post
Share on other sites



So I found that if I create a shortcut to it, and then do a run("explorer.exe synapse.lnk") - that is a very crude way to get it done. Still open to ideas....

Share this post


Link to post
Share on other sites

Hey,

Can you right click the synapse.ink file and go to properties?

If yes, just look at what you have on "Path" area, this should be the proper location of the program you are launching.

Otherwise, you can try to run the software, check the name of the process in windows task manager and do a file search of this process on your hard drive so you know where it is located.

Share this post


Link to post
Share on other sites

#4 ·  Posted (edited)

In the taget of the shortcut, it just says SYNAPSE, as if its embedded somehow. I know where the program files dir is, but there is no EXE in there to launch the app.

Would there be a way for me to use a GUID, like the Mydocs, my computer guid?] ::{450d8fba-ad25-11d0-98a8-0800361b1103}

Edited by wisem2540

Share this post


Link to post
Share on other sites

Hey,

Can you right click the synapse.ink file and go to properties?

If yes, just look at what you have on "Path" area, this should be the proper location of the program you are launching.

Otherwise, you can try to run the software, check the name of the process in windows task manager and do a file search of this process on your hard drive so you know where it is located.

So I find the application name and right click and select GO TO PROCESS. and it goes to explorer. So its definitely integrated into explorer.exe somehow.

Share this post


Link to post
Share on other sites

Im trying to use procmon, but I cant make heads or tails of it. Seems like it could give an indication of whats going on though

Share this post


Link to post
Share on other sites

http://www.fujimed.com/products-services/network-systems/synapse/doc/workstation_datasheet.pdf

Seems like your software is just an activeX plugin for Internet Explorer, that's why :)

Try :

Command line "C:\Program Files\Internet Explorer\IEXPLORE.EXE" "http://servername/explore.asp?path=//"

Share this post


Link to post
Share on other sites

Good research. That command worked for the old version. But for whatever reason, does not work with the new 4.1

For what its worth, I have a ticket open with fuji, while I search for an alternative

Share this post


Link to post
Share on other sites

I found the CLSID with procmon

{1FBD11EF-1260-11D1-87A7-444553540001}

Works great using shellexecute

thanks for everyones input
