rmembrives

FindText and GetText of a ListBox with multiple columns

Recommended Posts

rmembrives

Hi,

I have tried to find a item of a ListBox with _GUICtrlListBox_FindString, _GUICtrlListBox_FindInText, _GUICtrlListBox_GetSelItemsText, _GUICtrlListBox_GetText, ControlGetText, ControlListView, ControlCommand but nothing work.

However other functions like _GUICtrlListBox_SetCurSel and _GUICtrlListBox_GetCount responds OK.

I think that the problem cause is the multiple columns of the ListBox, any idea?

Thank you for any help you can provide!





Share this post


Link to post
Share on other sites
FireFox

Hi,

Welcome to the autoit forum :)

I don't know much about _GUICtrlListBox* functions, can you post some informations about the control (using the AutoIt3Info tool), but moreover a screenshot of this one (you're probably talking about a listview isn'it ?)

Br, FireFox.

Edited by FireFox



OS : Win XP SP2 (32 bits) / Win 7 SP1 (64 bits) / Win 8 (64 bits) | Autoit version: latest stable / beta.
Hardware : Intel(R) Core(TM) i5-2400 CPU @ 3.10Ghz / 8 GiB RAM DDR3.

My UDFs : Skype UDF | TrayIconEx UDF | GUI Panel UDF | Excel XML UDF | Is_Pressed_UDF

My Projects : YouTube Multi-downloader | FTP Easy-UP | Lock'n | WinKill | AVICapture | Skype TM | Tap Maker | ShellNew | Scriptner | Const Replacer | FT_Pocket | Chrome theme maker

My Examples : Capture toolIP Camera | Crosshair | Draw Captured Region | Picture Screensaver | Jscreenfix | Drivetemp | Picture viewer

My Snippets : Basic TCP | Systray_GetIconIndex | Intercept End task | Winpcap various | Advanced HotKeySet | Transparent Edit control



Share this post


Link to post
Share on other sites
BrewManNH

First off, welcome to the forums.

Second, Listboxes normally don't have multiple columns, so you might be dealing with a listview and not a listbox. Are you sure it's a listbox you're accessing?


If I posted any code, assume that code was written using the latest release version unless stated otherwise. Also, if it doesn't work on XP I can't help with that because I don't have access to XP, and I'm not going to.
Give a programmer the correct code and he can do his work for a day. Teach a programmer to debug and he can do his work for a lifetime - by Chirag Gude
How to ask questions the smart way!

I hereby grant any person the right to use any code I post, that I am the original author of, on the autoitscript.com forums, unless I've specifically stated otherwise in the code or the thread post. If you do use my code all I ask, as a courtesy, is to make note of where you got it from.

Back up and restore Windows user files _Array.au3 - Modified array functions that include support for 2D arrays.  -  ColorChooser - An add-on for SciTE that pops up a color dialog so you can select and paste a color code into a script.  -  Customizable Splashscreen GUI w/Progress Bar - Create a custom "splash screen" GUI with a progress bar and custom label.  -  _FileGetProperty - Retrieve the properties of a file  -  SciTE Toolbar - A toolbar demo for use with the SciTE editor  -  GUIRegisterMsg demo - Demo script to show how to use the Windows messages to interact with controls and your GUI.  -   Latin Square password generator

Share this post


Link to post
Share on other sites
rmembrives

Nobody can help me? :

Share this post


Link to post
Share on other sites
Melba23

rmembrives,

I for one cannot open the link to see the image. Which app are you trying to automate? What is the full control info from the Window Info Tool? :huh:

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
rmembrives

It´s an internal app from another company, this is the control info:

>>>> Window <<<<
Title:    23610: Comentarios de La Reclamación
Class:    #32770
Position:    355, 159
Size:    610, 210
Style:    0x94C00085
ExStyle:    0x00010101
Handle:    0x000A1EC8

>>>> Control <<<<
Class:    ListBox
Instance:    1
ClassnameNN:    ListBox1
Name:
Advanced (Class):    [CLASS:ListBox; INSTANCE:1]
ID:    1
Text:
Position:    8, 28
Size:    504, 77
ControlClick Coords:    357, 36
Style:    0x50A01559
ExStyle:    0x00000000
Handle:    0x00290740

>>>> Mouse <<<<
Position:    723, 268
Cursor ID:    0
Color:    0xFFFFFF

>>>> StatusBar <<<<

>>>> ToolsBar <<<<

>>>> Visible Text <<<<
&Modificar
&Borrar
&Aceptar
&Cancelar
Añadir(&+)


>>>> Hidden Text <<<<
Enviar Comen Dist

I have make a workaround sending keystrokes and using the clipboard, but its a little slow. In others ListBox controls in the app with only one column, the FindText funcion works OK

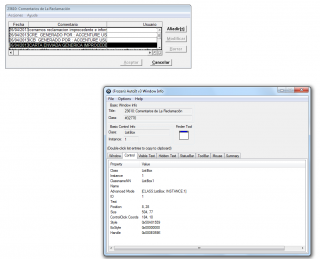

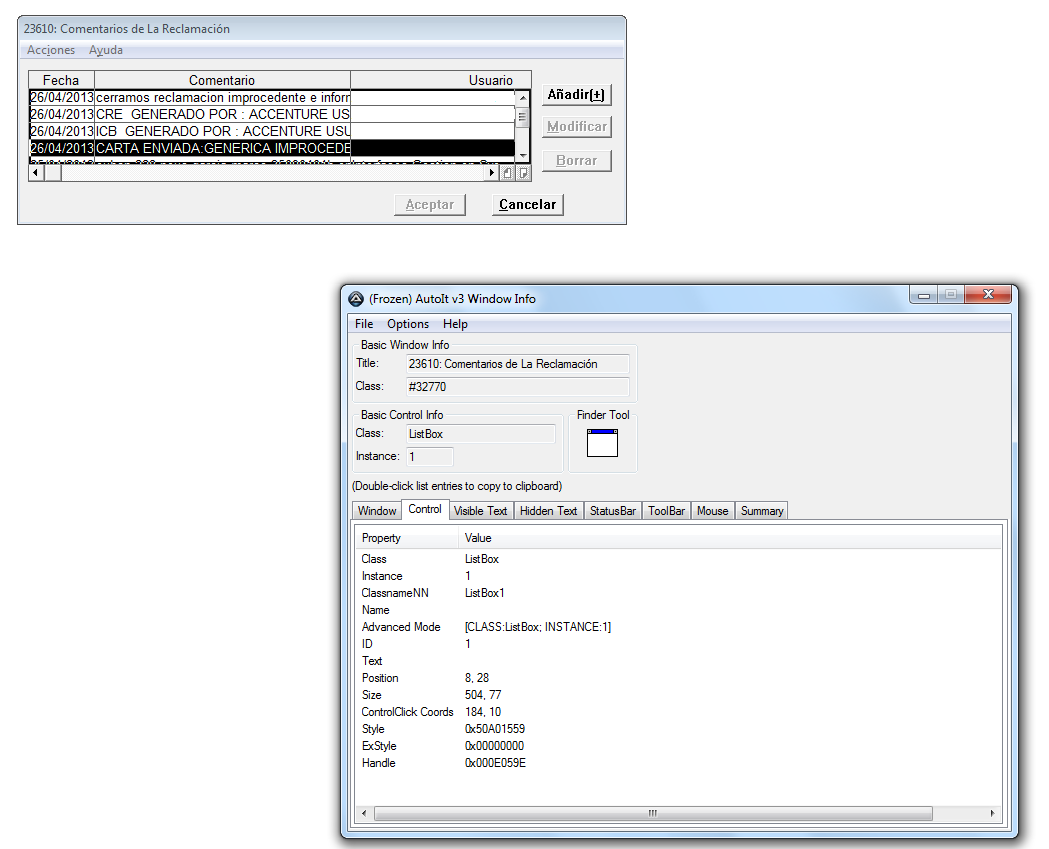

I attach the screenshot.

post-80060-0-96772100-1369749726_thumb.p



Thanks in advance.

Share this post


Link to post
Share on other sites
Melba23

rmembrives,

It certainly looks like a ListView - but some Googling threw up references to ListBoxes with columns and a header. So I am prepared to believe that it is what the Window Info tool says - particularly as you say that some of the _GUICtrlListBox functions work. :wacko:

However, I would also say that the addition of columns to the basic ListBox control (it seemed pretty complex to do this from what I saw when searching) is what is preventing the other functions from working. So I cannot offer any suggestions - sorry about that. :(

I am just delighted that you have managed to find a workaround. :)

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
rmembrives

Ok don´t worry about it. Thank you very much for your consideration

Share this post


Link to post
Share on other sites
carmengfv

Hello Membrives!!

I have the same problem as you. Could you solve it?? How??

Muchas gracias.

Share this post


Link to post
Share on other sites
carmengfv

Hello!

How I get to work with the content of the rows of a list box it's using the clipboard. I select the row, then send("^c") and then read from ClipGet().

An example:

Local $control_hd = ControlGetHandle($fw_old,"","[CLASS:ListBox; INSTANCE:1]")
Local $num = _GUICtrlListBox_GetCount($control_hd)
; Here I select all the rows
_GUICtrlListBox_SelItemRangeEx($control_hd, 1, $num)
;Then with a loop i clean the clipboard and copy the selected rows (Send("^c"))
ClipPut("")
While (True)
If (ClipGet() <> "")
Then
 ExitLoop
EndIf
Send("^c")
WEnd
;Then i get the text in the clipboard and save in a variable ($buffer)
$buffer = ClipGet()

Hope that helps anybody.

Edited by carmengfv

Share this post


Link to post
Share on other sites
rmembrives

Hi carmengfv,

I´m sorry for the late response... that´s the way I get it works.

Perhaps you could save the clipboard state before clean it, and restore it after the process is finished to avoid the lost of clipboard data of the user.

Saludos!
