Zenoxio Posted March 4, 2015 Posted March 4, 2015 Does AutoIt support screen scraping, namely for Meditech Magic? Searching the FAQ/wiki gives 0 results for it. Searching for Meditech on the forum gives nothing really useful: '?do=embed' frameborder='0' data-embedContent>> Another scripting tool, BostonWorkstation, can screen scrape Meditech Magic so I'm hoping AutoIt can.
jdelaney Posted March 4, 2015 Posted March 4, 2015 What is it. A window or browser? There are _ie functions for browser, and you can use ControlGetText on each edit|control|whatever for a windows client. IEbyXPATH-Grab IE DOM objects by XPATH IEscriptRecord-Makings of an IE script recorder ExcelFromXML-Create Excel docs without excel installed GetAllWindowControls-Output all control data on a given window.
junkew Posted March 4, 2015 Posted March 4, 2015 Please.install autoit and try au3inf as spying tool and try simplespy in examples thread with your application to see what can and what cannot be scraped. FAQ 31 How to click some elements, FAQ 40 Test automation with AutoIt, Multithreading CLR .NET Powershell CMDLets
Zenoxio Posted March 4, 2015 Author Posted March 4, 2015 I've used Au3Inf, but I can't find any on-screen text aside from the title bar. Meditech is an EHR, and BostonworkStation can read the full screen. If it helps, Au3Inf says the class is "MRWF"
jdelaney Posted March 4, 2015 Posted March 4, 2015 Focus on a control, and respond with the summary tab's output...make sure to remove sensitive info first (if any). IEbyXPATH-Grab IE DOM objects by XPATH IEscriptRecord-Makings of an IE script recorder ExcelFromXML-Create Excel docs without excel installed GetAllWindowControls-Output all control data on a given window.
Zenoxio Posted March 4, 2015 Author Posted March 4, 2015 Here's the full summary panel: expandcollapse popup>>>> Window <<<< Title: MIS (A/TEST.5.64.MIS/11) - LAST,FIRST *** TEST *** Class: MRWF Position: 1498, 32 Size: 893, 674 Style: 0x16CF0000 ExStyle: 0x00000100 Handle: 0x001F0720 >>>> Control <<<< Class: MRWC Instance: 1 ClassnameNN: MRWC1 Name: Advanced (Class): [CLASS:MRWC; INSTANCE:1] ID: 1006 Text: Enter/Edit Users Position: 3, 2 Size: 829, 609 ControlClick Coords: 47, 103 Style: 0x54C80000 ExStyle: 0x00000140 Handle: 0x00080708 >>>> Mouse <<<< Position: 1556, 167 Cursor ID: 0 Color: 0xF0F0F0 >>>> StatusBar <<<< >>>> ToolsBar <<<< >>>> Visible Text <<<< Enter/Edit Users >>>> Hidden Text <<<< MIS USER MENU MIS MAIN MENU Job 11 TEST.5.64.MIS A Mac Sign On (A/TEST.5.64.MIS/11) MIS Directories
jdelaney Posted March 4, 2015 Posted March 4, 2015 Here is an example for your control...do the same for the rest... ; your window is already present, and then run this: $hWin = WinGetHandle("MIS") $hControl = ControlGetHandle($hWin, "", 1006) $sText = ControlGetText($hWin, "", $hControl) ConsoleWrite("control 1006 value=[" & $sText & "].") ; add in another control here: $hControl2 = ControlGetHandle($hWin, "", 'put another controls id here') $sText2 = ControlGetText($hWin, "", $hControl2) ConsoleWrite("control xxxxx value=[" & $sText2 & "].") IEbyXPATH-Grab IE DOM objects by XPATH IEscriptRecord-Makings of an IE script recorder ExcelFromXML-Create Excel docs without excel installed GetAllWindowControls-Output all control data on a given window.
Zenoxio Posted March 5, 2015 Author Posted March 5, 2015 No luck, all I'm getting is "Enter/Edit Users" which is the internal title bar. I'm not getting anything from the actual screen. Even when I use the Finder Tool in the middle of the screen, it's all 1006
junkew Posted March 5, 2015 Posted March 5, 2015 '?do=embed' frameborder='0' data-embedContent>> FAQ 31 How to click some elements, FAQ 40 Test automation with AutoIt, Multithreading CLR .NET Powershell CMDLets

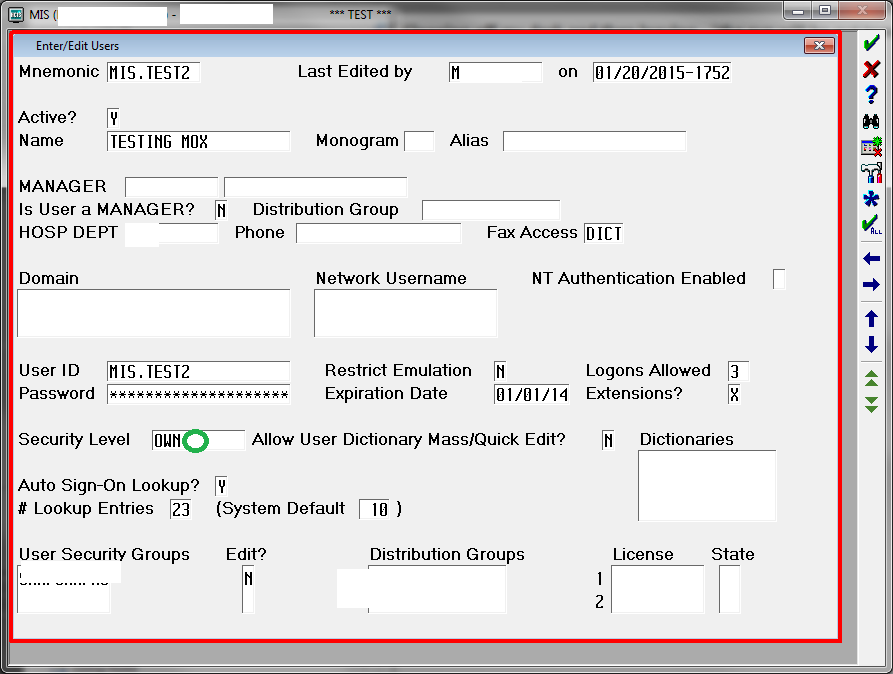

Zenoxio Posted March 5, 2015 Author Posted March 5, 2015 I'm giving that a shot now, after Ctrl+W on a specific field in Meditech it highlighted the entire window in red and returned: expandcollapse popupMouse position is retrieved 1858-569 At least we have an element [Enter/Edit Users ][MRWC] Having the following values for all properties: Title is: <Enter/Edit Users > Class := <MRWC> controltype:= <UIA_WindowControlTypeId> ,<50032> , (0000C370) 1654;162;829;609 *** Parent Information top down *** 2: Title is: <Desktop> Class := <#32769> controltype:= <UIA_PaneControlTypeId> ,<50033> , (0000C371) 0;0;1440;900 "Title:=Desktop;controltype:=UIA_PaneControlTypeId;class:=#32769" 1: Title is: <MIS (A/LIVE.MIS/99) - Last,First> Class := <MRWF> controltype:= <UIA_WindowControlTypeId> ,<50032> , (0000C370) 1643;130;893;674 "Title:=MIS (A/LIVE.MIS/99) - Last,First;controltype:=UIA_WindowControlTypeId;class:=MRWF" 0: Title is: <Workspace> Class := <MDIClient> controltype:= <UIA_PaneControlTypeId> ,<50033> , (0000C371) 1651;160;851;636 "Title:=Workspace;controltype:=UIA_PaneControlTypeId;class:=MDIClient" ;~ *** Standard code *** #include "UIAWrappers.au3" AutoItSetOption("MustDeclareVars", 1) Local $oP1=_UIA_getObjectByFindAll($UIA_oDesktop, "Title:=MIS (A/LIVE.MIS/99) - Last,First;controltype:=UIA_WindowControlTypeId;class:=MRWF", $treescope_children) _UIA_Action($oP1,"setfocus") Local $oP0=_UIA_getObjectByFindAll($oP1, "Title:=Workspace;controltype:=UIA_PaneControlTypeId;class:=MDIClient", $treescope_children) _UIA_Action($oP0,"setfocus") _UIA_setVar("Enter/EditUsers.mainwindow","title:=Enter/Edit Users ;classname:=MRWC") _UIA_action("Enter/EditUsers.mainwindow","setfocus") *** Detailed properties of the highlighted element *** UIA_title:= <Enter/Edit Users > UIA_text:= <Enter/Edit Users > UIA_regexptitle:= <Enter/Edit Users > UIA_class:= <MRWC> UIA_regexpclass:= <MRWC> UIA_iaccessiblechildId:= <0> UIA_id:= <1006> UIA_handle:= <526292> UIA_RuntimeId:= <42;526292> UIA_BoundingRectangle:= <1654;162;829;609> UIA_ProcessId:= <6772> UIA_ControlType:= <50032> UIA_LocalizedControlType:= <window> UIA_Name:= <Enter/Edit Users > UIA_HasKeyboardFocus:= <True> UIA_IsKeyboardFocusable:= <True> UIA_IsEnabled:= <True> UIA_AutomationId:= <1006> UIA_ClassName:= <MRWC> UIA_Culture:= <0> UIA_IsControlElement:= <True> UIA_IsContentElement:= <True> UIA_IsPassword:= <False> UIA_NativeWindowHandle:= <526292> UIA_IsOffscreen:= <False> UIA_Orientation:= <0> UIA_FrameworkId:= <Win32> UIA_IsRequiredForForm:= <False> UIA_IsDockPatternAvailable:= <False> UIA_IsExpandCollapsePatternAvailable:= <False> UIA_IsGridItemPatternAvailable:= <False> UIA_IsGridPatternAvailable:= <False> UIA_IsInvokePatternAvailable:= <False> UIA_IsMultipleViewPatternAvailable:= <False> UIA_IsRangeValuePatternAvailable:= <False> UIA_IsScrollPatternAvailable:= <False> UIA_IsScrollItemPatternAvailable:= <False> UIA_IsSelectionItemPatternAvailable:= <False> UIA_IsSelectionPatternAvailable:= <False> UIA_IsTablePatternAvailable:= <False> UIA_IsTableItemPatternAvailable:= <False> UIA_IsTextPatternAvailable:= <False> UIA_IsTogglePatternAvailable:= <False> UIA_IsTransformPatternAvailable:= <True> UIA_IsValuePatternAvailable:= <False> UIA_IsWindowPatternAvailable:= <True> UIA_ValueIsReadOnly:= <True> UIA_RangeValueValue:= <0> UIA_RangeValueIsReadOnly:= <True> UIA_RangeValueMinimum:= <0> UIA_RangeValueMaximum:= <0> UIA_RangeValueLargeChange:= <0> UIA_RangeValueSmallChange:= <0> UIA_ScrollHorizontalScrollPercent:= <0> UIA_ScrollHorizontalViewSize:= <100> UIA_ScrollVerticalScrollPercent:= <0> UIA_ScrollVerticalViewSize:= <100> UIA_ScrollHorizontallyScrollable:= <False> UIA_ScrollVerticallyScrollable:= <False> UIA_SelectionCanSelectMultiple:= <False> UIA_SelectionIsSelectionRequired:= <False> UIA_GridRowCount:= <0> UIA_GridColumnCount:= <0> UIA_GridItemRow:= <0> UIA_GridItemColumn:= <0> UIA_GridItemRowSpan:= <1> UIA_GridItemColumnSpan:= <1> UIA_DockDockPosition:= <5> UIA_ExpandCollapseExpandCollapseState:= <3> UIA_MultipleViewCurrentView:= <0> UIA_WindowCanMaximize:= <False> UIA_WindowCanMinimize:= <False> UIA_WindowWindowVisualState:= <0> UIA_WindowWindowInteractionState:= <2> UIA_WindowIsModal:= <False> UIA_WindowIsTopmost:= <False> UIA_SelectionItemIsSelected:= <False> UIA_TableRowOrColumnMajor:= <2> UIA_ToggleToggleState:= <2> UIA_TransformCanMove:= <True> UIA_TransformCanResize:= <False> UIA_TransformCanRotate:= <False> UIA_IsLegacyIAccessiblePatternAvailable:= <True> UIA_LegacyIAccessibleChildId:= <0> UIA_LegacyIAccessibleName:= <Enter/Edit Users > UIA_LegacyIAccessibleRole:= <10> UIA_LegacyIAccessibleState:= <1048580> UIA_IsDataValidForForm:= <False> UIA_ProviderDescription:= <[pid:1972,hwnd:0x807D4 Main:Nested [pid:6772,hwnd:0x807D4 Annotation(parent link):Microsoft: Annotation Proxy (unmanaged:uiautomationcore.dll); Main:Microsoft: MSAA Proxy (unmanaged:uiautomationcore.dll)]; Nonclient:Microsoft: Non-Client Proxy (unmanaged:uiautomationcore.dll); Hwnd(parent link):Microsoft: HWND Proxy (unmanaged:uiautomationcore.dll)]> UIA_IsItemContainerPatternAvailable:= <False> UIA_IsVirtualizedItemPatternAvailable:= <False> UIA_IsSynchronizedInputPatternAvailable:= <False> It's still just grabbing the inner title bar? I've attached how it looked when I hit Ctrl+W, and the green is where my cursor was.
jdelaney Posted March 6, 2015 Posted March 6, 2015 Try out my signature...one of them will grab all the controls on the window. Maybe you'll get lucky. IEbyXPATH-Grab IE DOM objects by XPATH IEscriptRecord-Makings of an IE script recorder ExcelFromXML-Create Excel docs without excel installed GetAllWindowControls-Output all control data on a given window.
whocanhebe Posted July 18, 2016 Posted July 18, 2016 Sorry to revive an old thread, but I have the exact same question! Zenoxio, did you manage to scrape MediTech contents using any of the tools?

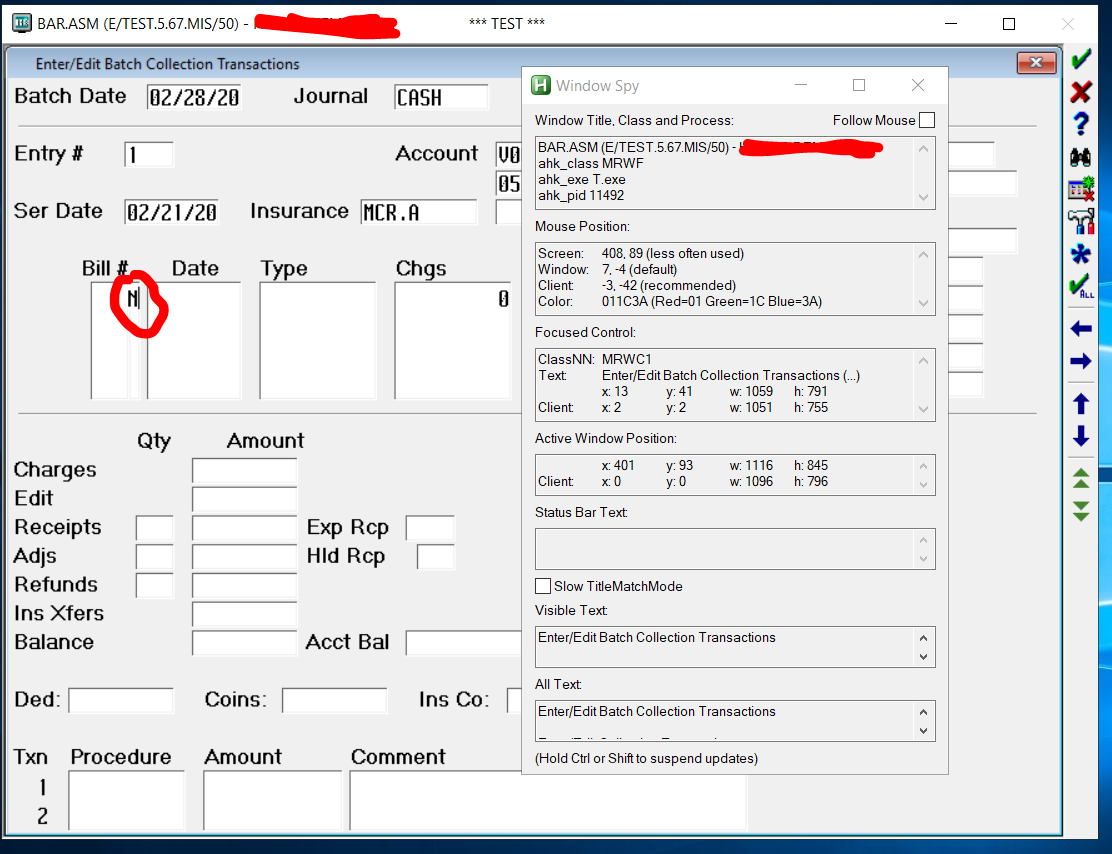

Prajakta Posted March 1, 2020 Posted March 1, 2020 anyone found solution to this problem so far ? I face simillar issue. I use Meditek application to make some data entry. I wish to automate this task. I managed to enter username, password and got though few screens . I am stuck at on screen , where I need to read the focused text box , which I am not able to do. Can anyone please help? It is MDIClient window and shows all buttons when I try to display controls and their values. Please see screenshot. I want to read red circled text.
junkew Posted March 1, 2020 Posted March 1, 2020 Analyse with inspect.exe faq 31 as sometimes controls are hidden by transparent frames. FAQ 31 How to click some elements, FAQ 40 Test automation with AutoIt, Multithreading CLR .NET Powershell CMDLets
