pif99

Open DB2 Client and generate a connection

Recommended Posts

pif99

Hi all,

Is there a script to open the DB2 client (IBM Data Studio) and create a DB2 connection to a database?

Thanks in advance to all

Share this post


Link to post
Share on other sites
pif99

Hi all,

Is there a script to open the DB2 client (IBM Data Studio) and create a DB2 connection to a database?

Thanks in advance to all

I0've done this and it's working



Example()

Func Example()
    Run('"C:\Program Files\IBM\DS4.1.1\eclipse.exe" -product com.ibm.datastudio.consolidated.product.ide')
    $hWnd = WinWaitActive("Administer Databases", "",10)
    WinSetState($hWnd, "", @SW_MAXIMIZE)


    Opt("MouseCoordMode", 1)
    sleep(300)
    ControlClick("Administer Databases", "", 1)


    MouseClick("left", 156, 120, 1)
    MouseClick("left", 230, 288, 1)
    sleep(10)
    WinWait("New Connection")
    ControlSetText("New Connection","","Edit7","dbtarget")
    ControlSetText("New Connection","","Edit8","1.1.1.1")
    ControlSetText("New Connection","","Edit9","50000")
    ControlSetText("New Connection","","Edit10","admin")
    ControlSetText("New Connection","","Edit11","admin")
    MouseClick("left", 848, 493, 1)


EndFunc

I prefer to use controlclick but I cannot see the buttonID where I want to click on.

Using this command, is not working

ControlClick("Administer Databases", "", 1)



Share this post


Link to post
Share on other sites
pif99

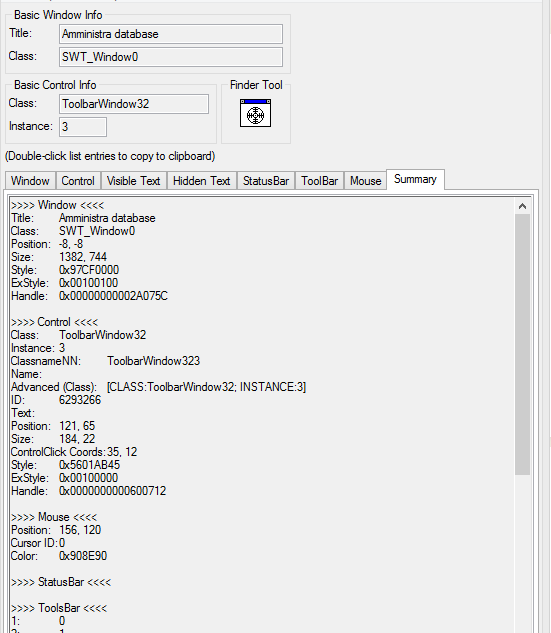

For example how is the correct command for a ControlClick on the Toolbar32? The coordinates are 35 and 12






Share this post


Link to post
Share on other sites
