Zaf

ControlGetPos returns Position not ControlClick Coords

5 posts in this topic

Hi all

I am trying to automate a click that was done manually.

To summarize - User chooses Document to upload -> Uploads it -> Goes back into the same Document and verifies it -> Submits batch

Therefore when automating, I am allowing using manual testing for the upload but after user chooses the Doc item the rest is automated.

My code looks like this:

local $hWnd = WinWait ("Test Bank 1 Link (V2.2.39.0)", "", 2)
local $aPos = ControlGetPos($hWnd, "", "[NAME:gridvwDocuments]")
..

..

ControlClick ($hWnd, 2, $aPos[0], $aPos[1])



When I remove the replace ControlClick ($hWnd, 2, $aPos[0], $aPos[1]) with  MsgBox($MB_SYSTEMMODAL, "", "Position: " & $aPos[0] & ", " & $aPos[1])

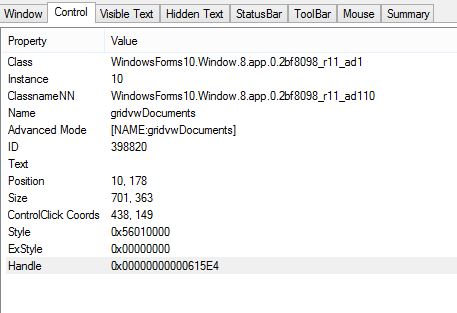

Then it retrieves the Position (10, 178)

controlgetpos.thumb.JPG.8fc2c2ce11f65c6c



Share this post


Link to post
Share on other sites



I believe that you are using the wrong syntax with ControlClick. Have you tried the following:

ControlClick ($hWnd, "", "[NAME:gridvwDocuments]")



Share this post


Link to post
Share on other sites

Dan

I used ControlClick ($hWnd, "", "[NAME:gridvwDocuments]") but then it clicks in the center of that window instead of double clicking the exact document item I clicked before.

Share this post


Link to post
Share on other sites

Try something like this:

ControlClick ($hWnd,"", "[NAME:gridvwDocuments]", "left", 2, $aPos[0], $aPos[1])

Or this.

ControlClick ($hWnd,"", "[NAME:gridvwDocuments]", "left", 2, 438, 149)

Or maybe even something like this:

ControlClick ($hWnd,"", "[NAME:gridvwDocuments]", "left", 2, $aPos[0] + 20, $aPos[1] + 20)




If I posted any code, assume that code was written using the latest release version unless stated otherwise. Also, if it doesn't work on XP I can't help with that because I don't have access to XP, and I'm not going to.
Give a programmer the correct code and he can do his work for a day. Teach a programmer to debug and he can do his work for a lifetime - by Chirag Gude
How to ask questions the smart way!

I hereby grant any person the right to use any code I post, that I am the original author of, on the autoitscript.com forums, unless I've specifically stated otherwise in the code or the thread post. If you do use my code all I ask, as a courtesy, is to make note of where you got it from.

Back up and restore Windows user files _Array.au3 - Modified array functions that include support for 2D arrays.  -  ColorChooser - An add-on for SciTE that pops up a color dialog so you can select and paste a color code into a script.  -  Customizable Splashscreen GUI w/Progress Bar - Create a custom "splash screen" GUI with a progress bar and custom label.  -  _FileGetProperty - Retrieve the properties of a file  -  SciTE Toolbar - A toolbar demo for use with the SciTE editor  -  GUIRegisterMsg demo - Demo script to show how to use the Windows messages to interact with controls and your GUI.  -   Latin Square password generator

Share this post


Link to post
Share on other sites
##This Double clicks center
ControlClick ($hWnd,"", "[NAME:gridvwDocuments]", "left", 2, $aPos[0], $aPos[1])

Or this.

##This defeats the purpose since we don't know what the user will choose. The cords will always be different.
ControlClick ($hWnd,"", "[NAME:gridvwDocuments]", "left", 2, 438, 149)

Or maybe even something like this:

##This Double clicks center
ControlClick ($hWnd,"", "[NAME:gridvwDocuments]", "left", 2, $aPos[0] + 20, $aPos[1] + 20)
