Autoit GUI functions made in C++

9 posts in this topic

#1 ·  Posted (edited)

Hello, I starded to implement Autoit native GUI fanctions in C++

The following functions are implemented:

GUICreate, GUISetState, GUICtrlCreateButton, GUISetBkColor, GUICtrlCreateLabel

You are welcome to improve the codes, report about problems and give suggestions
https://github.com/GilEli1/CU3-Library/blob/master/gui.h



known problems:

Quote



GUICtrlCreateLabel - does not create the label with the background color of the GUI.
If the background color of the GUI is not normal then the label background color is not the same.

GUICreate:
1) The outcome is not exactly the same. try to create the GUI with iWidth = 0 and iHeight = 0.
in c++ you will not see the GUI because the size is 0. but in Autoit you will see part of title bar.
So the outcome size is not the same. Because it is not a critical bug I did not focus on it but if you want you can. I am not going to fix this.








Edited by gil900
1 person likes this

Share this post


Link to post
Share on other sites



#2 ·  Posted (edited)

Added:
GUICtrlCreateListView_C  (optimized for c)
GUICtrlCreateListViewItem_C (optimized for c)
GUICtrlCreateListView  (Reimplemented, wrapper for the *_C )
GUICtrlCreateListViewItem (Reimplemented, wrapper for the *_C )

Added:  CU3_CTRL data type. GUICtrl... functions returns CU3_CTRL
CU3_CTRL contains the following members:
       .hwnd The ctrl child window
       .intID1 main ID for the ctrl
       .intID2 second ID for the ctrl (mostly not needed)

Changed/Added:
GUISetDefaultWindowClass
-> GUISetDefaultWindowClass_C(WNDPROC parm_WndProc, char parm_charRootName[] = "CU3L_GUI", HINSTANCE parm_hInstance = NULL)
GUISelectWindowClass_C(WNDCLASSEX* ptr_wndclassexNew,bool bRegisterClass = false)
GUIWait -> GUIWait_C

Macros:
CU3_GUIGetMsg_C
CU3_GUIProcessMsg_C



Example of GUICtrlCreateListView  and GUICtrlCreateListViewItem:

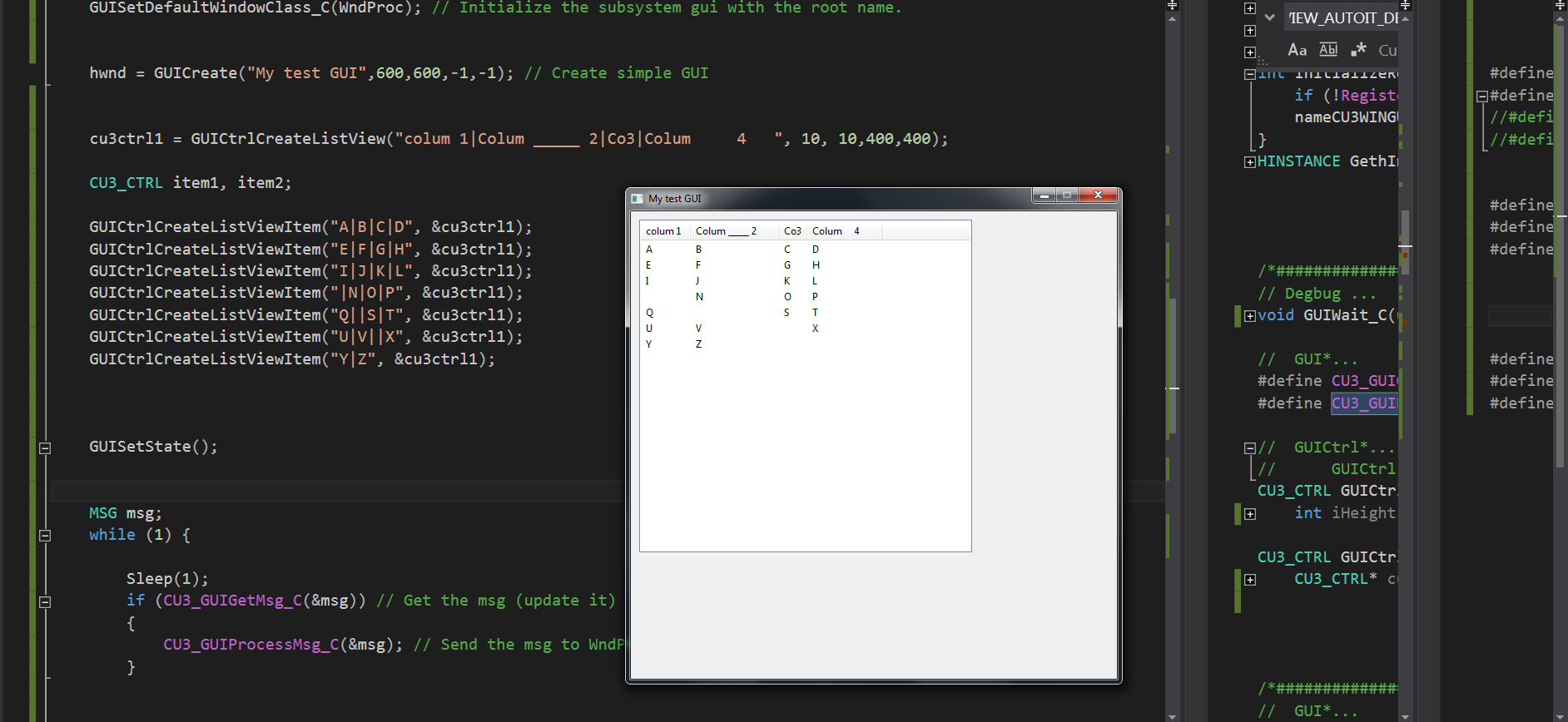

In c++
ex1.thumb.png.ed63c17efcb31a412315592c21

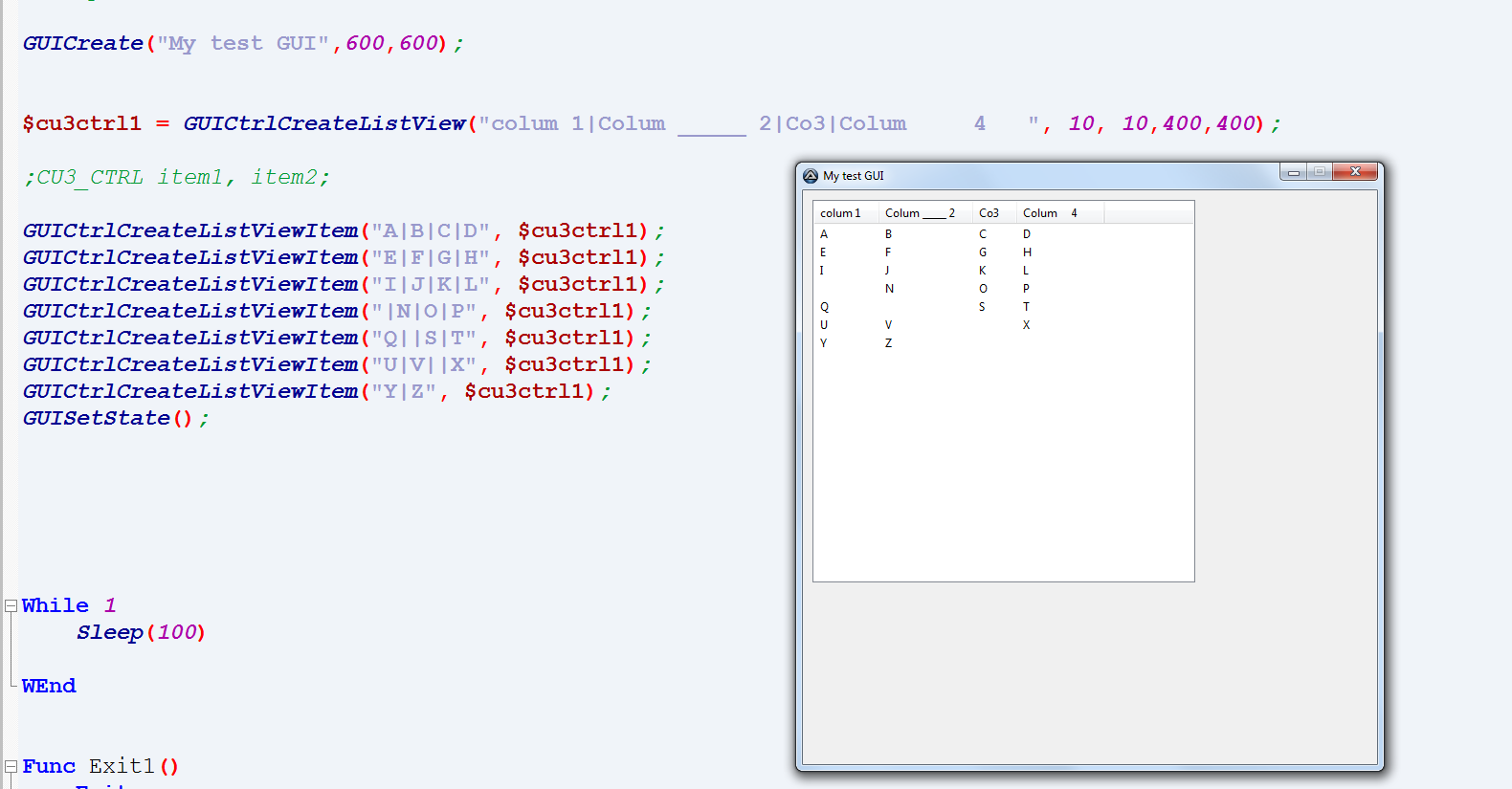

In Autoit (code almost copied entirely)
ex2.thumb.png.fbc2e5b6766d898ea8cfab4b4c



Enjoy!

Edited by gil900
1 person likes this

Share this post


Link to post
Share on other sites

#3 ·  Posted (edited)

Added:
GUIScrollbars_ProcessMessages_initialize_C

GUIScrollbars_SetRange_C(HWND hwndGUI,DWORD dwordFlagsSet,int intVSMax = NULL,int intHSMax = NULL, int intVSMin = 0, int intHSMin = 0)
GUIScrollbars_ProcessMessages_C(HWND hwnd, UINT msg, WPARAM wParam)

It was more complicated to implement than I thought

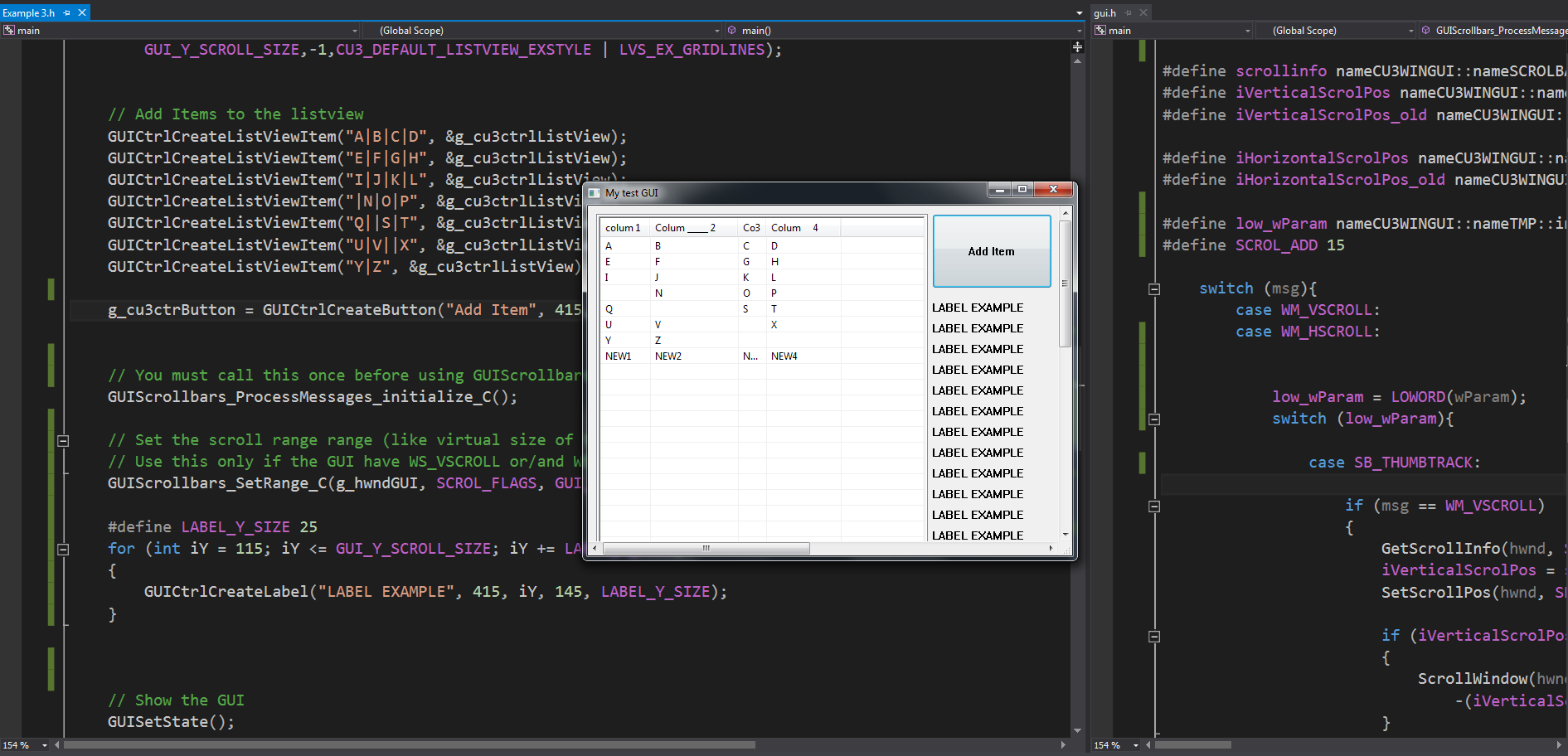

5712c5fa9c38d_scrollbars.thumb.png.e59c7

Example: https://github.com/GilEli1/CU3-Library/blob/master/Examples/main/Example%203.h

Edited by gil900
1 person likes this

Share this post


Link to post
Share on other sites

Wow this is amazing! I will give this definitely a try on my next project. Thank you very much , gil!

Greetings,

Spider

1 person likes this

www.AutoIt.de - Moderator of the German AutoIt Froum

Share this post


Link to post
Share on other sites

#5 ·  Posted (edited)

Thank you for the comment.
It is still work in progress. Things are going to change.
Changes that are going to cause to big "script breaking changes".
This is because this project has just been born. over time, such changes will be less frequent.


Note that I am focus only on GUI functions (that works on pure Win32 (direct use of WinAPI) not MFC).
for the other stuff look at this project:



Also, coming soon: VectorEx  - Extension to the <vector> - vector 2D array, debug functions (Array Display for vector 1D and 2D) .


Edited by gil900

Share this post


Link to post
Share on other sites

Hi, looks interesting, but I don't understand what's the use for it ? Aren't those APIs (eg. GUICreate) already native to AutoIt3, and therefore written in C ?

Share this post


Link to post
Share on other sites

#7 ·  Posted (edited)

If by design needs, the program need to be written in c++, then for me  It seems more correct that the program will be 100% written in c++.
You can write the GUI in autoit and all the other stuff in c. but I don't like this design. you will end with 2+ exes.
also, in c++ you are less limited.. you can for example run some gui code with it's loop in another thread. you can't do this in autoit (But I don't sure that I recommend it although it is possible).

Assuming that that most of the program is written in c++, it is more native that the gui functions are included directly(not AutoItX ). I didn't found any gui functions in AutoItX

also, if you're used to code in autoit, you may want to do it in the most possible "autoit" way ( make it easier )

Edited by gil900

Share this post


Link to post
Share on other sites

#8 ·  Posted (edited)

Added:
GUICreate_C(char sTitle[] = NULL,int iWidth = CU3_DEFAULT_GUI_WIDTH,int iHeight = CU3_DEFAULT_GUI_HEIGHT,int iLeft = -1, int iTop = -1,WNDPROC GuiProc = NULL,DWORD dwGUICreateFlags = NULL,WNDCLASSEX* ptr_wcGU,WinClass = NULL,DWORD dwStyle = CU3_DEFAULT_GUI_STYLE,DWORD dwExStyle = NULL,HWND hwndParent = NULL) (optimized for c)

Changed/Added:
GUICreate is now bassed on GUICreate_C  (wrapper for the *_C). (Autoit function syntex)


Added features:
GUICreate_C:
GuiProc) Allows you to create the GUI with another WndProc function.   you can create GUI with it's own " WndProc" function easily.
example: https://github.com/GilEli1/CU3-Library/blob/master/Examples/main/Example%205.h
ptr_wcGUIWinClass) You can also pass your own window class to the function. allows you to create GUIs with some preset settings directly.
dwGUICreateFlags) Control how the GUI will be created... read more in gui.h.

Fixed:
GUICreate & GUISetBkColor

GUISetBkColor will now set the color only to the selected GUI and not other GUIs under one of the following conditions:
1) You created the GUI with GUICreate
OR
2) You created the GUI with GUICreate_C with flag CU3_GUI_OWN_WINDOW_CLASS



Added & Changed:
GUICtrlCreateListView_C
& GUICtrlCreateButton_C:
 iUniqueID) Set constant ID for the ctrl
example: https://github.com/GilEli1/CU3-Library/blob/master/Examples/main/Example%206.h



Added features:

GUICtrlMove_C(CU3_CTRL* cu3Ctrl,int iXpos,int iYpos)
GUICtrlResize_C(CU3_CTRL* cu3Ctrl, int iXsize, int iYsize)

GUICtrlSetPos(CU3_CTRL* cu3Ctrl, int iLeft, int iTop, int iWidth = -1, int iHeight = -1)



GUICtrlCreateListViewItem_C(.... dwFlags = NULL)
Flag CU3_GUI_LISTVIEW_AUTO_COL_SIZE - If this flag included then it will resize the column width to match the text size in the column.



Edited by gil900

Share this post


Link to post
Share on other sites

Thanks gil900 for sharing your functions with us. I did the same thing a few years ago, but I never really finished. But now you inspired me to move on with that project.


Programming today is a race between software engineers striving to
build bigger and better idiot-proof programs, and the Universe
trying to produce bigger and better idiots.
So far, the Universe is winning.
