EricMessens

need some help on _GUICtrlListView_ functions use

3 posts in this topic

Hi,

I'm trying to write some code to get the items form a list in a form from another app.

I tested with the following code. The only sensible data I get is from _GUICtrlListView_GetItemCount, _GUICtrlListView_GetColumnCount and _GUICtrlListView_GetColumn (except the header text returned is empty for all columns).

How can I get the text from the items in the list with _GUICtrlListView_GetItemText ? What am I missing ?

#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>
#include <GuiListView.au3>

Global $hLV,$iCount,$hControl,$sWinTitle,$aLVItems,$sText,$i,$aColumn,$j

Func _WinWaitActivate($title,$text,$timeout=0)
    AutoItSetOption("WinTitleMatchMode",2)
    WinWait($title,$text,$timeout)
    If Not WinActive($title,$text) Then WinActivate($title,$text)
    WinWaitActive($title,$text,$timeout)
EndFunc

$sWinTitle="Object Explorer - xxxxxxxx"
_WinWaitActivate($sWinTitle,"")
$hLV=ControlgetHandle($sWinTitle,"","List1")
$iCount=_GUICtrlListView_GetItemCount($hLV);number of items in List1
MsgBox(0,"LV items count",$iCount); result is number of rows in List1

MsgBox(0,"Find TREAT in list",_GUICtrlListView_FindText($hLV," "))

;MsgBox(0,"LV",$iCount & " - " & _GUICtrlListView_GetColumnCount($hLV)); result is 5

if 1=2 Then
MsgBox(0,"LV itemtext",$iCount & " - " & _GUICtrlListView_GetItemText($hLV,Number(0),Number(1)))
MsgBox(0,"LV itemtext",$iCount & " - " & _GUICtrlListView_GetItemText($hLV,0,2))
MsgBox(0,"LV itemtext",$iCount & " - " & _GUICtrlListView_GetItemText($hLV,0,3))
MsgBox(0,"LV itemtext",$iCount & " - " & _GUICtrlListView_GetItemText($hLV,1,1))
MsgBox(0,"LV itemtext",$iCount & " - " & _GUICtrlListView_GetItemText($hLV,1,2))
MsgBox(0,"LV itemtext",$iCount & " - " & _GUICtrlListView_GetItemText($hLV,1,3))
MsgBox(0,"LV itemtext",$iCount & " - " & _GUICtrlListView_GetItemText($hLV,2,1))
MsgBox(0,"LV itemtext",$iCount & " - " & _GUICtrlListView_GetItemText($hLV,2,2))
MsgBox(0,"LV itemtext",$iCount & " - " & _GUICtrlListView_GetItemText($hLV,2,3))

MsgBox(0,"LV itemtext",$iCount & " - " & _GUICtrlListView_GetItemText($hLV,Number(0),Number(1)))
MsgBox(0,"LV itemtext",$iCount & " - " & _GUICtrlListView_GetItemText($hLV,Number(0),Number(0)))

MsgBox(0,"LV itemtext",$iCount & " - " & _GUICtrlListView_GetItemText($hLV,Number(1),Number(1)))
MsgBox(0,"LV itemtext",$iCount & " - " & _GUICtrlListView_GetItemText($hLV,Number(1),Number(0)))

MsgBox(0,"LV itemtext",$iCount & " - " & _GUICtrlListView_GetItemTextString($hLV,Number(2))); result is "||||" (there are 5 columns)

;MsgBox(0,"LV groupid",$iCount & " - " & _GUICtrlListView_GetItemGroupID($hLV,0))

$aLVItems=_GUICtrlListView_GetItemTextArray($hLV)
For $i = 1 To $aLVItems[0]
        $sText &= StringFormat("Column[%2d] %s", $i, $aLVItems[$i]) & @CRLF
Next
MsgBox($MB_SYSTEMMODAL, "Information", "Items (All Columns) Text: " & @CRLF & @CRLF & $sText)

for $j = 0 to 4
    $aColumn=_GUICtrlListView_GetColumn($hLV,Number($j))
    $sText=""
    For $i = 0 To 8
        $sText &= StringFormat("%d %s", $i, $aColumn[$i]) & @CRLF
    Next
    MsgBox(0,"LV Colum header items",$sText)

Next

EndIf




Share this post


Link to post
Share on other sites



You might remove this condition  : "if 1=2 Then" and then try again   :)

Share this post


Link to post
Share on other sites

Sorry about that, I intended to exclude those lines from the test and should have used #cs and #ce.

What I'm looking for is the code to read out the labels of items in a SysTreeView control eg. . get the labels of all the fields

$hTreeView=ControlGetHandle("External Beam Planning","","[CLASS:SysTreeView32; INSTANCE:2]")
ControlTreeView($hWnd,"",$hTreeView,"Expand","#0") ;this works

ControlGetText("External Beam Planning","","[CLASS:SysTreeView32; INSTANCE:2]") doesn't work.

I've devised the item's levels etc but I need to be able to get the labels of each item.

code example : doesn't match the labels (from another record)

$hLV=ControlGetHandle("External Beam Planning","","[CLASS:SysTreeView32; INSTANCE:2]")
$items=_GUICtrlTreeView_GetCount($hLV);item count = 31
$h1=_GUICtrlTreeView_GetItemHandle($hLV,0);Plan ID, level=0,sibling count=1
$h2=_GUICtrlTreeView_GetFirstChild($hLV,$h1);CT ID, level=1, sibling count=4
$h3=_GUICtrlTreeView_GetNext($hLV,$h2);Registered Images, level=2, sibling count=3
$h4=_GUICtrlTreeView_GetNext($hLV,$h3);CBCT_1, level=3, sibling count=1
$h5=_GUICtrlTreeView_GetNext($hLV,$h4);Online:... , level=4, sibling count=2
$h6=_GUICtrlTreeView_GetNext($hLV,$h5);CBCT_1, level=4, sibling count=2
$h7=_GUICtrlTreeView_GetNext($hLV,$h6);AcqIsocenter, level=5, sibling count=3
$h8=_GUICtrlTreeView_GetNext($hLV,$h7);InitLaserIso, level=5, sibling count=3
$h9=_GUICtrlTreeView_GetNext($hLV,$h8);InitMatchIso, level=5, sibling count=3
$h10=_GUICtrlTreeView_GetNext($hLV,$h9);CT_1, level=2, sibling count=3
$h11=_GUICtrlTreeView_GetNext($hLV,$h10);CT_1, level=3, sibling count=9

_GUICtrlTreeView_GetTree($hLV,$h9) doesn't give me the text.

Please, any hint to get these labels ?

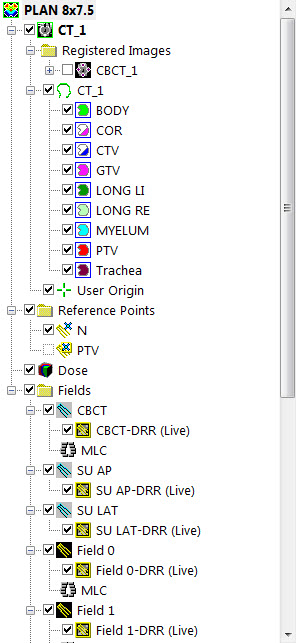

SysTreeView Instance2.jpg
