error: missing separator character before keyword.

Recommended Posts

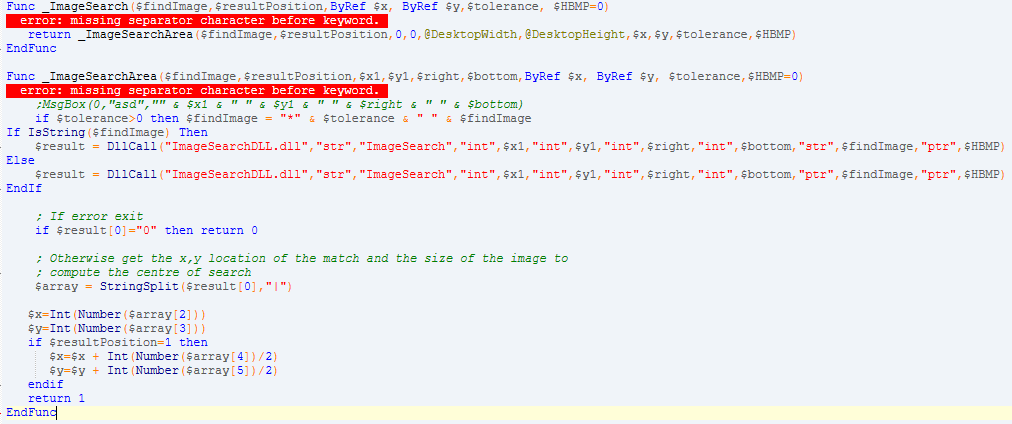

Can someone help me solve this: error: missing separator character before keyword.

Func _ImageSearch($findImage,$resultPosition,ByRef $x, ByRef $y,$tolerance, $HBMP=0)
   return _ImageSearchArea($findImage,$resultPosition,0,0,@DesktopWidth,@DesktopHeight,$x,$y,$tolerance,$HBMP)

Func _ImageSearchArea($findImage,$resultPosition,$x1,$y1,$right,$bottom,ByRef $x, ByRef $y, $tolerance,$HBMP=0)
    ;MsgBox(0,"asd","" & $x1 & " " & $y1 & " " & $right & " " & $bottom)
    if $tolerance>0 then $findImage = "*" & $tolerance & " " & $findImage
If IsString($findImage) Then
    $result = DllCall("ImageSearchDLL.dll","str","ImageSearch","int",$x1,"int",$y1,"int",$right,"int",$bottom,"str",$findImage,"ptr",$HBMP)
    $result = DllCall("ImageSearchDLL.dll","str","ImageSearch","int",$x1,"int",$y1,"int",$right,"int",$bottom,"ptr",$findImage,"ptr",$HBMP)

    ; If error exit
    if $result[0]="0" then return 0

    ; Otherwise get the x,y location of the match and the size of the image to
    ; compute the centre of search
    $array = StringSplit($result[0],"|")

   if $resultPosition=1 then
      $x=$x + Int(Number($array[4])/2)
      $y=$y + Int(Number($array[5])/2)
   return 1



Link to post
Share on other sites
35 minutes ago, Jos said:

There is nothing wrong with that code so must somewhere else in your script.


That's the whole script code. You can copy and paste this piece, and test if you get same error msg as me. Do SyntaxCheck Prod.

Func _ImageSearch($findImage,$resultPosition,ByRef $x, ByRef $y,$tolerance, $HBMP=0)



Link to post
Share on other sites
  • Developers

ah ok.... I ran Tidy on your code so didn't get the error.
Just add a space infront of the Byref statement and au3check will not have any issues.


SciTE4AutoIt3 Full installer Download page   - Beta files       Read before posting     How to post scriptsource   Forum etiquette  Forum Rules
Live for the present,
Dream of the future,
Learn from the past.

Link to post
Share on other sites

Add a whitespace before ByRef.
