Need help with SysTreeView32 class

Recommended Posts




Newcomer here. I am trying to install a software and I am stuck with controlling a Tree view. Using the Window Info tool, I see that the class is SysTreeView32. So I tried ControlTreeView commands. So far, I was able to use Expand and Select which tells me Im on the right track.


However, the Tree view is a little complex from GUI point of view. And I am not able to zone in on any elements of the Tree using the Window Info tool.

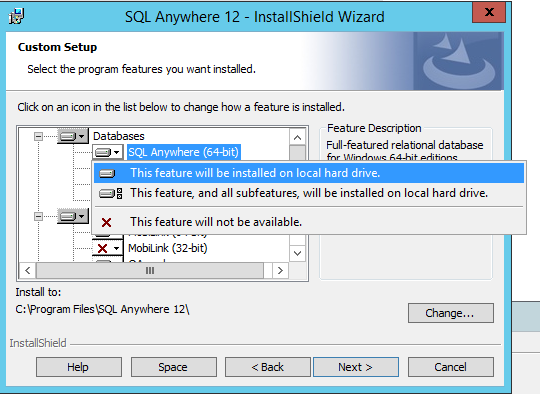

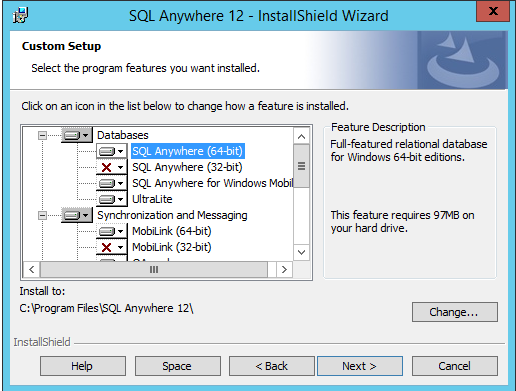

                                                                    Before                                                                                                         After



What I need is to be able to "Select" the "This feature will not be available" option for the "Databases|SQL Anywhere (64-bit)" item. However, I can only highlight the element using Select, not really SElect the value. I tried Expanding it but no luck

ControlTreeView($title, "", $optTree, "Select", "Databases|#0") ==> highlights it

ControlTreeView($title, "", $optTree, "Expand", "Databases|#0") ==> does nothing

I see this one ..

"GetSelected" [, UseIndex] Returns the item reference of the current selection using the text reference of the item (or index reference if UseIndex is set to 1).

.. but ControlTreeView($title, "", $optTree, "GetSelected", "Databases|#0") is either syntactically wrong or its not working. How do we even debug these AutoIT scripts? ? (praying for help!)

Since I identify the subcontrols, I am stuck at this point. Any help is much appreciated!



Share this post

Link to post
Share on other sites

oi thats rough and its kinda hard for anyone to help you without having the thing in hand

If you give up it might be better to look for a way to do it from the command line or even alter the installer to remove the feature

if its an msi / msi in a container look for http://lessmsi.activescott.com/

or msi_super_orca




Share this post

Link to post
Share on other sites

 Now the cmd  install opens a whole new world for me mate. Thanks :D

Share this post

Link to post
Share on other sites
