Searching a table - clicking a table item - then accessing a data point in an adjacent TD cell

[CaptainBeardsEyesBeard]

What table looks like

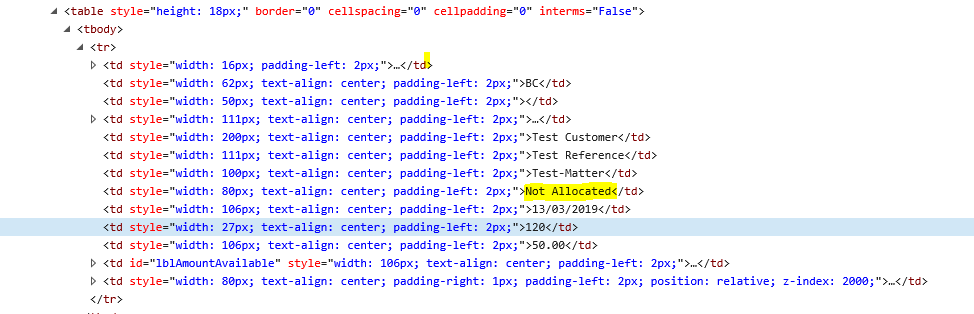

What html looks like

So I use a for loop to search this table for "Not Allocated"

$colLinks = _IEGetObjById($oIE, "ctl00_MPH_PanelListing_ctlInvoiceListing")
$TDs = _IETagNameGetCollection($colLinks, "td")
For $oLink in $TDs
    If String($oLink.textContent) = "Not Allocated" Then
       ConsoleWrite(@CRLF & "Found Not Allocated ")
       _IEAction($oLink, "click")
        ExitLoop
    EndIf
 Next

However I would then like to be able to access the adjacent TD cells. (such as the Customer Name/ Ledger Reference/Matter Number etc.

How would I do this whilst ensuring I'm not pulling a TD cell from a difference row?

[CaptainBeardsEyesBeard]

So my plan was to loop through the table collections and then search using string in string

_IETableGetCollection($oIE)
$iNumTables = @extended
For $i = 0 To $iNumTables - 1
    $oTable = _IETableGetCollection($oIE, $i)
    $aTableData = _IETableWriteToArray($oTable)
    if StringInStr($aTableData[0][0], "Not Allocated") Then
       MsgBox(64, "Debug", "Found the table with Not Allocated in", 2)
       $aTableData[0][0] = $NotAllocatedTableCell
       _ArrayDisplay($aTableData, "Table #" & $i)
       MsgBox(64, "Debug", "$NotAllocatedTableCell equals: " & $NotAllocatedTableCell)
       MsgBox(64, "Debug", "$NotAllocatedTableCell equals: " & $aTableData[0][0])
       endif
Next

However as some tables seem to contain nothing it then fails with

(239) : ==> Array variable has incorrect number of subscripts or subscript dimension range exceeded.:

So I'm wondering if there is a way to test that $aTableData[0][0] is a valid array?

[Dan_555]

You can use the Ubound command, to check how many items are in the array.

You can use IsArray to determine if the variable is an array.

And whenever you call the functions, which return an array, you can check if @error has been set or not.

[Danp2]

Once you've found an element, you can use it as the basis to find it's parent, siblings, children, etc. Lots of examples on the forum and the web.

[CaptainBeardsEyesBeard]

Does anyone know why I get



Array variable has incorrect number of subscripts or subscript dimension range exceeded.:

Despite using the Isarray function and wrapping in an if statement?

_IETableGetCollection($oIE)
$iNumTables = @extended
For $i = 0 To $iNumTables - 1
    $oTable = _IETableGetCollection($oIE, $i)
    $aTableData = _IETableWriteToArray($oTable)
    If IsArray($aTableData) Then
    if StringInStr($aTableData, "Not Allocated") Then
       If @Error then
          ConsoleWrite(@CRLF & "@Error triggered: $aTableData is not an array.")
          EndIf
       MsgBox(64, "Debug", "Found the table with Not Allocated in", 2)

       $aTableData[0][0] = $NotAllocatedTableCell

       MsgBox(64, "Debug", "$NotAllocatedTableCell equals: " & $NotAllocatedTableCell)
       MsgBox(64, "Debug", "$NotAllocatedTableCell equals: " & $aTableData[0][0])
    endif

 EndIf

Next



[Danp2]

I don't think you can pass an array as the first parameter to StringInStr. You should use _ArraySearch instead.

[CaptainBeardsEyesBeard]

You should be able to do

if StringInStr($aTableData[0][0], "Not Allocated") Then

 though?

[Danp2]

Yes, you can perform a string search on a single array element. However, that's not what you were doing in the posted code.

[Dan_555]

When i'm prototyping my scripts, i usually use _ArrayDisplay to see what the array is containing.

$oTable = _IETableGetCollection($oIE, $i)
    _ArrayDisplay($oTable)
    $aTableData = _IETableWriteToArray($oTable)
    _ArrayDisplay($aTableData)

You may notice, that, if one array contain nothing, for e.g $aTableData[0][0] will be set to 0

The other way, which i found useful, is to check if $aTableData is -1

Here is an example:

#include <Misc.au3>
Dim $aFont[8]    ;Font array definition
$aFont = _ChooseFont($aFont[2], $aFont[3], $aFont[5], $aFont[4], 0, 0, 0)

ConsoleWrite($aFont & @CRLF)

if $aFont=-1 then
    ConsoleWrite ("not an array" & @crlf)
EndIf

If you choose a valid Font, then -1 and "not an array" will not appear in the console.

But if you click on cancel, then you will see both messages.

Edited September 8, 2020 by Dan_555
