I have a drop down menu that is actually a toolbar. So far I'm able to focus on the toolbar, and using coordinates, I can click on the 'ACTION' menu item. But I'm struggling to figure out how to click on the sub menu item 'Print'. I thought maybe sending another controlclick function offset down to the 'Print' item would work, but it does not seem to be. Dragging the Finder Tool does not seem to allow me to get info on toolbar sub-menu items like this. Looking for suggestions/pointers on dealing with menus like this.



Here is the Window Info for the Menu Bar:



Here is what I most recently tried, that last ControlClick does not seem to be doing anything for me though. The first ControlClick does open the ACTION menu:

ControlFocus($hWnd, "", "[CLASS:BCGPToolBar:400000:8:10003:10; INSTANCE:2]")
ControlClick($hWnd, "", "[CLASS:BCGPToolBar:400000:8:10003:10; INSTANCE:2]", "left", 1, 233, 11)
Sleep(1000)
ControlClick($hWnd, "", "[CLASS:BCGPToolBar:400000:8:10003:10; INSTANCE:2]", "left", 1, 233, 158)



Share this post


Link to post
Share on other sites

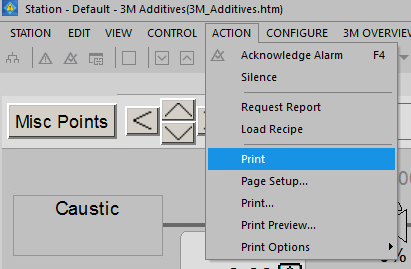

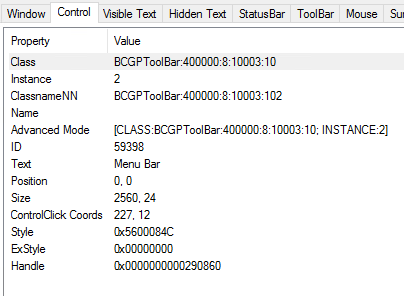

Apparently my screenshots did not come through.. attached is a screenshot of what the menu looks like, and a screenshot of the Window Info details.



Share this post


Link to post
Share on other sites

Well, thanks for that. That seems to work just fine. Here is what I wound up with:

; Trigger Print
ControlFocus($hWnd, "", "[CLASS:BCGPToolBar:400000:8:10003:10; INSTANCE:2]")
Sleep(1000)
ControlSend($hWnd, "", "[CLASS:BCGPToolBar:400000:8:10003:10; INSTANCE:2]", "{!}")
Sleep(1000)
ControlSend($hWnd, "", "[CLASS:BCGPToolBar:400000:8:10003:10; INSTANCE:2]", "{a}")
Sleep(1000)
ControlSend($hWnd, "", "[CLASS:BCGPToolBar:400000:8:10003:10; INSTANCE:2]", "{p}")
Sleep(1000)
