Resiak1811 Posted February 5, 2022 Posted February 5, 2022 Autoit version v3.3.14.5 / SciTE version 3.5.4 Windows 10 Pro x64 I don't know if it's me.. or I'm badly using this function.. If someone can answer that, take a look at my example... expandcollapse popup#include <DateTimeConstants.au3> #include <GUIConstantsEx.au3> #include <GuiListView.au3> $hGUI = GUICreate("Log", 325, 384, -1, -1) GUICtrlCreateLabel("Select Date : ", 5, 15) $idDate = GUICtrlCreateDate(@YEAR, 85, 11, 100, 20, $DTS_SHORTDATEFORMAT) Local $sStyle = "yyyy" GUICtrlSendMsg($idDate, $DTM_SETFORMATW, 0, $sStyle) $hGUIList = GUICtrlCreateListView("Item #|Qty for " & @YEAR, 5, 35, 310, 315, -1) _GUICtrlListView_SetColumnWidth(-1, 0, 150) _GUICtrlListView_SetColumnWidth(-1, 1, 135) For $i = 0 To _GUICtrlListView_GetColumnCount(-1) - 1 _GUICtrlListView_JustifyColumn(-1, $i, 2) Next ControlDisable($hGUI, "", HWnd(_GUICtrlListView_GetHeader(-1))) _GUICtrlListView_SetExtendedListViewStyle(-1, BitOR($LVS_EX_FULLROWSELECT, $LVS_EX_GRIDLINES, $LVS_EX_DOUBLEBUFFER)) Global $aArray[4][2] = [["000103268", "0"], ["00011864", "1"], ["00012452", "2"], ["000130014", "3"]] _ArrayDisplay($aArray) ;~ <------ Array Display is OK (the 0 at the beginning in the item # are there) For $j = 0 To UBound($aArray, $UBOUND_ROWS) - 1 $sFill = $aArray[$j][0] & "|" & $aArray[$j][1] GUICtrlCreateListViewItem($sFill, $hGUIList) Next Global $g_bSortSense = True _GUICtrlListView_SimpleSort($hGUIList, $g_bSortSense, 1) ;~ <------ After the SimpleSort, all the 0 at the beginning of the item # are missing in the GUI ??? ;~ <------ if you commented the SimpleSort line, all the 0 are in the item # in the GUI ??? GUISetState(@SW_SHOW, $hGUI) While 1 Switch GUIGetMsg() Case $GUI_EVENT_CLOSE ExitLoop EndSwitch WEnd GUIDelete($hGUI) thank you and if it's me, sorry to have bothered you
ad777 Posted February 5, 2022 Posted February 5, 2022 (edited) @Resiak1811 just replace : _GUICtrlListView_SimpleSort($hGUIList, $g_bSortSense, 1) with to be in order: _GUICtrlListView_SimpleSort($hGUIList, $g_bSortSense, 4) or: Global $g_bSortSense = False _GUICtrlListView_SimpleSort($hGUIList, $g_bSortSense, 1,True) Edited February 5, 2022 by ad777 none
Resiak1811 Posted February 5, 2022 Author Posted February 5, 2022 _GUICtrlListView_SimpleSort ( $hWnd, ByRef $vSortSense, $iCol [, $bToggleSense = True] ) since the 1 is the $iCol ... I don't have 4 col. in the listview but whatever... I have tried and same result
ad777 Posted February 5, 2022 Posted February 5, 2022 @Resiak1811 _GUICtrlListView_SimpleSort Sorts a list-view control (limited) #include <GuiListView.au3> _GUICtrlListView_SimpleSort ( $hWnd, ByRef $vSortSense, $iCol [, $bToggleSense = True] ) Parameters $hWnd Handle to the control $vSortSense Sets the defined sort order True - Sort Descending False - Sort Ascending Use a simple variable for a single column ListView Use an array for multicolumn ListViews: $aArray[0] - Order for first Column $aArray[1] - Order for second Column $aArray[n] - Order for last Column $iCol Column number $bToggleSense [optional] Toggle sort sense True - Toggle sort sense after sort (default) False - Sort sense unchanged after sort use false for Sort Ascending the script will be: Global $g_bSortSense = False _GUICtrlListView_SimpleSort($hGUIList, $g_bSortSense, 1,True) none

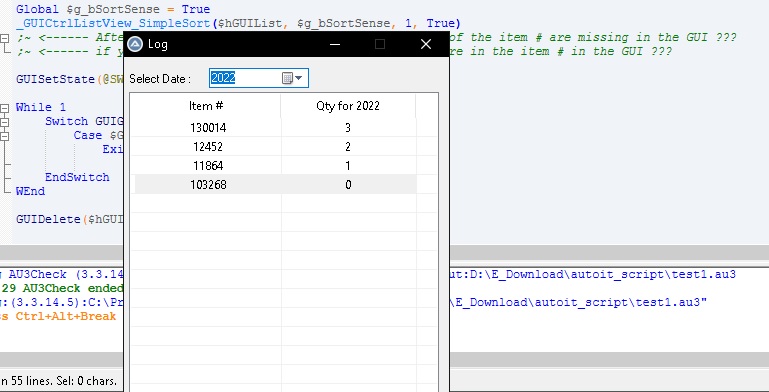

Resiak1811 Posted February 5, 2022 Author Posted February 5, 2022 (edited) same thing... even with the Global $g_bSortSense = False and same thing with 4 instead of 1 here's a printscreen.. Edited February 5, 2022 by Resiak1811
ad777 Posted February 5, 2022 Posted February 5, 2022 @Resiak1811 you mean you want to Default Number just insert: Global $g_bSortSense = True _GUICtrlListView_SimpleSort($hGUIList&"0", $g_bSortSense, 1) none
Resiak1811 Posted February 5, 2022 Author Posted February 5, 2022 I want a order by Qty (col 1) and of course, I want the real item # (with all the 0 at the beginning) and I have tested your last suggestion, adding & "0" to the $hGUIList restore the leading 0 ... but does not sort anymore
Resiak1811 Posted February 5, 2022 Author Posted February 5, 2022 (edited) uhmm Edited February 5, 2022 by Resiak1811
Resiak1811 Posted February 5, 2022 Author Posted February 5, 2022 I found the problem ... In GuiListView.au3 the line 4502 --> $aListViewItems[$i][$j] = Number($sItemText) "Number" remove the 0 at the beginning of the item #... Can I expect any fix from the dev. ? Otherwise I will modify this part: In GuiListView.au3, line 4501 to 4505 : If (StringIsFloat($sItemText) Or StringIsInt($sItemText)) Then $aListViewItems[$i][$j] = Number($sItemText) Else $aListViewItems[$i][$j] = $sItemText EndIf to be only : $aListViewItems[$i][$j] = $sItemText pixelsearch 1
pixelsearch Posted February 5, 2022 Posted February 5, 2022 @Resiak1811: glad you made some research and found the cause. I was searching too and I found the same cause, but it could be patched differently. The behavior you described is caused by the function _GUICtrlListView_SimpleSort() found in the include file GuiListView.au3. Here is an excerpt of the function : For $j = 0 To $iColumnCount - 1 ; Columns $sItemText = StringStripWS(_GUICtrlListView_GetItemText($hWnd, $i, $j), $STR_STRIPTRAILING) If (StringIsFloat($sItemText) Or StringIsInt($sItemText)) Then $aListViewItems[$i][$j] = Number($sItemText) Else $aListViewItems[$i][$j] = $sItemText EndIf Next The question is : why should all columns be concerned by this For...Next loop, altering possible values in columns that has nothing to do with the sort ? (that's your case) If we replace the preceding For... Next loop by the following, it should solve the issue : For $j = 0 To $iColumnCount - 1 ; Columns If $j = $iCol Then ; $iCol = column to sort (3rd param. of the function) $sItemText = StringStripWS(_GUICtrlListView_GetItemText($hWnd, $i, $j), $STR_STRIPTRAILING) If (StringIsFloat($sItemText) Or StringIsInt($sItemText)) Then $aListViewItems[$i][$j] = Number($sItemText) Else $aListViewItems[$i][$j] = $sItemText EndIf Else $aListViewItems[$i][$j] = _GUICtrlListView_GetItemText($hWnd, $i, $j) ; unaltered EndIf Next Let's not forget that there is a chain of functions called during the sorting, for example : _GUICtrlListView_SimpleSort() => _ArraySort() => __ArrayQuickSort2D() etc... So, one has to make sure that patching _GUICtrlListView_SimpleSort() in this way won't create new issues in the chained functions. After a quick look, I don't think there should be other issues but it's much safer to let the developers decide. "I think you are searching a bug where there is no bug... don't listen to bad advice."
Resiak1811 Posted February 5, 2022 Author Posted February 5, 2022 works great for my case but if anyone else need something like that (but sort by col.0) .. the problem is still there
Resiak1811 Posted February 5, 2022 Author Posted February 5, 2022 so maybe the problem is with the "Number" function ?
pixelsearch Posted February 6, 2022 Posted February 6, 2022 23 minutes ago, Resiak1811 said: works great for my case but if anyone else need something like that (but sort by col.0) .. the problem is still there But at least it will solve many cases. That's the eternal problem of letting the computer decide by itself if 0033456789 should be treated like a number (33456789) or a string (maybe a phone number 0033456789 where 00 are important) As there are no parameters indicating what exactly represents this column of "numbers", then the problem can't be easily solved in many scripts ( except the * in the next beta version of _Arraydisplay, hi jpm ) If there was an additional parameter to indicate if the user wants his column to be treated as numbers or strings, then the problem would always be solved... but it would require a lot of changes in plenty of functions, not counting many users won't like that (i.e. forced to pass an extra parameter) Resiak1811 1 "I think you are searching a bug where there is no bug... don't listen to bad advice."
Resiak1811 Posted February 6, 2022 Author Posted February 6, 2022 it looks like the Excel cell problem ... if you don't change the cell format ... 000123 will be 123 ... I hate Excel for that hehe and now I found the same problem with Autoit... luckly I'm not using the SimpleSort often lol thank for understanding the problem I had and... confirming that I'm not the problem hehe
junkew Posted February 6, 2022 Posted February 6, 2022 (edited) You can fix it without modifying UDF by using https://www.autoitscript.com/autoit3/docs/libfunctions/_GUICtrlListView_RegisterSortCallBack.htm then you can modify the sorting to your own implementation In beta I see same behavior so maybe log it in issue tracker so you get feedback if its a feature or bug Edited February 6, 2022 by junkew FAQ 31 How to click some elements, FAQ 40 Test automation with AutoIt, Multithreading CLR .NET Powershell CMDLets
ad777 Posted February 7, 2022 Posted February 7, 2022 (edited) @Resiak1811 Yout meant sort By Number: expandcollapse popup#include <Array.au3> #include <MsgBoxConstants.au3> Local $aArray_2dR[6][2] = [["000103268", Number("100")], ["00011864", Number("221")], ["00012452", Number("3")], ["020140014", Number("5")], ["000130014", Number("24")], ["000130014", Number("214")]] $ByNumber = 100 ; $NumberCol = 6 ; _SortArrayByOrder($aArray_2dR, $NumberCol, $ByNumber) Func _SortArrayByOrder($aArray_2D, $NCol, $NChoic) Global $Ad_string Global $add, $add_2, $add_3, $inc, $inc_change, $string_add For $i = 0 To UBound($aArray_2D) - 1 For $i2 = 0 To UBound($aArray_2D) - 1 If $aArray_2D[$i][1] < $aArray_2D[$i2][1] Then If $aArray_2D[$i2][1] = $aArray_2D[$i][1] Then Else $add &= "1" EndIf Else If $aArray_2D[$i2][1] = $aArray_2D[$i][1] Then Else For $i3 = 1 To UBound($aArray_2D) * 2 Global $str = StringInStr($inc, $aArray_2D[$i2][1]) $mid = StringMid($inc, $str, $i3) $string_add = $mid If $mid = $aArray_2D[$i2][1] Then ExitLoop Next If $string_add = $aArray_2D[$i2][1] Then Else $add &= "0" EndIf EndIf EndIf Next If StringInStr($add, "1") And StringInStr($add, "0") And $i2 = $NCol - 1 Or StringInStr($add, "0") Then Else $Ad_string &= $aArray_2D[$i][0] & "|" & $aArray_2D[$i][1] & "," $inc &= $aArray_2D[$i][1] & "," $add_2 = $aArray_2D[$i][1] $add_3 &= $add_2 & "," $add_2 = "" EndIf $add = "" If $i = $NCol - 1 Then $i = 0 - 1 $i2 = 0 - 1 If StringLen($add_3) > UBound($aArray_2D) * 4 - 1 Then ;;;;;;;;;;;;;;;eeee Global $SSnum = "on" If $SSnum = "on" Then For $i = 0 To 100 _ArrayDelete($aArray_2D, 0) Next $SSnum = "off" EndIf Global $in, $state_1 = "on", $prev_num, $prev_rat, $state_2 = "on", $state_3 = "on", $ine, $in2, $str_add, $inc3 $num = $Ad_string For $i = 1 To 200 If $i = 200 Then $inc3 = $inc3 + 1 If $inc3 > 1 Then $in2 = $in2 - 1 EndIf $ine = $in2 + 2 $in2 = $ine $i = $ine $state_3 = "on" $state_1 = "on" $state_2 = "on" $in = 0 EndIf If StringMid($num, $i, 1) = "," Then $state_3 = "off" $prev_rat2 = StringMid($num, $prev_num, $in) $str_add &= StringLeft($num, $prev_num - 1) If $prev_rat <> $prev_rat2 Then If StringInStr($str_add, $prev_rat2) Then Else $inc_change = $inc_change + 1 If $inc_change > $NCol Then ExitLoop Else If StringMid($prev_rat2, StringInStr($prev_rat2, "|") + 1, -1) > $NChoic Then _ArrayAdd($aArray_2D, $prev_rat2) EndIf EndIf ; EndIf EndIf EndIf If $state_2 = "on" Then $prev_rat = "" $prev_rat = StringMid($num, $prev_num, $in) $i = 0 $state_2 = "off" EndIf $state_1 = "on" $in = 0 Else If $state_1 = "on" Then $prev_num = $i $state_1 = "off" EndIf $in = $in + 1 If $state_3 = "on" Then $in2 = $in2 + 1 $SSnum = $in2 EndIf EndIf Next EndIf EndIf Next _ArrayDisplay($aArray_2D, "! Header separator", 0, Default, Default, "EE!FF!eee|#EE") EndFunc ;==>_SortArrayByOrder Edited February 10, 2022 by ad777 none
