Identify of color of Pixel

[beamtenversteher]

Hi,



based on last solution here

 (thx to ad777) i am thingking how i can automate the task.

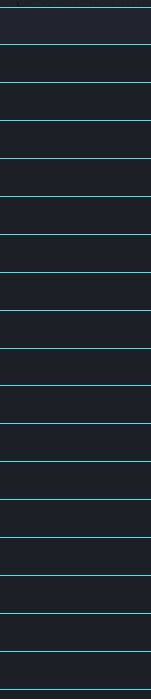

Lets explain u what i am doing with the mentioned double click. i will manually every time click on a row (see attached pic) which has a different color like this grey (should be #21242E RGB(33,36,46)) and the turquoise (should be #4EE6EB RGB (78,230,235)) Both, grey and turquoise should not be considered but all if there will popup other colors then there should be done excatly this double click action ad77 created in advance. And if it comes to all other colors - it can be any color.

So rule should be do nothing until any other color will popup.

Important is that the area where this rule should wor is a different (smaller area ofc) than in the example before. best would be if i can configure it in the same way like before.

Is it possible with this information to automate this process?


[junkew]

https://www.autoitscript.com/autoit3/docs/functions/PixelChecksum.htm

or any other pixel* function

[ad777]

@beamtenversteher

this how you make sure if color grey (should be #21242E RGB(33,36,46)) and the turquoise (should be #4EE6EB RGB (78,230,235)) :

#include <WinAPIGdi.au3>

$COLOR = "0x" & Hex(PixelGetColor(MouseGetPos(0), MouseGetPos(1)))
$Red = _WinAPI_GetRValue($COLOR)
$Green = _WinAPI_GetGValue($COLOR)
$Blue = _WinAPI_GetBValue($COLOR)
If $Red = 33 And $Green = 36 And $Blue = 46 Or $Red = 78 And $Green = 230 And $Blue = 235 Then     ;;;if the color the same then

Else    ;;;if the color not same then else

EndIf



[beamtenversteher]

TY - how to combine with to the previous condition and automate the task whenever the color is different from these both?



expandcollapse popup

#include <GUIConstantsEx.au3>
#include "MouseOnEvent.au3"
#include <Misc.au3>

HotKeySet("{ESC}", "_Quit")

_BlockDBClick()



Func _BlockDBClick()
    Global $hGUI = GUICreate("")
    GUISetState(@SW_HIDE, -1)
    _MouseSetOnEvent($MOUSE_PRIMARYDBLCLK_EVENT)
    _MouseSetOnEvent($MOUSE_PRIMARYDOWN_EVENT)
    While 1
  $Left = 400
    $Top = 140
    $Right = 1300
    $Bottom = 900
        If MouseGetPos(0) > $Left And MouseGetPos(0) < $Right And MouseGetPos(1) > $Top And MouseGetPos(1) < $Bottom Then
            _MouseSetOnEvent($MOUSE_PRIMARYDOWN_EVENT, "_MouseDBEvent")
            _MouseSetOnEvent($MOUSE_PRIMARYDOWN_EVENT, "_MouseDBEvent", $hGUI)
        Else
            _MouseSetOnEvent($MOUSE_PRIMARYDBLCLK_EVENT)
            _MouseSetOnEvent($MOUSE_PRIMARYDOWN_EVENT)

        EndIf
        Switch GUIGetMsg()
            Case $GUI_EVENT_CLOSE
                ExitLoop
        EndSwitch
        ;Sleep(10)
    WEnd

EndFunc   ;==>_BlockDBClick
Func _MouseDBEvent()
    Send("u") ;;send Win+r
    ;;;;do stuff
    Return $MOE_BLOCKDEFPROC ;Block
EndFunc   ;==>_MouseDBEvent
Func _Quit()
    Exit
EndFunc   ;==>_Quit

i think the checksum (if any the color changes and then the double click will be done automatically) might be a solution as well.

Thx in advance for your support!

[ad777]

7 hours ago, beamtenversteher said:

TY - how to combine with to the previous condition and automate the task whenever the color is different from these both?

expandcollapse popup

#include <GUIConstantsEx.au3>
#include "MouseOnEvent.au3"
#include <Misc.au3>
#include <WinAPIGdi.au3>

HotKeySet("{ESC}", "_Quit")

_BlockDBClick()



Func _BlockDBClick()
    Global $hGUI = GUICreate("")
    GUISetState(@SW_HIDE, -1)
    _MouseSetOnEvent($MOUSE_PRIMARYDBLCLK_EVENT)
    _MouseSetOnEvent($MOUSE_PRIMARYDOWN_EVENT)
    While 1
        $Left = 400
        $Top = 140
        $Right = 1300
        $Bottom = 900
        $COLOR = "0x" & Hex(PixelGetColor(MouseGetPos(0), MouseGetPos(1)))
        $Red = _WinAPI_GetRValue($COLOR)
        $Green = _WinAPI_GetGValue($COLOR)
        $Blue = _WinAPI_GetBValue($COLOR)

        If MouseGetPos(0) > $Left And MouseGetPos(0) < $Right And MouseGetPos(1) > $Top And MouseGetPos(1) < $Bottom Then
            If $Red = 33 And $Green = 36 And $Blue = 46 Or $Red = 78 And $Green = 230 And $Blue = 235 Then     ;;;if the color the same then
                _MouseSetOnEvent($MOUSE_PRIMARYDBLCLK_EVENT)
                _MouseSetOnEvent($MOUSE_PRIMARYDOWN_EVENT)
            Else ;;;if the color not same then else
                _MouseSetOnEvent($MOUSE_PRIMARYDOWN_EVENT, "_MouseDBEvent")
                _MouseSetOnEvent($MOUSE_PRIMARYDOWN_EVENT, "_MouseDBEvent", $hGUI)
            EndIf
        EndIf
        Switch GUIGetMsg()
            Case $GUI_EVENT_CLOSE
                ExitLoop
        EndSwitch
        ;Sleep(10)
    WEnd

EndFunc   ;==>_BlockDBClick
Func _MouseDBEvent()
    Send("u") ;;send Win+r
    ;;;;do stuff
    Return $MOE_BLOCKDEFPROC ;Block
EndFunc   ;==>_MouseDBEvent
Func _Quit()
    Exit
EndFunc   ;==>_Quit



[beamtenversteher]

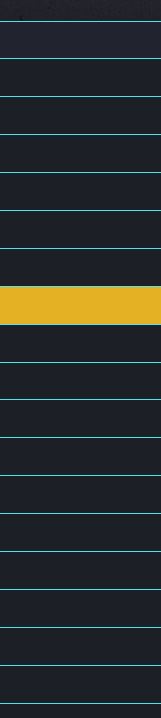

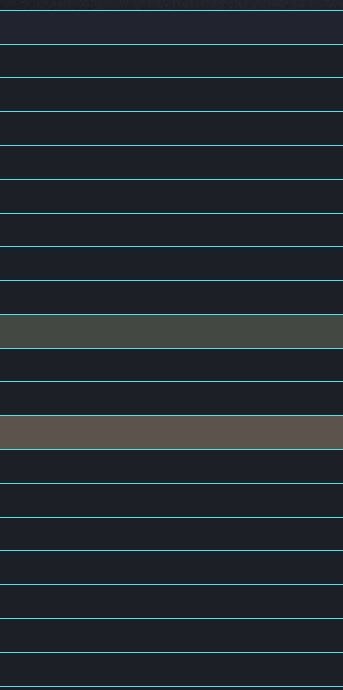

hi, the situation is that typically it looks like in the pic without different color but in the next moment then you have the orange/yellow  or other coloered row - and then the mouse double click should be automatically done somewhere where the row is colored in orange/yellow. If i read the code correctly i an not able to click by myself anymore somewhere else if the colore fit to the two mentioned ones......

[ad777]

17 minutes ago, beamtenversteher said:

the mouse double click should be automatically done somewhere where the row is colored in orange/yellow.





just replace:(Remmber to change Value $Red & Green & Blue accordig to Orange/Yellow)

If MouseGetPos(0) > $Left And MouseGetPos(0) < $Right And MouseGetPos(1) > $Top And MouseGetPos(1) < $Bottom Then
            If $Red = 33 And $Green = 36 And $Blue = 46 Or $Red = 78 And $Green = 230 And $Blue = 235 Then     ;;;if the color the same then
                _MouseSetOnEvent($MOUSE_PRIMARYDBLCLK_EVENT)
                _MouseSetOnEvent($MOUSE_PRIMARYDOWN_EVENT)
            Else ;;;if the color not same then else
                _MouseSetOnEvent($MOUSE_PRIMARYDOWN_EVENT, "_MouseDBEvent")
                _MouseSetOnEvent($MOUSE_PRIMARYDOWN_EVENT, "_MouseDBEvent", $hGUI)
            EndIf
        EndIf

with:

If MouseGetPos(0) > $Left And MouseGetPos(0) < $Right And MouseGetPos(1) > $Top And MouseGetPos(1) < $Bottom Then
            If $Red = 33 And $Green = 36 And $Blue = 46 Or $Red = 78 And $Green = 230 And $Blue = 235 Then     ;;;if the color the same then
                _MouseSetOnEvent($MOUSE_PRIMARYDOWN_EVENT, "_MouseDBEvent")
                _MouseSetOnEvent($MOUSE_PRIMARYDOWN_EVENT, "_MouseDBEvent", $hGUI)
            Else ;;;if the color not same then else
                _MouseSetOnEvent($MOUSE_PRIMARYDBLCLK_EVENT)
                _MouseSetOnEvent($MOUSE_PRIMARYDOWN_EVENT)
            EndIf
        EndIf



[junkew]

search for bitblt in the forum

maybe you can use getimage from over here



1. Get the whole area and save as a hexadecimal value to see how it looks
2. Find the different hex values for your color
3. calculate the position where your yellow/orange part is.
