Creating checkbox elements in array

[mlukac89]

Hi

I want to make array to store checkboxes inside so i can use it later in code for easier access, and for less code.

Issue is that loop is adding 1 more item in a row and there should be 5 rows and 5 columns, that's 25 in total.

Also it doesn't giving me correct box number like 1 - 25, instead i have 0-6, 0-6, 0-6

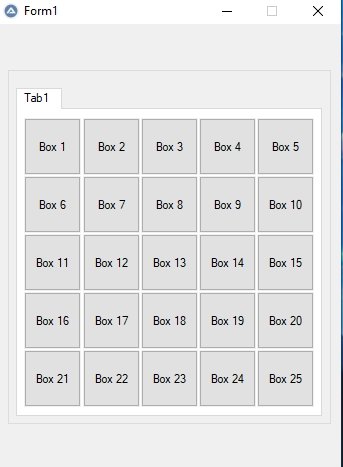

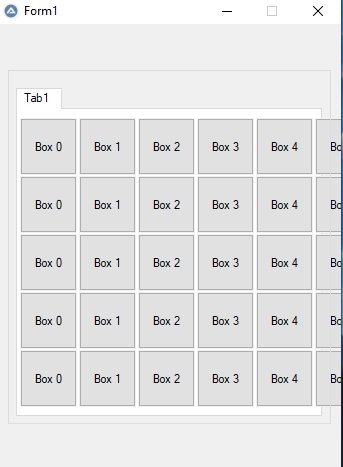

On images you can see valid one and invalid one.

expandcollapse popup

#include <ButtonConstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <TabConstants.au3>
#include <WindowsConstants.au3>

#Region ### START Koda GUI section ###
$Form1 = GUICreate("Form1", 341, 443, -1, -1)
$Group1 = GUICtrlCreateGroup("", 8, 40, 323, 361, -1, $WS_EX_TRANSPARENT)
$Tab1 = GUICtrlCreateTab(16, 64, 308, 329)
$TabSheet1 = GUICtrlCreateTabItem("Tab1")

Global $boxArray[5][25]

For $line = 0 To 4
    For $i = 0 To 24
        $boxArray[$line][$i] = GUICtrlCreateCheckbox('Box '&$i, 20+$i*59, 94+$line*58, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
    Next
Next

#cs
$box1 = GUICtrlCreateCheckbox("Box 1", 24, 94, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
$box2 = GUICtrlCreateCheckbox("Box 2", 83, 94, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
$box3 = GUICtrlCreateCheckbox("Box 3", 141, 94, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
$box4 = GUICtrlCreateCheckbox("Box 4", 199, 94, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
$box5 = GUICtrlCreateCheckbox("Box 5", 257, 94, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
$box6 = GUICtrlCreateCheckbox("Box 6", 24, 152, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
$box7 = GUICtrlCreateCheckbox("Box 7", 83, 152, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
$box8 = GUICtrlCreateCheckbox("Box 8", 141, 152, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
$box9 = GUICtrlCreateCheckbox("Box 9", 199, 152, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
$box10 = GUICtrlCreateCheckbox("Box 10", 257, 152, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
$box11 = GUICtrlCreateCheckbox("Box 11", 24, 210, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
$box12 = GUICtrlCreateCheckbox("Box 12", 83, 210, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
$box13 = GUICtrlCreateCheckbox("Box 13", 141, 210, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
$box14 = GUICtrlCreateCheckbox("Box 14", 199, 210, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
$box15 = GUICtrlCreateCheckbox("Box 15", 257, 210, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
$box16 = GUICtrlCreateCheckbox("Box 16", 24, 268, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
$box17 = GUICtrlCreateCheckbox("Box 17", 83, 268, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
$box18 = GUICtrlCreateCheckbox("Box 18", 141, 268, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
$box19 = GUICtrlCreateCheckbox("Box 19", 199, 268, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
$box20 = GUICtrlCreateCheckbox("Box 20", 257, 268, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
$box21 = GUICtrlCreateCheckbox("Box 21", 24, 326, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
$box22 = GUICtrlCreateCheckbox("Box 22", 83, 326, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
$box23 = GUICtrlCreateCheckbox("Box 23", 141, 326, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
$box24 = GUICtrlCreateCheckbox("Box 24", 199, 326, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
$box25 = GUICtrlCreateCheckbox("Box 25", 257, 326, 57, 57, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
#ce

GUICtrlCreateGroup("", -99, -99, 1, 1)
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch

WEnd



[Andreik]

Is that what you need?

#include <ButtonConstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <TabConstants.au3>
#include <WindowsConstants.au3>

#Region ### START Koda GUI section ###
$Form1 = GUICreate("Form1", 341, 443, -1, -1)
$Group1 = GUICtrlCreateGroup("", 8, 40, 323, 361, -1, $WS_EX_TRANSPARENT)
$Tab1 = GUICtrlCreateTab(16, 64, 308, 329)
$TabSheet1 = GUICtrlCreateTabItem("Tab1")

Global $boxArray[5][5]

For $line = 0 To 4
    For $i = 0 To 4
        $boxArray[$line][$i] = GUICtrlCreateCheckbox('Box ' & ($line + $line*4 + $i + 1), 25 + $i*60, 95+$line*60, 50, 50, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
    Next
Next

GUICtrlCreateGroup("", -99, -99, 1, 1)
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch

WEnd

Or you can do it with a 1 dimensional array and a single loop like this:

#include <ButtonConstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <TabConstants.au3>
#include <WindowsConstants.au3>

#Region ### START Koda GUI section ###
$Form1 = GUICreate("Form1", 341, 443, -1, -1)
$Group1 = GUICtrlCreateGroup("", 8, 40, 323, 361, -1, $WS_EX_TRANSPARENT)
$Tab1 = GUICtrlCreateTab(16, 64, 308, 329)
$TabSheet1 = GUICtrlCreateTabItem("Tab1")

Global $boxArray[25]

For $index = 0 To 24
    $boxArray[$index] = GUICtrlCreateCheckbox('Box ' & $index + 1, 25 + Mod($index, 5) * 60, 95 + Int($index/5) * 60, 50, 50, BitOR($GUI_SS_DEFAULT_CHECKBOX,$BS_PUSHLIKE))
Next

GUICtrlCreateGroup("", -99, -99, 1, 1)
GUISetState(@SW_SHOW)
#EndRegion ### END Koda GUI section ###

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch
WEnd



Edited August 5, 2023 by Andreik

[mlukac89]

Thanks man, i made mistake in second loop with 25, so simple, thanks anyway
