Read Serial Number (extern drive)

[Franz]

Hello, i want to create a little tool to sync my files for all my drives and i want to make it as safe as possible.



In my special case i want to read the Serial number for  each drive and then i want to execute my sync program, but unfortunately the WMI method doesnt work for me.





For example:
My intern Drive / Correct Serial
Modell: Samsung SSD 850 EVO 500GB
Seriennummer: S2RBNXXXXXXX

Extern drive 1
Modell: WDC WD40 EZAZ-00SF3B0 USB Device
Seriennummer: 152D00539000

Extern drive 2
Modell: WDC WD40 EZAZ-00SF3B0 USB Device
Seriennummer: 152D00539001

Extern drive 3
Modell: WDC WD40 EZAZ-00SF3B0 USB Device
Seriennummer: 152D00539002

Extern drive 4
Modell: WDC WD40 EZAZ-00SF3B0 USB Device
Seriennummer: 152D00539003





Here is my Code...

#include <Array.au3>

Local $colItems, $objWMIService, $objItem

$objWMIService = ObjGet("winmgmts:\\.\root\cimv2")
$colItems = $objWMIService.ExecQuery("SELECT * FROM Win32_DiskDrive", "WQL")

If IsObj($colItems) Then
    For $objItem In $colItems
        ConsoleWrite("Modell: " & $objItem.Model & @CRLF)
        ConsoleWrite("Seriennummer: " & $objItem.SerialNumber & @CRLF)
    Next
Else
    MsgBox(16, "Error", "No drives Found.")
EndIf




Crystal Disk Info or other Tools can read the Correct serial so it should be possible.


Thanks for any help ♥

[Franz]

As i know is Crystal disk info using the ATA Protocol but iam not that deep into programing, if possible Autoit or C# would be nice for this tool.

[Noobis]

Function DriveGetSerial (autoitscript.com)

[argumentum]

4 hours ago, Franz said:

Seriennummer: S2RBNXXXXXXX

NVMe drives need coding done to get proper HW S/N. Even the OS ( as you've seen in WMI ) needs more coding.

Use the DriveGetLabel(). Or both, DriveGetSerial() & DriveGetLabel() together to assure uniquely generated identifiers.

[Franz]

DriveGetSerial does not work for my extern drives.



Thats why i search for a better solution, but i think i have a decent solution rn.

Install : smartmontools-7.4-1


and here is my Batch.


@echo off
echo Fuehre smartctl für /dev/sda aus...
smartctl -i /dev/sda | findstr /C:"Device Model" /C:"Serial Number" >> "%~dp0\smartctl_output.txt"
echo.
echo  Fuehre smartctl für /dev/sdb aus...
smartctl -i /dev/sdb | findstr /C:"Device Model" /C:"Serial Number" >> "%~dp0\smartctl_output.txt"

echo.
echo  Fuehre smartctl für /dev/sdc aus...
smartctl -i /dev/sdc | findstr /C:"Device Model" /C:"Serial Number" >> "%~dp0\smartctl_output.txt"

echo.
echo  Fuehre smartctl für /dev/sdd aus...
smartctl -i /dev/sdd | findstr /C:"Device Model" /C:"Serial Number" >> "%~dp0\smartctl_output.txt"

[ioa747]

how-to-post-code-on-the-forum

[SmOke_N]

15 minutes ago, Franz said:

DriveGetSerial does not work for my extern drives.



Thats why i search for a better solution, but i think i have a decent solution rn.

Install : smartmontools-7.4-1


and here is my Batch.


@echo off
echo Fuehre smartctl für /dev/sda aus...
smartctl -i /dev/sda | findstr /C:"Device Model" /C:"Serial Number" >> "%~dp0\smartctl_output.txt"
echo.
echo  Fuehre smartctl für /dev/sdb aus...
smartctl -i /dev/sdb | findstr /C:"Device Model" /C:"Serial Number" >> "%~dp0\smartctl_output.txt"

echo.
echo  Fuehre smartctl für /dev/sdc aus...
smartctl -i /dev/sdc | findstr /C:"Device Model" /C:"Serial Number" >> "%~dp0\smartctl_output.txt"

echo.
echo  Fuehre smartctl für /dev/sdd aus...
smartctl -i /dev/sdd | findstr /C:"Device Model" /C:"Serial Number" >> "%~dp0\smartctl_output.txt"

That's for Windows OS? 😶

Edit:

No wonder I don't recognize it, smartctl is 3rd party.

You should just be able to use Run() (with $STDOUT_CHILD in 4th parameter) in conjunction with StdoutRead to get the same data from that 3rd party app rather than running a batch.  There you can just parse the data.  Other than that, I'm completely out of suggestions as I haven't worked with drive information since 2006.

Edited February 24, 2024 by SmOke_N

[argumentum]

54 minutes ago, SmOke_N said:

... Run() (with $STDOUT_CHILD in 4th parameter) ...

Try RunWaitEx() by this guy, ...what's his name, ... yes @argumentum.
It's easier to use.

[Franz]

3 hours ago, SmOke_N said:

That's for Windows OS? 😶

Edit:

No wonder I don't recognize it, smartctl is 3rd party.

You should just be able to use Run() (with $STDOUT_CHILD in 4th parameter) in conjunction with StdoutRead to get the same data from that 3rd party app rather than running a batch.  There you can just parse the data.  Other than that, I'm completely out of suggestions as I haven't worked with drive information since 2006.

Win10 and yes smartctl is a 3rd party application.



Thanks for that Tip

[Alecsis1]

Hello!  Try something like this

Opt('MustDeclareVars', True)

Local $colItems, $objWMIService, $objItem

$objWMIService = ObjGet("winmgmts:")
$colItems = $objWMIService.ExecQuery("SELECT * FROM Win32_DiskDrive", "WQL")
;
If IsObj($colItems) Then
    For $objItem In $colItems
        ConsoleWrite("Model: " & $objItem.Model & @CRLF)
        ConsoleWrite("S/N  : " & StringStripWS($objItem.SerialNumber, 3) & @CRLF) ; cut out excessive spaces
        ConsoleWrite(@CRLF) ; make output easier to read
    Next
    ConsoleWrite("Done" @CRLF)
  Else
    MsgBox(16, "Error", "No drives Found.")
EndIf
;
Exit

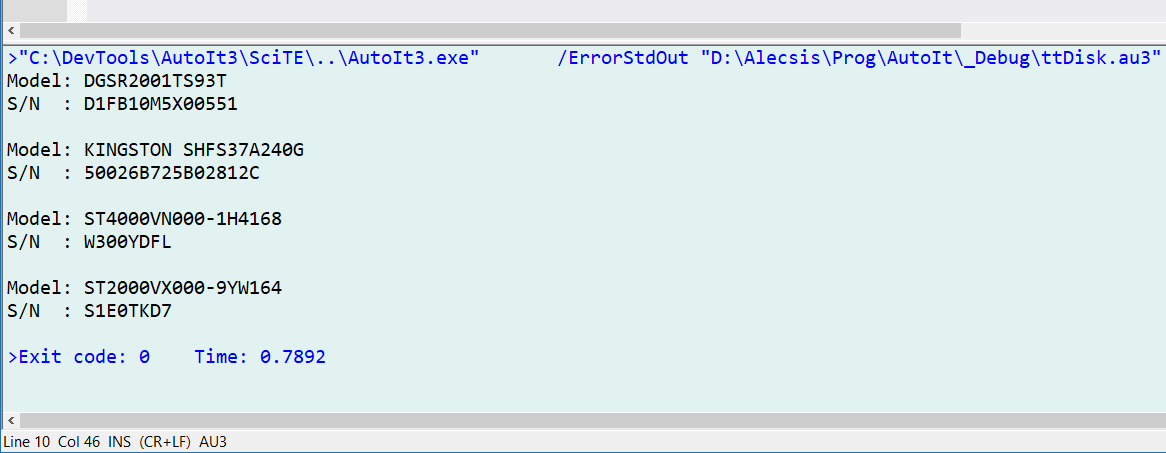

All my disks present:
