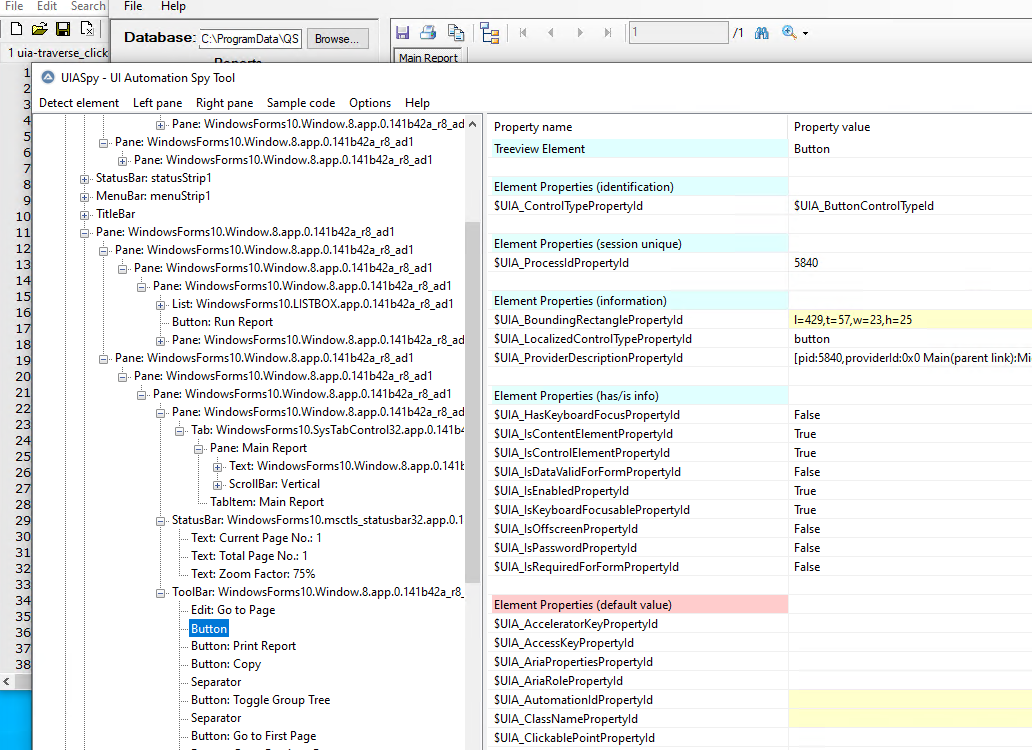

UIASpy can see it, but TreeScope search failed

[myu8171]

Need to click the Save button. Unfortunately the button doesn't have name property ID as other buttons, so have to loop over all buttons and find the one without name, or use the 1st returned button item.

Code below didn't find buttons. The FindAll function returns 0 (NULL). Any suggestion why?

Thanks.

UPDATE: Figured out. A subtle error caused the issue.



; --- Find all Button elements within the toolbar ---
    ConsoleWrite("--- Find all Button elements within the toolbar ---" & @CRLF)
    Local $oConditionButton
    $oUIAutomation.CreatePropertyCondition($UIA_ControlTypePropertyId, $UIA_ButtonControlTypeId, $oConditionButton)

    Local $oButtonElements
    $oToolBar3.FindAll($TreeScope_Descendants, $oConditionButton, $oButtonElements)

    If IsObj($oButtonElements) Then
        For $i = 0 To $oButtonElements.Length - 1
            Local $oButtonElement = $oButtonElements.GetElement($i)
            Local $oButton = ObjCreateInterface($oButtonElement, $sIID_IUIAutomationElement, $dtag_IUIAutomationElement)

            ; Output properties of the button element
            Local $sName = ""
            $oButton.GetCurrentPropertyValue($UIA_NamePropertyId, $sName)

            ConsoleWrite("Button " & $i & ": Name=" & $sName & @CRLF)

            ; If the button has no name, interact with it
            If $sName = "" Then
                ConsoleWrite("Interacting with unnamed button" & @CRLF)
                _UIA_ClickElement($oButton)
                ExitLoop
            EndIf
        Next
    Else
        ConsoleWrite("No Button elements found in the toolbar." & @CRLF)
    EndIf





Edited June 18, 2024 by myu8171
update
