Dark Menubar - Concept

WildByDesign · Thursday at 11:38 PM

I wanted to create a dark mode menubar without requiring ModernMenuRaw UDF which uses Ownerdrawn menubar. The problem with Ownerdrawn menubar is that it always leaves a single pixel white line across the entire bottom of the menubar which is part of the non-client area and therefore no perfect method for permanently removing it.

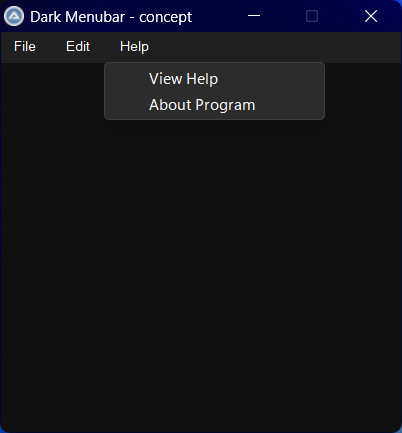

Screenshot:


Code:

#NoTrayIcon
#include <GuiMenu.au3>
#include <GUIConstantsEx.au3>
#include <MsgBoxConstants.au3>
#include <StaticConstants.au3>
#include <Array.au3>

#include "_WinAPI_DPI.au3"
#include "GuiFlatButton_menu.au3"

Opt("GUIOnEventMode", 1)

Global $iDPI1, $iDPI2, $hGUI
Global $aWinPos, $aClientSize, $iCaptionHeight
Global $iMenubarBk = 0x202020
Global $iMenubarHov = 0x404040
Global $iMenubarSel = 0x404040
Global $iPadding = 20
Global $hFileMenu, $hEditMenu, $hHelpMenu, $iMenuHeight

Global $iDPI = _WinAPI_SetDPIAwareness(), $iDPI_def = 96
If $iDPI = 0 Then Exit MsgBox($MB_ICONERROR, "ERROR", "Unable to set DPI awareness!!!", 10)
$iDPI1 = $iDPI / $iDPI_def
$iDPI2 = $iDPI_def / $iDPI

;GuiFlatButton_SetDefaultColors(0x000000, 0xFFFFFF, 0x000000)
    ;set default colors of future buttons
    Local $aColorsEx = _
        [$iMenubarBk, 0xFFFFFF, $iMenubarBk, _  ; normal    : Background, Text, Border
        $iMenubarBk, 0xFFFFFF, $iMenubarBk, _   ; focus     : Background, Text, Border
        $iMenubarHov, 0xFFFFFF, $iMenubarHov, _ ; hover     : Background, Text, Border
        $iMenubarSel, 0xFFFFFF, $iMenubarSel]       ; selected  : Background, Text, Border
    GuiFlatButton_SetDefaultColorsEx($aColorsEx)

;DllCall("User32.dll", "bool", "SetProcessDpiAwarenessContext" , "HWND", "DPI_AWARENESS_CONTEXT" -4)

_GUI_Start()
Func _GUI_Start()
    $hFileMenu = _GUICtrlMenu_CreatePopup()
    _GUICtrlMenu_InsertMenuItem($hFileMenu, 0, "Exit", 1)

    $hEditMenu = _GUICtrlMenu_CreatePopup()
    _GUICtrlMenu_InsertMenuItem($hEditMenu, 0, "Undo", 1)
    _GUICtrlMenu_InsertMenuItem($hEditMenu, 1, "Copy", 2)
    _GUICtrlMenu_InsertMenuItem($hEditMenu, 2, "Paste", 3)

    $hHelpMenu = _GUICtrlMenu_CreatePopup()
    _GUICtrlMenu_InsertMenuItem($hHelpMenu, 0, "View Help", 1)
    _GUICtrlMenu_InsertMenuItem($hHelpMenu, 1, "About Program", 2)

    $hGUI = GUICreate("Dark Menubar - concept")
    GUISetBkColor(0x101010)
    ;GuiDarkmodeApply($hGUI)
    DarkMode($hGUI, True)
    GUISetFont(10, $FW_NORMAL, -1, "Segoe UI")
    GUISetOnEvent($GUI_EVENT_CLOSE, "SpecialEvents")
    $aWinPos = WinGetPos($hGUI)
    $aClientSize = WinGetClientSize($hGUI)

    $idFileMenu = GuiFlatButton_Create("File", -2, -2, -1, -1, $SS_CENTER)
    GUICtrlSetOnEvent(-1, "idFileMenu")
    ; get initial position
    $aPos = ControlGetPos($hGUI, "", $idFileMenu)
    GuiFlatButton_SetPos($idFileMenu, $aPos[0], $aPos[1], $aPos[2] + $iPadding, $aPos[3])
    ; get position after padding
    $aPos = ControlGetPos($hGUI, "", $idFileMenu)

    $iMenuHeight = $aPos[3] - 2

    $idMenuBar = GUICtrlCreateLabel(" ", 0, 0, $aClientSize[1], $aPos[3] - 2, $WS_CLIPSIBLINGS)
    GUICtrlSetBkColor(-1, $iMenubarBk)

    $idEditMenu = GuiFlatButton_Create("Edit", $aPos[0] + $aPos[2], -2, -1, -1, $SS_CENTER)
    GUICtrlSetOnEvent(-1, "idEditMenu")
    ; get initial position
    $aPos = ControlGetPos($hGUI, "", $idEditMenu)
    GuiFlatButton_SetPos($idEditMenu, $aPos[0], $aPos[1], $aPos[2] + $iPadding, $aPos[3])
    ; get position after padding
    $aPos = ControlGetPos($hGUI, "", $idEditMenu)

    $idHelpMenu = GuiFlatButton_Create("Help", $aPos[0] + $aPos[2], -2, -1, -1, $SS_CENTER)
    GUICtrlSetOnEvent(-1, "idHelpMenu")
    ; get initial position
    $aPos = ControlGetPos($hGUI, "", $idHelpMenu)
    GuiFlatButton_SetPos($idHelpMenu, $aPos[0], $aPos[1], $aPos[2] + $iPadding, $aPos[3])
    ; get position after padding
    $aPos = ControlGetPos($hGUI, "", $idHelpMenu)

    $aCtrlPos = ControlGetPos($hGUI, "", $idFileMenu)
    ;GUISetState(@SW_SHOW)

    $iCaptionHeight = _TitleBarSize($hGUI)

    ConsoleWrite("titlebar height: " & $iCaptionHeight & @CRLF)

    GUISetState(@SW_SHOW)

    ; Just idle around
    While 1
        Sleep(1000)
    WEnd
EndFunc

Func idFileMenu()
    ; need to redo sizes here in case window moved
    $aWinPos = WinGetPos($hGUI)
    $MenuResult = _GUICtrlMenu_TrackPopupMenu($hFileMenu, $hGUI, $aWinPos[0] + 2, $aWinPos[1] + $iCaptionHeight + $iMenuHeight, 1, 1, 2)
    Switch $MenuResult
        Case 0
            ConsoleWrite("menu has been clicked away" & @CRLF)
        Case 1
            Exit
    EndSwitch
EndFunc

Func idEditMenu()
    ; need to redo sizes here in case window moved
    $aWinPos = WinGetPos($hGUI)
    $MenuResult = _GUICtrlMenu_TrackPopupMenu($hEditMenu, $hGUI, $aWinPos[0] + 2 + 52, $aWinPos[1] + $iCaptionHeight + $iMenuHeight, 1, 1, 2)
    Switch $MenuResult
        Case 0
            ConsoleWrite("menu has been clicked away" & @CRLF)
        Case 1
            ConsoleWrite("You clicked on Undo" & @CRLF)
        Case 2
            ConsoleWrite("You clicked on Copy" & @CRLF)
        Case 3
            ConsoleWrite("You clicked on Paste" & @CRLF)
    EndSwitch
EndFunc

Func idHelpMenu()
    ; need to redo sizes here in case window moved
    $aWinPos = WinGetPos($hGUI)
    $MenuResult = _GUICtrlMenu_TrackPopupMenu($hHelpMenu, $hGUI, $aWinPos[0] + 2 + 52 + 52, $aWinPos[1] + $iCaptionHeight + $iMenuHeight, 1, 1, 2)
    Switch $MenuResult
        Case 0
            ConsoleWrite("menu has been clicked away" & @CRLF)
        Case 1
            ConsoleWrite("You clicked on View Help" & @CRLF)
        Case 2
            ConsoleWrite("You clicked on About Program" & @CRLF)
            MsgBox(0, "About Program", "Cool Program Name" & @CRLF & @CRLF & "Version: 1.0" & @CRLF & "Created by: WildByDesign")
    EndSwitch
EndFunc

Func SpecialEvents()
    Select
        Case @GUI_CtrlId = $GUI_EVENT_CLOSE
            Exit
    EndSelect
EndFunc

Func _TitleBarSize($hWnd)
        Static $iFrame = _WinAPI_GetSystemMetrics( 32)
        Static $iBorder = _WinAPI_GetSystemMetrics( 5)
        $tWinRect = _WinAPI_GetWindowRect( $hWnd)
        $tClientRect = _WinAPI_GetClientRect( $hWnd)
        $iWinHeight = DllStructGetData( $tWinRect, "Bottom") - DllStructGetData( $tWinRect, "Top")
        $iClientHeight = DllStructGetData( $tClientRect, "Bottom") - DllStructGetData( $tClientRect, "Top")
        $iTitleBarSize = ($iWinHeight - $iClientHeight - $iFrame - $iBorder) * $iDPI1
        Return $iTitleBarSize
EndFunc

;--------------------------------------------------------------------------------------------------------------------------------
; https://www.autoitscript.com/forum/topic/211475-darkmode-udf-for-autoits-win32guis/#comment-1530103
;--------------------------------------------------------------------------------------------------------------------------------
Func DarkMode($hGUI, $bDarkMode = True)                               ; DarkMode

    Local Enum $DWMWA_USE_IMMERSIVE_DARK_MODE = (@OSBuild <= 18985) ? 19 : 20
    ;ConsoleWrite("$DWMWA_USE_IMMERSIVE_DARK_MODE=" & $DWMWA_USE_IMMERSIVE_DARK_MODE & @CRLF)
    ;       DWMWA_USE_IMMERSIVE_DARK_MODE ; https://learn.microsoft.com/en-us/windows/win32/api/dwmapi/ne-dwmapi-dwmwindowattribute
    ;       Use with DwmSetWindowAttribute. Allows the window frame for this window to be drawn in dark mode colors when the dark mode system setting is enabled.
    ;       For compatibility reasons, all windows default to light mode regardless of the system setting.
    ;       The pvAttribute parameter points to a value of type BOOL. TRUE to honor dark mode for the window, FALSE to always use light mode.
    ;       This value is supported starting with Windows 11 Build 22000.

    Local $iRet = _WinAPI_DwmSetWindowAttribute_unr($hGUI, $DWMWA_USE_IMMERSIVE_DARK_MODE, $bDarkMode)
    If Not $iRet Then Return SetError(1, 0, -1)

    ;_SetCtrlColorMode($Button_OK, $bDarkMode)
    ;_SetCtrlColorMode($Button_copy, $bDarkMode)
    _SetCtrlColorMode($hGUI, $bDarkMode)
    ;_WinAPI_SetWindowTheme_unr(GUICtrlGetHandle($ChbxDrkMode), 0, 0) ; this control needs the theme

EndFunc   ;==>DarkMode
;--------------------------------------------------------------------------------------------------------------------------------
Func _SetCtrlColorMode($hWnd, $bDarkMode = True, $sName = Default)    ; 'Explorer', 'CFD', 'DarkMode_ItemsView', etc.
    If $sName = Default Then $sName = $bDarkMode ? 'DarkMode_Explorer' : 'Explorer'
    $bDarkMode = Not Not $bDarkMode ; https://www.vbforums.com/showthread.php?900444-Windows-10-Dark-Mode-amp-VB6-apps
    If Not IsHWnd($hWnd) Then $hWnd = GUICtrlGetHandle($hWnd)
    Local Enum $eDefault, $eAllowDark, $eForceDark, $eForceLight, $eMax ; enum PreferredAppMode
    DllCall('uxtheme.dll', 'bool', 133, 'hwnd', $hWnd, 'bool', $bDarkMode) ; fnAllowDarkModeForWindow = 133
    DllCall('uxtheme.dll', 'int', 135, 'int', ($bDarkMode ? $eForceDark : $eForceLight)) ; fnAllowDarkModeForApp = 135
    _WinAPI_SetWindowTheme_unr($hWnd, $sName) ; https://www.autoitscript.com/forum/index.php?showtopic=211475&view=findpost&p=1530103
    DllCall('uxtheme.dll', 'none', 104) ; fnRefreshImmersiveColorPolicyState = 104  ; not needed ?
    _SendMessage($hWnd, $WM_THEMECHANGED, 0, 0) ; not needed ?
EndFunc   ;==>_SetCtrlColorMode
;--------------------------------------------------------------------------------------------------------------------------------
Func _WinAPI_SetWindowTheme_unr($hWnd, $sName = Null, $sList = Null)  ; #include <WinAPITheme.au3> ; unthoughtful unrestricting mod.
    ;Causes a window to use a different set of visual style information than its class normally uses
    Local $sResult = DllCall('UxTheme.dll', 'long', 'SetWindowTheme', 'hwnd', $hWnd, 'wstr', $sName, 'wstr', $sList)
    If @error Then Return SetError(@error, @extended, 0)
    If $sResult[0] Then Return SetError(10, $sResult[0], 0)
    Return 1
EndFunc   ;==>_WinAPI_SetWindowTheme_unr
;--------------------------------------------------------------------------------------------------------------------------------
Func _WinAPI_DwmSetWindowAttribute_unr($hWnd, $iAttribute, $iData)    ; #include <WinAPIGdi.au3> ; unthoughtful unrestricting mod.
    ;Sets the value of the specified attributes for non-client rendering to apply to the window
    Local $aCall = DllCall('dwmapi.dll', 'long', 'DwmSetWindowAttribute', 'hwnd', $hWnd, 'dword', $iAttribute, _
            'dword*', $iData, 'dword', 4)
    If @error Then Return SetError(@error, @extended, 0)
    If $aCall[0] Then Return SetError(10, $aCall[0], 0)
    Return 1
EndFunc   ;==>_WinAPI_DwmSetWindowAttribute_unr
;--------------------------------------------------------------------------------------------------------------------------------

UDF's Required:

_WinAPI_DPI.au3 GuiFlatButton_menu.au3

If anybody has any interest in this and wants to collaborate, I would love that.

One thing that is lacking is the ability to easily move from menu to menu when you have one already open. Eg. You have a menu open and hover over the other menus. In most programs, it would automatically open those. I am sure that it is possible to do this but it is beyond my skill level.

WildByDesign · 2025-08-11T14:39:56Z

I ended up using this same technique of using _GUICtrlMenu_TrackPopupMenu to control the exact placement of a context/popup menu for a statusbar item recently as well with excellent results.

Link: https://github.com/WildByDesign/ImmersiveUX/blob/main/ImmersiveUX.au3#L865

Measurement was easier for that though because it was the bottom of the GUI and so titlebar did not need to be calculated in this case.
