Replace MsgBox within a Function with a User Form

mr-es335 · Thursday at 07:47 PM

Good day,

First off, I am hoping that I am asking the question correctly?

I have been attempting - rather unsuccessfully I am afraid, to implement form buttons instead of MsgBox buttons.

The OnOK() function reads the data within an .ini - with content being provided along with the sample script.

Within the OnOK() function is a MsgBox. I want to replace this MsgBox with the _Main GUI buttons.

Here is the sample script:

Spoiler

; -----------------------------------------------
#RequireAdmin
; -----------------------------------------------
#include <Constants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <MsgBoxConstants.au3>
#include <WindowsConstants.au3>
; -----------------------------------------------
Opt("GUIOnEventMode", 1)
Opt("MustDeclareVars", 1)
; -----------------------------------------------
Global $idFormLabel1, $idFormLabel2, $ArrayValue
Global $iWidth = 735, $iHeight = 48, $ixpos = -1, $iypos = -1, $iOpt = 1, $sFontName = "Corbel Bold", $iFontSize = 14, $iFontWt = 800
; -----------------------------------------------
_Main()
; -----------------------------------------------
Func _Main()
    GUICreate(" ", 130, 20, 730, 120)
    GUISetFont($iFontSize, $iFontWt, $GUI_FONTNORMAL, $sFontName)
    GUISetOnEvent($GUI_EVENT_CLOSE, "_CloseForm")
    ; ---------------------
    $idFormLabel1 = GUICtrlCreateButton("OK", 0, 0, 60, 20)
    GUICtrlSetOnEvent($idFormLabel1, "_ColRow")
    ; ---------------------
    $idFormLabel2 = GUICtrlCreateButton("Cancel", 70, 0, 60, 20)
    GUICtrlSetOnEvent($idFormLabel2, "_CloseForm")
    ; -----------------------------------------------
    GUISetState()
    ; -----------------------------------------------
    While 1
        Sleep(1000)
    WEnd
EndFunc   ;==>_Main
; -----------------------------------------------
Func _ColRow()
    Switch @GUI_CtrlId
        Case $idFormLabel1
            OnOK()
    EndSwitch
EndFunc   ;==>_ColRow
; -----------------------------------------------
Func OnOK()
    Local $sFilePath = "E:\Desktop\Working\Tests\ReadIni\SceneData.ini"
    Local $aArray = IniReadSection($sFilePath, "Scene Data")
    If Not @error Then
        For $i = 1 To $aArray[0][0]
            ; ⚠ Implement the _Main GUI buttons here - instead of employing MsbBox?!? ⚠
            If MsgBox($MB_OKCANCEL, "", $aArray[$i][1] & "...will be copied to the Clipboard....continue...") = $IDCANCEL Then ExitLoop
            $ArrayValue = $aArray[$i][1]
            ClipPut($ArrayValue)
        Next
    EndIf
EndFunc   ;==>OnOK
; -----------------------------------------------
Func _CloseForm()
    If @GUI_CtrlId = $idFormLabel2 Then
    Else
    EndIf
    Exit
EndFunc   ;==>_CloseForm
; -----------------------------------------------

Here is the .ini file data:

Spoiler

[Scene Data]
Line1=Start
Line2=Fade-In
Line3=Emcee
Line4=NStrung Guitar
Line5=SStrung Guitar
Line6=Electric Guitar
Line7=Backing Track
Line8=Fade-Out 1000
Line9=Fade-Out 1500
Line10=Fade-Out 3000
Line11=Finish
Line12=====Presets====
Line13=Preset 001
Line14=Preset 002
Line15=Preset 003
Line16=Preset 004
Line17=Preset 005
Line18=Preset 006
Line19=Preset 007
Line20=Preset 008
Line21=Preset 009
Line21=Preset 010

As always...any assistance in this matter would be greatly appreciated!

Thank you all for your time!

Edited yesterday at 01:45 PM by mr-es335
Updates to initial script!

mr-es335 · Thursday at 10:39 PM

Okay,

So I do have this:

Func OnOK()
    Local $sFilePath = "E:\Desktop\Working\Tests\ReadIni\SceneData.ini"
    Local $aArray = IniReadSection($sFilePath, "Scene Data")
    If Not @error Then
        For $i = 1 To $aArray[0][0]
;~          If MsgBox($MB_OKCANCEL, "", $aArray[$i][1] & "...will be copied to the Clipboard....continue...") = $IDCANCEL Then ExitLoop
            If $idForm1Label1 = 3 Then
                $ArrayValue = $aArray[$i][1]
                ClipPut($ArrayValue)
            EndIf
        Next
    EndIf
EndFunc   ;==>OnOK

Just not working as of yet?!?

Dan_555 · Friday at 12:41 AM

Is this what you want to have ?

(p.s. i have removed the OnEventMode functionality as i currently (its almost 3am) do not want to figure out how to assign all these buttons with the on event mode)

#include <Constants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <MsgBoxConstants.au3>
#include <WindowsConstants.au3>
; -----------------------------------------------


; -----------------------------------------------
Global $idFormLabel1, $idFormLabel2, $ArrayValue
Global $iWidth = 735, $iHeight = 48, $ixpos = -1, $iypos = -1, $iOpt = 1, $sFontName = "Corbel Bold", $iFontSize = 14, $iFontWt = 800
Global $btn[100][2]
; -----------------------------------------------
_Main()
; -----------------------------------------------
Func _Main()
    Local $nmsg
    $form1=GUICreate(" ", 640, 420, -1, -1)
    GUISetFont($iFontSize, $iFontWt, $GUI_FONTNORMAL, $sFontName)

    OnOK()
    ; -----------------------------------------------
    GUISetState()
    ; -----------------------------------------------
    While 1
        $nmsg = GUIGetMsg()
        Switch $nmsg
            Case $GUI_EVENT_CLOSE
                GUIDelete($Form1)
                Exit
            Case Else
                If $nmsg > 0 Then
                    For $i = 0 To 99
                        if $nmsg=$btn[$i][0] Then
                            ClipPut($btn[$i][1])
                        EndIf
                    Next
                EndIf
        EndSwitch
    WEnd
EndFunc   ;==>_Main
; -----------------------------------------------

; -----------------------------------------------
Func OnOK()
    local $btnw=140, $btncolumns=4
    Local $x = 0, $y = 0, $z = 0
    Local $sFilePath = "r:\SceneData.ini"
    Local $aArray = IniReadSection($sFilePath, "Scene Data")
    If Not @error Then
        For $i = 1 To $aArray[0][0]
            ; ⚠ Implement the _Main GUI buttons here?!? ⚠
            $ArrayValue = $aArray[$i][1]
            $btn[$z][0] = GUICtrlCreateButton($ArrayValue, 5 + ($x * $btnw), 5 + ($y * 30), $btnw-1, 25)
            $btn[$z][1] = $ArrayValue
            GUICtrlSetTip (-1,$ArrayValue)
            $x = $x + 1
            $z = $z + 1
            If $x = $btncolumns Then
                $x = 0
                $y = $y + 1
            EndIf

            ;ClipPut($ArrayValue)
        Next
    EndIf
EndFunc   ;==>OnOK

mr-es335 · Friday at 01:58 PM

Dan_555,

You stated, "Is this what you want to have ?"

...and my neophy-tish response is..."Not sure!" The example provided is sadly, 1) "Way above my pay grade", and 2) appears to be way outside of my current OnEvent scheme.

I do hope that my responses make sense?

Edited Friday at 02:38 PM by mr-es335

mr-es335 · Friday at 05:15 PM

Another attempt:

Spoiler

#include "ExtMsgBox.au3"
#include <Constants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>

Global $iWidth = 735, $iHeight = 48, $ixpos = -1, $iypos = -1, $iOpt = 1, $sFontName = "Corbel Bold", $iFontSize = 16, $iFontWt = 800
Global $aArray, $i

Gui()

Func Gui()
    Local $iFontSize = 14
    $hTest_GUI = GUICreate("ExitMe", 155, 40, 725, 86)
    GUISetFont($iFontSize, $iFontWt, $GUI_FONTNORMAL, $sFontName)
    $hButton1 = GUICtrlCreateButton("ReadIni", 10, 10, 65, 20)
    $hButton2 = GUICtrlCreateButton("Exit", 85, 10, 65, 20)
    GUISetState(@SW_SHOW, $hTest_GUI)
    While 1
        Switch GUIGetMsg()
            Case $hButton1
                $nTest = _ExtMsgBox(32, "~Continue|Cancel", "ReadIniData", "...will be copied to the Clipboard....continue...", 0, $hTest_GUI, 0, False)
;~              ConsoleWrite("$nTest: " & $nTest & @CRLF)
                If $nTest = 1 Then
                    Local $sFilePath = "E:\Desktop\Working\Tests\ReadIni\SceneData.ini"
                    Local $aArray = IniReadSection($sFilePath, "Scene Data")
;~                  If Not @error Then
                        For $i = 1 To $aArray[0][0]
                            ; This line is to be replaced!!!
;~                          If MsgBox($MB_OKCANCEL, "", $aArray[$i][1] & "...will be copied to the Clipboard....continue...") = $IDCANCEL Then ExitLoop
                            ClipPut($aArray[$i][1])
                        Next
;~                  EndIf
                    If $nTest = 2 Then
                        Gui()
                    EndIf
                EndIf
                Case $GUI_EVENT_CLOSE, $hButton2
                Exit
        EndSwitch
    WEnd
EndFunc   ;==>Gui

mr-es335 · Friday at 05:28 PM

...and another...

Spoiler

; -----------------------------------------------
#RequireAdmin
; -----------------------------------------------
#include <Constants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <MsgBoxConstants.au3>
#include <WindowsConstants.au3>
; -----------------------------------------------
Opt("GUIOnEventMode", 1)
Opt("MustDeclareVars", 1)
; -----------------------------------------------
Global $idFormLabel1, $idFormLabel2, $ArrayValue, $iReturnValue
Global $iWidth = 735, $iHeight = 48, $ixpos = -1, $iypos = -1, $iOpt = 1, $sFontName = "Corbel Bold", $iFontSize = 14, $iFontWt = 800
; -----------------------------------------------
_Main()
; -----------------------------------------------
Func _Main()
    GUICreate(" ", 130, 20, 730, 120)
    GUISetFont($iFontSize, $iFontWt, $GUI_FONTNORMAL, $sFontName)
    GUISetOnEvent($GUI_EVENT_CLOSE, "_CloseForm")
    ; ---------------------
    $idFormLabel1 = GUICtrlCreateButton("OK", 0, 0, 60, 20)
    GUICtrlSetOnEvent($idFormLabel1, "_ColRow")
    ; ---------------------
    $idFormLabel2 = GUICtrlCreateButton("Cancel", 70, 0, 60, 20)
    GUICtrlSetOnEvent($idFormLabel2, "_ColRow")
    ; -----------------------------------------------
    GUISetState()
    ; -----------------------------------------------
    While 1
        Sleep(1000)
    WEnd
EndFunc   ;==>_Main
; -----------------------------------------------
Func _ColRow()
    Switch @GUI_CtrlId
        Case $idFormLabel1
;~          MsgBox($MB_OK, "", "$idFormLabel1", 1)
            OnOK()
        Case $idFormLabel2
;~          MsgBox($MB_OK, "", "$idFormLabel2", 1)
            Exit
    EndSwitch
EndFunc   ;==>_ColRow
; -----------------------------------------------
Func OnOK()
    Local $sFilePath = "E:\Desktop\Working\Tests\ReadIni\SceneData.ini"
    Local $aArray = IniReadSection($sFilePath, "Scene Data")
    If Not @error Then
        For $i = 1 To $aArray[0][0]
            $iReturnValue = MsgBox($MB_OKCANCEL, "", $aArray[$i][1] & "...will be copied to the Clipboard....continue...")
            If $iReturnValue = $IDOK Then
                $ArrayValue = $aArray[$i][1]
                ClipPut($ArrayValue)
            EndIf
            If $iReturnValue = $IDCANCEL Then
                ExitLoop
            EndIf
        Next
    EndIf
EndFunc   ;==>OnOK
; -----------------------------------------------
Func _CloseForm()
    Switch @GUI_WinHandle
        Case $idFormLabel2
            Exit
    EndSwitch
EndFunc   ;==>_CloseForm
; -----------------------------------------------

...trying to understand the MsgBox return values...

mr-es335 · Friday at 06:09 PM

...and another...implementing _ExtMsgBox...

Spoiler

; -----------------------------------------------
#RequireAdmin
; -----------------------------------------------
#include <Constants.au3>
#include "ExtMsgBox.au3"
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <MsgBoxConstants.au3>
#include <WindowsConstants.au3>
; -----------------------------------------------
Opt("GUIOnEventMode", 1)
Opt("MustDeclareVars", 1)
; -----------------------------------------------
Global $idFormLabel1, $idFormLabel2, $ArrayValue, $iReturnValue
Global $iWidth = 735, $iHeight = 48, $ixpos = -1, $iypos = -1, $iOpt = 1, $sFontName = "Corbel Bold", $iFontSize = 14, $iFontWt = 800
; -----------------------------------------------
_Main()
; -----------------------------------------------
Func _Main()
    GUICreate(" ", 130, 20, 730, 120)
    GUISetFont($iFontSize, $iFontWt, $GUI_FONTNORMAL, $sFontName)
    GUISetOnEvent($GUI_EVENT_CLOSE, "_CloseForm")
    ; ---------------------
    $idFormLabel1 = GUICtrlCreateButton("OK", 0, 0, 60, 20)
    GUICtrlSetOnEvent($idFormLabel1, "_ColRow")
    ; ---------------------
    $idFormLabel2 = GUICtrlCreateButton("Cancel", 70, 0, 60, 20)
    GUICtrlSetOnEvent($idFormLabel2, "_ColRow")
    ; -----------------------------------------------
    GUISetState()
    ; -----------------------------------------------
    While 1
        Sleep(1000)
    WEnd
EndFunc   ;==>_Main
; -----------------------------------------------
Func _ColRow()
    Switch @GUI_CtrlId
        Case $idFormLabel1
            OnOK()
        Case $idFormLabel2
            Exit
    EndSwitch
EndFunc   ;==>_ColRow
; -----------------------------------------------
Func OnOK()
    Local $sFilePath = "E:\Desktop\Working\Tests\ReadIni\SceneData.ini"
    Local $aArray = IniReadSection($sFilePath, "Scene Data")
    If Not @error Then
        For $i = 1 To $aArray[0][0]
            $iReturnValue = _ExtMsgBox(32, "~Continue|Cancel", "ReadIniData", "...will be copied to the Clipboard....continue...", 0, 0, False)
;~          $iReturnValue = MsgBox($MB_OKCANCEL, "ReadIniData", $aArray[$i][1] & "...will be copied to the Clipboard....continue...")
            If $iReturnValue = 1 Then
;~          If $iReturnValue = $IDOK Then
                MsgBox($MB_OK, "", "The OK Button was selected...", 1)
                $ArrayValue = $aArray[$i][1]
                ClipPut($ArrayValue)
            EndIf
            If $iReturnValue = 2 Then
;~          If $iReturnValue = $IDCANCEL Then
                MsgBox($MB_OK, "", "The Cancel Button was selected...", 1)
                ExitLoop
            EndIf
        Next
        MsgBox($MB_OK, "", "All Done!", 1)
    EndIf
EndFunc   ;==>OnOK
; -----------------------------------------------
Func _CloseForm()
    Switch @GUI_WinHandle
        Case $idFormLabel2
            Exit
    EndSwitch
EndFunc   ;==>_CloseForm
; -----------------------------------------------

...getting closer...

Edited Friday at 06:09 PM by mr-es335

mr-es335 · Friday at 07:12 PM

How do I get this function to step though the array?

; -----------------------------------------------
Func OnOK()
    Local $sFilePath = "E:\Desktop\Working\Tests\ReadIni\SceneData.ini"
    Local $aArray = IniReadSection($sFilePath, "Scene Data")
    If Not @error Then
        For $i = 1 To $aArray[0][0]
            If $idForm2Label1 = 5 Then
                $ArrayValue = $aArray[$i][1]
                ClipPut($ArrayValue)
            EndIf
        Next
    EndIf
EndFunc   ;==>OnOK
; -----------------------------------------------

mr-es335 · Friday at 07:24 PM

Came across this....[Click_Me]

Local $iMax

Local $data = "E:\Desktop\Working\Tests\ReadIni\SceneData.ini"
Local $arr = IniReadSection($data, "Scene Data")

If IsArray($arr) Then
    $iMax = UBound($arr)

    ConsoleWrite("Items in the array: " & $iMax & @LF)

    For $i = 1 To $arr[0][0]
        $ArrayValue = $arr[$i][1]
        ConsoleWrite($ArrayValue & @LF)
    Next
EndIf

...just need to fig'ur out how to get this working in my script?!?

Edited Friday at 07:26 PM by mr-es335

Dan_555 · 2025-10-18T11:15:29Z

Maybe you should tell us what you want to achieve with this program ?!

In your example, you are having a lot of message boxes popping up. After each message box, you have 1 item in the clipboard.

So basically, you start the the message boxes after clicking on "OK". Then you're having a lot of boxes popping up, after each you have to use ctrl v to paste the content into an application (i assume). That is a lot of clicking on the buttons.

That is how your script in the 1st post works.

Now tell me, how should your script work after you have done your changes. describe it.

Edited yesterday at 11:16 AM by Dan_555

mr-es335 · 2025-10-18T14:03:05Z

Dan_555,

You stated: "Maybe you should tell us what you want to achieve with this program ?!"

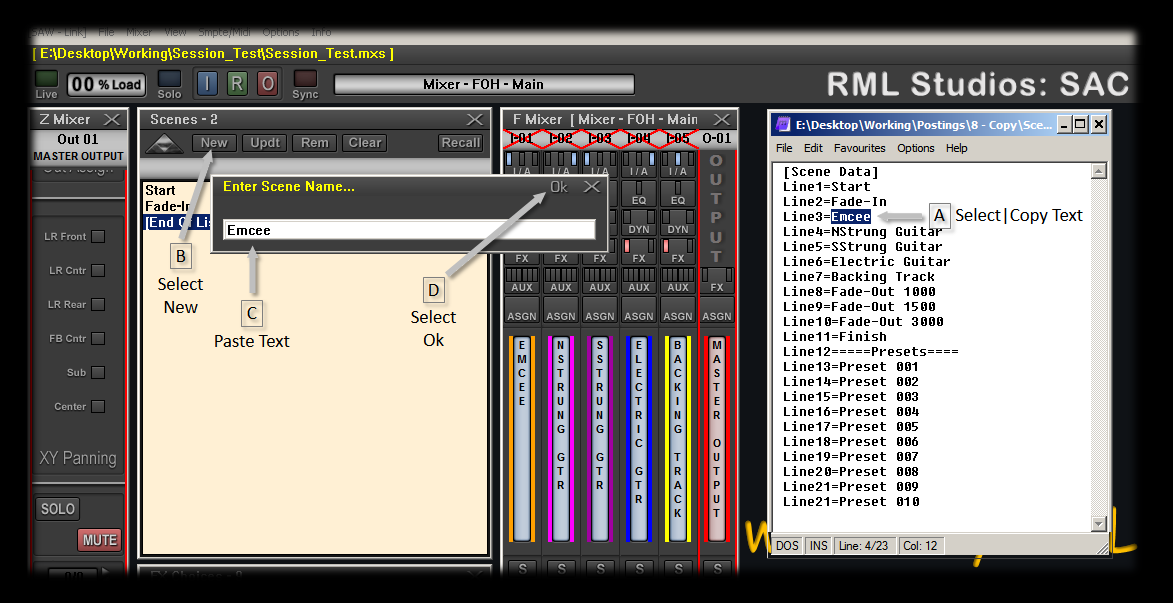

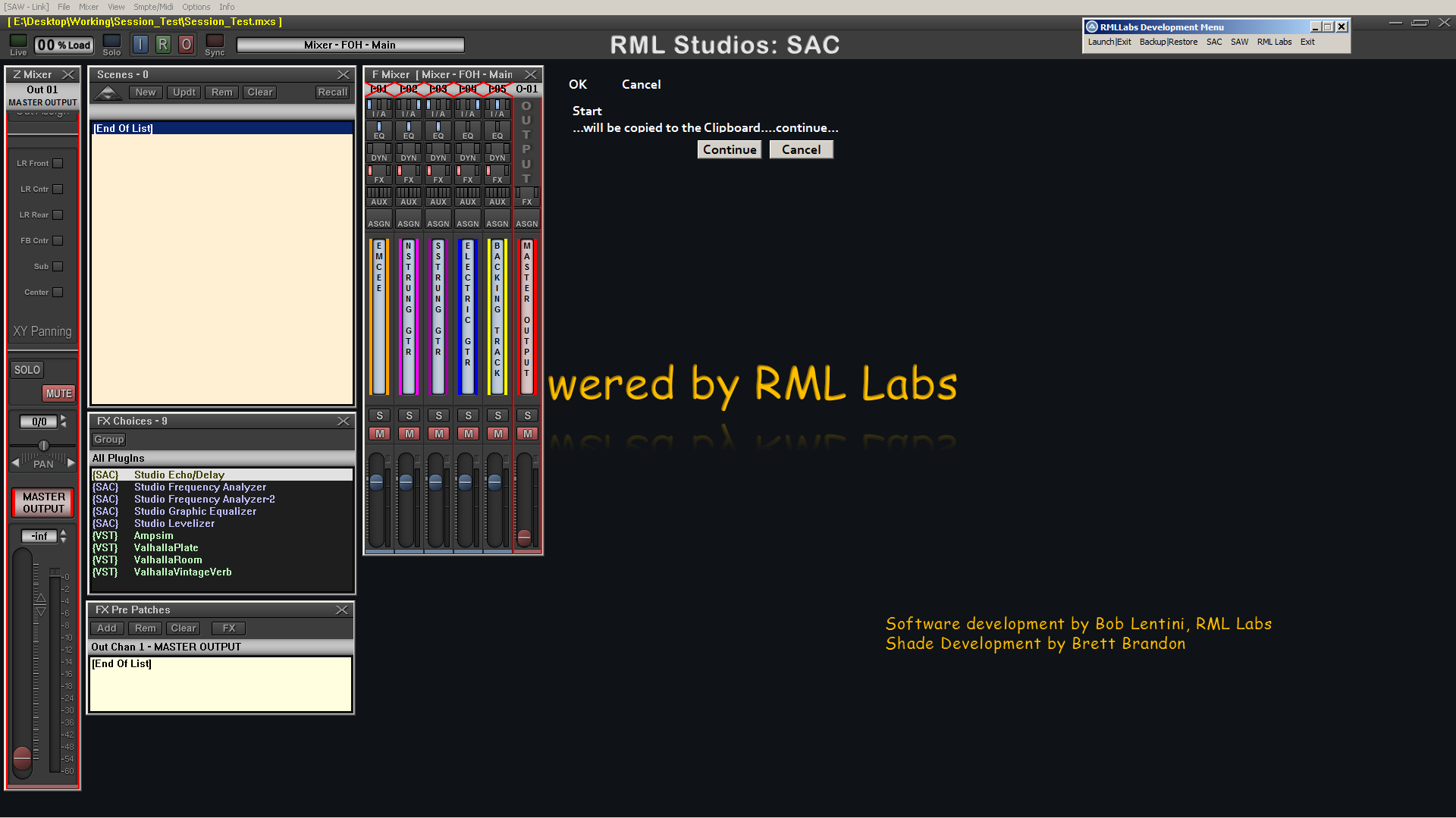

1) All "selectable" items are stored within a menu
2) This particular item is called "ReadIni"
3) Upon selection of "ReadIni", the ReadIni script is launched
4a) The script first performs an "IniReadSection" from a pre-exiting data file, of which contains a list of some 22 items. For example:

[Scene Data]
Line1=Start
Line2=Fade-In
Line3=Emcee
Line4=NStrung Guitar
Line5=SStrung Guitar...and so on...

4b) The second, this "data" is stored in an array
4c) Third, the first item is "read" and then copied to the Clipboard [via ClipPut($aArray)]
4d) Fourth, the script is "paused" [via MsgBox($MB_OKCANCEL]
4e) Fifth, the previously copied data is then pasted into a relevant text dialog box
4f) Sixth, 4c-4e is repeated until all 22 items have been summarily entered
4g) Seventh, the script is then exited

I was deploying the above via a "manual" text file, "manually" copying-an-pasting the text as noted in 4e) above.
I thought it would more advantageous to develop a script to "manage" such efforts.
All was working well, however, the implementation of MsgBox did not "fit" with my current scheme.
The implementation _ExtMsgBox was "better", but still NOT what I had in mind.
This led to my current posting which, as stated, "Within the OnOK() function is a MsgBox. I want to replace this MsgBox with the _Main GUI buttons."
• It now appears, that what I was asking for, was a lot more complicated that I had ever imagined!

If Not @error Then
    For $i = 1 To $aArray[0][0]
        ; ? Implement the _Main GUI buttons here - instead of employing MsbBox?!? ?
        If MsgBox($MB_OKCANCEL, "", $aArray[$i][1] & "...will be copied to the Clipboard....continue...") = $IDCANCEL Then ExitLoop ; <<<< I want to replace this with OnEvent events.
        $ArrayValue = $aArray[$i][1]
        ClipPut($ArrayValue)
    Next
EndIf

This is the GUI that is to be implemented:

; -----------------------------------------------
$Form2 = GUICreate("ReadIniFile", 200, 20, 730, 240)
GUISetFont($iFontSize, $iFontWt, $GUI_FONTNORMAL, $sFontName)
GUISetOnEvent($GUI_EVENT_CLOSE, "_CloseForm")
; ---------------------
$idForm2Label1 = GUICtrlCreateButton("Continue", 10, 0, 85, 20)
GUICtrlSetOnEvent($idForm2Label1, "_ColRow")
; ---------------------
$idForm2Label2 = GUICtrlCreateButton("Cancel", 105, 0, 85, 20)
GUICtrlSetOnEvent($idForm2Label2, "_ColRow")
; -----------------------------------------------

As can be "hopefully" observed, this GUI contains a "Continue" and "Cancel" label.
However, it was getting the script to "pause" whilst I was pasting the previously copied data into the relevant text dialog box.
• This "pause" was implemented" via [MsgBox($MB_OKCANCEL]

With the assistance of ioa747, he has come up with a "workable" script which I am presently "dissecting".

What really-and-truly surprises me, is that a) a GUI-less MsgBox" or b) a completely "event driven" MsgBox, has not been previously developed [...at least from what I been able to ascertain thus far.]

I do hope that what I have provided above is explained in a succinct and yet, understandable manner?

Thank you for your time and attention to the above, Dan_555.

Both are very, very much appreciated!

ioa747 · 2025-10-18T14:30:59Z

If I understand your requirements correctly,
here is my approach.

; -----------------------------------------------
;~ #RequireAdmin
; -----------------------------------------------
#include <Constants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <MsgBoxConstants.au3>
#include <WindowsConstants.au3>
; -----------------------------------------------
Opt("GUIOnEventMode", 1)
Opt("MustDeclareVars", 1)
; -----------------------------------------------
Global $hForm, $idFormLabel1, $idFormLabel2, $ArrayValue, $iReturnValue
Global $iWidth = 735, $iHeight = 48, $ixpos = -1, $iypos = -1, $iOpt = 1, $sFontName = "Corbel Bold", $iFontSize = 14, $iFontWt = 800
; -----------------------------------------------
_Main()
; -----------------------------------------------
Func _Main()
    $hForm = GUICreate(" ", 130, 20, 730, 120)
    GUISetFont($iFontSize, $iFontWt, $GUI_FONTNORMAL, $sFontName)
    GUISetOnEvent($GUI_EVENT_CLOSE, "_CloseForm")
    ; ---------------------
    $idFormLabel1 = GUICtrlCreateButton("OK", 0, 0, 60, 20)
    GUICtrlSetOnEvent($idFormLabel1, "_ColRow")
    ; ---------------------
    $idFormLabel2 = GUICtrlCreateButton("Cancel", 70, 0, 60, 20)
    GUICtrlSetOnEvent($idFormLabel2, "_ColRow")
    ; -----------------------------------------------
    GUISetState()
    ; -----------------------------------------------
    While 1
        Sleep(1000)
    WEnd
EndFunc   ;==>_Main
; -----------------------------------------------
Func _ColRow()
    Switch @GUI_CtrlId
        Case $idFormLabel1
            OnOK()
        Case $idFormLabel2
            Exit
    EndSwitch
EndFunc   ;==>_ColRow
; -----------------------------------------------
Func _CloseForm()
    Switch @GUI_WinHandle
        Case $hForm
            Exit
    EndSwitch
EndFunc   ;==>_CloseForm
; -----------------------------------------------
Func OnOK()
    Local $sFilePath = @ScriptDir & "\SceneData.ini" ; "E:\Desktop\Working\Tests\ReadIni\SceneData.ini"
    Local $aArray = IniReadSection($sFilePath, "Scene Data")

    Run("notepad.exe") ; as Paste example
    Local $hNote = WinWaitActive("[CLASS:Notepad]", "", 3)

    Opt("GUIOnEventMode", 0) ; when in $hMsgForm - disable <<<<<<<<<<<<<<<
    Local $hMsgForm = GUICreate("ReadIniFile", 750, 90, -1, -1,  BitOR($WS_POPUP, $WS_CAPTION, $WS_SYSMENU), BitOR($WS_EX_TOOLWINDOW, $WS_EX_TOPMOST))
    GUISetFont($iFontSize, $iFontWt, $GUI_FONTNORMAL, $sFontName)
    Local $idLabel_1 = GUICtrlCreateLabel("", 5, 5, 740, 40)
    Local $idBtnContinue = GUICtrlCreateButton("Continue", 280, 55, 85, 25)
    Local $idBtnCancel = GUICtrlCreateButton("Cancel", 375, 55, 85, 25)
    GUISetState(@SW_SHOW, $hMsgForm)


    Local $nMsg, $idx = 1
    GUICtrlSetData($idLabel_1, $aArray[$idx][1] & @CRLF & "...will be copied to the Clipboard....continue...")
    While 1
        $nMsg = GUIGetMsg()
        Switch $nMsg
            Case $GUI_EVENT_CLOSE, $idBtnCancel
                ExitLoop

            Case $idBtnContinue
                ClipPut($aArray[$idx][1])

                WinActivate($hNote)
                Send("^v")
                Send("{ENTER}")

                $idx += 1
                If $idx > $aArray[0][0] Then ExitLoop ; It means we have reached the end.
                GUICtrlSetData($idLabel_1, $aArray[$idx][1] & @CRLF & "...will be copied to the Clipboard....continue...")
                WinActivate($hMsgForm)
        EndSwitch
    WEnd

    GUIDelete($hMsgForm)
    Opt("GUIOnEventMode", 1) ; when out of $hMsgForm - enable <<<<<<<<<<<<<<<
EndFunc   ;==>OnOK

mr-es335 · 2025-10-18T15:55:05Z

iao747 and Dan_555,

Following is proposed end result of all that has transpired thus far...[Click_Me]

As is hopefully obvious, the sole purpose in employing Forms with labels...

Also, as this script is only intended for personal employment, there is not much need for employing "detailed files" - or explanations...

PS: I have updated the image to include the "Menu"....

Edited 21 hours ago by mr-es335
Add image...

Dan_555 · 2025-10-18T16:34:02Z

When i asked you to explain what you want to do, i have been thinking about something like this:

Quote

"I have several items in the ini file which i want to put in clipboard one after another and i want to paste them one after another into the application."

Which means when one item is pasted, the another item is copied into the clipboard. In this case "CTRL B" would be used to paste and switch.

another possible explanation would be like this:

Quote

"I have several items which i want to put in the clipboard and i want to paste one of them into an application until i decide to switch to the another item"

Which could mean that you are pasting one item several times until you decide to switch to the next item.

All this can be done with a hotkey. Ctrl V pastes the item and "ctrl B" would switch to the next item.

Edited 21 hours ago by Dan_555

mr-es335 · 2025-10-18T16:44:42Z

Dan_555,

You stated, "All this can be done with a hotkey. Ctrl V pastes the item and "ctrl B" would switch to the next item."

Yes, I DO understand the implementation of Hotkeys. However, the application that I employ [Software Audio Console] is literally riddled with exiting Hotkeys, and thusly, only one key was available to me - the {NUMPADSUB} key. - - of which, has already been implemented!

P:S Your suggestions are very appropriate - by-the-way...thanks...

ioa747 · 2025-10-18T17:24:26Z

:think: I don't know if it's appropriate to copy-paste, one by one, because this process didn't appear anywhere,
but practically speaking, since you don't make any selections during the process, it could be done in one go, e.g.

; -----------------------------------------------
;~ #RequireAdmin
; -----------------------------------------------
#include <Constants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <MsgBoxConstants.au3>
#include <WindowsConstants.au3>
; -----------------------------------------------
Opt("GUIOnEventMode", 1)
Opt("MustDeclareVars", 1)
; -----------------------------------------------
Global $hForm, $idFormLabel1, $idFormLabel2, $ArrayValue, $iReturnValue
Global $iWidth = 735, $iHeight = 48, $ixpos = -1, $iypos = -1, $iOpt = 1, $sFontName = "Corbel Bold", $iFontSize = 14, $iFontWt = 800
; -----------------------------------------------
_Main()
; -----------------------------------------------
Func _Main()
    $hForm = GUICreate(" ", 130, 20, 730, 120)
    GUISetFont($iFontSize, $iFontWt, $GUI_FONTNORMAL, $sFontName)
    GUISetOnEvent($GUI_EVENT_CLOSE, "_CloseForm")
    ; ---------------------
    $idFormLabel1 = GUICtrlCreateButton("OK", 0, 0, 60, 20)
    GUICtrlSetOnEvent($idFormLabel1, "_ColRow")
    ; ---------------------
    $idFormLabel2 = GUICtrlCreateButton("Cancel", 70, 0, 60, 20)
    GUICtrlSetOnEvent($idFormLabel2, "_ColRow")
    ; -----------------------------------------------
    GUISetState()
    ; -----------------------------------------------
    While 1
        Sleep(1000)
    WEnd
EndFunc   ;==>_Main
; -----------------------------------------------
Func _ColRow()
    Switch @GUI_CtrlId
        Case $idFormLabel1
;~          MsgBox($MB_OK, "", "$idFormLabel1", 1)
            OnOK()
        Case $idFormLabel2
;~          MsgBox($MB_OK, "", "$idFormLabel2", 1)
            Exit
    EndSwitch
EndFunc   ;==>_ColRow
; -----------------------------------------------
Func OnOK()
    Local $sFilePath = @ScriptDir & "\SceneData.ini" ; "E:\Desktop\Working\Tests\ReadIni\SceneData.ini"
    Local $sData = ""

    If MsgBox($MB_OKCANCEL, "Copy SceneData", "SceneData...will be copied to the Clipboard....continue...") = $IDOK  Then
        Local $aArray = IniReadSection($sFilePath, "Scene Data")
        If Not @error Then
            For $i = 1 To $aArray[0][0]
                $sData &= $aArray[$i][1] & @CRLF
            Next
            $sData = StringReplace($sData, @CRLF, "", -1) ; remove last @CRLF
            ClipPut($sData)
        EndIf

        Run("notepad.exe")
        Local $hNote = WinWaitActive("[CLASS:Notepad]", "", 3)
        WinActivate($hNote)
        Send("^v")
    EndIf

EndFunc   ;==>OnOK
; -----------------------------------------------
Func _CloseForm()
    Switch @GUI_WinHandle
        Case $hForm
            Exit
    EndSwitch
EndFunc   ;==>_CloseForm
; -----------------------------------------------

Edited 20 hours ago by ioa747

mr-es335 · 2025-10-18T18:42:20Z

ioa747,

I need to copy-and-paste each individual item...

Please peruse the following: [Click_Me]

Edited 19 hours ago by mr-es335

ioa747 · 2025-10-18T20:42:49Z

2 hours ago, mr-es335 said:

I need to copy-and-paste each individual item...

thinking...
Since you are not selecting the item from SceneData.ini to copy (which would justify the step-by-step sequence with yes, no, cancel)
you do not need to proceed step by step, but give the confirmation once and then, you can copy and paste each individual item..

it will not wait for another confirmation from you at each step Continue or Cancel.
it will simply inform you at each step
the 'Fade-In' SceneData was copied ...
and here I wanted to emphasize that with the current process Cancel, does not cancel the registration, it simply interrupts it, i.e. what was passed remains

Edited 17 hours ago by ioa747

mr-es335 · 2025-10-18T22:13:01Z

ioa747,

Thanks for the "suggestion|tips"...appreciated...

Prior to implementing an .ini file, I WAS implementing a text file. I determined that the period of time from copy|paste to insertion varied considerably.

Thus, the need for the "pause".

The use of MsgBox was alright, but the dialog simply "got in the way" - as I do employ the script in two separate-and-distinct scenarios.

Edited 14 hours ago by mr-es335

ioa747 · 2025-10-19T01:45:58Z

3 hours ago, mr-es335 said:

I determined that the period of time from copy|paste to insertion varied considerably.

What role does this play, since with each entry you become independent?

Example

; -----------------------------------------------
;~ #RequireAdmin
; -----------------------------------------------
#include <Constants.au3>
#include "ExtMsgBox.au3"
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <MsgBoxConstants.au3>
#include <WindowsConstants.au3>
; -----------------------------------------------
Opt("GUIOnEventMode", 1)
Opt("MustDeclareVars", 1)
; -----------------------------------------------
Global $Form1, $idForm1Label1, $idForm1Label2
Global $ArrayValue, $iReturnValue
Global $iWidth = 735, $iHeight = 80, $ixpos = -1, $iypos = 300, $iOpt = 1, $sFontName = "Corbel Bold", $iFontSize = 14, $iFontWt = 800
; -----------------------------------------------
_Main()
; -----------------------------------------------
Func _Main()
    $Form1 = GUICreate("LaunchReadIniFunction ", 200, 20, 730, 120)
    GUISetFont($iFontSize, $iFontWt, $GUI_FONTNORMAL, $sFontName)
    GUISetOnEvent($GUI_EVENT_CLOSE, "_CloseForm")
    ; ---------------------
    $idForm1Label1 = GUICtrlCreateButton("OK", 10, 0, 85, 20)
    GUICtrlSetOnEvent($idForm1Label1, "_ColRow")
    ; ---------------------
    $idForm1Label2 = GUICtrlCreateButton("Exit", 105, 0, 85, 20)
    GUICtrlSetOnEvent($idForm1Label2, "_ColRow")
    ; -----------------------------------------------
    GUISetState(@SW_SHOW, $Form1)
    ; -----------------------------------------------
    While 1
        Sleep(1000)
    WEnd
EndFunc   ;==>_Main
; -----------------------------------------------
Func _ColRow()
    Switch @GUI_CtrlId
        Case $idForm1Label1
            ReadIniFile()
        Case $idForm1Label2
            Exit
    EndSwitch
EndFunc   ;==>_ColRow
; -----------------------------------------------
Func ReadIniFile()
    Local $sFilePath = @ScriptDir & "\SceneData.ini" ; "E:\Desktop\Working\Tests\ReadIni\SceneData.ini"
    If Not FileExists($sFilePath) Then Return MsgBox(0, "oops", "Where is the SceneData.ini ?")
    Local $sMessage = "...will be copied to the Clipboard....continue..."

    If MsgBox($MB_OKCANCEL, "Copy SceneData", "SceneData...will be copied to the Clipboard....continue...") = $IDOK Then
        Local $aArray = IniReadSection($sFilePath, "Scene Data")
        If Not @error Then

            ; SplashText initialize
            Local $hSplash = SplashTextOn("", "", $iWidth, $iHeight, $ixpos, $iypos, $iOpt, $sFontName, $iFontSize, $iFontWt)
            For $i = 1 To $aArray[0][0]
                ControlSetText($hSplash, "", "Static1", $aArray[$i][1] & @CRLF & $sMessage)
                ClipPut($aArray[$i][1])
                Sleep(100)

                ; simulation of the Enter New Scene
                Run("notepad.exe")
                Local $hNote = WinWaitActive("[CLASS:Notepad]", "", 3)
                WinActivate($hNote)
                Send("^v")  ; paste
                Send("+^s") ; save as
                WinWaitActive("[TITLE:Save As; CLASS:#32770]", "", 3)
                Local $sScenePath = @ScriptDir & "\Scene_" & $i & "_" & $aArray[$i][1] & ".txt"
                Send($sScenePath) ; save as
                Send("{ENTER}")
                WinClose($hNote)

            Next
            ControlSetText($hSplash, "", "Static1", "Scene data copying completed")
            Sleep(1000)
            SplashOff()
        EndIf
    EndIf

EndFunc   ;==>ReadIniFile
; -----------------------------------------------
Func _CloseForm()
    Switch @GUI_WinHandle
        Case $Form1
            Exit
    EndSwitch
EndFunc   ;==>_CloseForm
; -----------------------------------------------

Sign In

Replace MsgBox within a Function with a User Form

Recommended Posts

mr-es335

mr-es335

Dan_555

mr-es335

mr-es335

mr-es335

mr-es335

mr-es335

mr-es335

Dan_555

mr-es335

ioa747

mr-es335

Dan_555

mr-es335

ioa747

mr-es335

ioa747

mr-es335

ioa747

Create an account or sign in to comment

Create an account

Sign in

Recently Browsing 0 members

Browse

AutoIt Resources

Release

Beta
