VeeDub

Can I use this COM object?

Recommended Posts

VeeDub

Hi,

I have been reading the help on COM objects and in particular the section about Oleview and IDispatch. Having read the help I am not sure whether I can use AutoIt with this COM object as the IDispatch does not appear to list any Methods.

However as I am new to COM objects I thought I would confirm my suspicion.

Would appreciate if someone knowledgeable about COM can review the following screenshots and advise whether it is possible to work with this COM object via AutoIt

Thanks

VW

Edited by VeeDub

Share this post


Link to post
Share on other sites
lod3n

It does have inherited methods, which you should be able to use. It would be something like:

$oSbi = objCreate("Sbimgmnt.ShellExt")
$oSbi.invoke()
$oSbi.GetIDsOfName($parameter)

Something like that. I can't really tell you much more than that without more information. What is this object, and where is it from, what does it do?


[font="Fixedsys"][list][*]All of my AutoIt Example Scripts[*]http://saneasylum.com[/list][/font]

Share this post


Link to post
Share on other sites
ptrex
VeeDub

Something like that. I can't really tell you much more than that without more information. What is this object, and where is it from, what does it do?

Hi lod3n,

ptrex is right, it is ShadowProtect Desktop Edition, it is a disk imaging program (like Ghost - but better). What it does, it does quite well, but the scheduling options don't do exactly what I want and I found a set of vbs scripts which demonstrate that Shadow can be controlled via a script so I thought I would see if I could use AutoIt instead.

Although I have done a little bit of programming via COM in the past with Outlook, I never fully understood how to identify the methods that were available, have to say that whoever wrote the COM intro in the help did an excellent job, that is a great primer. But if you look at the example with Explorer and the Methods available via IDispatch ... Explorer has many listed where Shadow only has a few - and they're listed in the Inherited Interfaces.

So far I have not managed to "convert" any of the VBS script - and in fact I've discovered that the example VBS scripts don't work either :shocked: Having had a close look at the example VBS scripts I think they may be for an earlier version of ShadowDesktop as they do not appear to reference the correct object.

Here is an example

Set stdOut = WScript.Stdout

Set Scheduler = CreateObject ("ShadowStor.ShadowProtect")

StdOut.Write "There is(are) " & Scheduler.Jobs.Count & " job(s) in the service ShadowProtect" & vbCrLf

Which fails with:

Line: 5

Char: 1

Error: The handle is invalid

Code: 80070006

I have not been able to find much about that error, but I think the CreateObject statement is wrong so changed it too:

Set stdOut = WScript.Stdout

Set Scheduler = CreateObject ("Sbimgmnt.ShellExt")

StdOut.Write "There is(are) " & Scheduler.Jobs.Count & " job(s) in the service ShadowProtect" & vbCrLf

Which fails with:

Line: 5

Char: 1

Error: Object doesn't support this property or method: Scheduler.Jobs

Code: 800A01B6

This makes me question whether I can use COM to work with Shadow, although you would think it would be strange for them to remove that function. I sent them an e-mail, but they have responded by saying that scripting is un-supported.

So now it's a challenge basically.

Cheers,

VW

Edited by VeeDub

Share this post


Link to post
Share on other sites
VeeDub

@all

Maybe this can give you a hint

ShadowStor

repgards,

ptrex

Hi ptrex,

I was not aware of that patch, I will try that and see how I go.

Thanks

VW

Share this post


Link to post
Share on other sites
VeeDub

Here is a Type Library Viewer that I came across. It is free and IMO it has a better interface to Type Library objects than OleView.

Share this post


Link to post
Share on other sites
VeeDub

I have worked out how to access the Type Library.

Here is a vb script:

Set stdOut = WScript.Stdout

Set oShadow = CreateObject ("ShadowStor.ShadowProtect")

StdOut.Write "There are " & oShadow.Jobs.Count & " job(s) in the service ShadowProtect" & vbCrLf

For Each Job in oShadow.Jobs
  StdOut.Write vbCrLf & "Job " & Job.ID & vbCrLf
  For Each Task in Job.Tasks
    StdOut.Write  "  Task " & Task.TaskID
    StdOut.Write vbCrLf
    Task.GetParameters TaskType, TaskOptions, TaskFlags, Source, Dst, Comment, CompressLvl, CryptoLvl
    if TaskType=1 or TaskType=5 Then
       StdOut.Write "   Backup from " & Source & " to " & Dst & vbCrLf
       StdOut.Write "   Compress level " & CompressLvl & " Crypto level " & CryptoLvl
    end if
    StdOut.Write vbCrLf
  Next
  StdOut.Write vbCrLf
Next

Here is the corresponding AutoIt code:

$oShadow = objCreate("ShadowStor.ShadowProtect")
ConsoleWrite("There are " & $oShadow.Jobs.Count & " job(s) in the service ShadowProtect" & @CRLF)

For $oJob in $oShadow.Jobs
  ConsoleWrite( @CRLF & "Job " & $oJob.ID & @CRLF)
  For $oTask in $oJob.Tasks
    ConsoleWrite("  Task " & $oTask.TaskID & @CRLF)
  Next
Next

I have not yet been able to figure out the equivalent AutoIt syntax for the following vbscript statement:

Task.GetParameters TaskType, TaskOptions, TaskFlags, Source, Dst, Comment, CompressLvl, CryptoLvl
    if TaskType=1 or TaskType=5 Then
       StdOut.Write "   Backup from " & Source & " to " & Dst & vbCrLf
       StdOut.Write "   Compress level " & CompressLvl & " Crypto level " & CryptoLvl
    end if

This AutoIt syntax sort of works:

$oTask.GetParameters("TaskType","TaskOptions","TaskFlag", "Source","Destination","Comment", "CompressLevel","CryptoLevel")

In that the AutoIt script does not error on this line, but when I try to use the resulting objects. For example;

if $oTask.TaskType

then I get

Member not found
.

I have also tried the following without success, these two error:

$oTaskType = $oTask.GetParameters.TaskType
$oTaskType = $oTask.GetParameters("TaskType")

This does not error, but I don't get any results:

$TaskType = $oTask.GetParameters("TaskType","","", "","","", "","")

GetParameters is reported as a SubProcedure by the Type Library viewer, which suggests to me that the correct syntax to use to call GetParameters is the line above which does not error, but what is not clear to me is how I access the results after the call. In the vbscript example, the objects are available after the call, but in AutoIt they're not.

Would appreciate suggestions on arguments to try.

Thanks

VW

Share this post


Link to post
Share on other sites
DaleHohm

there area couple of threads about dictionary objects. Sven had to make some fixes to make them accessible... it may help to read up on them...

Dale


Free Internet Tools: DebugBar, AutoIt IE Builder, HTTP UDF, MODIV2, IE Developer Toolbar, IEDocMon, Fiddler, HTML Validator, WGet, curl

MSDN docs: InternetExplorer Object, Document Object, Overviews and Tutorials, DHTML Objects, DHTML Events, WinHttpRequest, XmlHttpRequest, Cross-Frame Scripting, Office object model

Automate input type=file (Related)

Alternative to _IECreateEmbedded? better: _IECreatePseudoEmbedded  Better Better?

IE.au3 issues with Vista - Workarounds

SciTe Debug mode - it's magic: #AutoIt3Wrapper_run_debug_mode=Y Doesn't work needs to be ripped out of the troubleshooting lexicon. It means that what you tried did not produce the results you expected. It begs the questions 1) what did you try?, 2) what did you expect? and 3) what happened instead?

Reproducer: a small (the smallest?) piece of stand-alone code that demonstrates your trouble

Share this post


Link to post
Share on other sites
VeeDub

there area couple of threads about dictionary objects. Sven had to make some fixes to make them accessible... it may help to read up on them...

Dale

Hi Dale,

If this is the post you're referring to, then I have tried the latest beta and it makes no difference.

I don't think that this is a bug, it seems that vbscript has if you like a "super function" capability.

If you have a look at the vbscript statement

Task.GetParameters TaskType, TaskOptions, TaskFlags, Source, Dst, Comment, CompressLvl, CryptoLvl

After that single line of code the vbscript has access to the values in all of those variables, , to the best of my knowledge AutoIt does not have an equivalent statement.

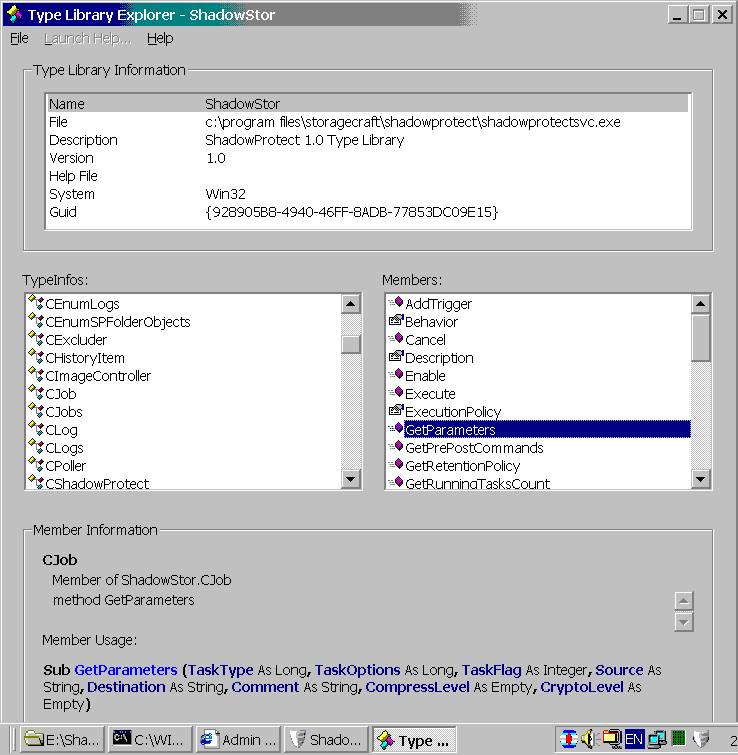

I've attached a screenshot from the Type Library viewer of GetParameters

VW


Share this post


Link to post
Share on other sites
DaleHohm

Have you tried:

$oTask.GetParameters( $TaskType, $TaskOptions, $TaskFlags, $Source, $Dst, $Comment, $CompressLvl, $CryptoLvl)

Studying the VBScript, that is the syntax I would guess...

Dale


Free Internet Tools: DebugBar, AutoIt IE Builder, HTTP UDF, MODIV2, IE Developer Toolbar, IEDocMon, Fiddler, HTML Validator, WGet, curl

MSDN docs: InternetExplorer Object, Document Object, Overviews and Tutorials, DHTML Objects, DHTML Events, WinHttpRequest, XmlHttpRequest, Cross-Frame Scripting, Office object model

Automate input type=file (Related)

Alternative to _IECreateEmbedded? better: _IECreatePseudoEmbedded  Better Better?

IE.au3 issues with Vista - Workarounds

SciTe Debug mode - it's magic: #AutoIt3Wrapper_run_debug_mode=Y Doesn't work needs to be ripped out of the troubleshooting lexicon. It means that what you tried did not produce the results you expected. It begs the questions 1) what did you try?, 2) what did you expect? and 3) what happened instead?

Reproducer: a small (the smallest?) piece of stand-alone code that demonstrates your trouble

Share this post


Link to post
Share on other sites
VeeDub

Have you tried:

$oTask.GetParameters( $TaskType, $TaskOptions, $TaskFlags, $Source, $Dst, $Comment, $CompressLvl, $CryptoLvl)

Studying the VBScript, that is the syntax I would guess...

Dale

Hi Dale,

No I had not. Looking at the Type Library view of GetParameters as there was no use of ByVal in GetParameters I could not see how the variables could be updated. On the other hand, looking at the vbscript you're right it was worth trying.

This is the code I added:

$oTask.GetParameters($TaskType,$TaskOptions,$TaskFlag, $Source,$Destination,$Comment,$CompressLevel,$CryptoLevel)
ConsoleWrite("TaskType: " & $TaskType & @CRLF & "TaskOptions: " & $TaskOptions & @CRLF &  "TaskFlag: " & $TaskFlag & @CRLF & _
                     "Source: " & $Source & @CRLF & "Dest: " & $Destination & @CRLF & "Comment: " & $Comment & @CRLF & _
                     "Compression: " & $CompressLevel & @CRLF & "Crypto: " & $CryptoLevel)

No error, but nothing reported in any of these variables either, and there is a job and it does have values in at least some of these variables.

It's not that important, but since I had got some of the code working, it would have been nice if it was possible to work with all the objects. For some, no doubt logical reason, it looks like it is broken.

Shit happens.

Thanks

VW

Share this post


Link to post
Share on other sites
DaleHohm

Another option to consider would be to instatiate a ScriptControl object using VBScript as the language. This could also help you potentially find a workaround in pure AutoIt. See here for an example to get started: http://www.autoitscript.com/forum/index.ph...st&p=301771

Dale


Free Internet Tools: DebugBar, AutoIt IE Builder, HTTP UDF, MODIV2, IE Developer Toolbar, IEDocMon, Fiddler, HTML Validator, WGet, curl

MSDN docs: InternetExplorer Object, Document Object, Overviews and Tutorials, DHTML Objects, DHTML Events, WinHttpRequest, XmlHttpRequest, Cross-Frame Scripting, Office object model

Automate input type=file (Related)

Alternative to _IECreateEmbedded? better: _IECreatePseudoEmbedded  Better Better?

IE.au3 issues with Vista - Workarounds

SciTe Debug mode - it's magic: #AutoIt3Wrapper_run_debug_mode=Y Doesn't work needs to be ripped out of the troubleshooting lexicon. It means that what you tried did not produce the results you expected. It begs the questions 1) what did you try?, 2) what did you expect? and 3) what happened instead?

Reproducer: a small (the smallest?) piece of stand-alone code that demonstrates your trouble

Share this post


Link to post
Share on other sites
VeeDub

I was not aware of this option.

Here is my attempt

$oMyError = ObjEvent("AutoIt.Error","MyErrHandler"); Install a custom error handler

    $oShadow = ObjCreate("ShadowStor.ShadowProtect")

    $vbs = "Function ShowJobs()"
    $vbs = $vbs & @CRLF & 'oShadow.Jobs.Count'
    $vbs = $vbs & @CRLF & 'End Function'

    $oSC = ObjCreate("ScriptControl")
    $oSC.language = "vbscript"
    MsgBox(0,"VBS",$vbs)
    $oSC.addcode($vbs)
    $vboutput = $oSC.run("ShowJobs")
    ConsoleWrite($vboutput)

Func MyErrHandler()
    $ErrorScriptline = $oMyError.scriptline
    $ErrorNumberHex = Hex($oMyError.number, 8)
    $ErrorWinDescription = $oMyError.WinDescription
    $ErrorOutput = ""
    $ErrorOutput = @YEAR & "-" & @MON & "-" & @MDAY & " " & @HOUR & ":" & @MIN & " "
    $ErrorOutput &= "----> $ErrorScriptline = " & $ErrorScriptline & " "
    $ErrorOutput &= "----> $ErrorNumberHex = " & $ErrorNumberHex & " "
    $ErrorOutput &= "----> $ErrorWinDescription = " & $ErrorWinDescription & " "

    MsgBox(0,"Error Output",$ErrorOutput)

    SetError(1)
    Return
EndFunc

It errors on this line

$vboutput = $oSC.run("ShowJobs")

With error

Hex: 80020009

I originally had the vbs equivalent of this line in the function

$oShadow = ObjCreate("ShadowStor.ShadowProtect")

I assume that $oShadow and oShadow in VBS will be recognised as the same, in any event the script error was the same either way.

VW

Share this post


Link to post
Share on other sites
DaleHohm

I assume that $oShadow and oShadow in VBS will be recognised as the same, in any event the script error was the same either way.

Context is not automatically shared between AutoIt and the ScriptControl, so no, this is not a valid assumption. You can only share what you explicitly pass between the two contexts... the ScriptControl DOES continue to run and maintain its state however, so you can continue to send commands to it and it remembers where it was the last time you accessed it. This is why I use .eval incrementally instead of using .run -- suggest you try the same.

Dale


Free Internet Tools: DebugBar, AutoIt IE Builder, HTTP UDF, MODIV2, IE Developer Toolbar, IEDocMon, Fiddler, HTML Validator, WGet, curl

MSDN docs: InternetExplorer Object, Document Object, Overviews and Tutorials, DHTML Objects, DHTML Events, WinHttpRequest, XmlHttpRequest, Cross-Frame Scripting, Office object model

Automate input type=file (Related)

Alternative to _IECreateEmbedded? better: _IECreatePseudoEmbedded  Better Better?

IE.au3 issues with Vista - Workarounds

SciTe Debug mode - it's magic: #AutoIt3Wrapper_run_debug_mode=Y Doesn't work needs to be ripped out of the troubleshooting lexicon. It means that what you tried did not produce the results you expected. It begs the questions 1) what did you try?, 2) what did you expect? and 3) what happened instead?

Reproducer: a small (the smallest?) piece of stand-alone code that demonstrates your trouble

Share this post


Link to post
Share on other sites
VeeDub

Hi Dale,

I have spent some time looking for examples that I could use as a starting point, using your suggested approach it is not clear to me how to pass the $oShadow object as I think I need to call a vbscript function so that I can pass $oShadow, but all the examples I have found use .run rather than .eval

But for your comment about using

.eval incrementally

the way I would approach this task using vbscript would be something like this example here. I would appreciate it if you could show me how to pass $oShadow (the handle to the COM object) to the vbscript using your approach. Alternatively if there is another thread which would be useful as a guide, that would be helpful.

Thanks,

VW

Share this post


Link to post
Share on other sites
DaleHohm

I'm not an expert on the ScriptControl and your question prompted me to learn a little more... documentation and examples for it are scarce. It turns out there is an addObject mothod that appears to be the preferred way of passing an object. Here is a working example:

#include <IE.au3>

$oIE = _IECreate("www.google.com")

$oSC = ObjCreate("ScriptControl")
$oSC.language = "VBScript"
$oSC.addObject("oIE", $oIE)
$oSC.eval('oIE.navigate ("http://www.autoitscript.com")')

Dale


Free Internet Tools: DebugBar, AutoIt IE Builder, HTTP UDF, MODIV2, IE Developer Toolbar, IEDocMon, Fiddler, HTML Validator, WGet, curl

MSDN docs: InternetExplorer Object, Document Object, Overviews and Tutorials, DHTML Objects, DHTML Events, WinHttpRequest, XmlHttpRequest, Cross-Frame Scripting, Office object model

Automate input type=file (Related)

Alternative to _IECreateEmbedded? better: _IECreatePseudoEmbedded  Better Better?

IE.au3 issues with Vista - Workarounds

SciTe Debug mode - it's magic: #AutoIt3Wrapper_run_debug_mode=Y Doesn't work needs to be ripped out of the troubleshooting lexicon. It means that what you tried did not produce the results you expected. It begs the questions 1) what did you try?, 2) what did you expect? and 3) what happened instead?

Reproducer: a small (the smallest?) piece of stand-alone code that demonstrates your trouble

Share this post


Link to post
Share on other sites
VeeDub

Thanks Dale, using that approach this script now works

$oShadow = ObjCreate("ShadowStor.ShadowProtect")
$oSC = ObjCreate("ScriptControl")
$oSC.language = "vbscript"
$oSC.addobject("oShadow",$oShadow)
$s1 = $oSC.eval ("oShadow.Jobs.Count")
ConsoleWrite("VB Jobs Count: " & $s1 & @CRLF)

I will now look at writing a script that uses the example vbscript code to access GetParamaters and we will see whether it works.

VW

Share this post


Link to post
Share on other sites
VeeDub

Dale,

This script

$oShadow = ObjCreate("ShadowStor.ShadowProtect")

    $oSC = ObjCreate("ScriptControl")
    $oSC.language = "vbscript"
    $oSC.addobject("oShadow",$oShadow)

    for $oJob In $oShadow.Jobs

        ConsoleWrite("ID: " & $oJob.ID & @CRLF & _
                    "Desc: " & $oJob.Description & @CRLF & _
                    "Status: " & $oJob.Status & @CRLF & _
                    "Type: " & $oJob.Type & @CRLF)

        for $oTask In $oJob.Tasks
            ConsoleWrite("Task: " & $oTask.TaskID & @CRLF & _
                        "Status: " & $oTask.Status & @CRLF)

            $oSC.addobject("oTask",$oTask)
            $s2 = $oSC.eval("oTask.GetParameters TaskType, TaskOptions, TaskFlags, Source, Destination, Comment, CompressLvl, CryptoLvl")
            ConsoleWrite("GetParameters: " & $s2)

        Next

    Next

Fails at this line

$s2 = $oSC.eval("oTask.GetParameters TaskType, TaskOptions, TaskFlags, Source, Destination, Comment, CompressLvl, CryptoLvl")

with

80020009

Does the script logic look OK to you?

That error could be because the library does not work properly, which from one perspective seems unlikely with a commercial product, but on the other hand would explain why the COM object is "unsupported". Then again StorageCraft may just be seeking to avoid complex support questions which would also be understandable.

Share this post


Link to post
Share on other sites
VeeDub

This script works:

$oShadow = ObjCreate("ShadowStor.ShadowProtect")
$oSC = ObjCreate("ScriptControl")

    for $oJob In $oShadow.Jobs
         $oSC.addobject("oJob",$oJob)
         $s2 = $oSC.eval("oJob.Description")
         ConsoleWrite("Job desc via vb script: " & $s2 & @CRLF)

       for $oTask In $oJob.Tasks
         $oSC.addobject("oTask",$oTask)
         $s3 = $oSC.eval("oTask.TaskID")
         ConsoleWrite("TaskID: " & $s3 & @CRLF)
;       $s4 = $oSC.eval("oTask.GetParameters TaskType, TaskOptions, TaskFlags, Source, Destination, Comment, CompressLvl, CryptoLvl")
      Next
   Next

Note:I had to leave a line out of the above code

$oSC.language = "vbscript"
because for some reason everytime I added this line, half of the remaining code disappeared from my post :) Really weird, the whole snippet is in the reply box but the code gets mangled in the preview.

When I uncomment the line

$s4 = $oSC.eval("oTask.GetParameters ...
I get error
80020009
But as the statement
oTask.GetParameters...
is straight from the vbscript example, the GetParameters function must be broken.

@Dale - thanks a bunch for your help with this.

VW

Share this post


Link to post
Share on other sites
DaleHohm

I think that GetParameters may not have an overall return value, but instead returns into each of the variable names you specify.

So instead of

$s2 = $oSC.eval("oTask.GetParameters TaskType, TaskOptions, TaskFlags, Source, Destination, Comment, CompressLvl, CryptoLvl")

try

$oSC.eval("oTask.GetParameters TaskType, TaskOptions, TaskFlags, Source, Destination, Comment, CompressLvl, CryptoLvl")
$TaskType = $oSC.eval("TaskType")
ConsoleWrite("TaskType: " & $TaskType & @CR)

You'll need to find the docs for GetParameters to see what kind of data is passed back for each element - TaskOptions and TaskFlags I would guess to be arrays and you may have to examine them on the VBS side.

Dale


Free Internet Tools: DebugBar, AutoIt IE Builder, HTTP UDF, MODIV2, IE Developer Toolbar, IEDocMon, Fiddler, HTML Validator, WGet, curl

MSDN docs: InternetExplorer Object, Document Object, Overviews and Tutorials, DHTML Objects, DHTML Events, WinHttpRequest, XmlHttpRequest, Cross-Frame Scripting, Office object model

Automate input type=file (Related)

Alternative to _IECreateEmbedded? better: _IECreatePseudoEmbedded  Better Better?

IE.au3 issues with Vista - Workarounds

SciTe Debug mode - it's magic: #AutoIt3Wrapper_run_debug_mode=Y Doesn't work needs to be ripped out of the troubleshooting lexicon. It means that what you tried did not produce the results you expected. It begs the questions 1) what did you try?, 2) what did you expect? and 3) what happened instead?

Reproducer: a small (the smallest?) piece of stand-alone code that demonstrates your trouble

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
Sign in to follow this

×

Important Information

We have placed cookies on your device to help make this website better. You can adjust your cookie settings, otherwise we'll assume you're okay to continue.
