I am doing search for a horizontal line, I want to check every color on a (x,y) = (0, 327) ~ (1023, 327 )

and I want to calculate the center of the individual strings.

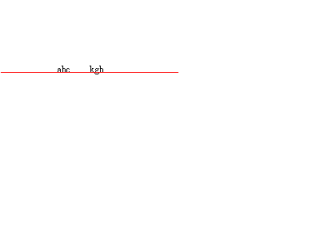

see the pic attached, it essentially comes down to how to judge on the length of a string, say, if there is another point of the same color within, like 4 pixels to the right (or left), then the length of the string is increased by that much.

but I am not sure how to store the position of the string and how long it is.

Edited by qwertylol

Share on other sites

Hi,

I don't know if this is what your after, I just wrote it up quickly hoping it can help you or maybe you can get something out of it. Basically it scans the line looking for black, when it finds it, it increases the scan area to a small rectangle and makes sure black exists within that rectangle. When it suddenly doesn't exist the error is set, the loop exited and the midpoint is calculated. I think you will get the picture. Hope it helps.

Dave

CODE

Func _getStringMidpoint()

;declare and initialise the variables

Local \$x = 0

Local \$y = 327

Local \$i = 0

Local \$pixelColor

Local \$midPoint

;enter the for loop that scans the pixels

For \$x = 0 To 1023 Step 1

\$pixelColor = PixelGetColor(\$x,\$y)

If \$pixelColor == 0 Then

\$i = \$x

SetError(0)

Do

PixelSearch(\$i,\$y+4,\$i+4,\$y-4,0)

\$i += 1

Until @error == 1

\$midPoint = (\$i - \$x) / 2

;

;enter what you want to do with this answer here, eg write it to file,make it a message in a messagebox

;

;set the value of \$x to \$i so we don't rescan areas already done

\$x = \$i

EndIf

Next

EndFunc

Edit: Made it more accurate and fixed a potential issue

Note: THIS CODE IS NOT TESTED!

Dave

Edited by Davo

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------"I don't need to know everything, I just need to know where to find it when I need it"....EinsteinAnd in our case... That's the AutoIT helpfile ;) Please read before posting!!!

Share on other sites

Did a bit more testing, came up with these improvments, still not 100% accurate but its close

CODE

_getStringMidpoint()

Func _getStringMidpoint()

;declare and initialise the variables

Local \$x = 0

Local \$y = 327

Local \$i = 0

Local \$pixelColor

Local \$midPoint = 0

;enter the for loop that scans the pixels

For \$x = 0 To 1023 Step 1

\$pixelColor = PixelGetColor(\$x,\$y)

If \$pixelColor == 0 Then

\$i = \$x

SetError(0)

Do

PixelSearch(\$i,\$y+5,\$i+10,\$y-5,0)

\$i += 1

Until @error == 1

\$midPoint += \$x + ((\$i - \$x) / 2)

\$midPoint = Round(\$midPoint)

;

;msgbox(0,"",\$midPoint)

;

;set the value of \$x to \$i so we don't rescan areas already done

\$x = \$i

EndIf

Next

EndFunc

Dave

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------"I don't need to know everything, I just need to know where to find it when I need it"....EinsteinAnd in our case... That's the AutoIT helpfile ;) Please read before posting!!!

Share on other sites

what I am trying to find only how to find out the location of the string, and the length.

is it possible to do, without knowing what the string is ?
