Posted (edited)

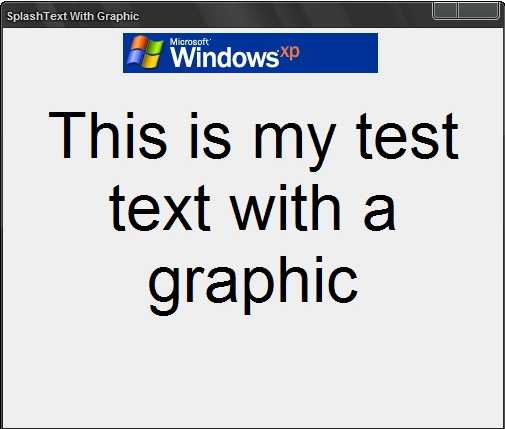

This works like SplashTextOn() but can also include a graphic like SplashImageOn()

#include "_SplashTextWithGraphic.au3"

$graphic = @Systemdir & "\oobe\images\mslogo.jpg"
$text = @crlf  & "This is my test text with a graphic"

$var = _SplashTextWithGraphicOn("SplashText With Graphic",$text,500,400,-1,-1,$graphic,120,5,0,0,32,"",48)
If $var > 0 then ConsoleWrite("_SplashTextWithGraphicOn() had error " & $var & @crlf)
 Sleep (5000)
_SplashTextWithGraphicOFF()

Edit: Changed Slash to Splash!


_SplashTextWithGraphic.au3

Edited by ChrisL

Share this post


Link to post
Share on other sites



Posted

Not a real Splash though, just a GUI.

Share this post


Link to post
Share on other sites

Posted

Not a real Splash though, just a GUI.

What's your point?

SplashTextOn() creates a gui with a label, I had the need to create an app where someone could create a gui with a message by putting stuff in an ini file.

Initially I used the standard SplashTextOn() because it allowed them to set window options and was straight forward to do it took all the values from the ini file and passed them to SplashTextOn().

Later they asked me if they could add an image to it, so I created a function which pretty much emulates SplashTextOn() but allowed you to add a picture too.

You can use the same options as SplashTextOn() for ontop, text position window style as the original.

I put it here in case anyone else had a need for such a function.

Share this post


Link to post
Share on other sites

Posted

What's your point?

SplashTextOn() creates a gui with a label, I had the need to create an app where someone could create a gui with a message by putting stuff in an ini file.

Initially I used the standard SplashTextOn() because it allowed them to set window options and was straight forward to do it took all the values from the ini file and passed them to SplashTextOn().

Later they asked me if they could add an image to it, so I created a function which pretty much emulates SplashTextOn() but allowed you to add a picture too.

You can use the same options as SplashTextOn() for ontop, text position window style as the original.

I put it here in case anyone else had a need for such a function.

SplashTextOn() (and other splash functions) do not create an AutoIt GUI with a label, although you might see it as such..

It calls an object that creates the splash, and later destroys it. You're replacing the object, with a normal GUI.. so, it's not a real splash, but just a GUI.

Share this post


Link to post
Share on other sites

Posted

Because TheCats asked for a splash with coloured text, and was pointed to this thread, I made it so that text colour is a paramater, and updated the udf.

CODE

#cs ----------------------------------------------------------------------------

AutoIt Version: 3.2.8.2?

Author: Chris Lambert, (coloured text added by mg)

Script Function:

Template AutoIt script.

#ce ----------------------------------------------------------------------------

#include-once

#include <GuiConstantsEx.au3>

#include <windowsconstants.au3>

#include <staticconstants.au3>

; Script Start - Add your code below here

Global $Splash_Gui_Main

;===============================================================================

;

; Function Name: _SplashTextWithGraphicOn

; Description: Creates a splash text window with graphic

; Syntax: _SplashTextWithGraphicOn($vWinTitle="",$vText="",$iWidth=500,$iHeight=400,$iXPos=-1,$iYPos=-1,$vGraphic="",$iLogo_XPos=0,$iLogo_YPos=0,$iLogo_Width=0,$iLogo_Height=0,$iOpt = 0,$vFontName = "",$iFontSz = 12,$iFontWt = 400)

; Call _splashTextWithGraphicOFF() to turn off splash window

;

; Parameter(s): $vWinTitle (Optional) = Title for splash window.

; $vText (Optional) = Text for splash window.

; $iWidth (Optional) = Width of window in pixels. (default 500)

; $iHeight (Optional) = Height of window in pixels. (default 400)

; $iXPos (Optional) = Position from left (in pixels) of splash window. (default is centered)

; $iYPos (Optional) = Position from top (in pixels) of splash window. (default is centered)

; $vGraphic (Optional) = Graphic to use in Splash window.

; $iLogo_XPos (Optional) = Left position of top left corner of the graphic inside the splash window

; $iLogo_YPos (Optional) = Top position of top left corner of the graphic inside the splash window

; $iLogo_Width (Optional) = Width to display the graphic

; $iLogo_Height (Optional) = Height to display the graphic

; $iOpt (Optional) = Option see list below

; [optional] Add them up - default is 'center justified/always on top/with title'

; 0 = Center justified/always on top/with title (default)

; 1 = Thin bordered titleless window

; 2 = Without "always on top" attribute

; 4 = Left justified text

; 8 = Right justified text

; 16 = Windows can be moved

; 32 = Centered vertically text

; $vFontName (Optional) = Font to use. (OS default GUI font is used if the font is "" or is not found)

; $iFontSz (Optional) = Font size. (default is 12; standard sizes are 6 8 9 10 11 12 14 16 18 20 22 24 26 28 36 48 72)

; $iFontWt (Optional) = Font weight (0 - 1000, default = 400 = normal). A value > 1000 is treated as zero.

;

; Requirement(s): None

;

; Return Value(s): On Success - Returns 0

; On Failure - Returns an Error code based on the first error from left to right of syntax

; Window handle is stored in $Splash_Gui_Main

; error Codes

;0 No Error

;1 GuiWidth is not numeric

;2 GuiHeight is not numeric

;3 GuiXpos is not numeric

;4 GuiYpos is not numeric

;5 Graphic does not exist

;6 GraphicXpos is not numeric

;7 GraphicYpos is not numeric

;8 GraphicWidth is not numeric

;9 GraphicHeight is not numeric

;10 Font size is not numeric

;11 Font Weight is not numeric

;12 Font Weight is greater than 1000

;13 Font Weight is less than 0

; Author(s): Chris Lambert (ChrisL) (WM_NCHITTEST() and _API_DefWindowProc() was found on a post by Martin on Autoit Forms!)

; Note(s): Based on SplashTextOn() and SplashImageOn()

;===============================================================================

Func _SplashTextWithGraphicOn($vWinTitle="",$vText="",$iWidth=500,$iHeight=400,$iXPos=-1,$iYPos=-1,$vGraphic="",$iLogo_XPos=0,$iLogo_YPos=0,$iLogo_Width=0,$iLogo_Height=0,$iOpt = 0,$vFontName = "",$iFontSz = 12,$iFontWt = 400,$iFontCol = 0)

DIM Const $WM_ENTERSIZEMOVE = 0x231

DIM Const $WM_EXITSIZEMOVE = 0x232

;DIM Const $WM_NCHITTEST = 0x0084

Local $Ret = 0

If $iFontWt < 0 then

$iFontWt = 0

$Ret = 13

EndIf

If $iFontWt > 1000 then

$iFontWt = 1000

$Ret = 12

EndIf

If NOT Int($iFontWt) then

$iFontWt=400

$Ret = 11

EndIf

If NOT Int($iFontSz) then

$iFontSz=12

$Ret = 10

EndIf

If NOT StringIsDigit($iLogo_Height) then

$iLogo_Height = 0

$Ret = 9

EndIf

If NOT StringIsDigit($iLogo_Width) then

$iLogo_Width = 0

$Ret = 8

Endif

If NOT Int($iLogo_YPos) then

$iLogo_YPos=0

$Ret = 7

EndIf

If NOT Int($iLogo_XPos) then

$iLogo_XPos=0

$Ret = 6

Endif

If $vGraphic <> "" then

If NOT FileExists($vGraphic) then $Ret = 5

EndIf

If NOT Int($iYPos) then

$iYPos=-1

$Ret = 4

EndIf

If NOT Int($iXpos) then

$iXPos=-1

$Ret = 3

Endif

If NOT Int($iHeight) then

$iHeight=400

$Ret = 2

EndIf

If NOT Int($iWidth) then

$iWidth=500

$Ret = 1

EndIf

If BitAnd($iOpt,1) then

$Splash_Gui_Main = GuiCreate($vWinTitle,$iWidth,$iHeight,$iXPos,$iYPos, BitOr ($WS_POPUP,$WS_BORDER))

Else

$Splash_Gui_Main = GuiCreate($vWinTitle,$iWidth,$iHeight,$iXPos,$iYPos,BitOr($WS_CAPTION, $WS_POPUP))

EndIf

If $vGraphic <> "" and FileExists($vGraphic) then

$pic = GuiCtrlCreatePic($vGraphic,$iLogo_XPos,$iLogo_YPos,$iLogo_Width,$iLogo_Height)

GuiCtrlSetState(-1,$GUI_DISABLE)

EndIf

$edit = GuiCtrlCreateLabel($vText,0,0,$iWidth,$iHeight,$SS_CENTER,$WS_EX_TRANSPARENT )

GuiCtrlSetFont(-1,$iFontSz,$iFontWt,-1,$vFontName)

GUICtrlSetBkColor(-1, $GUI_BKCOLOR_TRANSPARENT)

GUICtrlSetColor(-1,$iFontCol)

If NOT BitAnd($iOpt,2) then

WinSetOnTop($Splash_Gui_Main,"",1)

EndIf

If BitAnd($iOpt,4) then

GUICtrlSetStyle($edit,$SS_LEFT)

EndIf

If BitAnd($iOpt,8) then

GUICtrlSetStyle($edit,$SS_RIGHT )

EndIf

If BitAnd($iOpt,32) then

GUICtrlSetStyle($edit,$SS_CENTERIMAGE)

EndIf

GuiSetState()

If NOT BitAnd($iOpt,16) then

GUIRegisterMsg($WM_NCHITTEST,"WM_NCHITTEST")

EndIf

SetError($ret)

Return $Ret

EndFunc

Func WM_NCHITTEST($hWnd, $iMsg, $iwParam, $ilParam)

If Not IsDeclared("WM_NCHITTEST") then

Local $WM_NCHITTEST ;Just to keep Au3Check happy!

Return

EndIf

If $hWnd = $Splash_Gui_Main And $iMsg = $WM_NCHITTEST Then

$id = _API_DefWindowProc($hWnd, $iMsg, $iwParam, $ilParam)

If $id = 2 Then;if it is the title handle

Return 1;return the client handle

Else

Return $id;return the real handle

EndIf

EndIf

EndFunc

Func _API_DefWindowProc($hWnd, $iMsg, $iwParam, $ilParam)

Local $aResult

$aResult = DllCall("User32.dll", "int", "DefWindowProc", "hwnd", $hWnd, "int", $iMsg, "int", $iwParam, "int", $ilParam)

Return $aResult[0]

EndFunc

Func _SplashTextWithGraphicOFF()

IF WinExists($Splash_Gui_Main) then GuiDelete($Splash_Gui_Main)

$Splash_Gui_Main = ""

EndFunc

Here is the updated example

#include "_SplashTextWithGraphic.au3"

$graphic = @Systemdir & "\oobe\images\mslogo.jpg"
$text = " text with graphic"

$var = _SplashTextWithGraphicOn("SplashText With Graphic",$text,500,400,-1,-1,$graphic,120,5,0,0,32,"",48,400,0xff0000)
;_SplashTextWithGraphicOn($vWinTitle="",$vText="",$iWidth=500,$iHeight=400,$iXPos=-1,$iYPos=-1,$vGraphic="",$iLogo_XPos=0,$iLogo_YPos=0,$iLogo_Width=0,$iLogo_Height=0,$iOpt = 0,$vFontName = "",$iFontSz = 12,$iFontWt = 400,$iFontCol = 0)
If $var > 0 then ConsoleWrite("_SplashTextWithGraphicOn() had error " & $var & @crlf)
Sleep (5000)
_SplashTextWithGraphicOFF()
