Uriziel01

TCPSend() in connecting to the instant messanger server

10 posts in this topic

#1 ·  Posted (edited)

Hi :) Im doing an implementation of GG protocol in my instant messanger. And i have problem witch TCPSend(). I have C++ code of all the protocol (all functions) from http://ekg.chmurka.net/docs/protocol.html#ch1.1. And im starting with HTTP GET, it return me the IP and opened port of GG server.When i make TCPConnect() to this IP and Port server is sending me

Recv=0x0100000004000000349AF1C7
0x0100 - means "Welcome/Greetings" and the rest "000004000000349AF1C7" is seed for hashing function.Next i have to send:

#define GG_LOGIN70 0x0019

struct gg_login70 {
    int uin;              /* mój numerek */ - My number of GG
    char hash_type;    /* rodzaj funkcji skrótu hasła */ -type of password hashing
        char hash[64];      /* skrót hasła */ -hash of my pass.
        int status;        /* status na dzień dobry */ -My GG status
        int version;          /* moja wersja klienta */ -Client version
        char unknown1;      /* 0x00 */ -dunno
        int local_ip;        /* mój adres ip */ -My IP
    short local_port;    /* port, na którym słucham */-My opened Port
        int external_ip;      /* zewnętrzny adres ip */- My external IP
        short external_port;  /* zewnętrzny port */ - My external opened Port
    char image_size;      /* maksymalny rozmiar grafiki w KB */ -Max size of received image files
        char unknown2;      /* 0xbe */ -Dunno
p.s char description[];   /* opis, nie musi wystąpić */-Not nessesery
    int time;            /* czas, nie musi wystąpić */-Not nessesery
};

and my question is, how to send it ? Like

TCPSend($mainsocket,0x0019& 0x16&1535586& "1234567898765432123456789876543"& 0x0002& 0x0b& 0& 0)

(the values isnt correct!!) the server returns me nothing, and it should return somme error if im sending incorrect values, or succes if they are correct. i have even tried to send

TCPSend($mainsocket,0x0019)
TCPSend($mainsocket,0x16)
TCPSend($mainsocket,1535586)
next.....
next....
next....

And again server return me nothing, my TCPRecv loop is looping without any recv ? Any ideas what to do ?? :) Please help ;(

p.s-oh and one more thing !! Wgy at the start server return to me 0x0100000004000000349AF1C7 and greeting bytres are 0x0100 but they shoul be 0x0001 !! Whay??

Edited by Uriziel01

Share this post


Link to post
Share on other sites



I dont realy understand what hes writing in the link :)

but it seems you have to send information with the HTTP Get, dont you?

GET /appsvc/appmsg4.asp?fmnumber=NUMER&version=WERSJA&fmt=FORMAT&lastmsg=WIADOMOŚĆ

Try connecting with the "normal" method or program and logg the traffic (with HTTP Analyzer or something simmilar)

Share this post


Link to post
Share on other sites

GET /appsvc/appmsg4.asp?fmnumber=NUMER&version=WERSJA&fmt=FORMAT&lastmsg=WIADOMOŚĆ i have sended that already ! And after this GET, site appears with IP and Port of the GG server. Please help p.s-if needed i may translate a part of those link :)


Share this post


Link to post
Share on other sites

Please download HTTP analyer;

Run it an then run you Messenger Tool (one that works)

put the get request in the Request Builder and post a screenshot (delete Cookie/PW aso. first)

Then do the same thing with your tool and post a screenshot

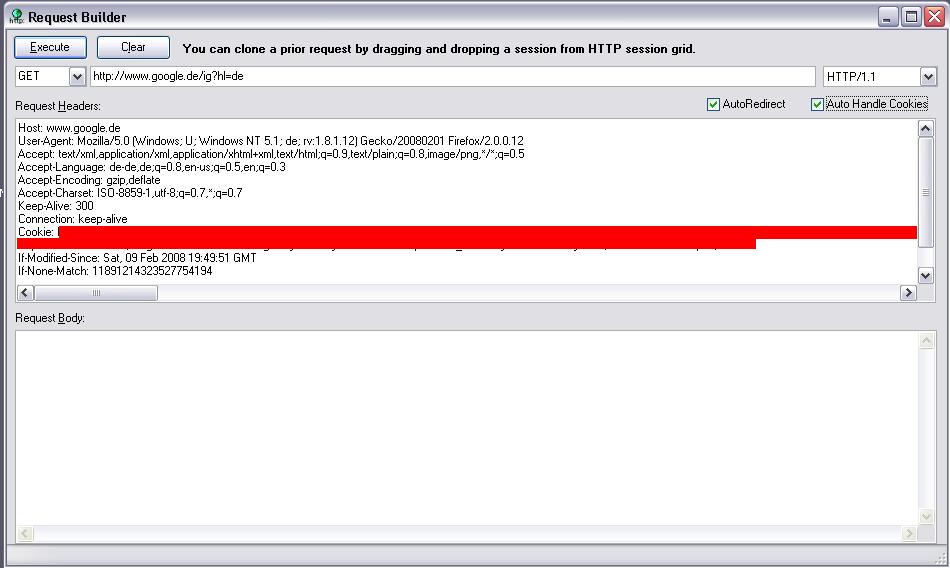

Examplescreen attached


Share this post


Link to post
Share on other sites

#5 ·  Posted (edited)

When im running my script HttpAnalyzer log only the first GET request (server answer is the same as in orginal, and its OK) but it dont see any of the next packets, im using TCPSend and HttpAnalyzer dont see them ??!! Situation is the same when im running the orginal program, HttpAnalyzer log the first GET request and next it get nothing. Some other ideas?

Edited by Uriziel01

Share this post


Link to post
Share on other sites

Your 100% sure you send the same and get the same back?

I thought you get something wrong back with your script

Share this post


Link to post
Share on other sites

#7 ·  Posted (edited)

from the orginal script:

HTTP/1.0 200 OK

0 0 217.17.45.146:8074 217.17.45.146

From my GET request:

HTTP/1.0 200 OK

7797 0 91.197.13.18:8074 91.197.13.1

WooW! This 7797 meas that after header i will receive system message but:

Recv=0x0100000004000000E4FD952B ?? What is that system message?

Edited by Uriziel01

Share this post


Link to post
Share on other sites

Ok i have corrected the GET request (bad spelling of one word) and now im receiving

HTTP/1.0 200 OK

0 0 217.17.45.146:8074 217.17.45.146

This is the same as orginal, but server still isnt responding for TCPSEND :)


Share this post


Link to post
Share on other sites

Hmm can´t realy tell you much more then.

In you place i would now install "Port Explorer" from DiamondCS

And check the packets the server / you are sending

and look for an error.....this can take some time.

Share this post


Link to post
Share on other sites

#10 ·  Posted (edited)

Ok i will do that :) By the way, thx for all you help :) I will still try to run this and if i have a succes i will post the code :) See you!

Edited by Uriziel01

Share this post


Link to post
Share on other sites
