Soulstriker

Problem reading a "string" from a window

7 posts in this topic

Hi all!

First of all let me tell you that I am new in this AutoIt world. I've been coding some simple automation programs but I have a problem reading something.

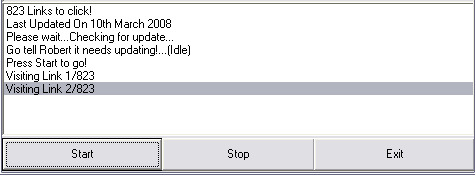

In that window I have no way to read the line. I've used the AutoIt Window Info and there's nothing that can distinguish a line from another.

What I need to do is that the script wait until the process runned by that program finish (visitng link xxx/xxx ) and then continue doing something else.

I've think that i could take a screeshot and compare it with other but i don't have idea how to do that.

Any help would be great!

Thx a lot in advance and REALLY sory for my ugly english.

Soul.

Share this post


Link to post
Share on other sites



Hi all!

First of all let me tell you that I am new in this AutoIt world. I've been coding some simple automation programs but I have a problem reading something.

In that window I have no way to read the line. I've used the AutoIt Window Info and there's nothing that can distinguish a line from another.

What I need to do is that the script wait until the process runned by that program finish (visitng link xxx/xxx ) and then continue doing something else.

I've think that i could take a screeshot and compare it with other but i don't have idea how to do that.

Any help would be great!

Thx a lot in advance and REALLY sory for my ugly english.

Soul.

AutoIt uses the standard Windows APIs. If a window or its controls are drawn by another program that doesn't use those APIs (like Flash) then AutoIt can't do anything with them. Your first, best indicator is AU3Info.exe, which you said you tried already. Post the results from that (Summary Tab) so we can see what the context is.

;)


Valuater's AutoIt 1-2-3, Class... Is now in Session!For those who want somebody to write the script for them: RentACoder"Any technology distinguishable from magic is insufficiently advanced." -- Geek's corollary to Clarke's law

Share this post


Link to post
Share on other sites

>>>> Window <<<<

Title: Make Me Rich - Robert via FreeCap

Class: ThunderRT6FormDC

Position: 248, 251

Size: 478, 266

Style: 0x16CA0000

ExStyle: 0x00040100

Handle: 0x001D05DA

>>>> Control <<<<

Class: ThunderRT6ListBox

Instance: 1

ClassnameNN: ThunderRT6ListBox1

Advanced (Class): [CLASS:ThunderRT6ListBox; INSTANCE:1]

ID: 22

Text:

Position: 0, 64

Size: 473, 134

ControlClick Coords: 225, 61

Style: 0x54210081

ExStyle: 0x00000204

Handle: 0x006C065A

>>>> Mouse <<<<

Position: 476, 405

Cursor ID: 0

Color: 0xB2B4BF

>>>> StatusBar <<<<

>>>> Visible Text <<<<

18

17

16

15

14

13

12

11

Exit

Stop

10

9

8

7

6 used

5 used

4 used

3 used

2 used

1 used

Start

>>>> Hidden Text <<<<

That's everything. In the entire window the data doesn't change at all.

Thx for the reply.

Soul

Share this post


Link to post
Share on other sites

Something similar to this should read the ListBox:

#include <GuiListBox.au3>

Opt("WinTitleMatchMode", 4)

If WinExists("[CLASS:ThunderRT6FormDC; TITLE:Make Me Rich]") Then
    $hWin = WinGetHandle("[CLASS:ThunderRT6FormDC; TITLE:Make Me Rich]")
    $hLB = ControlGetHandle($hWin, "", "[CLASS:ThunderRT6ListBox; INSTANCE:1]")
    $iLBCount = _GUICtrlListBox_GetCount($hLB)
    $sLBList = "ListBox item texts:" & @CRLF
    For $i = 0 To $iLBCount - 1
        $sLBList &= _GUICtrlListBox_GetText($hLB, $i)
    Next
    MsgBox(64, "ListBox Data", $sLBList)
Else
    MsgBox(16, "Error", "Window is not present.")
EndIf

;)


Valuater's AutoIt 1-2-3, Class... Is now in Session!For those who want somebody to write the script for them: RentACoder"Any technology distinguishable from magic is insufficiently advanced." -- Geek's corollary to Clarke's law

Share this post


Link to post
Share on other sites

It works! Thank you very much!!!

Share this post


Link to post
Share on other sites

I'm back. I didn't create a new thread because I believed that would be unnesesary.

I have the same problem with another window.

I've tried using a similar scrpt from the one PsaltyDS posted. But I can't find the right UDF that works.

What I need is to read the bottom line, the "status bar", to proceed with the script when the info changes.


This is what WindowsInfo tells me.

>>>> Window <<<<

Title: Checking... via FreeCap

Class: ThunderRT6FormDC

Position: 456, 233

Size: 286, 232

Style: 0x16C80000

ExStyle: 0x00000108

Handle: 0x00060B9C

>>>> Control <<<<

Class: ThunderRT6PictureBoxDC

Instance: 10

ClassnameNN: ThunderRT6PictureBoxDC10

Advanced (Class): [CLASS:ThunderRT6PictureBoxDC; INSTANCE:10]

ID: 14

Text:

Position: 0, 0

Size: 280, 180

ControlClick Coords: 49, 168

Style: 0x56010000

ExStyle: 0x00000004

Handle: 0x00080BAA

>>>> Mouse <<<<

Position: 508, 450

Cursor ID: 0

Color: 0xFFFFFF

>>>> StatusBar <<<<

>>>> Visible Text <<<<

Reset Monitor

txtHTML

>>>> Hidden Text <<<<

Thx in advance =)

Soul.

Share this post


Link to post
Share on other sites

I'm back. I didn't create a new thread because I believed that would be unnesesary.

I have the same problem with another window.

I've tried using a similar scrpt from the one PsaltyDS posted. But I can't find the right UDF that works.

What I need is to read the bottom line, the "status bar", to proceed with the script when the info changes.

This is what WindowsInfo tells me.

Thx in advance =)

Soul.

So, if AutoIt had a command to do that, you find it in the help file under something like... StatusbarGetText()?

;)


Valuater's AutoIt 1-2-3, Class... Is now in Session!For those who want somebody to write the script for them: RentACoder"Any technology distinguishable from magic is insufficiently advanced." -- Geek's corollary to Clarke's law
