ChrisL

GDIPlus Vertical Text

3 posts in this topic

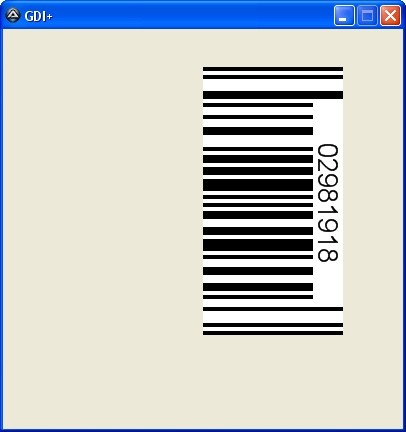

I'm creating a EAN8 readable barcode and I want to put the human readable it in a block on the right.

I'm using

_GDIPlus_BrushDispose($hBrush)
_GDIPlus_GraphicsDrawString ($hGraphic, $BarCodeStr, 305, 110,"Arial",20,0x0002);vertical text

To write the text vertically but it writes from top to bottom, how can I rotate the text 180 when writing it please?


Share this post


Link to post
Share on other sites



#2 ·  Posted (edited)

Malkey wrote this nice function: http://www.autoitscript.com/forum/index.ph...st&p=584436

Edit: an example

#include <GDIPlus.au3>
$GUI = GUICreate("GDI+",400,400)
$TEXT = GUICtrlCreateInput("02695",5,5,100,20)
$DRAW = GUICtrlCreateButton("DRAW",5,30,50,20)
_GDIPlus_Startup()
$GRAPHIC = _GDIPlus_GraphicsCreateFromHWND($GUI)
GUISetState()

While 1
    $MSG = GUIGetMsg()
    If $MSG = -3 Then
        _GDIPlus_GraphicsDispose($GRAPHIC)
        _GDIPlus_Shutdown()
        Exit
    ElseIf $MSG = $DRAW Then
        GDIPlus_SetAngledText($GRAPHIC,GUICtrlRead($TEXT),200,200,90,"Arial",12,0xFF000000)
    EndIf
    Sleep(20)
WEnd

Func GDIPlus_SetAngledText($hGraphic, $nText, $iCentreX = 0, $iCentreY = 0, $iAngle = 0, $nFontName = "Arial", _
        $nFontSize = 12, $iARGB = 0xFFFF00FF, $iAnchor = 0)
    Local $iPI = 3.14159265358979
    Local $x, $y, $iX, $iY, $iWidth, $iHeight
    Local $hMatrix, $iXt, $iYt, $hBrush, $hFormat, $hFamily, $hFont, $tLayout
    If $iAngle = "" Then $iAngle = 0
    If $nFontName = "" Or $nFontName = -1 Then $nFontName = "Arial"
    If $nFontSize = "" Then $nFontSize = 12
    If $iARGB = "" Then
        $iARGB = "0xFF" & Hex(Random(0, 255, 1), 2) & Hex(Random(0, 255, 1), 2) & Hex(Random(0, 255, 1), 2)
    EndIf
    $hFormat = _GDIPlus_StringFormatCreate(0)
    $hFamily = _GDIPlus_FontFamilyCreate($nFontName)
    $hFont = _GDIPlus_FontCreate($hFamily, $nFontSize, 1, 3)
    $tLayout = _GDIPlus_RectFCreate($iCentreX, $iCentreY, 0, 0)
    $aInfo = _GDIPlus_GraphicsMeasureString($hGraphic, $nText, $hFont, $tLayout, $hFormat)
    $iWidth = Ceiling(DllStructGetData($aInfo[0], "Width"))
    $iHeight = Ceiling(DllStructGetData($aInfo[0], "Height"))
    If $iAnchor = 0 Then
        $iX = $iCentreX
        $iY = $iCentreY
    Else
        $iX = $iCentreX + (($iWidth - Abs($iHeight * Sin($iAngle * $iPI / 180))) / 2)
        $iY = $iCentreY + (($iHeight + Abs($iWidth * Sin($iAngle * $iPI / 180))) / 2)
    EndIf
    $hMatrix = _GDIPlus_MatrixCreate()
    _GDIPlus_MatrixRotate($hMatrix, $iAngle, 1)
    _GDIPlus_GraphicsSetTransform($hGraphic, $hMatrix)
    $x = ($iWidth / 2) * Cos($iAngle * $iPI / 180) - ($iHeight / 2) * Sin($iAngle * $iPI / 180)
    $y = ($iWidth / 2) * Sin($iAngle * $iPI / 180) + ($iHeight / 2) * Cos($iAngle * $iPI / 180)
    $iXt = ($iX - $x) * Cos($iAngle * $iPI / 180) + ($iY - $y) * Sin($iAngle * $iPI / 180)
    $iYt = -($iX - $x) * Sin($iAngle * $iPI / 180) + ($iY - $y) * Cos($iAngle * $iPI / 180)
    $hBrush = _GDIPlus_BrushCreateSolid($iARGB)
    $tLayout = _GDIPlus_RectFCreate($iXt, $iYt, $iWidth, $iHeight)
    _GDIPlus_GraphicsDrawStringEx($hGraphic, $nText, $hFont, $tLayout, $hFormat, $hBrush)
    _GDIPlus_MatrixDispose($hMatrix)
    _GDIPlus_FontDispose($hFont)
    _GDIPlus_FontFamilyDispose($hFamily)
    _GDIPlus_StringFormatDispose($hFormat)
    _GDIPlus_BrushDispose($hBrush)
    $tLayout = ""
    Return 1
EndFunc  ;==>GDIPlus_SetAngledText
Edited by Andreik

When the words fail... music speaks
