Mordanthanus

Running an EXE inside your AutoIt GUI

Recommended Posts

Mordanthanus

What I'm wanting to do is gonna sound pretty strange. I play a game called Wonderland Online. Usually while playing, I will have between 3-4 instances of the game going at the same time, each instance running a different character. Also, I will have open another program that I wrote in AutoIt that helps me figure out what I need to manufacture a certain item. The running game is an 800x600 window, and I have all 5 of these windows open at once, where I am constantly moving things around, minimizing and maximizing. Now to my idea...

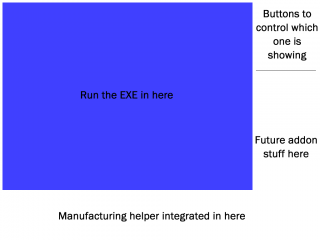

I want to create a GUI that would basically be a frame for the game. Creating a GUI is not hard, but this is the first time I have tried to get an external EXE to basically run inside of my program. Is this even possible? And if so, I would imagine I could run multiple EXEs and flip between them inside my GUI. I could integrate my manufacturing program into the frame, as well as control which instance of the game is visible inside the frame.

Thanks in advance for any help with this question. (And for any of you who love anime 2D games, this one is fun... hehehe)



˙˙˙ʎɐqǝ uo pɹɐoqʎǝʞ ɐ ʎnq ı ǝɯıʇ ʇsɐן

Share this post


Link to post
Share on other sites
Richard Robertson

Windowing just doesn't work that way.

You'd be better off hiding windows and switching which one you show.

Share this post


Link to post
Share on other sites
Mordanthanus

What about making the blue area in my example into a GUI element that could be set to transparent, and have the game app show through it? Or have my script keep the game app on top and always in the same location on top of my frame...


˙˙˙ʎɐqǝ uo pɹɐoqʎǝʞ ɐ ʎnq ı ǝɯıʇ ʇsɐן

Share this post


Link to post
Share on other sites
Richard Robertson

That would work but would look awful silly.

Share this post


Link to post
Share on other sites
Mordanthanus

Hence my wanting to run it INSIDE my app... lol Like a child window or something.


˙˙˙ʎɐqǝ uo pɹɐoqʎǝʞ ɐ ʎnq ı ǝɯıʇ ʇsɐן

Share this post


Link to post
Share on other sites
Richard Robertson

Having a parent window that belongs to another process is just not the way it works.

Share this post


Link to post
Share on other sites
Mordanthanus

I wonder if this would work as a better idea...

Basically, it would be three separate programs running on the screen... The game app running in the top left corner, the "controller program" running along the left side of the screen and the manufacturing app at the bottom, same as my layout except that the controller program keeps everything laid out where it should be on the screen. By clicking a button in the controller, it woul automatically minimize the current game window and bring up the one selected.


˙˙˙ʎɐqǝ uo pɹɐoqʎǝʞ ɐ ʎnq ı ǝɯıʇ ʇsɐן

Share this post


Link to post
Share on other sites
Mordanthanus

The only problem I see with this idea it that all of the instances of the game app would have the same title bar text... no way to differentiate between instances...


˙˙˙ʎɐqǝ uo pɹɐoqʎǝʞ ɐ ʎnq ı ǝɯıʇ ʇsɐן

Share this post


Link to post
Share on other sites
Valuater

That is exactly what "Welcome to Autoit 1-2-3 does. It runs others programs inside its main window.

here is an example from XSkin...

Posted Image

#include <GUIConstants.au3>
#include <XSkin.au3>
#include <XSkinShell.au3>
#include <XSkinGradient.au3>

Dim $loop, $Myrunner

; folder of skin
$Skin_Folder = @ScriptDir & "\Skins\Universal"

$XSkinGui = XSkinGUICreate ( "My GUI", 400, 450, $Skin_Folder)

$Icon_Folder = @ScriptDir & "\Skins\Default"
$XIcon = XSkinIcon ($XSkinGui, 1)

$Button_1 = XSkinButton ("ReSize a Program", 130, 130, 120, 30, "CallResize") ; mouse-over color automatic
GUICtrlSetTip($Button_1, "Some programs will need to be re-sized")
$Button_2 = XSkinButton ("Run - Notepad", 130, 165, 120, 30, "CallRun") ; mouse-over color automatic
$Button_3 = XSkinButton ("Explore - Internet", 130, 200, 120, 30, "CallInternet") ; mouse-over color automatic
$Button_4 = XSkinButton ("Explore - Hard Drive", 130, 235, 120, 30, "CallHardDrive") ; mouse-over color automatic
$Button_5 = XSkinIconButton ("Exit", 130, 270, 120, 30, 240) ; Icon button - No mouse-over color

;_XSkinGradient($XSkinGui, $bkg_color, $btn_color)

GUISetState()

While 1
    MouseOver ()
    $msg = GUIGetMsg()

    If $msg = $XIcon[1]Or $msg = $Button_5 Then Exit

    If $loop Then CheckWindow()
WEnd

Func CallResize()
    ;; XSkinReSize( $XRS_Program, $XSR_Width, $XSR_Height)
    ;; some programs may need to be resized
    XSkinReSize ( "notepad.exe", 500, 400)
EndFunc   ;==>CallResize

Func CallRun()
    ;; XSkinRun( $XR_Title, $XR_Program)
    $Myrunner = XSkinRun ("My Notepad", "notepad.exe")
    $loop = 1
EndFunc   ;==>CallRun

Func CallInternet()
    ;; XSkinExplore( $XSI_Title, $XSI_Location, $XSI_Width, $XSI_Height)
    $Myrunner = XSkinExplore ( "My Internet", "http://www.autoitscript.com/forum/index.php?showtopic=32494", 720, 600)
    $loop = 1
EndFunc   ;==>CallInternet

Func CallHardDrive()
    ;; XSkinExplore( $XSI_Title, $XSI_Location, $XSI_Width, $XSI_Height)
    $Myrunner = XSkinExplore ( "My Programs", @ScriptDir, 600, 500)
    $loop = 1
EndFunc   ;==>CallHardDrive

Func CheckWindow()
    While WinExists($Myrunner[0]) And WinExists($Myrunner[1])
        $XRM_msg = GUIGetMsg()
        If $XRM_msg = $Myrunner[2]Then ExitLoop ; exit button on parent
    WEnd
    WinClose($Myrunner[1]) ; the executed program
    GUIDelete($Myrunner[0]) ; the "parent" XSkin
    $loop = 0
EndFunc   ;==>CheckWindow

**** NOTE THE REQUIRED INCLUDES ***



Share this post


Link to post
Share on other sites
Mordanthanus

That looks like a great addon for AutoIt Val... I have clicked through the links in your sig checking it out, but I cannot find a place to download all of the required includes.


˙˙˙ʎɐqǝ uo pɹɐoqʎǝʞ ɐ ʎnq ı ǝɯıʇ ʇsɐן

Share this post


Link to post
Share on other sites
Valuater

I have just noticed that many things are missing since the move to this forum!

XSkin.au3 is there in Example scripts. XSkinGradient is NOT required.

Here is XSkinShell.au3

; Ver 1.1.0 Autoit Ver v3.2.12.0 5/22/2008 - Requires XSkin.au3

#include <GUIConstantsEx.au3>
#include-once
#include <XSkin.au3>
;Opt("MustDeclareVars", 1)

Func XSkinReSize($XRS_Program, $XSR_Width, $XSR_Height)
    Local $XSPID, $XhWnd = 0, $XstPID = DllStructCreate("int"), $XSWinList, $XSdll, $XPID
    $XSPID = Run($XRS_Program, '', @SW_HIDE)
    Do
        $XSWinList = WinList()
        For $i = 1 To $XSWinList[0][0]
            If $XSWinList[$i][0] <> "" Then
                DllCall("user32.dll", "int", "GetWindowThreadProcessId", "hwnd", $XSWinList[$i][1], "ptr", DllStructGetPtr($XstPID))
                If DllStructGetData($XstPID, 1) = $XSPID Then
                    $XhWnd = $XSWinList[$i][1]
                    ExitLoop
                EndIf
            EndIf
        Next
        Sleep(20)
    Until $XhWnd <> 0
    $XSdll = ""
    $XstPID = 0
    If $XhWnd <> 0 Then
        WinMove($XhWnd, "", 200, 200, $XSR_Width, $XSR_Height)
        Sleep(100)
        WinClose($XhWnd)
    EndIf
EndFunc   ;==>XSkinReSize

Func XSkinRun($XR_Title, $XR_Program = "") ; thanks holger
    If $XR_Program = "" Then Return
    Local $XhWnd = 0, $XstPID = DllStructCreate("int"), $XSWinList, $XhWinSize, $XSdll, $XPID, $XPID2, $XR_Ret[3], $Xh_ret, $oxStyle, $ostyle
    $XPID = Run($XR_Program, '', @SW_HIDE)
    Do
        $XSWinList = WinList()
        For $i = 1 To $XSWinList[0][0]
            If $XSWinList[$i][0] <> "" Then
                DllCall("user32.dll", "int", "GetWindowThreadProcessId", "hwnd", $XSWinList[$i][1], "ptr", DllStructGetPtr($XstPID))
                If DllStructGetData($XstPID, 1) = $XPID Then
                    $XhWnd = $XSWinList[$i][1]
                    ExitLoop
                EndIf
            EndIf
        Next
        Sleep(20)
    Until $XhWnd <> 0
    $XSdll = ""
    $XstPID = 0
    If $XhWnd <> 0 Then
        $XhWinSize = WinGetPos($XhWnd)
        $XPID2 = XSkinGUICreate ( $XR_Title, ($XhWinSize[2]) + ($tile_size * 2) , ($XhWinSize[3]) + ($tile_size * 2), $Skin_Folder)
        If FileExists($Icon_Folder) Then $Xh_ret = XSkinIcon ($XPID2)
        $oxStyle = DllCall("user32.dll", "int", "GetWindowLong", "hwnd", $XPID2, "int", -16)
        DllCall("user32.dll", "long", "SetWindowLong", "hwnd", $XPID2, "int", -16, "long", BitOR($oxStyle[0], $WS_CLIPCHILDREN))
        $ostyle = DllCall("user32.dll", "long", "GetWindowLong", "hwnd", $XhWnd, "int", -16)
        DllCall("user32.dll", "int", "SetParent", "hwnd", $XhWnd, "hwnd", $XPID2)
        DllCall("user32.dll", "long", "SetWindowLong", "hwnd", $XhWnd, "int", -16, "long", BitOR($WS_POPUP, $WS_CHILD, $WS_VISIBLE, $WS_CLIPSIBLINGS))
        GUISetState()
        WinMove($XhWnd, "", $tile_size, $tile_size)
        WinSetState($XhWnd, "", @SW_SHOW)
        WinActivate($XhWnd)
        $XR_Ret[0] = $XPID2
        $XR_Ret[1] = $XhWnd
        $XR_Ret[2] = $Xh_ret[1]
        Return $XR_Ret
    EndIf
EndFunc   ;==>XSkinRun

Func XSkinExplore($XSI_Title, $XSI_Location, $XSI_Width, $XSI_Height)
    Local $oXIE, $XSI_Ret[3], $XSI_but, $XSI_gui, $oXActiveX
    $oXIE = ObjCreate("Shell.Explorer.2")
    $XSI_gui = XSkinGUICreate ($XSI_Title, $XSI_Width + ($tile_size * 2), $XSI_Height + ($tile_size * 2), $Skin_Folder)
    If FileExists($Icon_Folder) Then $XSI_but = XSkinIcon ($XSI_gui)
    $oXActiveX = GUICtrlCreateObj($oXIE, $tile_size, $tile_size, $XSI_Width, $XSI_Height)
    $oXIE.navigate ($XSI_Location)
    GUISetState()
    $XSI_Ret[1] = $XSI_Ret[0]
    $XSI_Ret[2] = $XSI_but[1]
    Return $XSI_Ret
EndFunc   ;==>XSkinExplore

8)



Share this post


Link to post
Share on other sites
Mordanthanus

The XSkinShell was what I was looking for... I went out and got the skins and such. I run the script and it works - but when I click anything in it, it opens something else for a sec, then closes. Here is the error.

>"C:\Program Files (x86)\AutoIt3\SciTE\AutoIt3Wrapper\AutoIt3Wrapper.exe" /run /prod /ErrorStdOut /in "C:\Users\Mordanthanus\Documents\AutoIt Scripts\Test1.au3" /autoit3dir "C:\Program Files (x86)\AutoIt3" /UserParams
+>14:43:45 Starting AutoIt3Wrapper v.2.0.0.1    Environment(Language:0409  Keyboard:00000409  OS:WIN_VISTA/  CPU:X64 OS:X64)
>Running AU3Check (1.54.14.0)  from:C:\Program Files (x86)\AutoIt3
+>14:43:45 AU3Check ended.rc:0
>Running:(3.3.0.0):C:\Program Files (x86)\AutoIt3\autoit3_x64.exe "C:\Users\Mordanthanus\Documents\AutoIt Scripts\Test1.au3"
C:\Users\Mordanthanus\Documents\AutoIt Scripts\XSkinShell.au3 (68) : ==> Subscript used with non-Array variable.:
$XR_Ret[2] = $Xh_ret[1]
$XR_Ret[2] = $Xh_ret^ ERROR
->14:43:47 AutoIT3.exe ended.rc:1
+>14:43:48 AutoIt3Wrapper Finished
>Exit code: 1    Time: 3.306

˙˙˙ʎɐqǝ uo pɹɐoqʎǝʞ ɐ ʎnq ı ǝɯıʇ ʇsɐן

Share this post


Link to post
Share on other sites
Mordanthanus

I found the line in XSkinShell and commented it out, but then it doesn't work at all... lol


˙˙˙ʎɐqǝ uo pɹɐoqʎǝʞ ɐ ʎnq ı ǝɯıʇ ʇsɐן

Share this post


Link to post
Share on other sites
Mordanthanus

I found the DIMed variables in XSkin.au3... but that var isn't one of them. I must be using an older version of this file. Could you also post this one as well?

The one I have has this at the top...

; XSkin.au3 v1.4.1 Jan. 22, 2009
; ,,,, Valuater

and here is the declared vars...

;Opt("MustDeclareVars", 1)
Dim $CtrlIDA[1], $CtrlIDB[1], $CtrlIDC[1], $CtrlIDMA[3], $CtrlIDMB[3], $XS_gui[1], $Skin_Folder, $Icon_Folder, $iLoop, $XS_debug = 0
Dim $over_color, $btn_color, $bkg_color, $fnt_color, $tile_size, $XS_TMB, $XS_TMA, $SKBox_[2], $XSkinID[1]
Dim $XSolid = 1, $XSlid = 1, $XSlid1, $XSlid2, $XSlid3, $XSlpr, $XS_Isize, $XS_Istyle, $XadjLt, $XadjDn, $XStrans = 200
Dim $GlobalHeader, $GlobalCorners, $Globalcolor, $CtrlButton[1][4]

I tried to add it, but gives the same error.

Edited by Mordanthanus

˙˙˙ʎɐqǝ uo pɹɐoqʎǝʞ ɐ ʎnq ı ǝɯıʇ ʇsɐן

Share this post


Link to post
Share on other sites
Valuater

I am on Win XP sp3. I noticed you have "C:\Program Files (x86)". Maybe a problem there with your OS

This worked for me....

#include <GUIConstantsEx.au3>
#include <XSkin.au3>
;#include <XSkinShell.au3>

Dim $loop, $Myrunner

; folder of skin
$Skin_Folder = @ScriptDir & "\Skins\Universal"

$XSkinGui = XSkinGUICreate ( "My GUI", 400, 450, $Skin_Folder)

$Icon_Folder = @ScriptDir & "\Skins\Default"
$XIcon = XSkinIcon ($XSkinGui, 1)

$Button_1 = XSkinButton ("ReSize a Program", 130, 130, 120, 30, "CallResize") ; mouse-over color automatic
GUICtrlSetTip($Button_1, "Some programs will need to be re-sized")
$Button_2 = XSkinButton ("Run - Notepad", 130, 165, 120, 30, "CallRun") ; mouse-over color automatic
$Button_3 = XSkinButton ("Explore - Internet", 130, 200, 120, 30, "CallInternet") ; mouse-over color automatic
$Button_4 = XSkinButton ("Explore - Hard Drive", 130, 235, 120, 30, "CallHardDrive") ; mouse-over color automatic
$Button_5 = XSkinIconButton ("Exit", 130, 270, 120, 30, 240) ; Icon button - No mouse-over color

GUISetState()

While 1
    MouseOver ()
    $msg = GUIGetMsg()

    If $msg = $XIcon[1]Or $msg = $Button_5 Then Exit

    If $loop Then CheckWindow()
WEnd

Func CallResize()
    ;; XSkinReSize( $XRS_Program, $XSR_Width, $XSR_Height)
    ;; some programs may need to be resized
    XSkinReSize ( "notepad.exe", 400, 400)
EndFunc   ;==>CallResize

Func CallRun()
    ;; XSkinRun( $XR_Title, $XR_Program)
    $Myrunner = XSkinRun ("My Notepad", "notepad.exe")
    $loop = 1
EndFunc   ;==>CallRun

Func CallInternet()
    ;; XSkinExplore( $XSI_Title, $XSI_Location, $XSI_Width, $XSI_Height)
    $Myrunner = XSkinExplore ( "My Internet", "http://www.autoitscript.com/forum/index.php?showtopic=32494", 720, 600)
    $loop = 1
EndFunc   ;==>CallInternet

Func CallHardDrive()
    ;; XSkinExplore( $XSI_Title, $XSI_Location, $XSI_Width, $XSI_Height)
    $Myrunner = XSkinExplore ( "My Programs", @ScriptDir, 600, 500)
    $loop = 1
EndFunc   ;==>CallHardDrive

Func CheckWindow()
    While WinExists($Myrunner[0]) And WinExists($Myrunner[1])
        $XRM_msg = GUIGetMsg()
        If $XRM_msg = $Myrunner[2]Then ExitLoop ; exit button on parent
    WEnd
    WinClose($Myrunner[1]) ; the executed program
    GUIDelete($Myrunner[0]) ; the "parent" XSkin
    $loop = 0
EndFunc

;~ ; XSkinShell**************

; Ver 1.1.0 Autoit Ver v3.2.12.0 5/22/2008 - Requires XSkin.au3

;#include <GUIConstantsEx.au3>
;#include-once
;#include <XSkin.au3>
;Opt("MustDeclareVars", 1)

Func XSkinReSize($XRS_Program, $XSR_Width, $XSR_Height)
    Local $XSPID, $XhWnd = 0, $XstPID = DllStructCreate("int"), $XSWinList, $XSdll, $XPID
    $XSPID = Run($XRS_Program, '', @SW_HIDE)
    Do
        $XSWinList = WinList()
        For $i = 1 To $XSWinList[0][0]
            If $XSWinList[$i][0] <> "" Then
                DllCall("user32.dll", "int", "GetWindowThreadProcessId", "hwnd", $XSWinList[$i][1], "ptr", DllStructGetPtr($XstPID))
                If DllStructGetData($XstPID, 1) = $XSPID Then
                    $XhWnd = $XSWinList[$i][1]
                    ExitLoop
                EndIf
            EndIf
        Next
        Sleep(20)
    Until $XhWnd <> 0
    $XSdll = ""
    $XstPID = 0
    If $XhWnd <> 0 Then
        WinMove($XhWnd, "", 200, 200, $XSR_Width, $XSR_Height)
        Sleep(100)
        WinClose($XhWnd)
    EndIf
EndFunc   ;==>XSkinReSize

Func XSkinRun($XR_Title, $XR_Program = "") ; thanks holger
    If $XR_Program = "" Then Return
    Local $XhWnd = 0, $XstPID = DllStructCreate("int"), $XSWinList, $XhWinSize, $XSdll, $XPID, $XPID2, $XR_Ret[3], $Xh_ret, $oxStyle, $ostyle
    $XPID = Run($XR_Program, '', @SW_HIDE)
    Do
        $XSWinList = WinList()
        For $i = 1 To $XSWinList[0][0]
            If $XSWinList[$i][0] <> "" Then
                DllCall("user32.dll", "int", "GetWindowThreadProcessId", "hwnd", $XSWinList[$i][1], "ptr", DllStructGetPtr($XstPID))
                If DllStructGetData($XstPID, 1) = $XPID Then
                    $XhWnd = $XSWinList[$i][1]
                    ExitLoop
                EndIf
            EndIf
        Next
        Sleep(20)
    Until $XhWnd <> 0
    $XSdll = ""
    $XstPID = 0
    If $XhWnd <> 0 Then
        $XhWinSize = WinGetPos($XhWnd)
        $XPID2 = XSkinGUICreate ( $XR_Title, ($XhWinSize[2]) + ($tile_size * 2) , ($XhWinSize[3]) + ($tile_size * 2), $Skin_Folder)
        If FileExists($Icon_Folder) Then $Xh_ret = XSkinIcon ($XPID2)
        $oxStyle = DllCall("user32.dll", "int", "GetWindowLong", "hwnd", $XPID2, "int", -16)
        DllCall("user32.dll", "long", "SetWindowLong", "hwnd", $XPID2, "int", -16, "long", BitOR($oxStyle[0], $WS_CLIPCHILDREN))
        $ostyle = DllCall("user32.dll", "long", "GetWindowLong", "hwnd", $XhWnd, "int", -16)
        DllCall("user32.dll", "int", "SetParent", "hwnd", $XhWnd, "hwnd", $XPID2)
        DllCall("user32.dll", "long", "SetWindowLong", "hwnd", $XhWnd, "int", -16, "long", BitOR($WS_POPUP, $WS_CHILD, $WS_VISIBLE, $WS_CLIPSIBLINGS))
        GUISetState()
        WinMove($XhWnd, "", $tile_size, $tile_size)
        WinSetState($XhWnd, "", @SW_SHOW)
        WinActivate($XhWnd)
        $XR_Ret[0] = $XPID2
        $XR_Ret[1] = $XhWnd
        $XR_Ret[2] = $Xh_ret[1]
        Return $XR_Ret
    EndIf
EndFunc   ;==>XSkinRun

Func XSkinExplore($XSI_Title, $XSI_Location, $XSI_Width, $XSI_Height)
    Local $oXIE, $XSI_Ret[3], $XSI_but, $XSI_gui, $oXActiveX
    $oXIE = ObjCreate("Shell.Explorer.2")
    $XSI_gui = XSkinGUICreate ($XSI_Title, $XSI_Width + ($tile_size * 2), $XSI_Height + ($tile_size * 2), $Skin_Folder)
    If FileExists($Icon_Folder) Then $XSI_but = XSkinIcon ($XSI_gui)
    $oXActiveX = GUICtrlCreateObj($oXIE, $tile_size, $tile_size, $XSI_Width, $XSI_Height)
    $oXIE.navigate ($XSI_Location)
    GUISetState()
    $XSI_Ret[1] = $XSI_Ret[0]
    $XSI_Ret[2] = $XSI_but[1]
    Return $XSI_Ret
EndFunc   ;==>XSkinExplore


Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
Sign in to follow this

×
