Regency

Website goes white while reloaded in GUI

6 posts in this topic

So I wrote it and it "works" but the pages get whited out after i hit my "reload" button, see code,

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <IE.au3>
$oIE = ObjCreate("Shell.Explorer.2")
$oIE2 = ObjCreate("Shell.Explorer.2")
$T = GUICreate("TMN Status Bar", 870, 250, _
        (@DesktopWidth - 640) / 2, (@DesktopHeight - 580) / 2, $WS_OVERLAPPEDWINDOW + $WS_VISIBLE + $WS_CLIPSIBLINGS + $WS_EX_TOPMOST)
$GUIActiveX = GUICtrlCreateObj($oIE, 0, 0, 890, 50)
$GUIActiveX = GUICtrlCreateObj($oIE2, 40, 50, 800, 200)
$Reload = GUICtrlCreateButton("Reload", 0, 50, 40, 30, 0)
GUISetState(@SW_SHOWNOACTIVATE, $T) ;Show GUI
$oIE.navigate("tmnx.net/authenticated/userinfo.aspx")
$oIE2.navigate("tmnx.net/authenticated/rankbar.aspx")


While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit
        Case $Reload
            $oIE.navigate("tmnx.net/authenticated/userinfo.aspx")
            $oIE2.navigate("tmnx.net/authenticated/rankbar.aspx")
    EndSwitch

WEnd

GUIDelete()

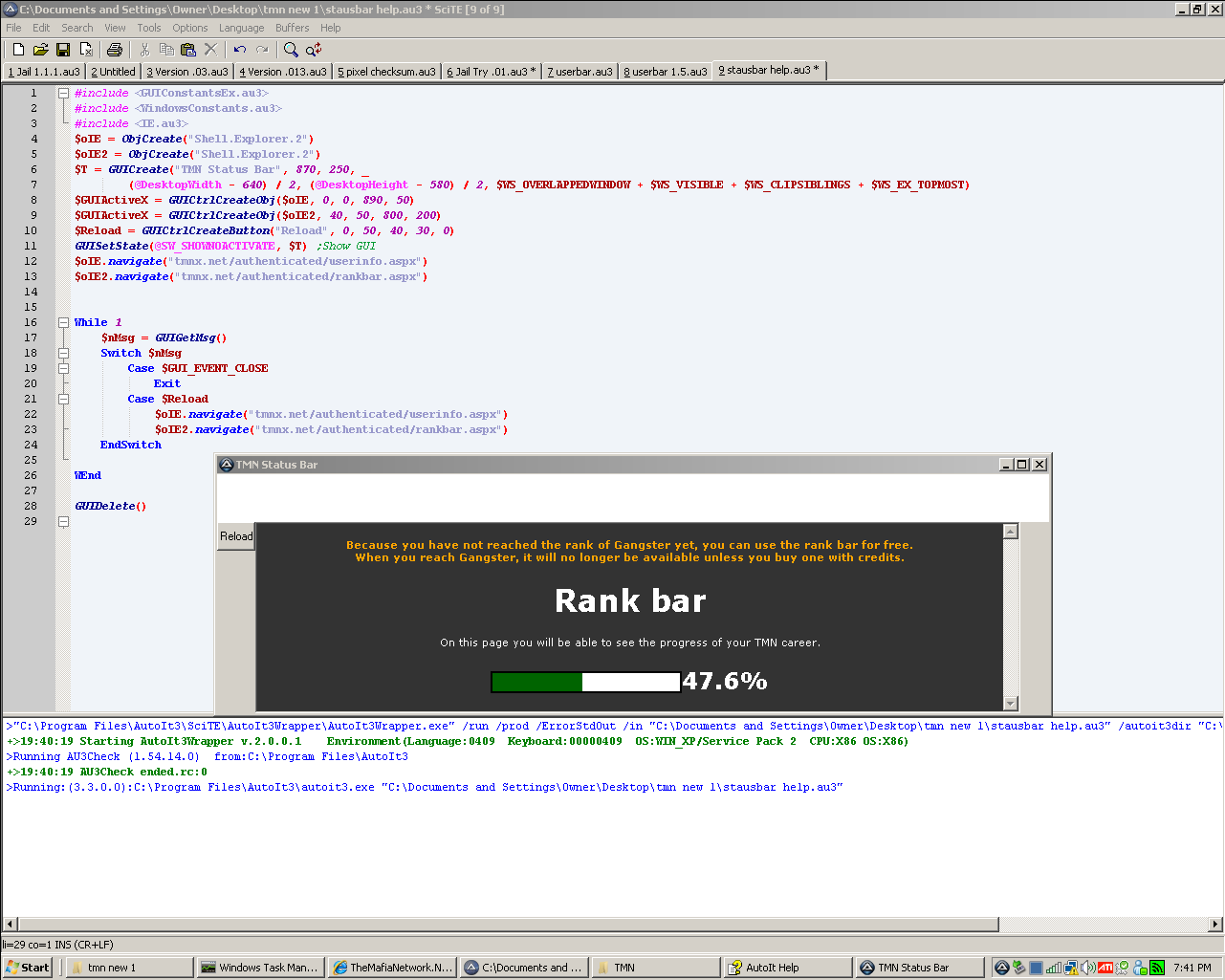

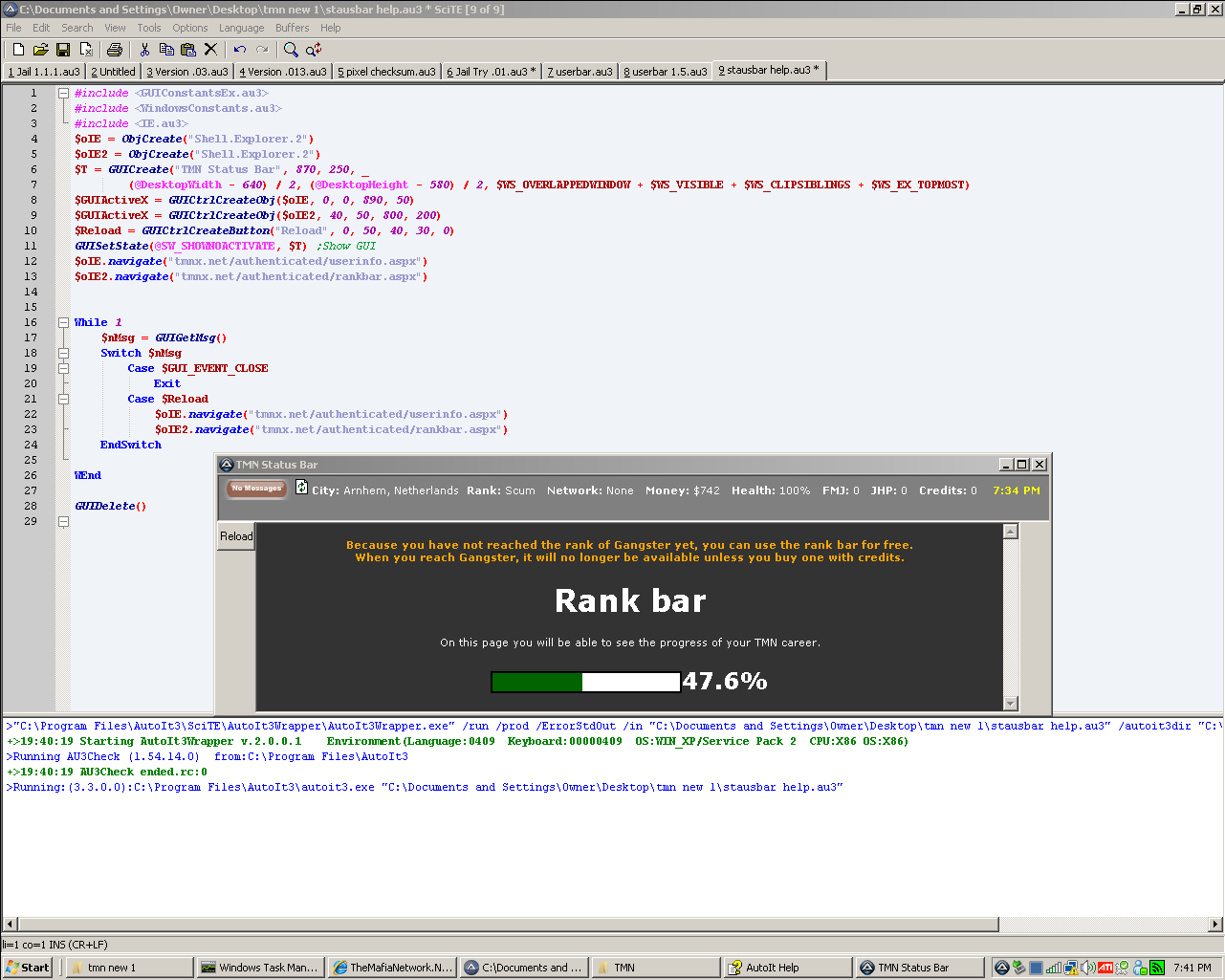

First image where there is no white bar at top is how it looks normally when first open, then after i hit my "reload" button, the script makes the top and or the bottom white, its still there, i can highlight it, but its white.. anyone got any ides why and or a fix?



Share this post


Link to post
Share on other sites



$T = GUICreate("TMN Status Bar", 870, 250, _
        (@DesktopWidth - 640) / 2, (@DesktopHeight - 580) / 2, BitOR($WS_OVERLAPPEDWINDOW, $WS_VISIBLE, $WS_CLIPSIBLINGS), $WS_EX_TOPMOST)

Summing and ORing usually results in the expected behavior but 0x101 + 0x001 (0x110 = 6) is not the same as BitOR(0x101, 0x001) (0x101 = 5). Also the $WS_EX_TOPMOST flag should go to the extended parameter of the function. Hope it solves the problem.

Share this post


Link to post
Share on other sites

I dont understand fully what you mean, can you explain further?

Share this post


Link to post
Share on other sites

1st... Notice

$WS_OVERLAPPEDWINDOW + $WS_VISIBLE + $WS_CLIPSIBLINGS + $WS_EX_TOPMOST

The $WS_EX... is typically for the "extended" style

2nd... If you wrote that code, you should understand most of what he said

3rd... Sometimes I just "do what he says" cause it works. Then I can go on to the next problem

8)



Share this post


Link to post
Share on other sites

I did write this, but i had help from someone who helped me work out how to create a ie window within a gui. so i am working with what i understood from when we create it.

So when i took out the $WS_EX_TOPMOST, i got a error and it wouldnt load..

>Running:(3.3.0.0):C:\Program Files\AutoIt3\autoit3.exe "D:\TMN\userbar 1.5.au3"
C:\Program Files\AutoIt3\Include\IE.au3 (1150) : ==> The requested action with this object has failed.:
SetExtended($oTemp.images.length)
SetExtended($oTemp.images^ ERROR
->20:42:06 AutoIT3.exe ended.rc:1
+>20:42:07 AutoIt3Wrapper Finished
>Exit code: 1    Time: 1.968

I dunno what to do, i am trying to understand how and why he wrote it this way, and when we worked on it, it was about 3 months ago. I am sorry i dont know alot, but the person who helped knew what he was doing and gave me a head start..

Share this post


Link to post
Share on other sites

I think that this error has nothing to do with the extended style. $WS_EX_TOPMOST is an extended style value so it should go to the parameter that expects it. Read the GUICreate() function description. Also, read the _IECreateEmbedded() function description and remarks, this object doesn't support what internetexplorer.application support, so it might be the case.

Share this post


Link to post
Share on other sites
