GMib

HTMLayout Gui exemple

Recommended Posts

GMib

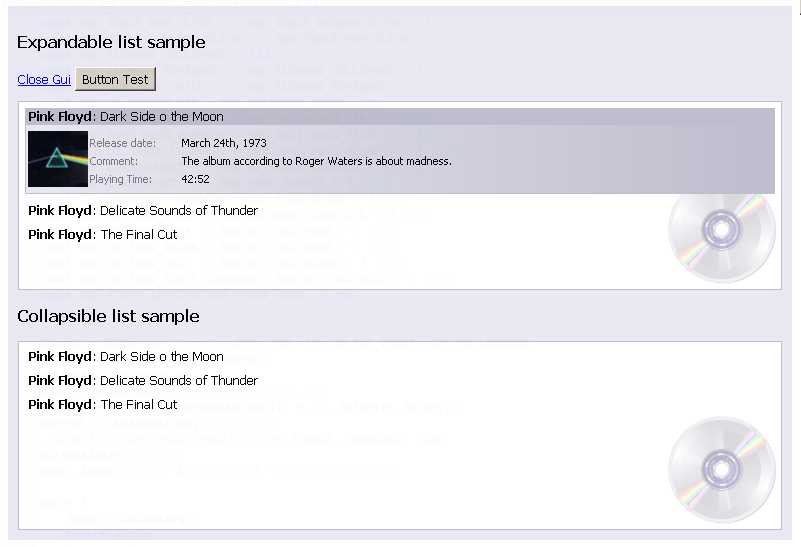

This is an example of embedded HTMLayout activex.

Download HTMLayout SDK and register \bin\AxHTMLayout.dll before run example


#include <WinAPI.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
$oMyError = ObjEvent("AutoIt.Error","MyErrFunc")

const $BE_BUTTON_CLICK  = 0
const $BE_BUTTON_PRESS  = 1
const $BE_BUTTON_STATE_CHANGED  = 2
const $BE_EDIT_VALUE_CHANGING   = 3
const $BE_EDIT_VALUE_CHANGED    = 4
const $BE_SELECT_SELECTION_CHANGED  = 5
const $BE_SELECT_STATE_CHANGED  = 6
const $BE_POPUP_REQUEST = 7
const $BE_POPUP_READY   = 8
const $BE_POPUP_DISMISSED   = 9
const $BE_MENU_ITEM_ACTIVE  = 10
const $BE_MENU_ITEM_CLICK   = 11
const $BE_CONTEXT_MENU_SETUP    = 15
const $BE_CONTEXT_MENU_REQUEST  = 16
const $BE_VISIUAL_STATUS_CHANGED    = 17
const $BE_HYPERLINK_CLICK   = 128
const $BE_TABLE_HEADER_CLICK = $BE_HYPERLINK_CLICK + 1  ;129
const $BE_TABLE_ROW_CLICK   = $BE_TABLE_HEADER_CLICK + 1 ;130
const $BE_TABLE_ROW_DBL_CLICK   = $BE_TABLE_ROW_CLICK + 1 ;131
const $BE_ELEMENT_COLLAPSED = 144
const $BE_ELEMENT_EXPANDED  = $BE_ELEMENT_COLLAPSED + 1 ;145
const $BE_ACTIVATE_CHILD    = $BE_ELEMENT_EXPANDED + 1 ;146
const $BE_DO_SWITCH_TAB = $BE_ACTIVATE_CHILD ;146
const $BE_INIT_DATA_VIEW    = $BE_DO_SWITCH_TAB + 1 ;147
const $BE_ROWS_DATA_REQUEST = $BE_INIT_DATA_VIEW + 1 ;148
const $BE_UI_STATE_CHANGED  = $BE_ROWS_DATA_REQUEST + 1 ;149
const $BE_FORM_SUBMIT   = $BE_UI_STATE_CHANGED + 1 ;150
const $BE_FORM_RESET    = $BE_FORM_SUBMIT + 1 ;151
const $BE_DOCUMENT_COMPLETE = $BE_FORM_RESET + 1 ;152
const $BE_HISTORY_PUSH  = $BE_DOCUMENT_COMPLETE + 1 ;153
const $BE_HISTORY_DROP  = $BE_HISTORY_PUSH + 1 ;154
const $BE_HISTORY_PRIOR = $BE_HISTORY_DROP + 1 ;155
const $BE_HISTORY_NEXT  = $BE_HISTORY_PRIOR + 1 ;156
const $BE_HISTORY_STATE_CHANGED = $BE_HISTORY_NEXT + 1 ;157
const $BE_FIRST_APPLICATION_EVENT_CODE  = 256


$Form1 = GUICreate("Form1", 800, 550, 10, 50,$WS_POPUP, $WS_EX_LAYERED)
$size = WinGetClientSize ($Form1)
GUISetBkColor(0xABCDEF)
$Obj1 = ObjCreate("AxHTMLayout.Engine.1")
$Obj1_ctrl = GUICtrlCreateObj($Obj1, 0, 0, $size[0],$size[1])
$Oevent = ObjEvent($Obj1,"event_")
 _WinAPI_SetLayeredWindowAttributes($Form1, 0xABCDEF, 250)
GUISetState(@SW_SHOW)
$Obj1.Load('file://'&@scriptdir&'\sliding-list.htm')

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit
        Case $GUI_EVENT_SECONDARYUP
            Exit
    EndSwitch
WEnd

func event_onControlEvent($element, $eventtype,$reason,$handled)
    ConsoleWrite($eventtype&@CRLF)
    if $eventtype = $BE_HYPERLINK_CLICK then
        If $element.attribute("id") = "CloseGui" Then Exit
    EndIf
    if $eventtype = $BE_BUTTON_CLICK then
        If $element.attribute("id") = "buttonclick" Then MsgBox("","Button Test","Button Click Event")
    EndIf
    if $eventtype = $BE_ELEMENT_COLLAPSED then
        ConsoleWrite('Collapsed: '&$element.attribute("id")&@CRLF)
    EndIf
    if $eventtype = $BE_ELEMENT_EXPANDED then
        ConsoleWrite('Expanded: '&$element.attribute("id")&@CRLF)
    EndIf

EndFunc
func event_DocumentLoaded()
    $O2event = ObjEvent($Obj1.root,"event_","_IElementEvents")
EndFunc

;This is COM error handler
Func MyErrFunc()
  $HexNumber=hex($oMyError.number,8)
  Consolewrite("We intercepted a COM Error !"       & @CRLF  & @CRLF & _
             "err.description is: "    & @TAB & $oMyError.description    & @CRLF & _
             "err.windescription:"     & @TAB & $oMyError.windescription & @CRLF & _
             "err.number is: "         & @TAB & $HexNumber              & @CRLF & _
             "err.lastdllerror is: "   & @TAB & $oMyError.lastdllerror   & @CRLF & _
             "err.scriptline is: "     & @TAB & $oMyError.scriptline     & @CRLF & _
             "err.source is: "         & @TAB & $oMyError.source         & @CRLF & _
             "err.helpfile is: "       & @TAB & $oMyError.helpfile       & @CRLF & _
             "err.helpcontext is: "    & @TAB & $oMyError.helpcontext _
            )
  SetError(1)  ; to check for after this function returns
Endfunc

Edit: add COM Error handler (suggest of ptrex)

HTMLayout.zip

Edited by GMib

Share this post


Link to post
Share on other sites
zackrspv

This is an example of embedded HTMLayout activex.

Download HTMLayout SDK and register \bin\AxHTMLayout.dll before run example

This is a very nice find. Not only is the licence 100% for commercial and private use, but the functionality is wonderful. I'm going to be using this in one of my xmpp servers shortly.

The most appealing thing about this particular COM object is that you can script web events and capture the events in autoit. So, if you have an accordian, like slider (in csss), for example, to give you a menu like outlook has, you can respond to events, etc, inside of autoit as you would on a website.

I'm stoked. To be able to capture web events like that in autoit, without having to do anything msssively conpples, and still be able to use the HTML dom to control and edit information inside of the viewer? Awesome.

Good job finding this one.


-_-------__--_-_-____---_-_--_-__-__-_ ^^€ñ†®øÞÿ ë×阮§ wï†høµ† ƒë@®, wï†høµ† †ïmë, @ñd wï†høµ† @ †ïmïdï†ÿ ƒø® !ïƒë. €×阮 ñø†, bµ† ïñ§†ë@d wï†hïñ, ñ@ÿ, †h®øµghøµ† †hë 맧ëñ§ë øƒ !ïƒë.

Share this post


Link to post
Share on other sites
JRSmile

im not able to do a regsvr32.exe AxHTMLayout.dll or htmlayout.dll, how do i get this com object then?

if not registered, the example crashes with:

$Obj1.Load('file://'&@scriptdir&'\sliding-list.htm')

$Obj1^ ERROR

of course...

after some tweaking here moving there i finally managed to register the dll.....

Very nice find indeet, will use it a lot in the future.

Edited by JRSmile

$a=StringSplit("547275737420796F757220546563686E6F6C75737421","")For $b=1 To UBound($a)+(-1*-1*-1)step(2^4/8);&$b+=1*2/40*µ&Asc(4)Assign("c",Eval("c")&Chr(Dec($a[$b]&$a[$b+1])))''Chr("a")&"HI"Next;time_U&r34d,ths,U-may=get$the&c.l.u.e;b3st-regards,JRSmile;MsgBox(0x000000,"",Eval("c"));PiEs:d0nt+*b3.s4d.4ft3r.1st-try:-)

Share this post


Link to post
Share on other sites
JohnnyThrash

This is an example of embedded HTMLayout activex.

Download HTMLayout SDK and register \bin\AxHTMLayout.dll before run example


#include <WinAPI.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>

const $BE_BUTTON_CLICK  = 0
const $BE_BUTTON_PRESS  = 1
const $BE_BUTTON_STATE_CHANGED  = 2
const $BE_EDIT_VALUE_CHANGING   = 3
const $BE_EDIT_VALUE_CHANGED    = 4
const $BE_SELECT_SELECTION_CHANGED  = 5
const $BE_SELECT_STATE_CHANGED  = 6
const $BE_POPUP_REQUEST = 7
const $BE_POPUP_READY   = 8
const $BE_POPUP_DISMISSED   = 9
const $BE_MENU_ITEM_ACTIVE  = 10
const $BE_MENU_ITEM_CLICK   = 11
const $BE_CONTEXT_MENU_SETUP    = 15
const $BE_CONTEXT_MENU_REQUEST  = 16
const $BE_VISIUAL_STATUS_CHANGED    = 17
const $BE_HYPERLINK_CLICK   = 128
const $BE_TABLE_HEADER_CLICK = $BE_HYPERLINK_CLICK + 1  ;129
const $BE_TABLE_ROW_CLICK   = $BE_TABLE_HEADER_CLICK + 1 ;130
const $BE_TABLE_ROW_DBL_CLICK   = $BE_TABLE_ROW_CLICK + 1 ;131
const $BE_ELEMENT_COLLAPSED = 144
const $BE_ELEMENT_EXPANDED  = $BE_ELEMENT_COLLAPSED + 1 ;145
const $BE_ACTIVATE_CHILD    = $BE_ELEMENT_EXPANDED + 1 ;146
const $BE_DO_SWITCH_TAB = $BE_ACTIVATE_CHILD ;146
const $BE_INIT_DATA_VIEW    = $BE_DO_SWITCH_TAB + 1 ;147
const $BE_ROWS_DATA_REQUEST = $BE_INIT_DATA_VIEW + 1 ;148
const $BE_UI_STATE_CHANGED  = $BE_ROWS_DATA_REQUEST + 1 ;149
const $BE_FORM_SUBMIT   = $BE_UI_STATE_CHANGED + 1 ;150
const $BE_FORM_RESET    = $BE_FORM_SUBMIT + 1 ;151
const $BE_DOCUMENT_COMPLETE = $BE_FORM_RESET + 1 ;152
const $BE_HISTORY_PUSH  = $BE_DOCUMENT_COMPLETE + 1 ;153
const $BE_HISTORY_DROP  = $BE_HISTORY_PUSH + 1 ;154
const $BE_HISTORY_PRIOR = $BE_HISTORY_DROP + 1 ;155
const $BE_HISTORY_NEXT  = $BE_HISTORY_PRIOR + 1 ;156
const $BE_HISTORY_STATE_CHANGED = $BE_HISTORY_NEXT + 1 ;157
const $BE_FIRST_APPLICATION_EVENT_CODE  = 256


$Form1 = GUICreate("Form1", 800, 550, 10, 50,$WS_POPUP, $WS_EX_LAYERED)
$size = WinGetClientSize ($Form1)
GUISetBkColor(0xABCDEF)
$Obj1 = ObjCreate("AxHTMLayout.Engine.1")
$Obj1_ctrl = GUICtrlCreateObj($Obj1, 0, 0, $size[0],$size[1])
$Oevent = ObjEvent($Obj1,"event_")
 _WinAPI_SetLayeredWindowAttributes($Form1, 0xABCDEF, 250)
GUISetState(@SW_SHOW)
$Obj1.Load('file://'&@scriptdir&'\sliding-list.htm')

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit
        Case $GUI_EVENT_SECONDARYUP
            Exit
    EndSwitch
WEnd

func event_onControlEvent($element, $eventtype,$reason,$handled)
    ConsoleWrite($eventtype&@CRLF)
    if $eventtype = $BE_HYPERLINK_CLICK then
        If $element.attribute("id") = "CloseGui" Then Exit
    EndIf
    if $eventtype = $BE_BUTTON_CLICK then
        If $element.attribute("id") = "buttonclick" Then MsgBox("","Button Test","Button Click Event")
    EndIf
    if $eventtype = $BE_ELEMENT_COLLAPSED then
        ConsoleWrite('Collapsed: '&$element.attribute("id")&@CRLF)
    EndIf
    if $eventtype = $BE_ELEMENT_EXPANDED then
        ConsoleWrite('Expanded: '&$element.attribute("id")&@CRLF)
    EndIf

EndFunc
func event_DocumentLoaded()
    $O2event = ObjEvent($Obj1.root,"event_","_IElementEvents")
EndFunc

Wow :mellow: This is incredible. I had no idea something like this existed. This is actually exactly what I need for my project and exactly when I needed it. Thanks for this example you have no idea how much this has helped me. Although I was looknig through HTMLayout's help file. I couldn't understand any of it. C++ and object oriented languages in general are too much for me. Confused the hell out of me. How can I find a list of functions for this?

I'm interested in forcing the document to refresh. Do you know how I can do that?

If someone here where to make a file of UDFs out of this I'd say they were a king. :(

Share this post


Link to post
Share on other sites
sheeva

Hi,

Seems to be very good but, tell me what kind of winapi.au3 include you are using because i dont have _WinAPI_SetLayeredWindowAttributes function

In my WinAPI.au3 include this function doesn't exist.

This function exist in WinAPIEx.au3 but with not the same number of arguments.

Thank's.

Share this post


Link to post
Share on other sites
GMib

How can I find a list of functions for this?

I'm interested in forcing the document to refresh. Do you know how I can do that?

i find function in AxHTMLayout\AxHTMLayout.idl of SDK and in vb exemple AxHTMLayout\vb

you can use autocompletion of visual basic for find function or property too.

for refresh document, you can use $obj.LoadHtml for load string.

Hi,

Seems to be very good but, tell me what kind of winapi.au3 include you are using because i dont have _WinAPI_SetLayeredWindowAttributes function

In my WinAPI.au3 include this function doesn't exist.

This function exist in WinAPIEx.au3 but with not the same number of arguments.

Thank's.

i use WinAPI.au3 from autoit

Func _WinAPI_SetLayeredWindowAttributes($hWnd, $i_transcolor, $Transparency = 255, $dwFlags = 0x03, $isColorRef = False)
    If $dwFlags = Default Or $dwFlags = "" Or $dwFlags < 0 Then $dwFlags = 0x03
    If Not $isColorRef Then
        $i_transcolor = Hex(String($i_transcolor), 6)
        $i_transcolor = Execute('0x00' & StringMid($i_transcolor, 5, 2) & StringMid($i_transcolor, 3, 2) & StringMid($i_transcolor, 1, 2))
    EndIf
    Local $aResult = DllCall("user32.dll", "bool", "SetLayeredWindowAttributes", "hwnd", $hWnd, "dword", $i_transcolor, "byte", $Transparency, "dword", $dwFlags)
    If @error Then Return SetError(@error, @extended, False)
    Return $aResult[0]
EndFunc   ;==>_WinAPI_SetLayeredWindowAttributes

Share this post


Link to post
Share on other sites
ptrex

@GMib

Very nice !

I would suggest to add the COM Error handler

$oMyError = ObjEvent("AutoIt.Error","MyErrFunc")
 Code here ...

;This is COM error handler
Func MyErrFunc()
  $HexNumber=hex($oMyError.number,8)
  Msgbox(0,"COM Error Test","We intercepted a COM Error !"       & @CRLF  & @CRLF & _
             "err.description is: "    & @TAB & $oMyError.description    & @CRLF & _
             "err.windescription:"     & @TAB & $oMyError.windescription & @CRLF & _
             "err.number is: "         & @TAB & $HexNumber              & @CRLF & _
             "err.lastdllerror is: "   & @TAB & $oMyError.lastdllerror   & @CRLF & _
             "err.scriptline is: "     & @TAB & $oMyError.scriptline     & @CRLF & _
             "err.source is: "         & @TAB & $oMyError.source         & @CRLF & _
             "err.helpfile is: "       & @TAB & $oMyError.helpfile       & @CRLF & _
             "err.helpcontext is: "    & @TAB & $oMyError.helpcontext _
            )
  SetError(1)  ; to check for after this function returns
Endfunc

Rgds,

ptrex

Share this post


Link to post
Share on other sites
sheeva

Hi,

Sorry, i have used a OLD version of Autoit (3.3.0.0) now it's fixed and working perfectly with the 3.3.6.0 update. :mellow:

If somebody can begin an UDF with this it will be great !

nice work.

Share this post


Link to post
Share on other sites
Andreik

I can't register the dll. :mellow:


When the words fail... music speaks

Share this post


Link to post
Share on other sites
JohnnyThrash

Hi,

Sorry, i have used a OLD version of Autoit (3.3.0.0) now it's fixed and working perfectly with the 3.3.6.0 update. :mellow:

If somebody can begin an UDF with this it will be great !

nice work.

I completely agree. I think if somebody with a bit of know how were to develope a UDF for this would certainly change the way many, if not most, autoit applications are developed.

By the way, I realize I'm asking for a bit much, but could somebody possibley give me a list of functions to use with this? I've looked though the idl file and I feel like an invalid, I can't make sense of it at all. :(

Share this post


Link to post
Share on other sites
GMib

I completely agree. I think if somebody with a bit of know how were to develope a UDF for this would certainly change the way many, if not most, autoit applications are developed.

for UDF, dll version of htmlayout is better (no need to register activex), but i don't know how to use dll.

By the way, I realize I'm asking for a bit much, but could somebody possibley give me a list of functions to use with this? I've looked though the idl file and I feel like an invalid, I can't make sense of it at all. :mellow:

What fonction you search ? i can try to develop an exemple of what you need, but i can't explain you because i'm noob in com and object and i'm french (It's very difficult for me to express me correctly)

Share this post


Link to post
Share on other sites
JohnnyThrash

for UDF, dll version of htmlayout is better (no need to register activex), but i don't know how to use dll.

What fonction you search ? i can try to develop an exemple of what you need, but i can't explain you because i'm noob in com and object and i'm french (It's very difficult for me to express me correctly)

Well, i'm simply trying find a decent method by which i can fresh the page. "Load" adds alot of virtual memory usage as if I were duplicating the document. And I'm not sure what parameters to pass LoadHtml. So I really don't know how to properly refresh this.

Share this post


Link to post
Share on other sites
GMib

Why refresh a gui ?

if refresh exist, it's refrech nothing :

$obj.LoadHtml('<html><body><h1 id="ex">test</h1></body></html>')

$obj.refresh does nothing :mellow:

if you want change h1 value you can try use $m = $obj.root.Select("#ex") and $m.Value = "change"

else $obj.LoadHtml('<html><body><h1 id="ex">Change</h1></body></html>')

i failed to use SelectAll

HRESULT SelectAll([in] BSTR cssSelector, [out,retval] IElements** ppEls); = "Returns enumerable collection of all subelemts matching the selector"

when i use for $el in $var autoit crash.

Share this post


Link to post
Share on other sites
JohnnyThrash

Why refresh a gui ?

if refresh exist, it's refrech nothing :

$obj.LoadHtml('<html><body><h1 id="ex">test</h1></body></html>')

$obj.refresh does nothing :mellow:

if you want change h1 value you can try use $m = $obj.root.Select("#ex") and $m.Value = "change"

else $obj.LoadHtml('<html><body><h1 id="ex">Change</h1></body></html>')

i failed to use SelectAll

HRESULT SelectAll([in] BSTR cssSelector, [out,retval] IElements** ppEls); = "Returns enumerable collection of all subelemts matching the selector"

when i use for $el in $var autoit crash.

Thanks, this is all useful information to me. But I don't mean to refresh the gui, but the .html page I have loaded in it. Reason being is that behind the scenes i change a file that it includes and need to refresh the html page to see the changes.

Share this post


Link to post
Share on other sites
GMib

Thanks, this is all useful information to me. But I don't mean to refresh the gui, but the .html page I have loaded in it. Reason being is that behind the scenes i change a file that it includes and need to refresh the html page to see the changes.

you can use $obj.Load or read file in string and Loadhtml string.

i use this for testing :

Case $GUI_EVENT_SECONDARYUP
    $Obj1.Load('file://'&@scriptdir&'\Layout.htm')

Right click on gui reload the file.

Share this post


Link to post
Share on other sites
JohnnyThrash

you can use $obj.Load or read file in string and Loadhtml string.

i use this for testing :

Case $GUI_EVENT_SECONDARYUP
    $Obj1.Load('file://'&@scriptdir&'\Layout.htm')

Right click on gui reload the file.

Yeah, but bring up your task manager and see how much memory your program uses when you use "load" it, it adds like at 10,000K every time it is loaded.

Share this post


Link to post
Share on other sites
GMib

Yeah, but bring up your task manager and see how much memory your program uses when you use "load" it, it adds like at 10,000K every time it is loaded.

i don't know why memory up, i try vb example and it do same.

Events increase memory too.

perhaps solution is delete and create object for each htm file change.

Share this post


Link to post
Share on other sites
JohnnyThrash

i don't know why memory up, i try vb example and it do same.

Events increase memory too.

perhaps solution is delete and create object for each htm file change.

It's very bad that events also increase memory. But I was looking through the source of the browser example and found this line

::PostMessage(GetParent(),WM_COMMAND,WPARAM(ID_FILE_RELOAD),LPARAM(m_hWnd));

This seems like it would do the trick. Although I'm not sure what the function for this is supposed to look like. I'm a bit of a newb and not quite savvy enough to figure it out.

Share this post


Link to post
Share on other sites
JohnnyThrash

By the way, How can I use $element.position to retrieve an elements position? I can't figure out how to use it.

Share this post


Link to post
Share on other sites
GMib

By the way, How can I use $element.position to retrieve an elements position? I can't figure out how to use it.

i don't know, all my test are failed. sorry

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
Sign in to follow this

×

Important Information

We have placed cookies on your device to help make this website better. You can adjust your cookie settings, otherwise we'll assume you're okay to continue.
