thienfu

help for combolist menu

11 posts in this topic

Helo can anyone help me for complete below script?

how to do while function on below combo menu?

cause i've try use while function on that but the button for print, add, edit delete and save will no display if using while function.

i want that combomenu work like :

first select block we want then press button go

then on right si on button go will show new combomenu for unit that block we select.

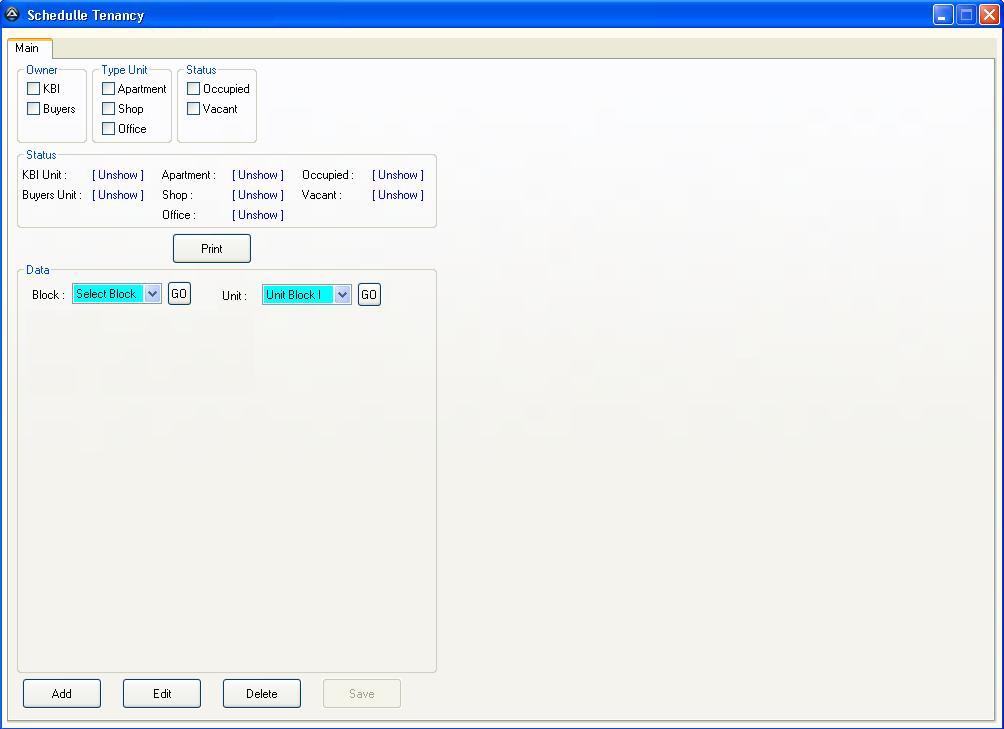

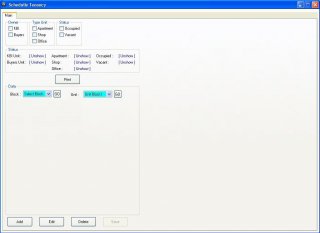

attachment are pic for success script.

sorry my english no so good, hope u all can understand :mellow:

#include <GUIConstantsEx.au3>
#include <EditConstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>
#include <GUIComboBox.au3>

Global $cb1, $cb2, $cb3, $cb4, $cb5, $cb6, $cb7
Global $Label1, $Label2, $Label3, $Label4, $Label5, $Label6, $Label7

Main()

Func Main()
GUICreate("Schedulle Tenancy", 1000, 700) ; will create a dialog box
GUISetBkColor(0xFFFBF0) ; will change background color
$hTab = GUICtrlCreateTab(5, 10, 990, 685)
$hTab0 = GUICtrlCreateTabItem("Main")

GUICtrlCreateGroup("Owner", 15, 35, 70, 80)
$cb1 = GUICtrlCreateCheckbox("KBI", 25, 50)
$cb2 = GUICtrlCreateCheckbox("Buyers", 25, 70)
GUICtrlCreateGroup("", -99, -99, 1, 1) ;close group

GUICtrlCreateGroup("Type Unit", 90, 35, 80, 80)
$cb3 = GUICtrlCreateCheckbox("Apartment", 100, 50)
$cb4 = GUICtrlCreateCheckbox("Shop", 100, 70)
$cb5 = GUICtrlCreateCheckbox("Office", 100, 90)
GUICtrlCreateGroup("", -99, -99, 1, 1) ;close group

GUICtrlCreateGroup("Status", 175, 35, 80, 80)
$cb6 = GUICtrlCreateCheckbox("Occupied", 185, 50)
$cb7 = GUICtrlCreateCheckbox("Vacant", 185, 70)
GUICtrlCreateGroup("", -99, -99, 1, 1) ;close group

GUICtrlCreateGroup("Status", 15, 120, 420, 80)
GUICtrlCreateLabel("KBI Unit :", 20, 140)
GUICtrlCreateLabel("Buyers Unit :", 20, 160)
GUICtrlCreateLabel("Apartment :", 160, 140)
GUICtrlCreateLabel("Shop :", 160, 160)
GUICtrlCreateLabel("Office :", 160, 180)
GUICtrlCreateLabel("Occupied :", 300, 140)
GUICtrlCreateLabel("Vacant :", 300, 160)
$Label1 = GUICtrlCreateLabel("[ Unshow ]", 90, 140, 100, 20)
GUICtrlSetColor(-1, 0x0000FF)
$Label2 = GUICtrlCreateLabel("[ Unshow ]", 90, 160, 100, 20)
GUICtrlSetColor(-1, 0x0000FF)
$Label3 = GUICtrlCreateLabel("[ Unshow ]", 230, 140, 100, 20)
GUICtrlSetColor(-1, 0x0000FF)
$Label4 = GUICtrlCreateLabel("[ Unshow ]", 230, 160, 100, 20)
GUICtrlSetColor(-1, 0x0000FF)
$Label5 = GUICtrlCreateLabel("[ Unshow ]", 230, 180, 100, 20)
GUICtrlSetColor(-1, 0x0000FF)
$Label6 = GUICtrlCreateLabel("[ Unshow ]", 370, 140, 100, 20)
GUICtrlSetColor(-1, 0x0000FF)
$Label7 = GUICtrlCreateLabel("[ Unshow ]", 370, 160, 100, 20)
GUICtrlSetColor(-1, 0x0000FF)
GUICtrlCreateGroup("", -99, -99, 1, 1) ;close group

GUICtrlCreateGroup("Data", 15, 235, 420, 410)

$block = "Block I|Block II|Block III"

GUICtrlCreateLabel("Block :", 30, 260)
$selectblock = GUICtrlCreateCombo("Select Block", 70, 255, 90,"", $CBS_DROPDOWNLIST)
GUICtrlSetData($selectblock, $block)
GUICtrlSetBkColor($selectblock, 0x00FFFF)
$blockButton = GUICtrlCreateButton("GO",165,253,25)

GUISetState()

GUICtrlCreateGroup("", -99, -99, 1, 1) ;close group

$cmdPrint = GUICtrlCreateButton("&Print", 170, 205, 80, 31, 0)
$cmdAdd = GUICtrlCreateButton("&Add", 20, 650, 80, 31, 0)
$cmdEdit = GUICtrlCreateButton("&Edit", 120, 650, 80, 31, 0)
$cmdDelete = GUICtrlCreateButton("&Delete", 220, 650, 80, 31, 0)
$cmdSave = GUICtrlCreateButton("&Save", 320, 650, 80, 31, 0)
GUICtrlSetState(-1, $GUI_DISABLE)

GUICtrlCreateTabItem("")
GUISetState(@SW_SHOW)

While 1
    $Msg = GUIGetMsg()
    Switch $Msg
        Case $GUI_EVENT_CLOSE
            Exit
        Case $cb1, $cb2, $cb3, $cb4, $cb5, $cb6, $cb7
            checkbox($Msg)
    EndSwitch
WEnd

EndFunc

Func Checkbox($iCtrlID)
    $sTxt = "[ Unshow ]"
    If BitAND(GUICtrlRead($iCtrlID), $GUI_CHECKED) Then $sTxt = "[ Show ]"
    Switch $iCtrlID
        Case $cb1
            GUICtrlSetData($Label1, $sTxt)
        Case $cb2
            GUICtrlSetData($Label2, $sTxt)
        Case $cb3
            GUICtrlSetData($Label3, $sTxt)
        Case $cb4
            GUICtrlSetData($Label4, $sTxt)
        Case $cb5
            GUICtrlSetData($Label5, $sTxt)
        Case $cb6
            GUICtrlSetData($Label6, $sTxt)
        Case $cb7
            GUICtrlSetData($Label7, $sTxt)
    EndSwitch
EndFunc   ;==>Checkbox


Share this post


Link to post
Share on other sites



thienfu,

Here is a short script to give you the idea of how I would do it:

#include <GUIConstantsEx.au3>
#Include <GuiComboBox.au3>

; List for first combo
$sList_Combo_1 = "One|Two|Three|Four|Five"

; Array of lists for second combo
Global $aLists_Combo_2[5] = ["|A|B|C|D", "|G|H|I|J", "|M|N|O|P", "|Q|R|S|T", "|W|X|Y|Z"] ; Note | delimiter as first character in lists

$hGUI = GUICreate("Test", 500, 500)

; Create first combo and set list
$hCombo_1 = GUICtrlCreateCombo("", 10, 10, 230, 20)
GUICtrlSetData($hCombo_1, $sList_Combo_1)
; Create second combo and disable
$hCombo_2 = GUICtrlCreateCombo("", 260, 10, 230, 20)
GUICtrlSetState($hCombo_2, $GUI_DISABLE)

GUISetState()

; Set flag for first combo text change
$sCurrComboText = ""

While 1

    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch

    ; read first combo
    $sText = GUICtrlRead($hCombo_1)
    ; If text has changed AND the combo is closed
    If $sText <> $sCurrComboText And _GUICtrlComboBox_GetDroppedState($hCombo_1) = False Then
        ; Set new change flag
        $sCurrComboText = $sText
        ; Determine which element of the list was selected
        $iIndex = _GUICtrlComboBox_FindStringExact($hCombo_1, $sText)
        ; Set second combo with the relevant list
        GUICtrlSetData($hCombo_2, $aLists_Combo_2[$iIndex])
        ; Enable second combo
        GUICtrlSetState($hCombo_2, $GUI_ENABLE)
    EndIf

WEnd

I hope it is all clear. :mellow:

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Nice example Melba23. thanks very much, i will try use that script on my script :mellow:

Share this post


Link to post
Share on other sites

#4 ·  Posted (edited)

thienfu,

Post again if you run into difficulties. :mellow:

M23

Edit: Wrong button too soon!

Edited by Melba23

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Hello Melba23, i've try you script on my script, but why another script like checkbox script cannot work and also my button no show :mellow:

below my script

#include <GUIConstantsEx.au3>
#include <EditConstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>
#include <GUIComboBox.au3>
#include "GUICtrlOnHover.au3"

Const $conProgName = "Schedulle Tenancy"
Const $conDbFile = "db.mdb" ; it has to be on script current Dir
Const $conTable = "db"
Const $conOK = 1, $conEdit =1, $conAdd =0

Global $objDBSystem, $dbDatatBase, $recRecordSet
Global $cb1, $cb2, $cb3, $cb4, $cb5, $cb6, $cb7
Global $Label1, $Label2, $Label3, $Label4, $Label5, $Label6, $Label7
Global $istart

if Setup() = $conOK Then
    Main ()
EndIf

Func Setup ()
    $objDBSystem = ObjCreate("DAO.DBEngine.36")
    if $conOK <> FileExists (@ScriptDir & "\" & $conDbFile) Then
        Msgbox (16,$conProgName,"Database File is not found " & @Lf & @ScriptDir & "\" & $conDbFile)
        ;Return 0
        Exit
    endif
    $dbDatatBase = $objDBSystem.OpenDatabase (@ScriptDir & "\" & $conDbFile)
    $recRecordSet = $dbDatatBase.OpenRecordset ("Select * From " & $conTable)
    Return $conOK
EndFunc

Func Shtdown() ; Close data base
    $recRecordSet.Close
    $dbDatatBase.Close
EndFunc

Func Main()
GUICreate("PT. KBI - Schedulle Tenancy", 1000, 700) ; will create a dialog box
GUISetBkColor(0xFFFBF0) ; will change background color
$hTab = GUICtrlCreateTab(5, 10, 990, 685)
$hTab0 = GUICtrlCreateTabItem("Main")

GUICtrlCreateGroup("Owner", 15, 35, 70, 80)
$cb1 = GUICtrlCreateCheckbox("KBI", 25, 50)
$cb2 = GUICtrlCreateCheckbox("Buyers", 25, 70)
GUICtrlCreateGroup("", -99, -99, 1, 1) ;close group

GUICtrlCreateGroup("Type Unit", 90, 35, 80, 80)
$cb3 = GUICtrlCreateCheckbox("Apartment", 100, 50)
$cb4 = GUICtrlCreateCheckbox("Shop", 100, 70)
$cb5 = GUICtrlCreateCheckbox("Office", 100, 90)
GUICtrlCreateGroup("", -99, -99, 1, 1) ;close group

GUICtrlCreateGroup("Status", 175, 35, 80, 80)
$cb6 = GUICtrlCreateCheckbox("Occupied", 185, 50)
$cb7 = GUICtrlCreateCheckbox("Vacant", 185, 70)
GUICtrlCreateGroup("", -99, -99, 1, 1) ;close group

GUICtrlCreateGroup("Status", 15, 120, 420, 80)
GUICtrlCreateLabel("KBI Unit :", 20, 140)
GUICtrlCreateLabel("Buyers Unit :", 20, 160)
GUICtrlCreateLabel("Apartment :", 160, 140)
GUICtrlCreateLabel("Shop :", 160, 160)
GUICtrlCreateLabel("Office :", 160, 180)
GUICtrlCreateLabel("Occupied :", 300, 140)
GUICtrlCreateLabel("Vacant :", 300, 160)
$Label1 = GUICtrlCreateLabel("[ Unshow ]", 90, 140, 100, 20)
GUICtrlSetColor(-1, 0x0000FF)
$Label2 = GUICtrlCreateLabel("[ Unshow ]", 90, 160, 100, 20)
GUICtrlSetColor(-1, 0x0000FF)
$Label3 = GUICtrlCreateLabel("[ Unshow ]", 230, 140, 100, 20)
GUICtrlSetColor(-1, 0x0000FF)
$Label4 = GUICtrlCreateLabel("[ Unshow ]", 230, 160, 100, 20)
GUICtrlSetColor(-1, 0x0000FF)
$Label5 = GUICtrlCreateLabel("[ Unshow ]", 230, 180, 100, 20)
GUICtrlSetColor(-1, 0x0000FF)
$Label6 = GUICtrlCreateLabel("[ Unshow ]", 370, 140, 100, 20)
GUICtrlSetColor(-1, 0x0000FF)
$Label7 = GUICtrlCreateLabel("[ Unshow ]", 370, 160, 100, 20)
GUICtrlSetColor(-1, 0x0000FF)
GUICtrlCreateGroup("", -99, -99, 1, 1) ;close group

GUICtrlCreateGroup("Data", 15, 235, 420, 410)

$block = "Block I|Block II|Block III"
Global $type[3] = ["|A|B|C|D", "|G|H|I|J", "|M|N|O|P"]

GUICtrlCreateLabel("Block :", 30, 260)
$selectblock = GUICtrlCreateCombo("", 70, 255, 90)
GUICtrlSetData($selectblock, $block)
GUICtrlSetBkColor($selectblock, 0x00FFFF)

GUICtrlCreateLabel("Unit :", 180, 260)
$selectunit = GUICtrlCreateCombo("", 215, 255, 90)
GUICtrlSetState($selectunit, $GUI_DISABLE)
GUICtrlSetBkColor($selectunit, 0x00FFFF)

GUISetState()

$sCurrComboText = ""

While 1

    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch

    ; read first combo
    $sText = GUICtrlRead($selectblock)
    ; If text has changed AND the combo is closed
    If $sText <> $sCurrComboText And _GUICtrlComboBox_GetDroppedState($selectblock) = False Then
        ; Set new change flag
        $sCurrComboText = $sText
        ; Determine which element of the list was selected
        $iIndex = _GUICtrlComboBox_FindStringExact($selectblock, $sText)
        ; Set second combo with the relevant list
        GUICtrlSetData($selectunit, $type[$iIndex])
        ; Enable second combo
        GUICtrlSetState($selectunit, $GUI_ENABLE)
    EndIf

WEnd

GUICtrlCreateGroup("", -99, -99, 1, 1) ;close group

$cmdPrint = GUICtrlCreateButton("&Print", 170, 205, 80, 31, 0)
$cmdAdd = GUICtrlCreateButton("&Add", 20, 650, 80, 31, 0)
$cmdEdit = GUICtrlCreateButton("&Edit", 120, 650, 80, 31, 0)
$cmdDelete = GUICtrlCreateButton("&Delete", 220, 650, 80, 31, 0)
$cmdSave = GUICtrlCreateButton("&Save", 320, 650, 80, 31, 0)
GUICtrlSetState(-1, $GUI_DISABLE)

GUICtrlCreateTabItem("")
GUISetState(@SW_SHOW)

While 1
    $Msg = GUIGetMsg()
    Switch $Msg
        Case $GUI_EVENT_CLOSE
            Exit
        Case $cb1, $cb2, $cb3, $cb4, $cb5, $cb6, $cb7
            checkbox($Msg)
    EndSwitch
WEnd

EndFunc

Func Checkbox($iCtrlID)
    $sTxt = "[ Unshow ]"
    If BitAND(GUICtrlRead($iCtrlID), $GUI_CHECKED) Then $sTxt = "[ Show ]"
    Switch $iCtrlID
        Case $cb1
            GUICtrlSetData($Label1, $sTxt)
        Case $cb2
            GUICtrlSetData($Label2, $sTxt)
        Case $cb3
            GUICtrlSetData($Label3, $sTxt)
        Case $cb4
            GUICtrlSetData($Label4, $sTxt)
        Case $cb5
            GUICtrlSetData($Label5, $sTxt)
        Case $cb6
            GUICtrlSetData($Label6, $sTxt)
        Case $cb7
            GUICtrlSetData($Label7, $sTxt)
    EndSwitch
EndFunc   ;==>Checkbox

Share this post


Link to post
Share on other sites

thienfu,

You cannot just put a section of code that someone gives you and place into your existing script at a random point :mellow: - you have to blend the two together.

You need only one main While...WEnd loop in a script. By placing my code where you did, you effectively cut off the remainder of your original script - hence a good part of your script no longer worked. :party:

Here is a version of the script where the combo code has been correctly positioned:

#include <GUIConstantsEx.au3>
#include <EditConstants.au3>
#include <GUIConstantsEx.au3>
#include <StaticConstants.au3>
#include <WindowsConstants.au3>
#include <GUIComboBox.au3>
#include "GUICtrlOnHover.au3"

Const $conProgName = "Schedulle Tenancy"
Const $conDbFile = "db.mdb" ; it has to be on script current Dir
Const $conTable = "db"
Const $conOK = 1, $conEdit = 1, $conAdd = 0

Global $objDBSystem, $dbDatatBase, $recRecordSet
Global $cb1, $cb2, $cb3, $cb4, $cb5, $cb6, $cb7
Global $Label1, $Label2, $Label3, $Label4, $Label5, $Label6, $Label7
Global $istart

Global $block = "Block I|Block II|Block III"
Global $type[3] = ["|A|B|C|D", "|G|H|I|J", "|M|N|O|P"]


If Setup() = $conOK Then
    Main()
EndIf

Func Setup()
    $objDBSystem = ObjCreate("DAO.DBEngine.36")
    If $conOK <> FileExists(@ScriptDir & "\" & $conDbFile) Then
        MsgBox(16, $conProgName, "Database File is not found " & @LF & @ScriptDir & "\" & $conDbFile)
        ;Return 0
        Exit
    EndIf
    $dbDatatBase = $objDBSystem.OpenDatabase(@ScriptDir & "\" & $conDbFile)
    $recRecordSet = $dbDatatBase.OpenRecordset("Select * From " & $conTable)
    Return $conOK
EndFunc   ;==>Setup

Func Shtdown() ; Close data base
    $recRecordSet.Close
    $dbDatatBase.Close
EndFunc   ;==>Shtdown

Func Main()
    GUICreate("PT. KBI - Schedulle Tenancy", 1000, 700) ; will create a dialog box
    GUISetBkColor(0xFFFBF0) ; will change background color
    $hTab = GUICtrlCreateTab(5, 10, 990, 685)
    $hTab0 = GUICtrlCreateTabItem("Main")

    GUICtrlCreateGroup("Owner", 15, 35, 70, 80)
    $cb1 = GUICtrlCreateCheckbox("KBI", 25, 50)
    $cb2 = GUICtrlCreateCheckbox("Buyers", 25, 70)
    GUICtrlCreateGroup("", -99, -99, 1, 1) ;close group

    GUICtrlCreateGroup("Type Unit", 90, 35, 80, 80)
    $cb3 = GUICtrlCreateCheckbox("Apartment", 100, 50)
    $cb4 = GUICtrlCreateCheckbox("Shop", 100, 70)
    $cb5 = GUICtrlCreateCheckbox("Office", 100, 90)
    GUICtrlCreateGroup("", -99, -99, 1, 1) ;close group

    GUICtrlCreateGroup("Status", 175, 35, 80, 80)
    $cb6 = GUICtrlCreateCheckbox("Occupied", 185, 50)
    $cb7 = GUICtrlCreateCheckbox("Vacant", 185, 70)
    GUICtrlCreateGroup("", -99, -99, 1, 1) ;close group

    GUICtrlCreateGroup("Status", 15, 120, 420, 80)
    GUICtrlCreateLabel("KBI Unit :", 20, 140)
    GUICtrlCreateLabel("Buyers Unit :", 20, 160)
    GUICtrlCreateLabel("Apartment :", 160, 140)
    GUICtrlCreateLabel("Shop :", 160, 160)
    GUICtrlCreateLabel("Office :", 160, 180)
    GUICtrlCreateLabel("Occupied :", 300, 140)
    GUICtrlCreateLabel("Vacant :", 300, 160)
    $Label1 = GUICtrlCreateLabel("[ Unshow ]", 90, 140, 100, 20)
    GUICtrlSetColor(-1, 0x0000FF)
    $Label2 = GUICtrlCreateLabel("[ Unshow ]", 90, 160, 100, 20)
    GUICtrlSetColor(-1, 0x0000FF)
    $Label3 = GUICtrlCreateLabel("[ Unshow ]", 230, 140, 100, 20)
    GUICtrlSetColor(-1, 0x0000FF)
    $Label4 = GUICtrlCreateLabel("[ Unshow ]", 230, 160, 100, 20)
    GUICtrlSetColor(-1, 0x0000FF)
    $Label5 = GUICtrlCreateLabel("[ Unshow ]", 230, 180, 100, 20)
    GUICtrlSetColor(-1, 0x0000FF)
    $Label6 = GUICtrlCreateLabel("[ Unshow ]", 370, 140, 100, 20)
    GUICtrlSetColor(-1, 0x0000FF)
    $Label7 = GUICtrlCreateLabel("[ Unshow ]", 370, 160, 100, 20)
    GUICtrlSetColor(-1, 0x0000FF)
    GUICtrlCreateGroup("", -99, -99, 1, 1) ;close group

    GUICtrlCreateGroup("Data", 15, 235, 420, 410)

    GUICtrlCreateLabel("Block :", 30, 260)
    $selectblock = GUICtrlCreateCombo("", 70, 255, 90)
    GUICtrlSetData($selectblock, $block)
    GUICtrlSetBkColor($selectblock, 0x00FFFF)

    GUICtrlCreateLabel("Unit :", 180, 260)
    $selectunit = GUICtrlCreateCombo("", 215, 255, 90)
    GUICtrlSetState($selectunit, $GUI_DISABLE)
    GUICtrlSetBkColor($selectunit, 0x00FFFF)

    GUICtrlCreateGroup("", -99, -99, 1, 1) ;close group

    $cmdPrint = GUICtrlCreateButton("&Print", 170, 205, 80, 31, 0)
    $cmdAdd = GUICtrlCreateButton("&Add", 20, 650, 80, 31, 0)
    $cmdEdit = GUICtrlCreateButton("&Edit", 120, 650, 80, 31, 0)
    $cmdDelete = GUICtrlCreateButton("&Delete", 220, 650, 80, 31, 0)
    $cmdSave = GUICtrlCreateButton("&Save", 320, 650, 80, 31, 0)
    GUICtrlSetState(-1, $GUI_DISABLE)

    GUICtrlCreateTabItem("")

    GUISetState(@SW_SHOW)

    $sCurrComboText = ""

    While 1

        $Msg = GUIGetMsg()
        Switch $Msg
            Case $GUI_EVENT_CLOSE
                Exit
            Case $cb1, $cb2, $cb3, $cb4, $cb5, $cb6, $cb7
                checkbox($Msg)
        EndSwitch

        ; read first combo
        $sText = GUICtrlRead($selectblock)
        ; If text has changed AND the combo is closed
        If $sText <> $sCurrComboText And _GUICtrlComboBox_GetDroppedState($selectblock) = False Then
            ; Set new change flag
            $sCurrComboText = $sText
            ; Determine which element of the list was selected
            $iIndex = _GUICtrlComboBox_FindStringExact($selectblock, $sText)
            ; Set second combo with the relevant list
            GUICtrlSetData($selectunit, $type[$iIndex])
            ; Enable second combo
            GUICtrlSetState($selectunit, $GUI_ENABLE)
        EndIf

    WEnd

EndFunc   ;==>Main

Func Checkbox($iCtrlID)
    $sTxt = "[ Unshow ]"
    If BitAND(GUICtrlRead($iCtrlID), $GUI_CHECKED) Then $sTxt = "[ Show ]"
    Switch $iCtrlID
        Case $cb1
            GUICtrlSetData($Label1, $sTxt)
        Case $cb2
            GUICtrlSetData($Label2, $sTxt)
        Case $cb3
            GUICtrlSetData($Label3, $sTxt)
        Case $cb4
            GUICtrlSetData($Label4, $sTxt)
        Case $cb5
            GUICtrlSetData($Label5, $sTxt)
        Case $cb6
            GUICtrlSetData($Label6, $sTxt)
        Case $cb7
            GUICtrlSetData($Label7, $sTxt)
    EndSwitch
EndFunc   ;==>Checkbox

You see how it goes? Create the GUI, create all the controls, show the GUI with GUISetState, run the While...WEnd loop to look for control actions.

Is that all clear? Please ask if not, because it is a pretty fundamental point in coding with AutoIt. :P

m23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Thanks again Melba23 now script can work for all function :mellow:

and thanks for u advise, sory i still newbie and still learning for this autoit3 script :party:

So one GUI just can do one while function? i just now know about that :P Thanks again for u info and advise.

Share this post


Link to post
Share on other sites

thienfu,

sory i still newbie

There is no need to apologise - we all began at that same level. :P

I am glad you understand the comments I made. :mellow:

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Hi Melba23,

I want to set some default value for the 1st combo box and the basis of this value, values should be shown in the 2nd combo box.

I have set the default value for 1st combo box but not able to set selected default value in 2nd combo box.

Can you please guide how can I do that?

Thanks,

Harish

Share this post


Link to post
Share on other sites

harishbehl,

Welcome to the AutoIt forum. ;)

Just add another dimension to the array like this:

#include <GUIConstantsEx.au3>
#include <GUIComboBox.au3>

Global $aArray[3][2] = [["G|H|I", "G"], ["L|M|N|", "N"], ["X|Y|Z", "Y"]]

$hGUI = GUICreate("Test", 500, 500)

$hCombo_1 = GUICtrlCreateCombo("", 10, 10, 200, 20)
GUICtrlSetData(-1, "A|B|C", "B")

$hCombo_2 = GUICtrlCreateCombo("", 260, 10, 200, 20)

GUISetState()

$sCurrText_1 = GUICtrlRead($hCombo_1)

While 1

    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch

    $sText = GUICtrlRead($hCombo_1)
    If $sText <> $sCurrText_1 And _GUICtrlComboBox_GetDroppedState($hCombo_1) = False Then
        $sCurrText_1 = $sText
        $iIndex = _GUICtrlComboBox_FindStringExact($hCombo_1, $sText)
        GUICtrlSetData($hCombo_2, $aArray[$iIndex][0], $aArray[$iIndex][1])
    EndIf

WEnd

All clear? :)

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Thanks M23!!! It's working fine now.

I would appreciate that you are doing a good job!!

Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!


Register a new account

Sign in

Already have an account? Sign in here.


Sign In Now
Sign in to follow this
Followers 0
