pvee

mfc controls in a splitter view cannot be selected

Recommended Posts

pvee

hi All

Env: MFC visual studio6.0, win xp

I've been trying to autoit some of our legacy code written in MFC - an SDI app, which has got a number of tabs and some tabs got a splitter control

and has got a list view control in it. I can see its ids/handles autoit info or using UI spy tool but when I tried to get the handle of a list view

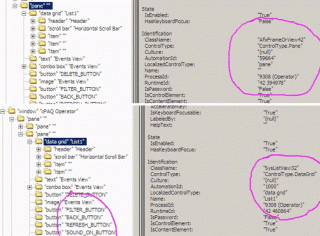

I get 0 return value (see the attached image for the tree structure of controls identified by the ui spy). I have tried a number of ways to get it, but no use

even tried _WINAPI_ function to enumerate the windows and I can see autoit returns the handle value. I used it in listview function to get the number of items

in the list views view - still no good. :blink: . This is the case of some of the controls in the AfxFrameOrView42 control. I can get automate some of the controls in

some other tabs like edit and button controls. only problem is in control sin frameorview . Any ideas gurus???? any help will be really appreciated ...

(sorry if u dont understand my problem, I'll explain it in detail, thanks in advance)

regards

pvee


Share this post


Link to post
Share on other sites
wolf9228

hi All

Env: MFC visual studio6.0, win xp

I've been trying to autoit some of our legacy code written in MFC - an SDI app, which has got a number of tabs and some tabs got a splitter control

and has got a list view control in it. I can see its ids/handles autoit info or using UI spy tool but when I tried to get the handle of a list view

I get 0 return value (see the attached image for the tree structure of controls identified by the ui spy). I have tried a number of ways to get it, but no use

even tried _WINAPI_ function to enumerate the windows and I can see autoit returns the handle value. I used it in listview function to get the number of items

in the list views view - still no good. :blink: . This is the case of some of the controls in the AfxFrameOrView42 control. I can get automate some of the controls in

some other tabs like edit and button controls. only problem is in control sin frameorview . Any ideas gurus???? any help will be really appreciated ...

(sorry if u dont understand my problem, I'll explain it in detail, thanks in advance)

regards

pvee

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#Include <Array.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <TreeViewConstants.au3>
#include <StaticConstants.au3>
#Include <WinAPI.au3>

Global $ChildArray  , $PTR_Chi


    GUICreate("My GUI with treeview", 350, 215)

    $treeview = GUICtrlCreateTreeView(6, 6, 100, 150, BitOR($TVS_HASBUTTONS, $TVS_HASLINES, $TVS_LINESATROOT, $TVS_DISABLEDRAGDROP, $TVS_SHOWSELALWAYS), $WS_EX_CLIENTEDGE)
    $generalitem = GUICtrlCreateTreeViewItem("General", $treeview)
    GUICtrlSetColor(-1, 0x0000C0)
    $displayitem = GUICtrlCreateTreeViewItem("Display", $treeview)
    GUICtrlSetColor(-1, 0x0000C0)
    $aboutitem = GUICtrlCreateTreeViewItem("About", $generalitem)
    $compitem = GUICtrlCreateTreeViewItem("Computer", $generalitem)
    $useritem = GUICtrlCreateTreeViewItem("User", $generalitem)
    $resitem = GUICtrlCreateTreeViewItem("Resolution", $displayitem)
    $otheritem = GUICtrlCreateTreeViewItem("Other", $displayitem)

    $startlabel = GUICtrlCreateLabel("TreeView Demo", 190, 90, 100, 20)
    $aboutlabel = GUICtrlCreateLabel("This little scripts demonstates the using of a treeview-control.", 190, 70, 100, 60)
    GUICtrlSetState(-1, $GUI_HIDE)  ; Hides the "aboutlabel"-text during initialization
    $compinfo = GUICtrlCreateLabel("Name:" & @TAB & @ComputerName & @LF & "OS:" & @TAB & @OSVersion & @LF & "SP:" & @TAB & @OSServicePack, 120, 30, 200, 80)
    GUICtrlSetState(-1, $GUI_HIDE)  ; Hides the "compinfo"-text during initialization

    GUICtrlCreateLabel("", 0, 170, 350, 2, $SS_SUNKEN)
    $togglebutton = GUICtrlCreateButton("&Toggle", 35, 185, 70, 20)
    $infobutton = GUICtrlCreateButton("&Info", 105, 185, 70, 20)
    $statebutton = GUICtrlCreateButton("Col./Exp.", 175, 185, 70, 20)
    $cancelbutton = GUICtrlCreateButton("&Cancel", 245, 185, 70, 20)

    GUICtrlSetState($generalitem, BitOR($GUI_EXPAND, $GUI_DEFBUTTON))    ; Expand the "General"-item and paint in bold
    GUICtrlSetState($displayitem, BitOR($GUI_EXPAND, $GUI_DEFBUTTON))    ; Expand the "Display"-item and paint in bold
    GUISetState()

$WinHandle = WinGetHandle("My GUI with treeview", "")
$RTArray = ChildWindows($WinHandle)
_ArrayDisplay($RTArray, "")
    Do
    Until GUIGetMsg() = $GUI_EVENT_CLOSE
    GUIDelete()

Func ChildWindows($WinHandle)
$WindowArray =  GetChildWindows($WinHandle)
Dim $RTArray[1][7]
For $i = 0 To  UBound($WindowArray) - 1
$RTArray[UBound($RTArray) - 1][0] = $WindowArray[$i]
$RTArray[UBound($RTArray) - 1][1] = ControlGetText ($WinHandle, "",$WindowArray[$i])
$pos = ControlGetPos($WinHandle, "",$WindowArray[$i])
$RTArray[UBound($RTArray) - 1][2] = _WinAPI_GetClassName($WindowArray[$i])
$RTArray[UBound($RTArray) - 1][3] = $pos[0]
$RTArray[UBound($RTArray) - 1][4] = $pos[1]
$RTArray[UBound($RTArray) - 1][5] = $pos[2]
$RTArray[UBound($RTArray) - 1][6] = $pos[3]
ReDim $RTArray[UBound($RTArray) + 1][7]
Next
ReDim $RTArray[UBound($RTArray) - 1][7]
Return $RTArray
EndFunc


Func  GetChildWindows($hWndParent)
If Not ($PTR_Chi) Then $PTR_Chi = RegisterEnumChildProc("CALLBACK_EnumChildProc")
EnumChildWindows($hWndParent , $PTR_Chi)
ReDim $ChildArray[UBound($ChildArray) - 1]
Return $ChildArray
EndFunc

Func  EnumChildWindows($hWndParent , $lpEnumFunc)
Local $lParam = 0
Global $ChildArray = 0
Dim $ChildArray[1]
$BOOL = DllCall("user32.dll","int","EnumChildWindows","hwnd",$hWndParent,"ptr",$lpEnumFunc,"int",$lParam)
if Not @error Then Return SetError(@error,"",$BOOL[0])
Return SetError(@error,"",False)
EndFunc

Func RegisterEnumChildProc($lpEnumFunc)
$handle = DLLCallbackRegister ($lpEnumFunc, "int", "hwnd;int")
Return DllCallbackGetPtr($handle)
EndFunc


Func CALLBACK_EnumChildProc($hwnd,$lParam)
For $i = 0 To UBound($ChildArray) - 1
if $ChildArray[$i] == $hwnd Then Return False
Next
$ChildArray[UBound($ChildArray) - 1] = $hwnd
ReDim $ChildArray[UBound($ChildArray) + 1]
Return True
EndFunc

صرح السماء كان هنا



Share this post


Link to post
Share on other sites
pvee

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#Include <Array.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <TreeViewConstants.au3>
#include <StaticConstants.au3>
#Include <WinAPI.au3>

Global $ChildArray  , $PTR_Chi


    GUICreate("My GUI with treeview", 350, 215)

    $treeview = GUICtrlCreateTreeView(6, 6, 100, 150, BitOR($TVS_HASBUTTONS, $TVS_HASLINES, $TVS_LINESATROOT, $TVS_DISABLEDRAGDROP, $TVS_SHOWSELALWAYS), $WS_EX_CLIENTEDGE)
    $generalitem = GUICtrlCreateTreeViewItem("General", $treeview)
    GUICtrlSetColor(-1, 0x0000C0)
    $displayitem = GUICtrlCreateTreeViewItem("Display", $treeview)
    GUICtrlSetColor(-1, 0x0000C0)
    $aboutitem = GUICtrlCreateTreeViewItem("About", $generalitem)
    $compitem = GUICtrlCreateTreeViewItem("Computer", $generalitem)
    $useritem = GUICtrlCreateTreeViewItem("User", $generalitem)
    $resitem = GUICtrlCreateTreeViewItem("Resolution", $displayitem)
    $otheritem = GUICtrlCreateTreeViewItem("Other", $displayitem)

    $startlabel = GUICtrlCreateLabel("TreeView Demo", 190, 90, 100, 20)
    $aboutlabel = GUICtrlCreateLabel("This little scripts demonstates the using of a treeview-control.", 190, 70, 100, 60)
    GUICtrlSetState(-1, $GUI_HIDE)  ; Hides the "aboutlabel"-text during initialization
    $compinfo = GUICtrlCreateLabel("Name:" & @TAB & @ComputerName & @LF & "OS:" & @TAB & @OSVersion & @LF & "SP:" & @TAB & @OSServicePack, 120, 30, 200, 80)
    GUICtrlSetState(-1, $GUI_HIDE)  ; Hides the "compinfo"-text during initialization

    GUICtrlCreateLabel("", 0, 170, 350, 2, $SS_SUNKEN)
    $togglebutton = GUICtrlCreateButton("&Toggle", 35, 185, 70, 20)
    $infobutton = GUICtrlCreateButton("&Info", 105, 185, 70, 20)
    $statebutton = GUICtrlCreateButton("Col./Exp.", 175, 185, 70, 20)
    $cancelbutton = GUICtrlCreateButton("&Cancel", 245, 185, 70, 20)

    GUICtrlSetState($generalitem, BitOR($GUI_EXPAND, $GUI_DEFBUTTON))    ; Expand the "General"-item and paint in bold
    GUICtrlSetState($displayitem, BitOR($GUI_EXPAND, $GUI_DEFBUTTON))    ; Expand the "Display"-item and paint in bold
    GUISetState()

$WinHandle = WinGetHandle("My GUI with treeview", "")
$RTArray = ChildWindows($WinHandle)
_ArrayDisplay($RTArray, "")
    Do
    Until GUIGetMsg() = $GUI_EVENT_CLOSE
    GUIDelete()

Func ChildWindows($WinHandle)
$WindowArray =  GetChildWindows($WinHandle)
Dim $RTArray[1][7]
For $i = 0 To  UBound($WindowArray) - 1
$RTArray[UBound($RTArray) - 1][0] = $WindowArray[$i]
$RTArray[UBound($RTArray) - 1][1] = ControlGetText ($WinHandle, "",$WindowArray[$i])
$pos = ControlGetPos($WinHandle, "",$WindowArray[$i])
$RTArray[UBound($RTArray) - 1][2] = _WinAPI_GetClassName($WindowArray[$i])
$RTArray[UBound($RTArray) - 1][3] = $pos[0]
$RTArray[UBound($RTArray) - 1][4] = $pos[1]
$RTArray[UBound($RTArray) - 1][5] = $pos[2]
$RTArray[UBound($RTArray) - 1][6] = $pos[3]
ReDim $RTArray[UBound($RTArray) + 1][7]
Next
ReDim $RTArray[UBound($RTArray) - 1][7]
Return $RTArray
EndFunc


Func  GetChildWindows($hWndParent)
If Not ($PTR_Chi) Then $PTR_Chi = RegisterEnumChildProc("CALLBACK_EnumChildProc")
EnumChildWindows($hWndParent , $PTR_Chi)
ReDim $ChildArray[UBound($ChildArray) - 1]
Return $ChildArray
EndFunc

Func  EnumChildWindows($hWndParent , $lpEnumFunc)
Local $lParam = 0
Global $ChildArray = 0
Dim $ChildArray[1]
$BOOL = DllCall("user32.dll","int","EnumChildWindows","hwnd",$hWndParent,"ptr",$lpEnumFunc,"int",$lParam)
if Not @error Then Return SetError(@error,"",$BOOL[0])
Return SetError(@error,"",False)
EndFunc

Func RegisterEnumChildProc($lpEnumFunc)
$handle = DLLCallbackRegister ($lpEnumFunc, "int", "hwnd;int")
Return DllCallbackGetPtr($handle)
EndFunc


Func CALLBACK_EnumChildProc($hwnd,$lParam)
For $i = 0 To UBound($ChildArray) - 1
if $ChildArray[$i] == $hwnd Then Return False
Next
$ChildArray[UBound($ChildArray) - 1] = $hwnd
ReDim $ChildArray[UBound($ChildArray) + 1]
Return True
EndFunc

Hi Sir,

Thanks very much for your reply....

I have managed to get the list view count by getting the handle of the control using _WinAPI_EnumWindows and thensending

a send message call to the control handle - your tips helped me to look into the win API calls and it workd.

cheerio all the best

pvee
