After minimizing and then maximizing the gui go bad

[oren]

Hello ,

I have a gui problem.. I don't know if its the right sub-forum to post But because its not that I have a question how to do something its just that the something go bad I decided to post in here.

Anyway a few examples:

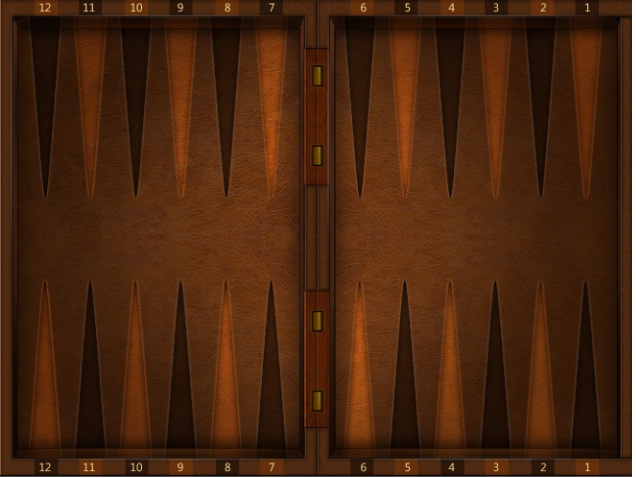

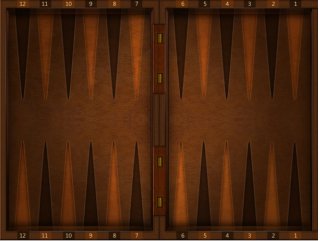

Before Minimize it look good like this

After minimize and then restore from task-bar it look like this

Any reason why? and How can I fix it?

For the background I use

GUICtrlCreatePic ( "BackPic.jpg", 1, 1,800,600)
 GuiCtrlSetState(-1,$GUI_DISABLE)
 GUISetState(@sw_show)

and for the pieces I use (Example..)

$Board[1][$s][0] = guictrlcreatepic("",720,30+40*$s)
$hGreen1  = _Icons_Bitmap_Load(@ScriptDir & "\white.png")
_SetHImage($Board[1][$s][0],$hGreen1 )
GuiCtrlSetState(-1,$GUI_DISABLE)

I've Added the pictures ,

Thank You.

I've added a example Just download all the files to the same dir and run ForumTest

ForumTest.au3

Icons.au3

Edited November 18, 2010 by oren

[Juvigy]

Please add full source file so we can test.

Nice "tabla" game BTW

[oren]

Thanks.

I build something for the GUI Testing.

Forum.rar

Edited November 18, 2010 by oren

[oren]

AnyOne can help me?

Sorry for double posting...

[Juvigy]

I would suggest to disable minimize button.It is a workaround though but an easy one.

[UEZ]

Here a not best solution:

...
$op = 0
$Dice = -1
$Dice1 = -1
$progres = -2
$Tempo = 0

Opt("GUIOnEventMode", 1)
GUISetOnEvent($GUI_EVENT_RESTORE, "Test")
GUISetOnEvent($GUI_EVENT_CLOSE, "_Exit")

While Sleep(100)
WEnd

Func Test()
    GUICtrlCreatePic("BackPic.jpg", 1, 1, 800, 600)
    SetTable()
EndFunc

Func _Exit()
    Exit
EndFunc

Func SetTable() ;;First Function to set the board at starting position
    ;; Starting setting Board white first
...

Just replace the code above with the appropriate section in original code.

Br,

UEZ

[Juvigy]

The solution i found elsewhere on the forum is to specify the dimensions like this:

$Board[1][$s][0] = GUICtrlCreatePic("", 720, 30 + 40 * $s, 41, 40)

and not

$Board[1][$s][0] = guictrlcreatepic("",720,30+40*$s)

BTW i have a question for the author - how do you move the pieces across the board ?

I mean how do you select the pieces with the mouse and drop them on the desired place?

The actual move i guess is done by GUICtrlSetPos.
