Monty

Tabs and Colour

3 posts in this topic

Can someone please help...

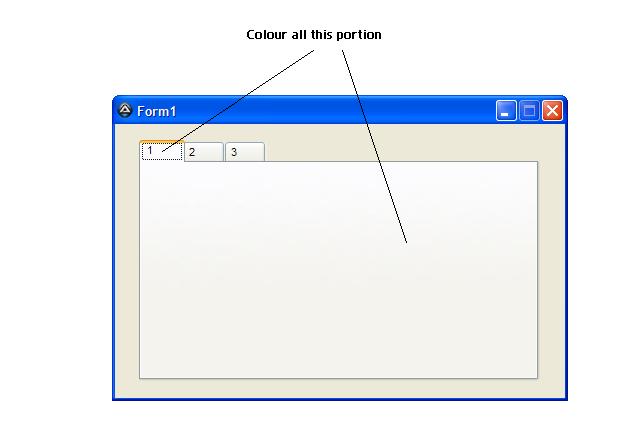

I would like to colour the tab including the top clicking bit...please see image.

I checked a few examples but still cannot colour the top bit.

#include <TabConstants.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>

$Form1 = GUICreate("Form1", 450, 274, 329, 412)
$Tab1 = GUICtrlCreateTab(24, 16, 401, 241)
$TabSheet1 = GUICtrlCreateTabItem("1")
$TabSheet2 = GUICtrlCreateTabItem("2")
$TabSheet3 = GUICtrlCreateTabItem("3")
GUICtrlCreateTabItem("")
GUISetState(@SW_SHOW)

While 1
    $nMsg = GUIGetMsg()
    Switch $nMsg
        Case $GUI_EVENT_CLOSE
            Exit

    EndSwitch
WEnd

post-38119-0-57767400-1294049022_thumb.j

Share this post


Link to post
Share on other sites



Monty,

This is based on some of Valik's work, so all credit should go to to him: :x

#include <GuiConstantsEx.au3>
#include <GuiTab.au3>
#include <StaticConstants.au3>

; Tab colours
Global $aTabColours[4] = [0xFFC0C0, 0xC0FFC0, 0xC0C0FF, 0xC0C0C0]

; Create GUI
Global $hGUI = GUICreate ("Test", 400,300)
GUISetBkColor (0)

; Create label to cover tab "tab"
Global $hColourTab = GUICtrlCreateLabel("", 0, 0, 1, 1, BitOR($SS_NOTIFY, $SS_CENTER, $SS_SUNKEN))

; Create tab
Global $hTab = GUICtrlCreateTab(5, 5,390, 290)
Global $hTab_Handle = GUICtrlGetHandle($hTab)

; Create tab items and colour them
For $i = 0 To 3
    GUICtrlCreateTabItem ("Tab item - " & $i)
    _GUICtrlTab_SetBkColor($hGUI, $hTab, $aTabColours[$i])
    GUICtrlCreateTabItem ("")
Next

_GUICtrlTab_SetCurSel($hTab_Handle,0)
_GUICtrlTab_SetCurFocus($hTab_Handle,0)
TabEvent()

GUISetState ()

While 1
    Switch GUIGetMsg ()
        Case $GUI_EVENT_CLOSE
            Exit
        Case $hTab
            TabEvent()
    EndSwitch
WEnd

Func TabEvent()

    ; Set values
    Local $iTab_X = 5, $iTab_Y = 5, $iTab_Margin = 1
    ; Get index of current tab
    Local $iTab_Index = GUICtrlRead($hTab)
    ; Get coordinates of TabItem
    Local $aTab_Coord = _GUICtrlTab_GetItemRect($hTab_Handle, $iTab_Index)
    ; Get text of TabItem
    Local $sTab_Text = _GUICtrlTab_GetItemText($hTab_Handle, $iTab_Index)
    ; Place label
    GUICtrlSetPos($hColourTab, $iTab_X + $aTab_Coord[0] + $iTab_Margin, $iTab_Y + $aTab_Coord[1] + $iTab_Margin + 1, $aTab_Coord[2] - $aTab_Coord[0] - ($iTab_Margin * 2), $aTab_Coord[3] - $aTab_Coord[1] - ($iTab_Margin * 2) + 5)
    ; Set text
    GUICtrlSetData($hColourTab, $sTab_Text)
    ; Set colour
    GUICtrlsetBkColor ($hColourTab,$aTabColours[$iTab_Index] )
    ; Set focus
    _GUICtrlTab_SetCurFocus($hTab_Handle,$iTab_Index)

EndFunc

Func _GUICtrlTab_SetBkColor($hWnd, $hSysTab32, $sBkColor)

    ; Get tab position
    Local $aTabPos = ControlGetPos($hWnd, "", $hSysTab32)
    ; Get size of user area
    Local $aTab_Rect = _GUICtrlTab_GetItemRect($hSysTab32, -1)
    ; Create label
    GUICtrlCreateLabel("", $aTabPos[0] + 2, $aTabPos[1] + $aTab_Rect[3] + 4, $aTabPos[2] - 6, $aTabPos[3] - $aTab_Rect[3] - 7)
    ; Colour label
    GUICtrlSetBkColor(-1, $sBkColor)
    ; Disable label
    GUICtrlSetState(-1, $GUI_DISABLE)

EndFunc   ;==>_GUICtrlTab_SetBkColor

Good enough? :P

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

#3 ·  Posted (edited)

Thx for good example.

Edited by electrico
