XY coordinations

[yous 0]

Hi Guys

I'm new to this forum and I need your expertise,

I'm looking for a script that allows me to click on button in XY coordination when a mouse got clicked in another XY coordination. Basically, I have a hidden keyboard that I would like show to a user when a search button get clicked and then hid it when the go button get clicked.

Thanks in advance

[JohnOne 1,625]

You do not need XY to click a button, your need is hard to understand.

Please explain a little further, perhaps an example code.

[yous 0]

You do not need XY to click a button, your need is hard to understand.

Please explain a little further, perhaps an example code.

I have an interactive application in kiosk mode that our customers uses to search for article number using a keyboard (hardware) even though we have a touch screen. My idea is to get rid of that keyboard(hardware) and launch a onscreen keyboard at startup. I don't have the original code for that application to integrate the onscreen keyboard. This onscreen keyboard have a key that allows me to hide and show the keyboard.

So, I want the mouse to click on the showKeyboard button when a customer press the search button on my application and than another mouse click to hide the keyboard when the same customer press OK button.

Unfortunatly I don't have an example code and I searched everywhere.

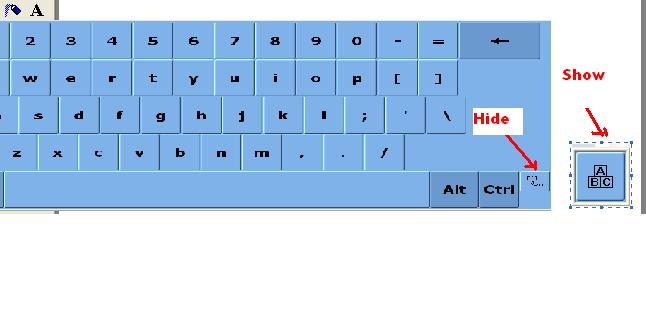

The attached is a print screen of my keyboard

[JohnOne 1,625]

So this "interactive application", is it a web application? I ask because you mention "kiosk mode".

[yous 0]

So this "interactive application", is it a web application? I ask because you mention "kiosk mode".

It's not a web base application.

Its a VBNET package and its sitting on c drive.

[monoscout999 10]

search on the help the functions...

mouseclick()

controlclick()

maybe that is what you want

[yous 0]

I know how to use a mouseclick function I just don't know how to tell the script to wait for an action from a user. I keep getting error when I tried the IF statement.

[kaotkbliss 146]

How are you setting up your "If" statement?

While 1

If _IsPressed(01) Then

RunFunction()

EndIf

Wend

[yous 0]

How are you setting up your "If" statement?

While 1

If _IsPressed(01) Then

RunFunction()

EndIf

Wend

Ĥere is an example code I tried

AutoItSetOption("MouseCoordMode", 2)

AutoItSetOption("TrayIconDebug", 1)

Func MouseBezier($x,$y)

while 1

$pos = MouseGetPos()

if $pos[$x]= 1010 and $pos[$y]= 1141 Then

MouseClick("left",1015,1241,1,1)

EndIf

WEnd

EndFunc

[kaotkbliss 146]

It's not going to be $pos[$x] and $pos[$y] it will be $pos[0] and $pos[1] as mousegetpos returns [0] = x and [1] = y

[yous 0]

It's not going to be $pos[$x] and $pos[$y] it will be $pos[0] and $pos[1] as mousegetpos returns [0] = x and [1] = y

In the code below I defined the XY coordination and it works like a charm. What's the best way to set a range of XY to cover the whole button area.

AutoItSetOption("MouseCoordMode", 2)

AutoItSetOption("TrayIconDebug", 1)

while 1

$pos = MouseGetPos()

ToolTip($pos)

if $pos[0]= 160 and $pos[1]= 44 Then

MouseClick("left",1015,1241,1,1)

EndIf

WEnd

Edited May 10, 2011 by yous

[JohnOne 1,625]

Something like this.

If $pos[0] >= $buttonposleft And $pos[0] <= $buttonposright And $pos[1] >= $buttonpostop And $pos[1] <= $buttonposbottom Then

Edited May 10, 2011 by JohnOne
