ValeryVal

GuiCreate & WinGetPos

Recommended Posts

ValeryVal

There is script:

#include <GuiConstants.au3>
#include <WindowsConstants.au3>
#include <EditConstants.au3>

; Gui variables
Global $hWndValid, $hWndInValid
Global $WinW = 500, $WinH = 400
Global $Title = "Test of GUICreate"

; Create GUI window
$hWndValid = GUICreate($Title, $WinW, $WinH, 0, 0, $WS_OVERLAPPEDWINDOW)

;get GUI sizes
$Pos = WinGetPos($Title, "")
$Label0 = GuiCtrlCreateLabel(" Gui was created by GuiCreate:", 80, 20, $WinW - 80, 20)
$Label1 = GuiCtrlCreateLabel(" $WinW = " & $WinW & " $WinH = " & $WinH, 80, 50, $WinW - 80, 20)
$Label2 = GuiCtrlCreateLabel(" However it returns by WinGetPos", 80, 80, $WinW - 80, 20)
$Label3 = GuiCtrlCreateLabel(" $Pos[2] = " & $Pos[2] & " $Pos[3] = " & $Pos[3], 80, 110, $WinW - 80, 20)
;resize GUI
WinMove ($Title, "", 0, 0, $WinW, $WinH)

;get GUI sizes once more
$Pos = WinGetPos($Title, "")
$Label0 = GuiCtrlCreateLabel(" Now Gui was resized by WinMove:", 80, 150, $WinW - 80, 20)
$Label1 = GuiCtrlCreateLabel(" $WinW = " & $WinW & " $WinH = " & $WinH, 80, 180, $WinW - 80, 20)
$Label2 = GuiCtrlCreateLabel(" and it returns  by WinGetPos", 80, 210, $WinW - 80, 20)
$Label3 = GuiCtrlCreateLabel(" $Pos[2] = " & $Pos[2] & " $Pos[3] = " & $Pos[3], 80, 240, $WinW - 80, 20)
GUISetState()

GUISetState()
While 1
  $Msg = GUIGetMsg(1)
  Switch $Msg[0]
   Case $GUI_EVENT_CLOSE
    Exit
   Case else
  EndSwitch
WEnd

The size of GUI moved is different than after GuiCreate. Why?

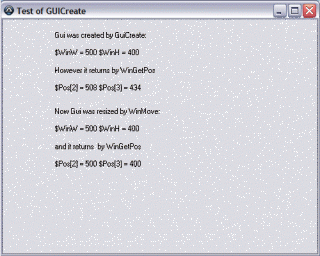

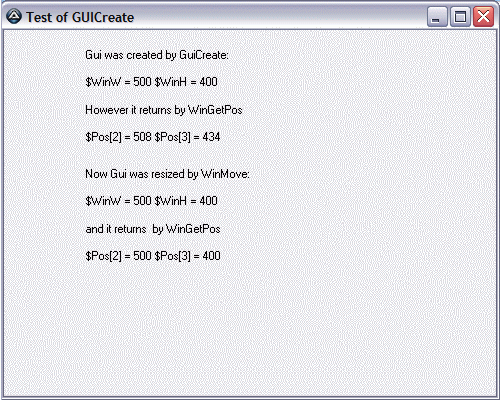

This is GUI shot.

post-9395-0-37910700-1313659221_thumb.gi


The point of world view

Share this post


Link to post
Share on other sites
Melba23

ValeryVal,

GUICreate sets the size of the client area of the GUI - the useful area less the borders and title bar. The Win* functions affect the whole GUI not just the client area. :)

Here is your script slightly modified to explain what is happening - look in the SciTE console for the data: :mellow:

#include <GuiConstants.au3>
#include <WindowsConstants.au3>

; Gui variables
Global $hWndValid, $hWndInValid
Global $WinW = 500, $WinH = 400
Global $Title = "Test of GUICreate"

; Create GUI window
$hWndValid = GUICreate($Title, $WinW, $WinH)

;get GUI sizes
$Pos = WinGetPos($Title, "")
$Client = WinGetClientSize($Title, "")
ConsoleWrite("Gui was created by GuiCreate:" & @CRLF & _
        "$WinW = " & $WinW & " $WinH = " & $WinH & @CRLF & _
        "However it returns by WinGetPos:" & @CRLF & _
        "$Pos[2] = " & $Pos[2] & " $Pos[3] = " & $Pos[3] & @CRLF & _
        "But the client size is still:" & @CRLF & _
        "$Client[1] = " & $Client[0] & " $Client[1] = " & $Client[1] & @CRLF & @CRLF)

;resize GUI
WinMove($Title, "", 0, 0, $WinW, $WinH)

;get GUI sizes once more
$Pos = WinGetPos($Title, "")
$Client = WinGetClientSize($Title, "")
ConsoleWrite("Now Gui was resized by WinMove:" & @CRLF & _
        "$WinW = " & $WinW & " $WinH = " & $WinH & @CRLF & _
        "And it returns by WinGetPos:" & @CRLF & _
        "$Pos[2] = " & $Pos[2] & " $Pos[3] = " & $Pos[3] & @CRLF & _
        "But the client size is now only:" & @CRLF & _
        "$Client[1] = " & $Client[0] & " $Client[1] = " & $Client[1] & @CRLF & @CRLF)

GUISetState()
While 1
    $Msg = GUIGetMsg(1)
    Switch $Msg[0]
        Case $GUI_EVENT_CLOSE
            Exit
        Case Else
    EndSwitch
WEnd

All clear? :)

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites
ValeryVal

All clear?

Yes. It's clear.

:mellow:

It's dark with AutoIt Help having the following (GuiCreate description):

width [optional] The width of the window.

height [optional] The height of the window.

Thank you for respond
