Need help with classifying triangles - scrpt mixes up acute and obtuse

Recommended Posts

E1M1

Does anyone know why my script mixes up acute and obtuse?

2nd test should be acute angle

3rd should be obtuse angle

MsgBox(0,0,Test("1 0 2 0 1 2"))
MsgBox(0,0,Test("3 0 4 2 5 0"))
MsgBox(0,0,Test("6 0 7 0 8 2"))
;~ $TriangleCoords = "x1 xy x2 y2 x3 y3"
;~ Angles: If 1 of the angles are:
;         < 90 acute angle
;          > 90 obtuse angle
;         = 90 square corner
Func Test($TriangleCoords)
    ConsoleWrite(@CRLF)

    $Triangle = $TriangleCoords
    $Triangle = StringSplit($Triangle, " ")

    Dim $A[2], $B[2], $C[2], $AB[2], $BC[2], $CA[2]

    $A[0] = Number($Triangle[1])
    $A[1] = Number($Triangle[2])

    $B[0] = Number($Triangle[3])
    $B[1] = Number($Triangle[4])

    $C[0] = Number($Triangle[5])
    $C[1] = Number($Triangle[6])

    $AB[0] = $B[0] - $A[0]
    $AB[1] = $B[1] - $A[1]

    $BC[0] = $C[0] - $B[0]
    $BC[1] = $C[1] - $B[1]

    $CA[0] = $A[0] - $C[0]
    $CA[1] = $A[1] - $C[1]

    $ABLen = Sqrt($AB[0] ^ 2 + $AB[1] ^ 2)
    $BCLen = Sqrt($BC[0] ^ 2 + $BC[1] ^ 2)
    $CALen = Sqrt($CA[0] ^ 2 + $CA[1] ^ 2)

    If $ABLen = 0 Or $BCLen = 0 Or $CALen = 0 Then Return "ERROR"


    $pi = 3.14159265358979
    $radToDeg = 180 / $pi


    $BA_BC_Angle = Angle($AB,$BC)
    $AB_AC_Angle = Angle($AB,$CA)
    $CA_CB_angle = Angle($CA,$BC)

    ConsoleWrite($BA_BC_Angle&@CRLF)
    ConsoleWrite($AB_AC_Angle&@CRLF)
    ConsoleWrite($CA_CB_angle&@CRLF)

    If $BA_BC_Angle = 0 Or $AB_AC_Angle = 0 Or $CA_CB_angle = 0 Then Return "square corner"

    $BA_BC_Angle = ToTirstQuater(Abs(ACos($BA_BC_Angle) * $radToDeg))
    $AB_AC_Angle = ToTirstQuater(Abs(ACos($AB_AC_Angle) * $radToDeg))
    $CA_CB_angle = ToTirstQuater(Abs(ACos($CA_CB_angle) * $radToDeg))

    ConsoleWrite($BA_BC_Angle&@CRLF)
    ConsoleWrite($AB_AC_Angle&@CRLF)
    ConsoleWrite($CA_CB_angle&@CRLF)

    If $BA_BC_Angle < 90 and $AB_AC_Angle < 90 and $CA_CB_angle < 90 Then Return "acute angle"

    Return "obtuse angle"
EndFunc   ;==>Test


Func ScalarProduct($u,$v)
    Return $u[0]*$v[0] + $u[1]*$v[1]
EndFunc

Func Angle($u,$v)
    Return ScalarProduct($u,$v)/(Sqrt($u[0] ^ 2 + $u[1] ^ 2)*Sqrt($v[0] ^ 2 + $v[1] ^ 2))
EndFunc

Func ToTirstQuater($iAnge)
    If $iAnge > 90 Then Return 180 - $iAnge
    Return $iAnge
EndFunc

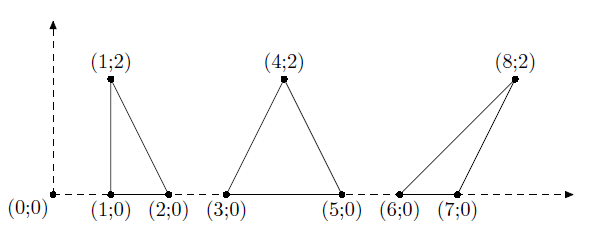

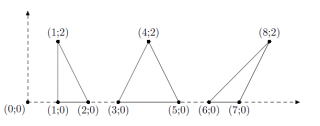

Pic shows triangles used in 3 tests

Posted Image

post-45701-0-40969200-1318180459_thumb.p

Edited by E1M1

edited

Share this post


Link to post
Share on other sites
jaberwacky

Edit: Actually, I now think the problem lies within this section of your code:

$AB[0] = $B[0] - $A[0]
$AB[1] = $B[1] - $A[1]

$BC[0] = $C[0] - $B[0]
$BC[1] = $C[1] - $B[1]

$CA[0] = $A[0] - $C[0]
$CA[1] = $A[1] - $C[1]

Well, no that can't be it because it correctly determines a right triangle. Ok, nevermind that and continue reading.

I think you're problem lies within this function: ToTirstQuater.

Here is my version of the code which, I believe, demonstrates the problem:

MsgBox(0, 0, Test("1 0 2 0 1 2"))
MsgBox(0, 0, Test("3 0 5 0 4 2"))
MsgBox(0, 0, Test("6 0 7 0 8 2"))

;~ $TriangleCoords = "x1 y1 x2 y2 x3 y3"
;~ Angles: If 1 of the angles are:
;        < 90 acute angle
;         > 90 obtuse angle
;        = 90 square corner

Func Test($TriangleCoords)
    Local Const $Triangle = StringSplit($TriangleCoords, " ")

    Local $A[2]
    $A[0] = Number($Triangle[1])
    $A[1] = Number($Triangle[2])

    Local $B[2]
    $B[0] = Number($Triangle[3])
    $B[1] = Number($Triangle[4])

    Local $C[2]
    $C[0] = Number($Triangle[5])
    $C[1] = Number($Triangle[6])

    Local $AB[2]
    $AB[0] = $B[0] - $A[0]
    $AB[1] = $B[1] - $A[1]

    Local $BC[2]
    $BC[0] = $C[0] - $B[0]
    $BC[1] = $C[1] - $B[1]

    Local $CA[2]
    $CA[0] = $A[0] - $C[0]
    $CA[1] = $A[1] - $C[1]

    Local Const $ABLen = Sqrt($AB[0] ^ 2 + $AB[1] ^ 2)
    Local Const $BCLen = Sqrt($BC[0] ^ 2 + $BC[1] ^ 2)
    Local Const $CALen = Sqrt($CA[0] ^ 2 + $CA[1] ^ 2)

    If $ABLen = 0 Or $BCLen = 0 Or $CALen = 0 Then Return "ERROR"

    Local $BA_BC_Angle = Angle($AB, $BC)
    Local $AB_AC_Angle = Angle($AB, $CA)
    Local $CA_CB_Angle = Angle($CA, $BC)

    ConsoleWrite("-----------------------------------------" & @CRLF)
    ConsoleWrite("$BA_BC_Angle: " & $BA_BC_Angle & @CRLF)
    ConsoleWrite("$AB_AC_Angle: " & $AB_AC_Angle & @CRLF)
    ConsoleWrite("$CA_CB_Angle: " & $CA_CB_Angle & @CRLF & @CRLF)
    ConsoleWrite("Sum: " & $BA_BC_Angle + $AB_AC_Angle + $CA_CB_Angle & @CRLF)

    If $BA_BC_Angle = 90 Or $AB_AC_Angle = 90 Or $CA_CB_Angle = 90 Then
        ConsoleWrite("-----------------------------------------" & @CRLF & @CRLF)
        Return "square corner"
    EndIf

    $BA_BC_Angle = ToTirstQuater($BA_BC_Angle)
    $AB_AC_Angle = ToTirstQuater($AB_AC_Angle)
    $CA_CB_Angle = ToTirstQuater($CA_CB_Angle)

    ConsoleWrite(@CRLF & "$BA_BC_Angle: " & $BA_BC_Angle & @CRLF)
    ConsoleWrite("$AB_AC_Angle: " & $AB_AC_Angle & @CRLF)
    ConsoleWrite("$CA_CB_Angle: " & $CA_CB_Angle & @CRLF & @CRLF)
    ConsoleWrite("Sum: " & $BA_BC_Angle + $AB_AC_Angle + $CA_CB_Angle & @CRLF)
    ConsoleWrite("-----------------------------------------" & @CRLF & @CRLF)

    If $BA_BC_Angle > 90 Or $AB_AC_Angle > 90 Or $CA_CB_Angle > 90 Then Return "obtuse angle"

    If $BA_BC_Angle < 90 And $AB_AC_Angle < 90 And $CA_CB_Angle < 90 Then Return "acute angle"
EndFunc   ;==>Test

Func dot_product($v, $u)
    Return $v[0] * $u[0] + $v[1] * $u[1]
EndFunc   ;==>ScalarProduct

Func angle($v, $u)
    Local Const $dot_product = dot_product($v, $u)
    Local Const $length_of_v = Sqrt($v[0] ^ 2 + $v[1] ^ 2)
    Local Const $length_of_u = Sqrt($u[0] ^ 2 + $u[1] ^ 2)
    Local Const $cos_theta = ($dot_product / ($length_of_v * $length_of_u))
    Return Round(ACos($cos_theta) * (180 / 3.14159265358979), 3)
EndFunc

Func ToTirstQuater($iAnge)
    If $iAnge > 90 Then Return Abs(180 - $iAnge)
    Return Abs($iAnge)
EndFunc   ;==>ToTirstQuater

This has been a lot of fun. I've learned more about trigonometry than I ever learned in school.
