I have a child window inside of my main window that has a tab control with a scrollbar. Everything is working fine except for a few little annoyances. When I minimize the window it works fine, but when I click on the window to bring it back I see the child window display instantly and then the parent window comes in behind it a second later. Also, I have another issue that when the window is open for a while and I come back to it the child window is shifted to the right and is extending outside the bounds of the parent window. I have not been able to narrow down when this happens, but it has happened quite a few times. If someone has a chance please take a look and see if you see the same thing. Thanks.

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <TabConstants.au3>
#include <GUIScrollbars_Ex.au3>
#include <StringSize.au3>
#include <EditConstants.au3>
#include <ComboConstants.au3>
$xWidth = 800
$xHeight = 600
$iPadRight = 20
$iPadBottom = 20
$eColor = 0x80FF80
$oColor = 0xffffff
$Form1 = GUICreate("My GUI", $xWidth, $xHeight) ; will create a dialog box that when displayed is centered
$tab1 = GUICtrlCreateTab(0,10,$xwidth,490)
$t1 = GUICtrlCreateTabItem("Tab 1")
$t2 = GUICtrlCreateTabItem("Tab 2")
$t3 = GUICtrlCreateTabItem("Tab 3")
$t4 = GUICtrlCreateTabItem("Tab 4")
$t5 = GUICtrlCreateTabItem("Tab 5")
$t6 = GUICtrlCreateTabItem("Tab 6")
$hTab_Win0 = GUICreate("Test", $xWidth - 20, 400, 10, 50, $WS_POPUP, $WS_EX_MDICHILD, $Form1)
_GUIScrollbars_Generate($hTab_Win0, 0,400)
GUISetState(@SW_SHOW, $Form1)
GUISetState(@SW_SHOW, $hTab_Win0)
; Run the GUI until the dialog is closed
While 1
$msg = GUIGetMsg()
If $msg = $Tab1 Then _Tab()
If $msg = $GUI_EVENT_CLOSE Then ExitLoop
Func _Tab()
    Switch GUICtrlRead($tab1)
        Case 0
            GUISetState(@SW_SHOW, $hTab_Win0)
        Case 1
            GUISetState(@SW_HIDE, $hTab_Win0)
  Case 2
   GUISetState(@SW_HIDE, $hTab_Win0)
  Case 3
   GUISetState(@SW_HIDE, $hTab_Win0)
  Case 4
   GUISetState(@SW_HIDE, $hTab_Win0)
  Case 5
   GUISetState(@SW_HIDE, $hTab_Win0)
Edited by notta
Link to post
Share on other sites

Hello Notta i tested your script but it runs ok with no problems...

I use xp sp3... i just say that because i had read in the forum that some times Gui's looks different in xp or w7...

Maybe im wrong but it works fine...

Edited by armoros

[font="verdana, geneva, sans-serif"] [/font]

Link to post
Share on other sites
  • Moderators


I too see no problems when minimizing/restoring the GUI nor any displacement of the child GUI (after about 20 minutes visible). I am using Vista x32. ;)


Public_Domain.png.2d871819fcb9957cf44f4514551a2935.png Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind

Open spoiler to see my UDFs:


ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area


Link to post
Share on other sites

Thanks guys. The issue is happening on my Windows 7 machine. I have verified that the child window delay does not happen on Windows XP. I built the test file and had a co-worker run it on his Windows 7 machine and he also sees the delay. I don't have a Vista machine so I can't test that. Anyone have a 7 box they can test it on?

Link to post
Share on other sites

I did testit in my sisters w7 x32 pc i executed compiled but no problem..

here is the screenshots

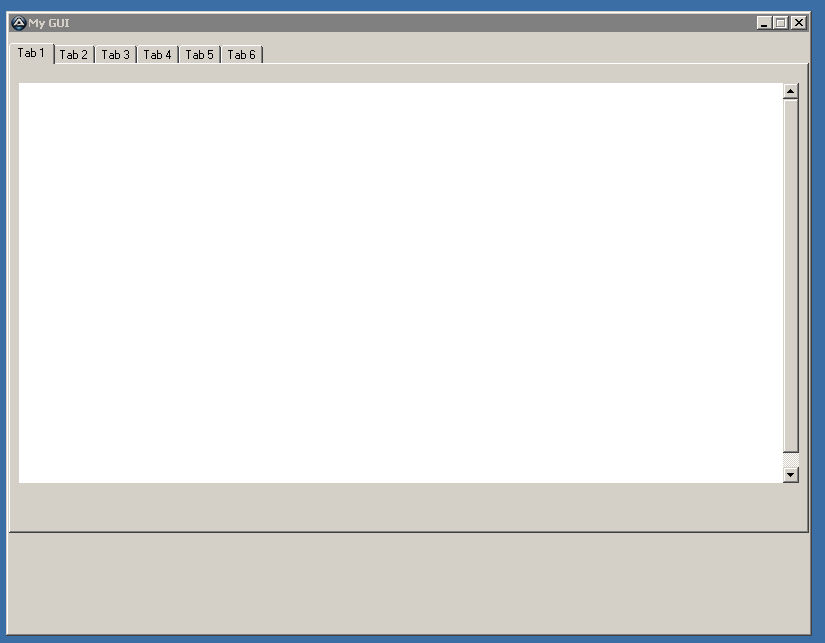

XP-sp3 post-71357-0-00461400-1336585768_thumb.p

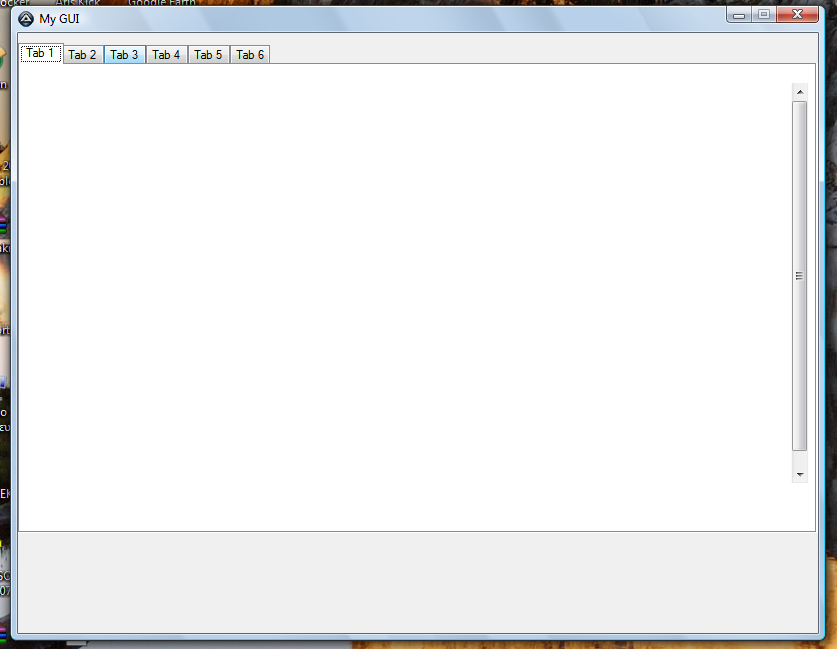

w7 x 32 post-71357-0-87882200-1336585824_thumb.p

I am sorry notta i am fool ;) my sister has Vista x32 too :)

sorry would love to help but.....

Edited by armoros

[font="verdana, geneva, sans-serif"] [/font]

Link to post
Share on other sites

Dont know if that helps notta but try this...you never know...

Pass the Handle of the Parent GUI to the Child GUI using the 'Parent Parameter' and then Disable the Parent GUI.

GUICreate ( "title" [, width [, height [, left [, top [, style [, exStyle [, parent]]]]]]] )


#AutoIt3Wrapper_Au3Check_Parameters=-d -w 1 -w 2 -w 3 -w 4 -w 5 -w 6
#include <GUIConstantsEx.au3>
Global $hParentGUI
Func _Main()
    Local $iButton_1
    $hParentGUI = GUICreate("Example by guinness", 200, 200, -1, -1)
    $iButton_1 = GUICtrlCreateButton("Show MsgBox()", 10, 10, 85, 25)
    GUISetState(@SW_SHOW, $hParentGUI)
    While 1
        Switch GUIGetMsg()
            Case $GUI_EVENT_CLOSE
            Case $iButton_1
                GUISetState(@SW_DISABLE, $hParentGUI)
                GUISetState(@SW_ENABLE, $hParentGUI)
EndFunc   ;==>Main
Func _ChildGUI()
    GUICreate("Custom MsgBox()", 200, 200, -1, -1, -1, -1, $hParentGUI)
    While 1
        Switch GUIGetMsg()
            Case $GUI_EVENT_CLOSE
EndFunc   ;==>_ChildGUI
