M4n0x

Hide/Show Groups and GUI resize

1 post in this topic

#1 ·  Posted (edited)

Hi !

I'm working on a UDF that can show and hide group, and it's works very well when there is no GUI resize.

But when I set a GUI resized i have some trouble effect, two to be exact.

When a group is hidden and all other are shown (or when one is open and the rest are hidden) I have this effects :

1. The group lose width, if you compare with others...
2. The button with which you can hide or show the group moves strangely relative to others...

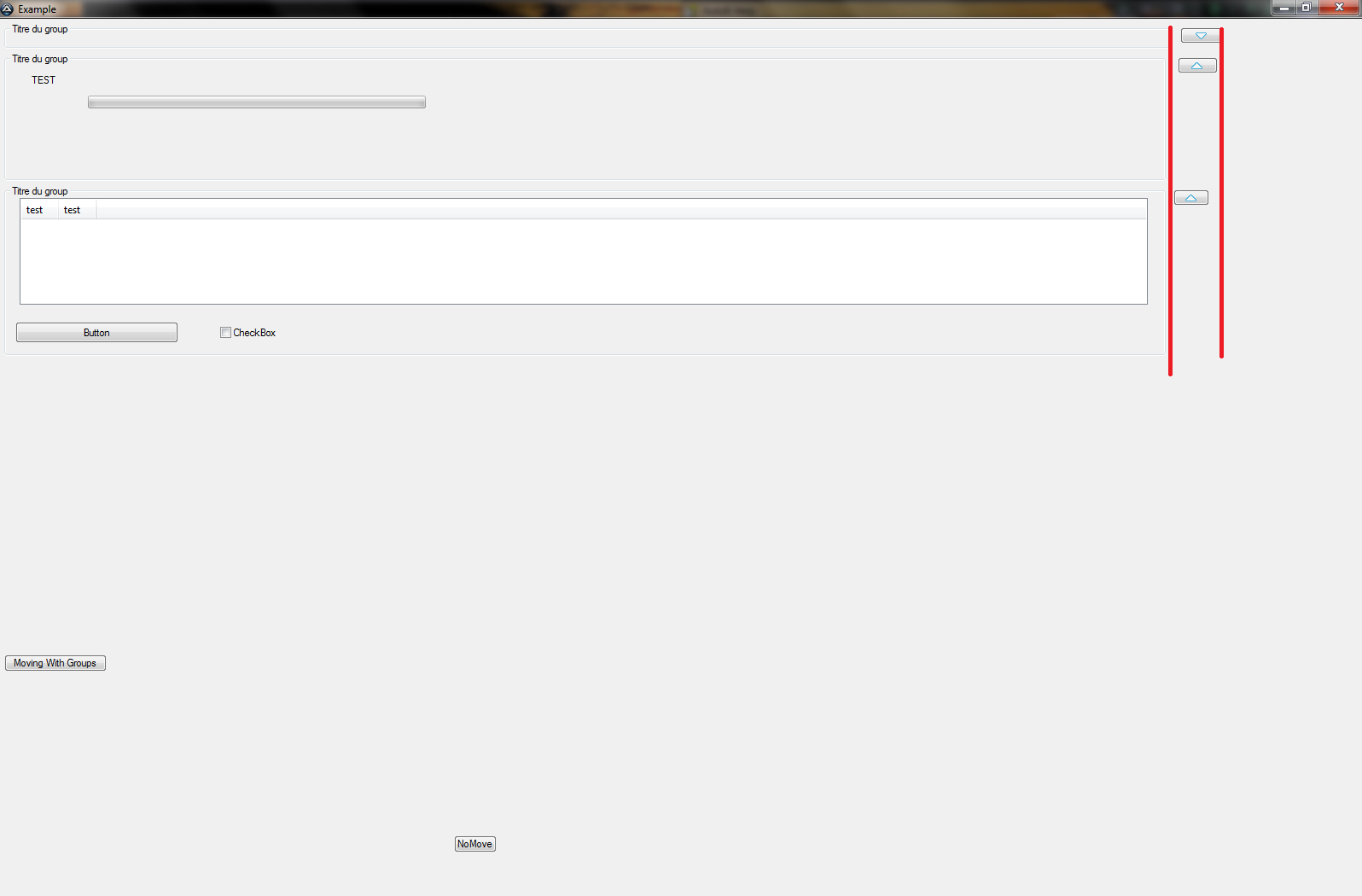

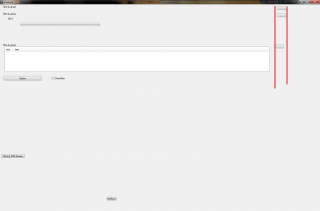

Maybe an image will be more explicit :

post-80760-0-44015600-1374483519_thumb.p

Example :

#include "HideAndShow.au3"
#include <GuiConstants.au3>
#include <WindowsConstants.au3>
#include <Array.au3>
global $GetPos
Global $iGrpStyle = $GUI_DOCKHEIGHT + $GUI_DOCKTOP + $GUI_DOCKLEFT
Global $iIcoStyle = $GUI_DOCKHEIGHT + $GUI_DOCKTOP

_Exemple()

func _Exemple()

Global $Form1 = GUICreate("Example", 600, 600, 0, 0,BitOR($GUI_SS_DEFAULT_GUI,$WS_SIZEBOX, $ws_MAXIMIZEBOX))
GUISetState(@SW_SHOW)

_HS_Start($Form1)

Global $hGrpEV = _HS_GroupOpen("Titre du group", 5, 5 , 515, 150, $iGrpStyle, $iIcoStyle)
$hListView = GUICtrlCreateListView("wd", 12, 20, 500, 125)
GUICtrlSetResizing(-1,$GUI_DOCKHEIGHT + $GUI_DOCKTOP)
_HS_GroupClose()

Global $hGrpEV2 = _HS_GroupOpen("Titre du group", 5, 160 , 515, 150,$iGrpStyle,$iIcoStyle)
        GUICtrlCreateLabel("TEST", 15, 185)
        GUICtrlSetResizing(-1,$GUI_DOCKHEIGHT + $GUI_DOCKTOP)
        GUICtrlCreateProgress(40,210,150,15)
        GUICtrlSetResizing(-1,$GUI_DOCKHEIGHT + $GUI_DOCKTOP)
_HS_GroupClose()


Global $hGrpEV3 = _HS_GroupOpen("Titre du group", 5, 315, 515, 200,$iGrpStyle,$iIcoStyle)
    GUICtrlCreateButton("Button", 10, 475, 75, 25)
    GUICtrlSetResizing(-1,$GUI_DOCKHEIGHT + $GUI_DOCKTOP)
    GUICtrlCreateCheckbox("CheckBox", 100, 475, 75, 25)
    GUICtrlSetResizing(-1,$GUI_DOCKHEIGHT + $GUI_DOCKTOP)
    $hListView3 = GUICtrlCreateListView("test|test", 12, 330, 500, 125)
    GUICtrlSetResizing(-1,$GUI_DOCKHEIGHT + $GUI_DOCKTOP)
_HS_GroupClose()

GUICtrlCreateButton("Moving With Groups", 5, 550, 120, 20)

_HS_Stop()

$GetPos = GUICtrlCreateButton("NoMove", 200, 550, 50, 20)
EndFunc

While 1
    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
        case $hGrpEV
             _HS_ActiveGroup($hGrpEV)
        case $hGrpEV2
             _HS_ActiveGroup($hGrpEV2)
        case $hGrpEV3
             _HS_ActiveGroup($hGrpEV3)
         case $GetPos
            $test = ControlGetPos($aHS_AllGroups[0][2], "", $aHS_AllGroups[InputBox("id","id")][0])
            _ArrayDisplay($test)
    EndSwitch
WEnd


UDF :

; #INDEX# ============================================================================================================
    ; Title .........: HideAndShow
    ; AutoIt Version : 3.3 +
    ; Language ......: Eng
    ; Description ...: Allow user to create group with hide/show function.
    ; Remarks .......:
    ; Version .......: 0.1 (TEST)
    ; Author ........: M4n0x (20 july 2013)
    ; ====================================================================================================================

    ; #INCLUDES# =========================================================================================================
    #include <GuiConstantsEx.au3>
    #include <ButtonConstants.au3>

    ; #GLOBAL VARIABLES# =================================================================================================
    ; Array to save groups and other details about the main gui and number of groups.
    Global $aHS_AllGroups[1][8]

    ; #CURRENT# ==========================================================================================================
    ; _HS_GroupStart:         Save the parent gui
    ; _HS_GroupOpen:          create a group and save position info to an array
    ; _HS_GroupClose:         Close the group and save last control id
    ; _HS_ActiveGroup:        Main Function allow to use fonction hide and show.
    ; _HS_Stop:               Stop deplacement of controls after this function.
    ; ====================================================================================================================

    ; #INTERNAL_USE_ONLY#=================================================================================================
    ; _HS_ControlUP:           Move up all controls id between the group and HS_Stop
    ; _HS_ControlDown:         Move down all controls id between the group and HS_Stop
    ; ====================================================================================================================

    ; #FUNCTION# =========================================================================================================
    ; Name...........: _HS_Start
    ; Description ...: save GUI where groups are created
    ; Syntax.........: _HS_Start($hWnd)
    ; Parameters ....: $hWnd - Handle GUI where groups will be created
    ; Requirement(s).: v3.3 +
    ;=====================================================================================================================
    Func _HS_Start($hWnd)
        $aHS_AllGroups[0][2] = $hWnd
    EndFunc   ;==>_HS_Start

    ; #FUNCTION# =========================================================================================================
    ; Name...........: _HS_GroupOpen
    ; Description ...: Create a group and save informations into an global array
    ; Syntax.........: _HS_GroupOpen($sName, $iLeft, $iTop, $iWidth, $iHeight [, $iStyle = $GUI_DOCKHEIGHT + $GUI_DOCKTOP [, $iStyleIco = -1]])
    ; Parameters ....: $sName - label of the groupe
    ;                  $iLeft - Left position
    ;                  $iTop - Top position
    ;                  $iWidth - Width of the group
    ;                  $iHeight - Heigth of the group
    ;                  $iStyle - Set resize parameter on case of a gui with $WS_SIZEBOX (for the groupe only, not the controls in it)
    ;                  $iStyleIco - Define resizing style for the Ico (button) for switching between hide and show
    ; Requirement(s).: v3.3 +
    ;=====================================================================================================================
    Func _HS_GroupOpen($sName, $iLeft, $iTop, $iWidth, $iHeight, $iStyle = -1, $iStyleIco = -1)
        Local $iCurrID = UBound($aHS_AllGroups)
        $aHS_AllGroups[0][0] = $iCurrID ; Le Total de groupe
        ReDim $aHS_AllGroups[$iCurrID + 1][8]

        $aHS_AllGroups[$iCurrID][0] = GUICtrlCreateGroup($sName, $iLeft, $iTop, $iWidth, $iHeight)
        if $iStyle <> -1 then GuiCtrlSetResizing(-1, $iStyle)
        $aHS_AllGroups[$iCurrID][1] = $iLeft
        $aHS_AllGroups[$iCurrID][2] = $iTop
        $aHS_AllGroups[$iCurrID][3] = $iWidth
        $aHS_AllGroups[$iCurrID][4] = $iHeight
        $aHS_AllGroups[$iCurrID][6] = True
        $aHS_AllGroups[$iCurrID][7] = GUICtrlCreateButton("", $iWidth +5, $iTop + 5, 19, 19, $BS_ICON)
        if $iStyleIco <> -1 then GuiCtrlSetResizing(-1, $iStyleIco)
        GUICtrlSetImage($aHS_AllGroups[$iCurrID][7], "Shell32.dll", -247, 0)

        Return $aHS_AllGroups[$iCurrID][7]

    EndFunc   ;==>_HS_GroupOpen

    ; #FUNCTION# =========================================================================================================
    ; Name...........: _HS_GroupClose
    ; Description ...: Close the group and save informations in the global array
    ; Syntax.........: _HS_GroupClose()
    ; Parameters ....: NoParam
    ; Requirement(s).: v3.3 +
    ;=====================================================================================================================
    Func _HS_GroupClose()
        $aHS_AllGroups[UBound($aHS_AllGroups) - 1][5] = GUICtrlCreateGroup("", -99, -99, 1, 1)
        GuiCtrlSetResizing(-1, $GUI_DOCKALL)
    EndFunc   ;==>_HS_GroupClose

    ; #FUNCTION# =========================================================================================================
    ; Name...........: _HS_ActiveGroup
    ; Description ...: Retract the group in parameter and moves all controls created after the group until _HS_Stop()
    ; Syntax.........: _HS_GroupOpen($sName, $iLeft, $iTop, $iWidth, $iHeight)
    ; Parameters ....: $iCtrlID - handle the image id control to use hide/show function, this paramater is saved in the global
    ;                  array, with this, the udf can retrieve the group id by searching in the global array.
    ; Requirement(s).: v3.3 +
    ;=====================================================================================================================
    Func _HS_ActiveGroup($iCtrlID)
        Local $iCurrID = UBound($aHS_AllGroups)

        ; retrieve the group
        For $id = 0 To $iCurrID - 1
            If $iCtrlID = $aHS_AllGroups[$id][7] Then ExitLoop
        Next

        If $aHS_AllGroups[$id][6] Then
            GUICtrlSetPos($aHS_AllGroups[$id][0], Default, Default, Default, 30)
            ; hide all objects in the group
            For $i = $aHS_AllGroups[$id][0] + 1 To $aHS_AllGroups[$id][5] - 1
                If $aHS_AllGroups[$id][7] = $i Then
                    GUICtrlSetImage($aHS_AllGroups[$id][7], "shell32.dll", -248, 0)
                    ContinueLoop
                EndIf
                GUICtrlSetState($i, $GUI_HIDE)
            Next

            _HS_ControlUP($id)

            ;Switch to know if is already retracted ( false = not retracted )
            $aHS_AllGroups[$id][6] = False
        Else
            _HS_ControlDown($id)

            GUICtrlSetPos($aHS_AllGroups[$id][0], Default, Default, Default, $aHS_AllGroups[$id][4])
            ; show all objects in the group
            For $i = $aHS_AllGroups[$id][0] + 1 To $aHS_AllGroups[$id][5] - 1
                If $aHS_AllGroups[$id][7] = $i Then
                    GUICtrlSetImage($aHS_AllGroups[$id][7], "shell32.dll", -247, 0)
                    ContinueLoop
                EndIf
                GUICtrlSetState($i, $GUI_SHOW)
            Next
            ;Switch to know if is already retracted ( true = not retracted )
            $aHS_AllGroups[$id][6] = True
        EndIf
    EndFunc   ;==>_HS_ActiveGroup

    ; #INTERNAL_USE_ONLY# =========================================================================================================
    ; Name...........: _HS_ControlUP
    ; Description ...: Move up all controls id between the group and HS_Stop
    ;==============================================================================================================================
    Func _HS_ControlUP($id)
        For $i = $aHS_AllGroups[$id][5]+1 To $aHS_AllGroups[0][1] - 1
            $test = ControlGetPos($aHS_AllGroups[0][2], "", $i)
            if $test[0] = -99 and $test[1] = -99 Then ContinueLoop
            GUICtrlSetPos($i, Default, ($test[1] - $aHS_AllGroups[$id][4]) + 30)
        Next
    EndFunc   ;==>_HS_ControlUP

    ; #INTERNAL_USE_ONLY# =========================================================================================================
    ; Name...........: _HS_ControlUP
    ; Description ...: Move down all controls id between the group and HS_Stop
    ;==============================================================================================================================
    Func _HS_ControlDown($id)
        For $i = $aHS_AllGroups[$id][5]+1 To $aHS_AllGroups[0][1] - 1
            $test = ControlGetPos($aHS_AllGroups[0][2], "", $i)
            if $test[0] = -99 and $test[1] = -99 Then ContinueLoop
            GUICtrlSetPos($i, Default, ($test[1] + $aHS_AllGroups[$id][4]) - 30)
        Next
    EndFunc   ;==>_HS_ControlDown

    ; #FUNCTION# =========================================================================================================
    ; Name...........: _HS_Stop
    ; Description ...: Stored the last control id for moving the correct controls
    ; Syntax.........: _HS_Start()
    ; Parameters ....: No param
    ; Requirement(s).: v3.3 +
    ;=====================================================================================================================
    Func _HS_Stop()
        $aHS_AllGroups[0][1] = GUICtrlCreateDummy()
    EndFunc   ;==>_HS_Stop


I must have missed something! ( something really stupid ^^)

Thanks for reading...

Edited by M4n0x
