Expanding text field ... is there such a thing?

20 posts in this topic

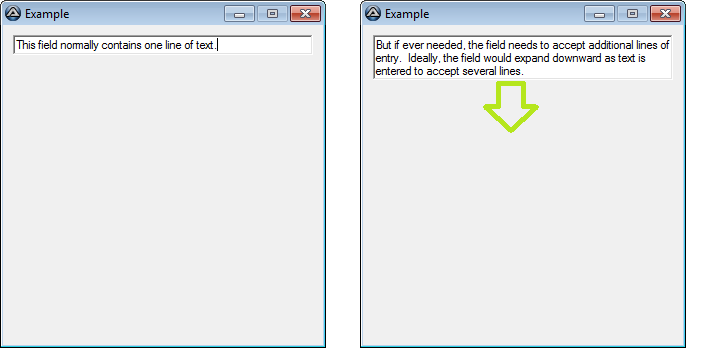

I have a special situation where a text field is normally only one line.  But every now and then, it needs to hold several lines ... up to a couple of paragraphs.

Is there such a thing as an expanding text field? — one that can expand downward as additional lines are typed in?  (see attached)

I see this kind of thing all the time in programmed applications.  But I can't spot any reference or example for AutoIt3.  Here's the code for my simple example:

#include <GuiRichEdit.au3>
#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>

Local $hGui, $hRichEdit, $iMsg
$hGui = GUICreate("Example ", 320, 320, -1, -1)
$hRichEdit = _GUICtrlRichEdit_Create($hGui, "This is the first field.", 10, 10, 300, 20, $ES_MULTILINE)
GUISetState()

While True
    $iMsg = GUIGetMsg()
    Select
        Case $iMsg = $GUI_EVENT_CLOSE
             _GUICtrlRichEdit_Destroy($hRichEdit)
             Exit
    EndSelect
WEnd

Thanks in advance for any pointers on a direction to take with this.



post-29172-0-49047400-1391212399_thumb.p

Share this post


Link to post
Share on other sites



qwert,

Or you can do it like this: :)

#include <GUIConstantsEx.au3>
#include <GuiRichEdit.au3>

$hGUI = GUICreate("Test", 500, 500)

$hRichEdit = _GUICtrlRichEdit_Create($hGUI, "This is the first field.", 10, 10, 300, 20, $ES_MULTILINE)

GUISetState()

Global $iCurrCount = _GUICtrlRichEdit_GetLineCount($hRichEdit)

While 1

    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch

    If _GUICtrlRichEdit_IsModified($hRichEdit) Then
        _CheckRichEditLineCount()
    EndIf


WEnd

Func _CheckRichEditLineCount()

    Local $iCount = _GUICtrlRichEdit_GetLineCount($hRichEdit)
    If $iCount <> $iCurrCount Then
        WinMove($hRichEdit, "", Default, Default, Default, 7 + ($iCount * 13))
        $iCurrCount = $iCount
    EndIf
    _GUICtrlRichEdit_SetModified($hRichEdit, False)

EndFunc   ;==>_CheckRichEditLineCount
I derived the values for thw new height empirically - no doubt you could determine them programatically if required. ;)

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Melba, thanks you for your suggestion.  It does accomplish what I requested ... and in a forthright way.

However, I spent the morning running ALL the examples of your StringSize, GUIExtender and GUIFrame UDFs.  Very impressive work!

Now I see that there are many more possibilities ... which has led me to consider an even better implementation.  (See prototype, below.)

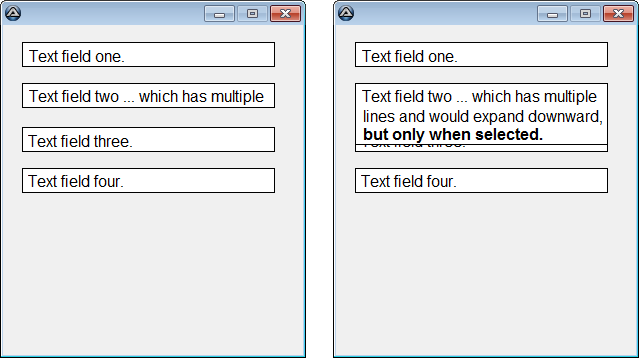

Do you have a suggestion on how to make a field expand only if it is selected?

My initial impression is that I could do it with the GUIExtender features, but that the result would be a shift effect, not an overlay effect.



post-29172-0-36072600-1391284446_thumb.p

Share this post


Link to post
Share on other sites

qwert,

More complex than I thought it would be. And how do you intend selecting a RichEdit which becomes hidden under one which has extended? :huh:

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Yes, I didn't mention that.  My idea is that a field would expand only when it was selected ... and then revert to a one-line field when any other field (or no field) was selected.  It would behave about like a drop-down selection for state or country ... but it would allow key entry.

Share this post


Link to post
Share on other sites

#7 ·  Posted (edited)

qwert,

I have run into 2 problems:



- 1. Lower RichEdit controls appear through the expanded one.

- 2. These "hidden" edit controls cannot be reselected.

#include <GUIConstantsEx.au3>
#include <GuiRichEdit.au3>
#include <WinAPI.au3>

Global $aRichEdit[4][2] = [[0, 1], [0, 1], [0, 1], [0, 1]]
Global $hLast_Focus = 9999

$hGUI = GUICreate("Test", 500, 500)

$aRichEdit[0][0] = _GUICtrlRichEdit_Create($hGUI, "This is the first field.", 10, 10, 300, 20, $ES_MULTILINE)
$aRichEdit[1][0] = _GUICtrlRichEdit_Create($hGUI, "This is the second field.", 10, 40, 300, 20, $ES_MULTILINE)
$aRichEdit[2][0] = _GUICtrlRichEdit_Create($hGUI, "This is the third field.", 10, 70, 300, 20, $ES_MULTILINE)
$aRichEdit[3][0] = _GUICtrlRichEdit_Create($hGUI, "This is the fourth field.", 10, 100, 300, 20, $ES_MULTILINE)

$cButton = GUICtrlCreateButton("Test", 10, 300, 80, 30)

GUISetState()

While 1

    Switch GUIGetMsg()
        Case $GUI_EVENT_CLOSE
            Exit
    EndSwitch

    $hCurr_Focus = _WinAPI_GetFocus()
    For $i = 0 To 3
        If $hCurr_Focus = $aRichEdit[$i][0] Then
            _CheckRichEditLineCount($i)
            ExitLoop
        EndIf
    Next
    ; If none focused
    If $i = 4 And $hCurr_Focus <> $hLast_Focus Then
        ConsoleWrite("Resetting Last" & @CRLF)
        ; Reset last focused control
        WinMove($hLast_Focus, "", Default, Default, Default, 20)
        $hCurr_Focus = $hLast_Focus
    EndIf

WEnd

Func _CheckRichEditLineCount($iIndex)

    ; Reset last focused control if not the same
    If $hLast_Focus <> $aRichEdit[$iIndex][0] Then
        ConsoleWrite("Resetting " & $iIndex & @CRLF)
        WinMove($hLast_Focus, "", Default, Default, Default, 20)
        $hLast_Focus = $aRichEdit[$iIndex][0]
    EndIf

    ; Get count of current
    Local $iCount = _GUICtrlRichEdit_GetLineCount($aRichEdit[$iIndex][0])
    If $iCount <> $aRichEdit[$iIndex][1] Then
        WinMove($aRichEdit[$iIndex][0], "", Default, Default, Default, 7 + ($iCount * 13))
        $aRichEdit[$iIndex][1] = $iCount
    EndIf

EndFunc   ;==>_CheckRichEditLineCount
The second problem could be worked around by having buttons to the side of the edit controls to help select them, but the first is giving me a bit of a headache at present. :(

M23

Edit: I have found a solution - now to get it to work elegantly! :D

Edited by Melba23

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

qwert,

That was fun challenge! :D

Here is the final result:

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <GuiRichEdit.au3>
#include <WinAPI.au3>

Global $iEdit_Count = 4         ; Number of edits
Global $iEdit_Height = 20       ; Initial height of edits
Global $iEdit_Separation = 40   ; Distance from one edit to next
Global $iEdit_MaxDrop = 300     ; Max Y coord for expansion
Global $iCurrEdit_Index = 0     ; Index number of current edit - 0 = none
; Arrays to hold control data
Global $aRichEdit[$iEdit_Count + 1][3]
Global $aButton[$iEdit_Count + 1]

; Create GUI
$hGUI = GUICreate("Test", 500, 500)

; Create edit controls and focus buttons
For $i = 1 To $iEdit_Count
    $aRichEdit[$i][0] = _GUICtrlRichEdit_Create($hGUI, "", 10, ($i * $iEdit_Separation) - 30, 300, $iEdit_Height, BitOr($ES_MULTILINE, $WS_VSCROLL))
    $aRichEdit[$i][1] = 1 ; Lone count - 1 line by default
    $aRichEdit[$i][2] = Int(($iEdit_MaxDrop - (($i * $iEdit_Separation) - 30) - 7) / ($iEdit_Height - 7)) ; Max lines to expand to reach MaxDrop
    $aButton[$i] = GUICtrlCreateButton("< " & $i, 320, ($i * $iEdit_Separation) - 30, 30, 20)
Next

; Just to have another control
$cTest_Button = GUICtrlCreateButton("Test", 10, 300, 80, 30)
GUICtrlSetState($cTest_Button, $GUI_FOCUS)

GUISetState()

While 1

    $iMsg = GUIGetMsg()
    Switch $iMsg
        Case $GUI_EVENT_CLOSE
            Exit
        Case $cTest_Button
            MsgBox($MB_SYSTEMMODAL, "Hi", "Just for testing")
        Case Else
            ; Check if a focus button
            For $i = 1 To $iEdit_Count
                If $aButton[$i] = $iMsg Then
                    ; Focus edit
                    _WinAPI_SetFocus($aRichEdit[$i][0])
                    $iCurrEdit_Index = $i
                    ; Show all edits at original size
                    _ResetAllEdits()
                    ; Reset required depth for edit
                    _CheckRichEditLineCount($i, True)
                    ExitLoop
                EndIf
            Next
    EndSwitch

    ; Check for curent focus
    $hCurrFocus = _WinAPI_GetFocus()
    For $i = 1 To $iEdit_Count
        ; It is an edit
        If $aRichEdit[$i][0] = $hCurrFocus Then
            ; But a new one
            If $iCurrEdit_Index <> $i Then
                ; Set focus to new edit
                $iCurrEdit_Index = $i
                ; Show all edits at original size
                _ResetAllEdits()
                ; Reset required depth for edit
                _CheckRichEditLineCount($i, True)
            Else
                ; Check for changes in edit
                If _GUICtrlRichEdit_IsModified($aRichEdit[$i][0]) Then
                    ; Set required depth if changes made
                    _CheckRichEditLineCount($i)
                    ; Reset flag
                    _GUICtrlRichEdit_SetModified($aRichEdit[$i][0], False)
                EndIf
            EndIf
            ; No point in looking further
            ExitLoop
        EndIf
    Next
    ; If no edits focused
    If $i > $iEdit_Count And $iCurrEdit_Index <> 0 Then
        ; Show all edits at original size
        _ResetAllEdits()
        $iCurrEdit_Index = 0
    EndIf

WEnd

Func _ResetAllEdits()

    ; Resize and show all edits
    For $i = 1 To $iEdit_Count
        WinMove($aRichEdit[$i][0], "", Default, Default, Default, $iEdit_Height)
        ControlShow($hGUI, "", $aRichEdit[$i][0])
    Next

EndFunc

Func _CheckRichEditLineCount($iIndex, $fReset = False)

    Local $iEdit_Depth = 0

    If $aRichEdit[$iIndex][1] < $aRichEdit[$iIndex][2] Then
        ; Get line count of current edit
        Local $iCount = _GUICtrlRichEdit_GetLineCount($aRichEdit[$iIndex][0])
        ; If line number has changed or reset is required
        If $iCount <> $aRichEdit[$iIndex][1] Or $fReset = True Then
            ; Calulate required size
            $iEdit_Depth = 7 + ($iCount * ($iEdit_Height - 7))
            ; Resize edit
            WinMove($aRichEdit[$iIndex][0], "", Default, Default, Default, $iEdit_Depth)
            ; Save line count
            $aRichEdit[$iIndex][1] = $iCount
        EndIf
    Else
        ; Calculate max size
        $iEdit_Depth = 7 + ($aRichEdit[$iIndex][2] * ($iEdit_Height - 7))
        ; Resize edit
        WinMove($aRichEdit[$iIndex][0], "", Default, Default, Default, $iEdit_Depth)
    EndIf
    ; How far down does the edit go?
    Local $iEdit_Bottom = ($iIndex * $iEdit_Separation) - 30 + $iEdit_Depth
    ; Check lower edits to see if overlapped
    For $i = $iIndex + 1 To $iEdit_Count
        If ($i * $iEdit_Separation) - 30 < $iEdit_Bottom Then
            ; Hide edit if required
            ControlHide($hGUI, "", $aRichEdit[$i][0])
        EndIf
    Next

EndFunc   ;==>_CheckRichEditLineCount
I am quite pleased with that. Please ask if you have any questions. :)

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

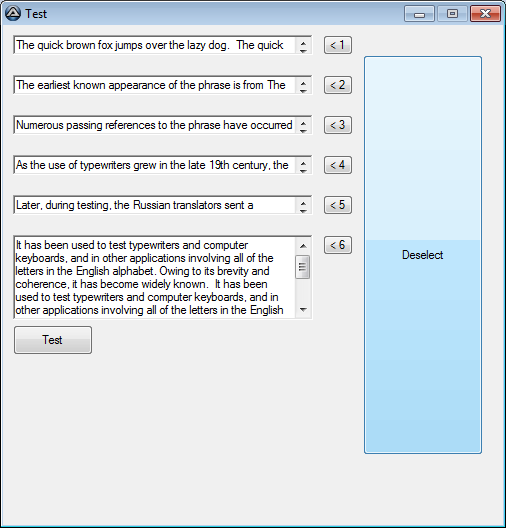

Melba23, THAT is an outstanding solution.  It exceeds what I had hoped for:

►The fields are limited in total length so they are confined to an area of the GUI.

►The fields convert to a scrollable field only when content size is too large per above.

►The fields accept drag/drop text.

►The number of fields is specified by a single parameter.

As icing on the cake, I added a button/area of the screen to deselect ... which works great.  Here's a screen shot of my result so far.

You have made my day.  Thanks very much.



post-29172-0-65228600-1391366049_thumb.p

Share this post


Link to post
Share on other sites

qwert,

Glad I could help. :)

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

@Melba23:  I do have one additional question.  I'm trying to increase the font size to 14.  You identified the major parameters from the start:

Global $iEdit_Count = 4         ; Number of edits
Global $iEdit_Height = 20       ; Initial height of edits
Global $iEdit_Separation = 40   ; Distance from one edit to next
Global $iEdit_MaxDrop = 300     ; Max Y coord for expansion

But in the _CheckRichEditLineCount function you use a constant of 7.  I've tried different values to correspond to a font size of 14, but I can't get the sizing to behave.  (The size of a field doesn't increase properly as entries are made.)

Would you mind pointing out which lines need to change for a font increase from 8.5 to 14?

Share this post


Link to post
Share on other sites

#12 ·  Posted (edited)

qwert,

As I explained in my first post in the thread, I derived the values to use when expanding the edit controls empirically - better known as "trial and error". ;)

If I find the time I will see if I can find a way to determine the correct values programatically later today. :)

M23

Edit: A question. You are using RichEdit controls, I presume so various font sizes can be used in each control. If you do use different fonts withint he same control any expansion will fail because there is no easy way of telling the height of each line. Do you really need RichEdit controls or would plain old Edit controls do instead? :huh:

Edited by Melba23

Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites



Do you really need RichEdit controls or would plain old Edit controls do instead?

The fields will have a default font that will serve for all text entry cases.  But for certain fields, I'd like to be able to accept rich text from some other source, like text from a browser window.  In those few instances, however, it would certainly be acceptable for the default font rules to apply.  The field just wouldn't behave quiet as well, but for good reason.

Does that help?

Share this post


Link to post
Share on other sites

qwert,

I have spent a most frustrating day trying to develop an algorithm to get the edits to expand nicely regardless of the font size. Alas so far I have come up empty handed, so annoyingly I may have to fall back on empirically-derived values for a 14pt font. :(

I will keep at it for a while and let you know if I manage to get anything resolved. :)

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites



I have spent a most frustrating day trying to develop an algorithm

Sorry to hear that.

Would a simplifying assumption help?:  If any non-default text is detected, open the field at its maximum size.

Share this post


Link to post
Share on other sites

qwert,

Try this and see what you think:

#include <GUIConstantsEx.au3>
#include <WindowsConstants.au3>
#include <GuiRichEdit.au3>
#include <WinAPI.au3>

Global $iEdit_Count = 4                 ; Number of edits
Global $iFont_Size = 14                 ; Base font size
Global $iEdit_Height = $iFont_Size * 2  ; Initial height of edits
Global $iEdit_Separation = 40           ; Distance from one edit to next
Global $iEdit_MaxDrop = 300             ; Max Y coord for expansion
Global $iCurrEdit_Index = 0             ; Index number of current edit - 0 = none
; Arrays to hold control data
Global $aRichEdit[$iEdit_Count + 1][4]
Global $aButton[$iEdit_Count + 1]

; Create GUI
$hGUI = GUICreate("Test", 500, 500)

; Create edit controls and focus buttons
For $i = 1 To $iEdit_Count
    $aRichEdit[$i][0] = _GUICtrlRichEdit_Create($hGUI, "", 10, ($i * $iEdit_Separation) - 30, 300, $iEdit_Height, BitOR($ES_MULTILINE, $WS_VSCROLL))
    _GUICtrlRichEdit_SetFont($aRichEdit[$i][0], $iFont_Size)
    $aRichEdit[$i][1] = 1 ; Lone count - 1 line by default
    $aRichEdit[$i][2] = $iEdit_MaxDrop - (($i * $iEdit_Separation) - 30) ; Max size for expansion
    $aButton[$i] = GUICtrlCreateButton("< " & $i, 320, ($i * $iEdit_Separation) - 30, 30, 20)
Next

; Just to have another control
$cTest_Button = GUICtrlCreateButton("Test", 10, 300, 80, 30)
GUICtrlSetState($cTest_Button, $GUI_FOCUS)

GUISetState()

While 1

    $iMsg = GUIGetMsg()
    Switch $iMsg
        Case $GUI_EVENT_CLOSE
            Exit
        Case $cTest_Button
            MsgBox($MB_SYSTEMMODAL, "Hi", "Just for testing")
        Case Else
            ; Check if a focus button
            For $i = 1 To $iEdit_Count
                If $aButton[$i] = $iMsg Then
                    ; Focus edit
                    _WinAPI_SetFocus($aRichEdit[$i][0])
                    $iCurrEdit_Index = $i
                    ; Show all edits at original size
                    _ResetAllEdits()
                    ; Reset required depth for edit
                    _CheckRichEditLineCount($i, True)
                    ExitLoop
                EndIf
            Next
    EndSwitch

    ; Check for curent focus
    $hCurrFocus = _WinAPI_GetFocus()
    For $i = 1 To $iEdit_Count
        ; It is an edit
        If $aRichEdit[$i][0] = $hCurrFocus Then
            ; But a new one
            If $iCurrEdit_Index <> $i Then
                ; Set focus to new edit
                $iCurrEdit_Index = $i
                ; Show all edits at original size
                _ResetAllEdits()
                ; Reset required depth for edit
                _CheckRichEditLineCount($i, True)
            Else
                ; Check for changes in edit
                If _GUICtrlRichEdit_IsModified($aRichEdit[$i][0]) Then
                    ; Set required depth if changes made
                    _CheckRichEditLineCount($i)
                    ; Reset flag
                    _GUICtrlRichEdit_SetModified($aRichEdit[$i][0], False)
                EndIf
            EndIf
            ; No point in looking further
            ExitLoop
        EndIf
    Next
    ; If no edits focused
    If $i > $iEdit_Count And $iCurrEdit_Index <> 0 Then
        ; Show all edits at original size
        _ResetAllEdits()
        $iCurrEdit_Index = 0
    EndIf

WEnd

Func _ResetAllEdits()

    ; Resize and show all edits
    For $i = 1 To $iEdit_Count
        WinMove($aRichEdit[$i][0], "", Default, Default, Default, $iEdit_Height)
        ControlShow($hGUI, "", $aRichEdit[$i][0])
    Next

EndFunc   ;==>_ResetAllEdits

Func _CheckRichEditLineCount($iIndex, $fReset = False)

    Local $iEdit_Depth = 0, $iEdit_Bottom

    Local $aEdit_Font = _GUICtrlRichEdit_GetFont($aRichEdit[$iIndex][0])
    ; Check if all same font
    If $aEdit_Font[0] = 0 Then
        ; Not all the same size so max edit immediately
        WinMove($aRichEdit[$iIndex][0], "", Default, Default, Default, $aRichEdit[$i][2])
        _Check_Visible($iIndex, $aRichEdit[$i][2])
    Else
        ; Get line count of current edit
        Local $iCount = _GUICtrlRichEdit_GetLineCount($aRichEdit[$iIndex][0])
        If $iCount <> $aRichEdit[$iIndex][1] Or $fReset = True Then
            ; Calulate required size
            $iEdit_Depth = ($iFont_Size * 2) + (($iFont_Size * 2) - 2) * ($iCount - 1)
            If $iEdit_Depth > $aRichEdit[$i][2] Then
                If Not $aRichEdit[$iIndex][3] Then
                    $aRichEdit[$iIndex][3] = ($iFont_Size * 2) + (($iFont_Size * 2) - 2) * ($iCount - 2)
                EndIf
                $iEdit_Depth = $aRichEdit[$iIndex][3]
            EndIf
            ; Resize edit
            WinMove($aRichEdit[$iIndex][0], "", Default, Default, Default, $iEdit_Depth)
            ; Save line count
            $aRichEdit[$iIndex][1] = $iCount
            _Check_Visible($iIndex, $iEdit_Depth)
        EndIf
    EndIf

EndFunc   ;==>_CheckRichEditLineCount

Func _Check_Visible($iIndex, $iEdit_Depth)

    ; How far down does the edit go?
    $iEdit_Bottom = ($iIndex * $iEdit_Separation) - 30 + $iEdit_Depth
    ; How far down does the edit go?
    $iEdit_Bottom = ($iIndex * $iEdit_Separation) - 30 + $iEdit_Depth
    ; Check lower edits to see if overlapped
    For $i = $iIndex + 1 To $iEdit_Count
        If ($i * $iEdit_Separation) - 30 < $iEdit_Bottom Then
            ; Hide edit if required
            ControlHide($hGUI, "", $aRichEdit[$i][0])
        Else
            ControlShow($hGUI, "", $aRichEdit[$i][0])
        EndIf
    Next
EndFunc   ;==>_Check_Visible
I have used your assumption for when non-standard font sizes are detected. :)

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

I think it's a very workable solution.  The only hitch is that typing an entry now has a strange effect on the initial line or two.  It tries to shift gears between a having a vertical scroll bar or not.  For three lines and more, it works just like before.

Share this post


Link to post
Share on other sites

qwert,

I have slightly modified the sizing code - for me this is pretty good: :)

Func _CheckRichEditLineCount($iIndex, $fReset = False)

    Local $iEdit_Depth = 0, $iEdit_Bottom

    ; Get current style
    Local $iCurr_Style   = _WinAPI_GetWindowLong($aRichEdit[$iIndex][0], $GWL_STYLE)

    Local $aEdit_Font = _GUICtrlRichEdit_GetFont($aRichEdit[$iIndex][0])
    ; Check if all same font
    If $aEdit_Font[0] = 0 Then
        ; Not all the same size so max edit immediately
        WinMove($aRichEdit[$iIndex][0], "", Default, Default, Default, $aRichEdit[$i][2])
        _Check_Visible($iIndex, $aRichEdit[$i][2])
    Else
        ; Get line count of current edit
        Local $iCount = _GUICtrlRichEdit_GetLineCount($aRichEdit[$iIndex][0])
        If $iCount <> $aRichEdit[$iIndex][1] Or $fReset = True Then
            ; Calulate required size
            $iEdit_Depth = (($iFont_Size * 2) + 1) + (($iFont_Size * 2) - 2) * ($iCount - 1)
            If $iEdit_Depth > $aRichEdit[$i][2] Then
                If Not $aRichEdit[$iIndex][3] Then
                    $aRichEdit[$iIndex][3] = (($iFont_Size * 2) + 1) + (($iFont_Size * 2) - 2) * ($iCount - 2)
                EndIf
                $iEdit_Depth = $aRichEdit[$iIndex][3]
            EndIf
            ; Resize edit
            WinMove($aRichEdit[$iIndex][0], "", Default, Default, Default, $iEdit_Depth)
            ; Save line count
            $aRichEdit[$iIndex][1] = $iCount
            _Check_Visible($iIndex, $iEdit_Depth)
        EndIf
    EndIf

EndFunc   ;==>_CheckRichEditLineCount
There is still a flash of scrollbar but that is to be expected as the resizing takes a short time to be applied and until then the edit thinks it needs a scroll bar. ;)

And I think that is it as far as I am concerned. Good luck with the rest of the project. :bye:

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Thank you for making the extra effort.  This result will be very useful.

My goal now is to understand these things to the point that they become familiar tools in my own working set.  Your use of an array for the field defs, for example, opens up a new dimension of possibilities (pun not intended).  It's not something I normally think to do, so it's another learning experience.

I really appreciate what you've provided.

Share this post


Link to post
Share on other sites

qwert,

Glad I could help. Please do ask if you have any questions about how or why I did something particular. :)

M23


Any of my own code posted anywhere on the forum is available for use by others without any restriction of any kind._______My UDFs:

Spoiler

ArrayMultiColSort ---- Sort arrays on multiple columns
ChooseFileFolder ---- Single and multiple selections from specified path treeview listing
Date_Time_Convert -- Easily convert date/time formats, including the language used
ExtMsgBox --------- A highly customisable replacement for MsgBox
GUIExtender -------- Extend and retract multiple sections within a GUI
GUIFrame ---------- Subdivide GUIs into many adjustable frames
GUIListViewEx ------- Insert, delete, move, drag, sort, edit and colour ListView items
GUITreeViewEx ------ Check/clear parent and child checkboxes in a TreeView
Marquee ----------- Scrolling tickertape GUIs
NoFocusLines ------- Remove the dotted focus lines from buttons, sliders, radios and checkboxes
Notify ------------- Small notifications on the edge of the display
Scrollbars ----------Automatically sized scrollbars with a single command
StringSize ---------- Automatically size controls to fit text
Toast -------------- Small GUIs which pop out of the notification area



Share this post


Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!


Register a new account

Sign in

Already have an account? Sign in here.


Sign In Now
Sign in to follow this
Followers 0
